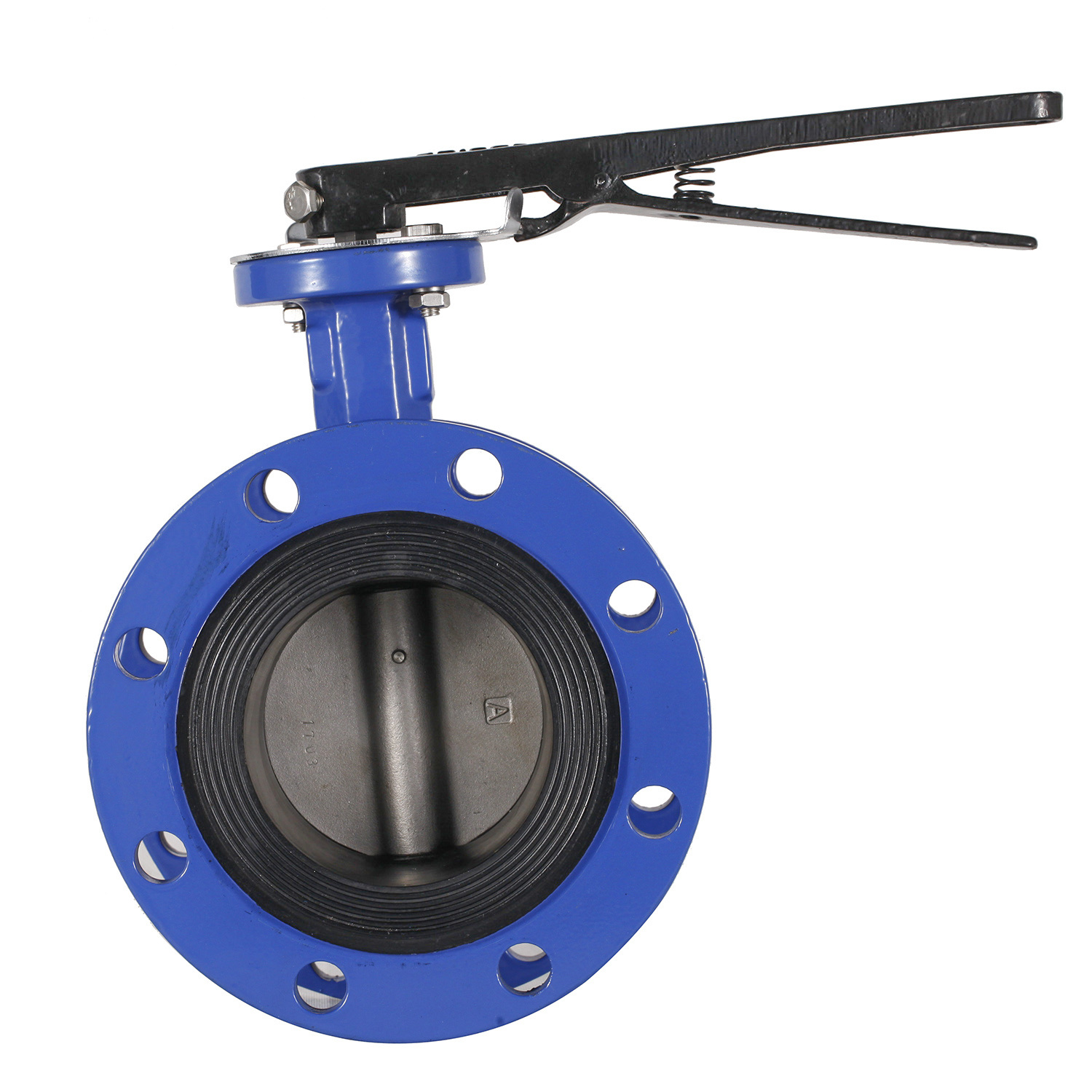

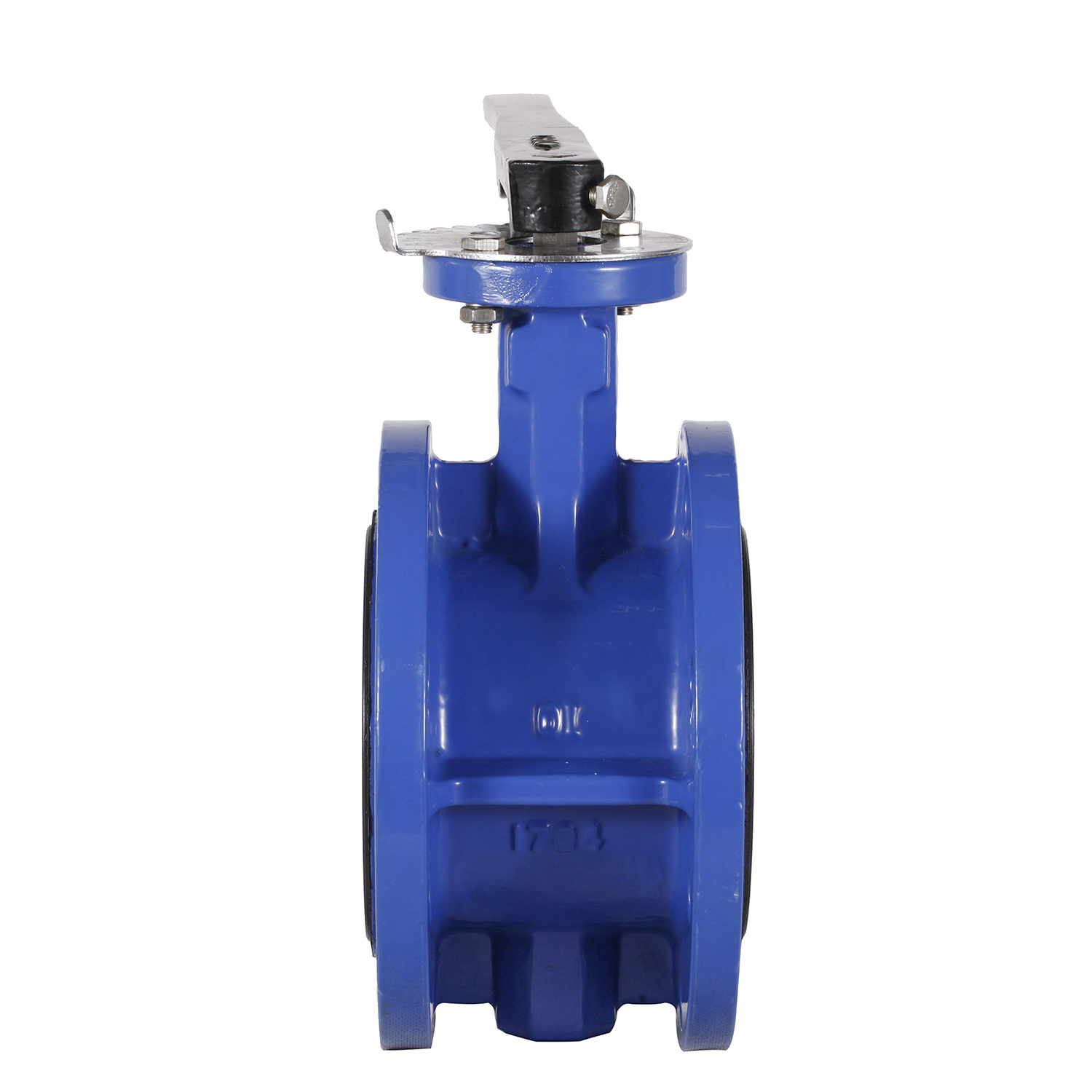

Flange center line butterfly valve
TIANJIN UNION VALVE CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Flange center line butterfly valve
TIANJIN UNION VALVE CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: cast iron
- Size: DN100
- Color: bule
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China
- Made in: Tianjin, China
About this product
- Materials: cast iron
- Size: DN100
- Color: bule
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China
- Made in: Tianjin, China
Product details
| Materials | cast iron |
|---|---|
| Size | DN100 |
| Color | bule |
Product details
| Materials | cast iron |
|---|---|
| Size | DN100 |
| Color | bule |
From the supplier
Specifications:
Size
DN50-DN1000
Nominal Pressure
PN10/16, 150-300LB
Working Temperature
-30。c - 135。C
Suitable Media
Chemicals, air, water, steam, oil, acids, salts ect
Standards:
Design standard
API609, ANSI16.34, JISB2064, GB T12238
Face to Face
API609, DIN3202, ISO5752, BS5155
Flange drilling
DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K
Top Flange
ISO5211
Test Inspection
API598
aterial:
Body
Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Disc
Ductile Iron, Carbon Steel, Stainless Steel
Stem
Stainless Steel
Seat
EPDM, NBR, PTFE, VITON, HYPALON
O ring
EPDM, NBR
From the supplier
Specifications:
Size
DN50-DN1000
Nominal Pressure
PN10/16, 150-300LB
Working Temperature
-30。c - 135。C
Suitable Media
Chemicals, air, water, steam, oil, acids, salts ect
Standards:
Design standard
API609, ANSI16.34, JISB2064, GB T12238
Face to Face
API609, DIN3202, ISO5752, BS5155
Flange drilling
DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K
Top Flange
ISO5211
Test Inspection
API598
aterial:
Body
Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Disc
Ductile Iron, Carbon Steel, Stainless Steel
Stem
Stainless Steel
Seat
EPDM, NBR, PTFE, VITON, HYPALON
O ring
EPDM, NBR
About the supplier
Main products: Valves
- ✓Exhibited at 6 recent Canton Fairs
- ✓Industry and Trade Company
- ✓Founded 2017
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- ✓1 certificate on file
- Exhibited at 6 recent Canton Fairs
- Industry and Trade Company
- Founded 2017
- Canton Fair Premium Supplier
