About this product
- Materials: steel
- Size: 25000*3500*3000
- Color: bule with gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shandong, China
About this product
- Materials: steel
- Size: 25000*3500*3000
- Color: bule with gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shandong, China
Product details
| Materials | steel |
|---|---|
| Size | 25000*3500*3000 |
| Color | bule with gray |
From the supplier
Production Instruction
This machine is suitable for producing different specifications of virgin and recycled PP,HDPE monofilament yarn.
It is widely used in the production of fishing nets,sunshade nets, building safety nets,insect-proof nets,climbing nets,
vegetable nets and other products.The whole machine has compact structure,point-to-point lubrication system for gear,
new professional technology for spinneret to ensure the smoothness and uniformity of the yarn.The machine has the
characteristics of smooth running,accurate control,easy operation,safe and reliable.
Production Items and Models
Production Features

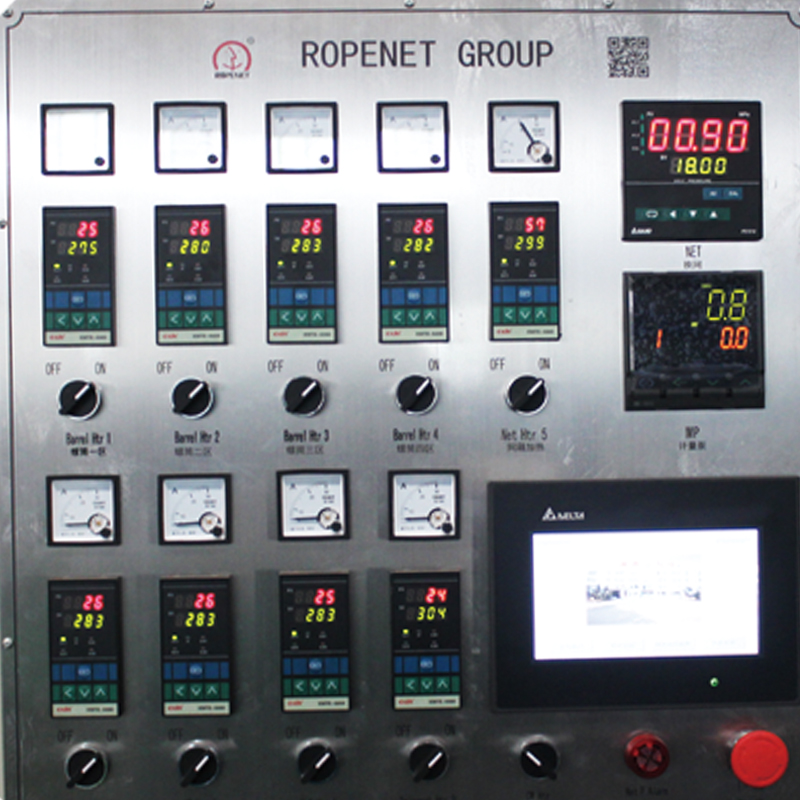

- PLC man-machine interaction interface:realizing intelligent operation of touch screen and monitoring operation status of machine;realizing the functions of monitoring the operation status and parameters setting in mobile APP.
- Set up joint adjustment and linkage device for the main engine and traction to realize synchronous adjustment of speed, stable process and easy operation.

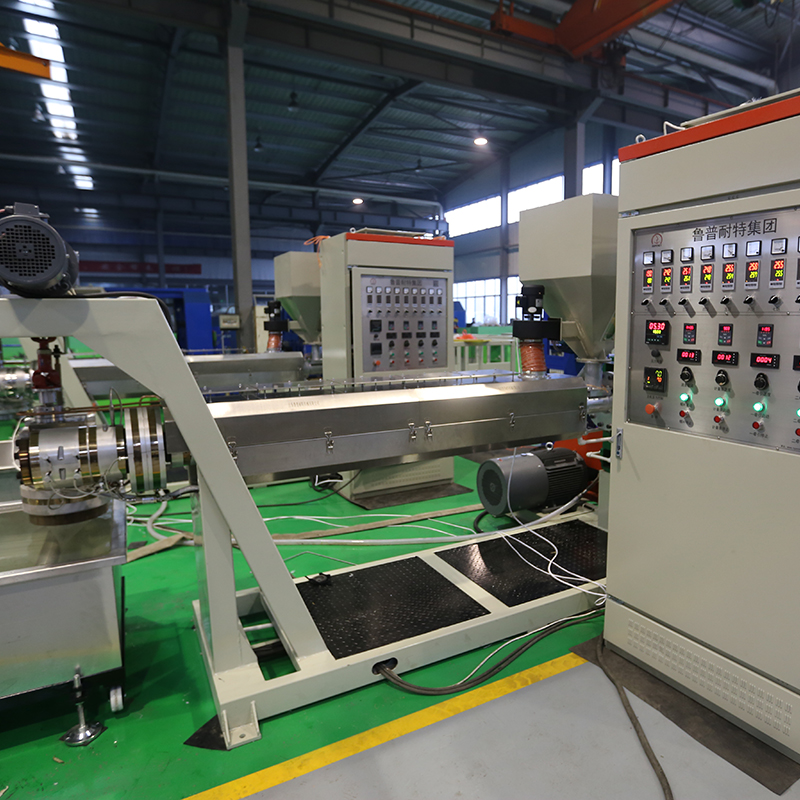

The 38CrMoALA high-strength alloy steel screw barrel and screw rod treated with nitrification are combined with the length-diameter ratio of 33:1 to make the raw materials have good plasticization, high extrusion pressure, uniform diameter, corrosion resistance and wear resistance.

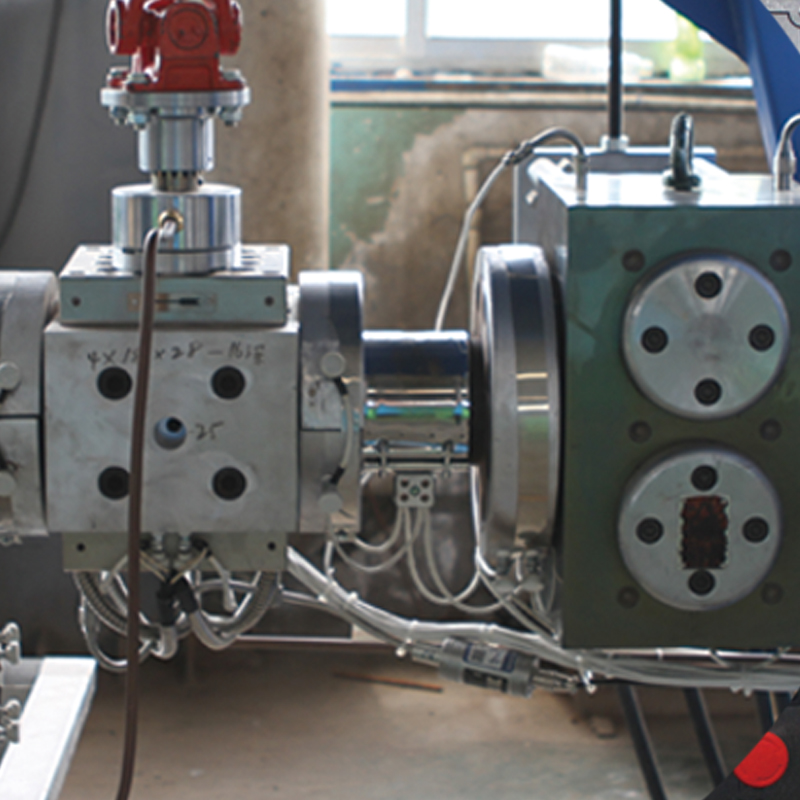

Add metering pump to the machine head, so that the pressure is stable, the raw materials are better plasticized, and the spinneretting is even.
The main motor shall be international brand Siemens and designated by the customer
Domestic well-known brands are used for electrical appliances and reducer.
Visual detection system for yarn-breaking:embedded industrial camera imaging can accurately monitor the number of yarns and realize automatic alarm for yarn-breaking.
Novel die head structure, equipped with high efficiency, energy saving filter device, make the operation more simple.
Filters: realize automatic net changing technology without stopping.

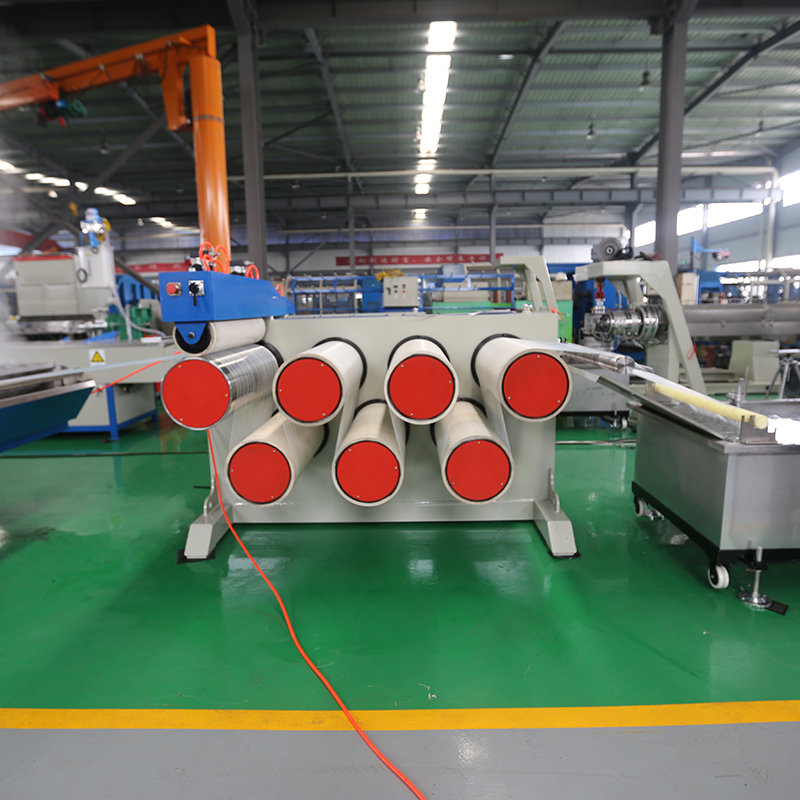

The tractor adopts helical gear transmission, point-to-point centralized lubrication, low noise, large transmission torque, stable performance and long service life.

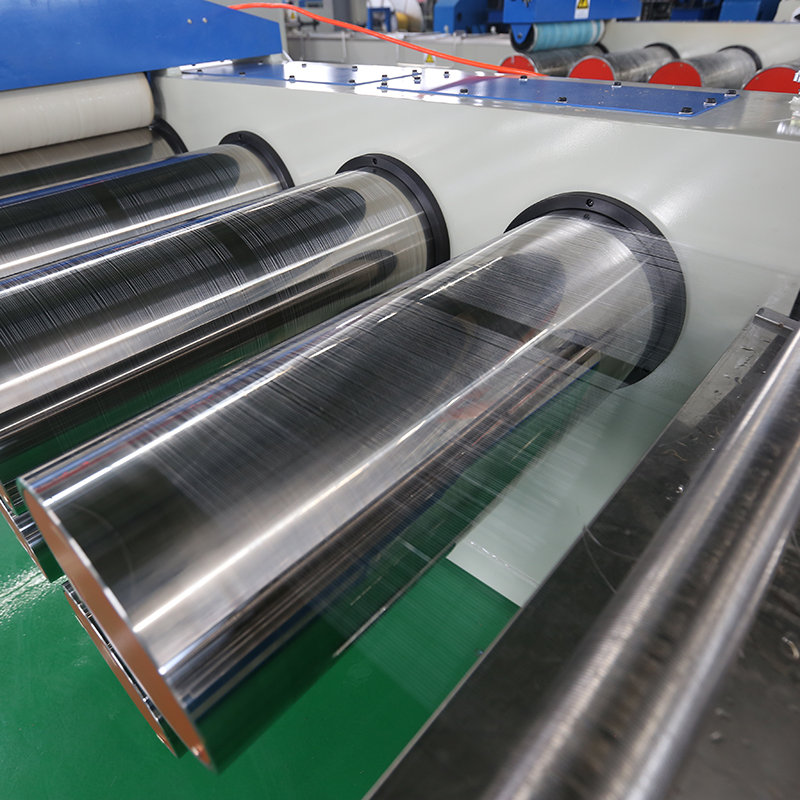

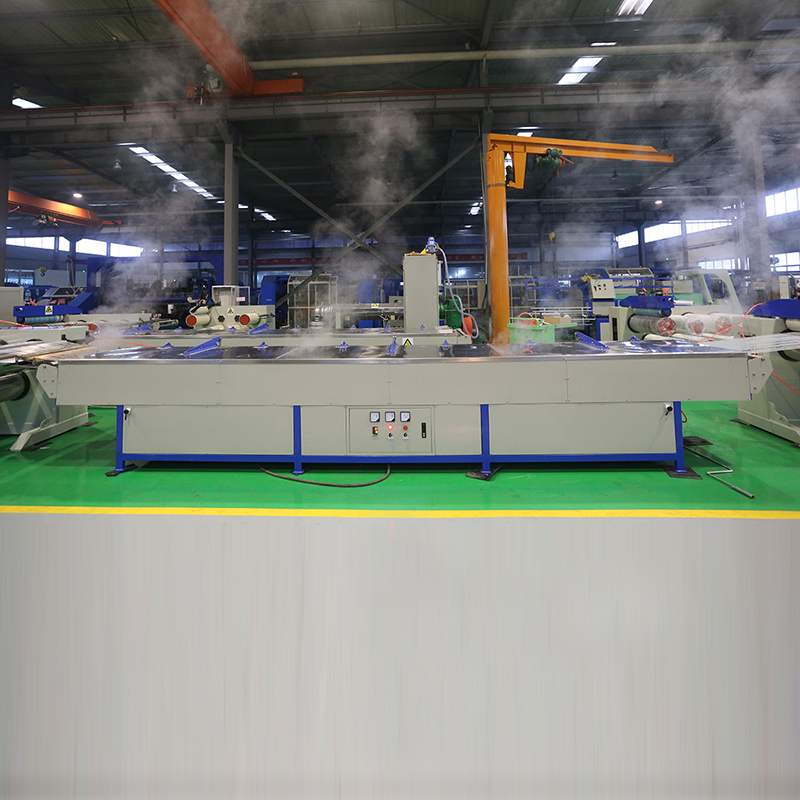

Hot and cold water tank and stretch roller are made of 304 stainless steel, beautiful and corrosion-resistant.

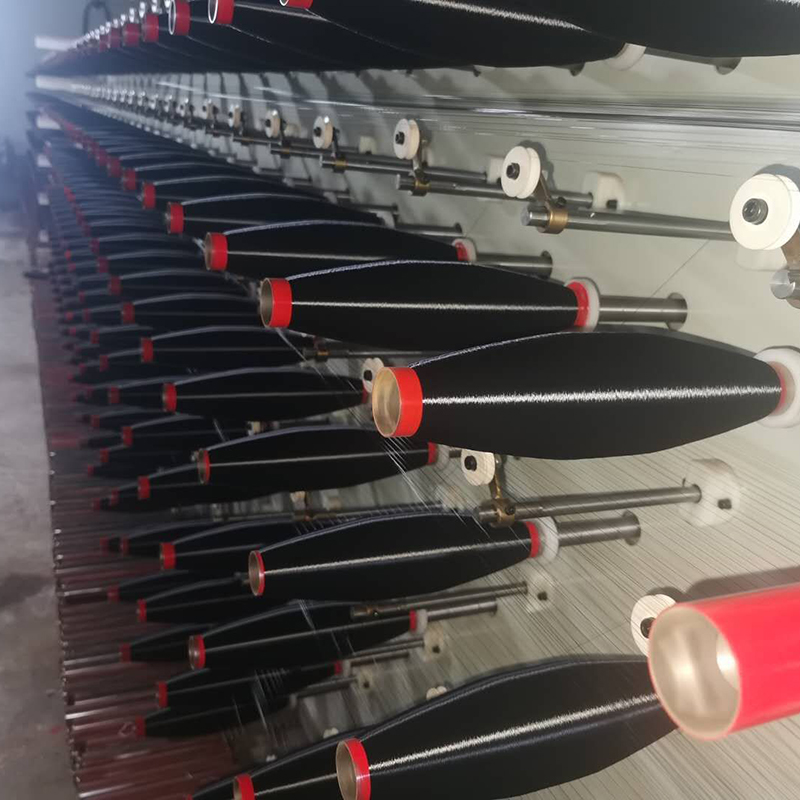

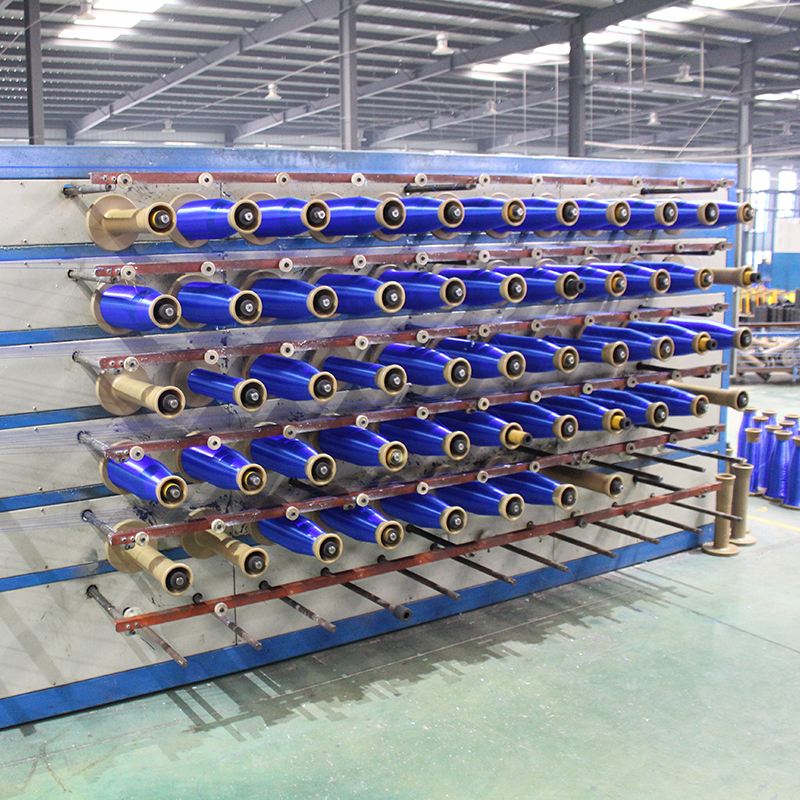

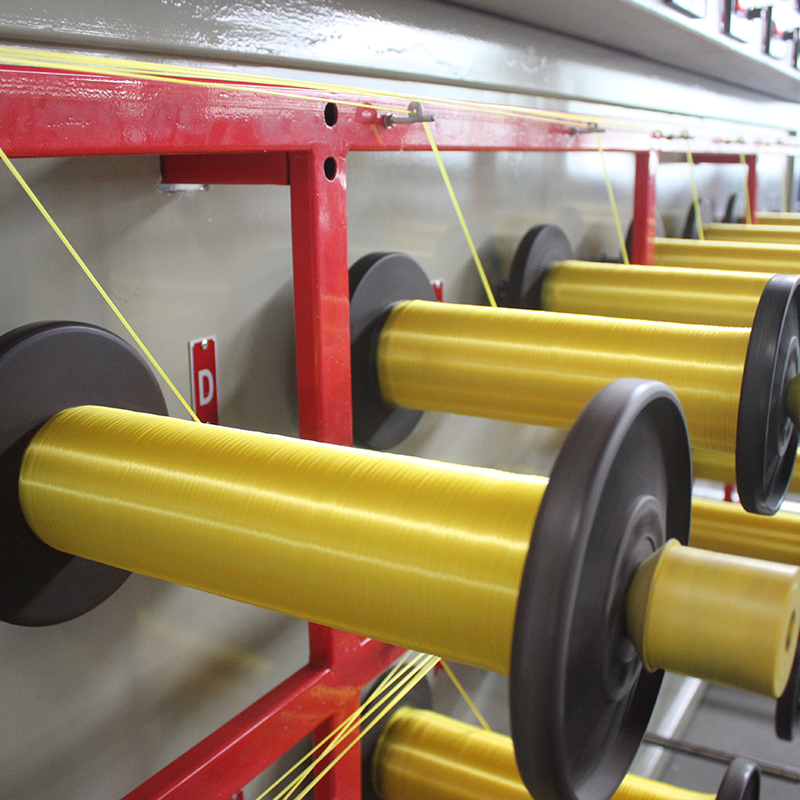

The rewinding is carried out by the torque motor and combined with the torque governor to make the product force balanced and arranged beautifully;The use of smooth rod wire, winding stable low noise, energy saving.
- New and recycled materials can be selected
- High output, stable performance, easy operation and maintenance
