About this product
- Size: Touch Screen:10.1 inch
- Color: Gray
- Signal: Other
- Material: Other
- Function: Monitoring
- Customized: Non-Customized
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: Touch Screen:10.1 inch
- Color: Gray
- Signal: Other
- Material: Other
- Function: Monitoring
- Customized: Non-Customized
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | Touch Screen:10.1 inch |
|---|---|
| Color | Gray |
| Signal | Other |
| Material | Other |
| Function | Monitoring |
| Customized | Non-Customized |
| Structure | Other |
| Task | Program |
| Mathematical model | Other |
From the supplier

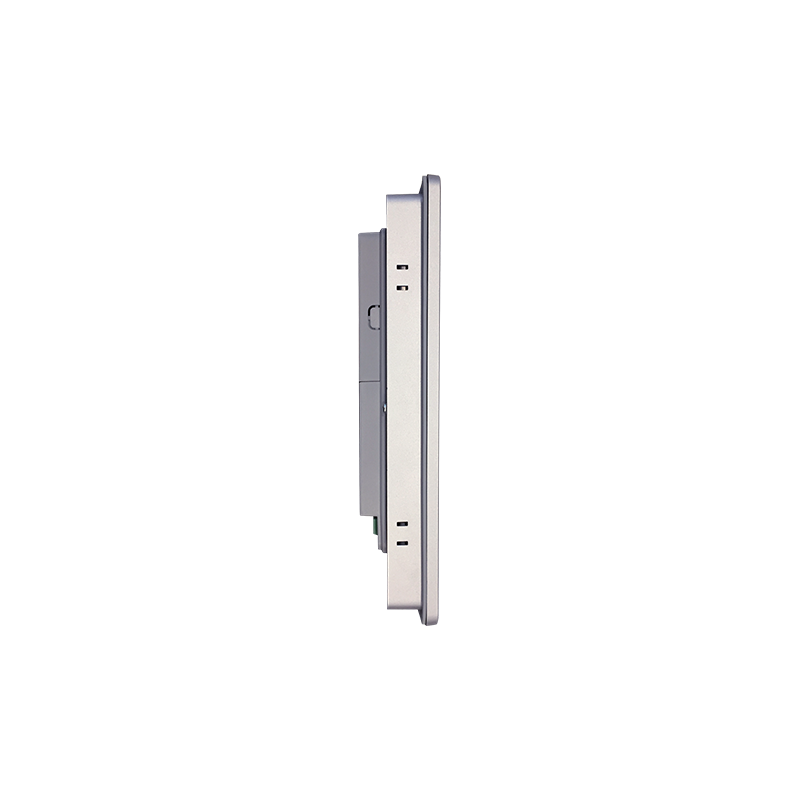

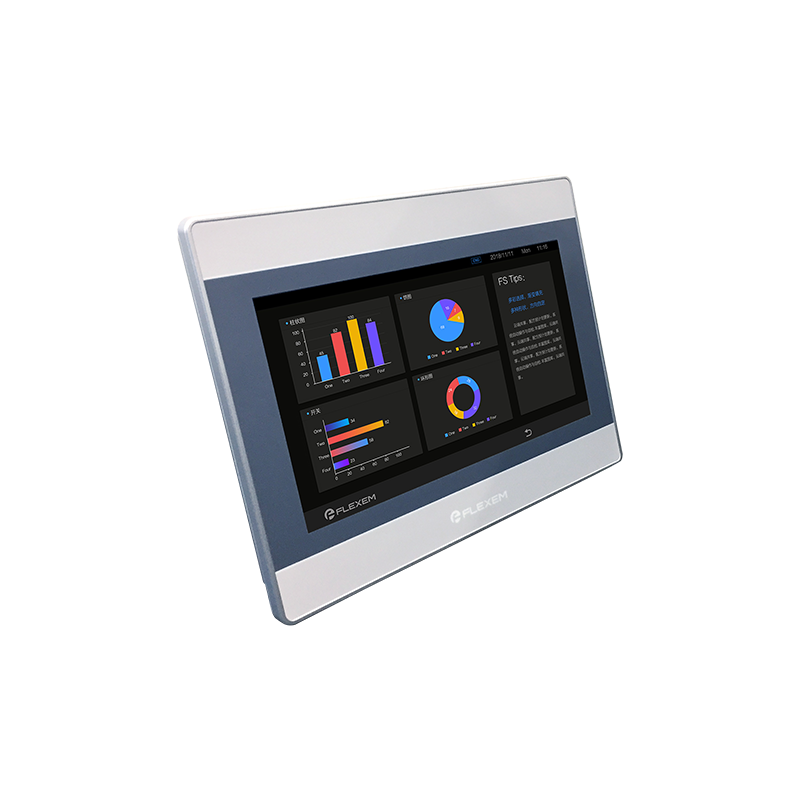

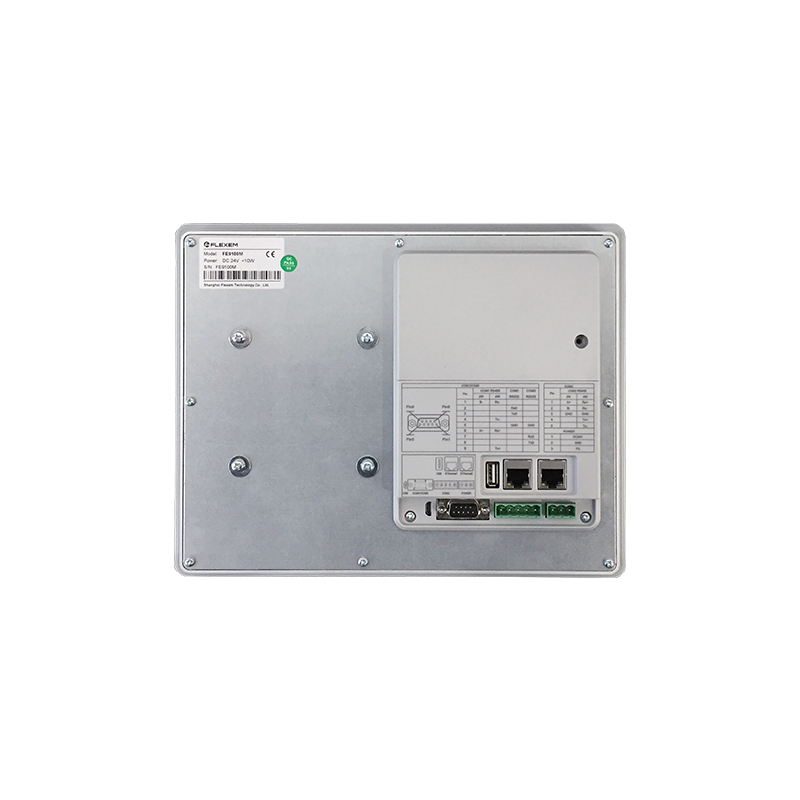

Flexem FE9100M enhanced touchscreen, featuring a 10.1" resistive touch screen, gray metal enclosure, high-definition high-brightness full-view display, 1024x600 resolution, 24-bit colors, high-performance CPU, high-capacity storage, and 2 Ethernet port, provides a high-performance touch-and-control solution.
FEATURES FE9100M Display 7" 16:9 TFT LCD LCD Viewing Angles(T/B/L/R) 85'/85'/85'/85' Resolution 1024×600 Colors 16-bit Brightness 400 cd/m² Backlight LED LCD Lifetime 50000 hours Touch Panel 4-wire resistive touchscreen CPU 1.2GHz，4 cores Cortex-A53 Storage 8GB Flash + 1GB DDR3 RTC Built-in SD Card NA Ethernet port 2* 10M/100M self-adaptive RJ45 port USB Port 1*USB Slave 2.0 port, 1*USB Host 2.0 port Download Method USB slave/Flash drive/Ethernat Serial port COM1: RS232/RS485/RS422, COM2: RS485, COM3: RS232 Rated power <10W Input Voltage DC24V,Working range DC9V-28V Power supply protection With lightning surge protection Power Interruption Tolerance <5mS Certification CE,RoHS Operating Temperature -10-60℃ StorageTemperature -20-70℃ UV Resistance Operating in high UV environment is prohibited Environmental Humidity 10-90%RH(Non condensing) Vibration Endurance 10-25Hz(X,Y,Z direction 2G/30 minutes) Cooling Mode Natural Cooling Protection Level Front:IP65,Rear:IP20 Enclosure Material Aluminum alloy Cutout Size 260mm×202mm Dimensions 274mm×214mm×39mm Weight About 1450g
