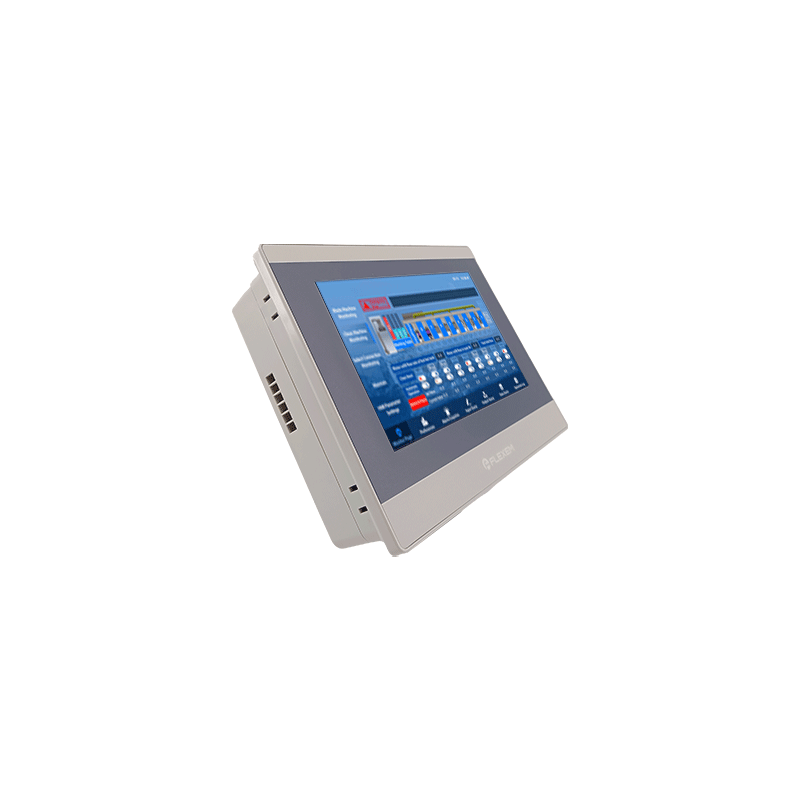

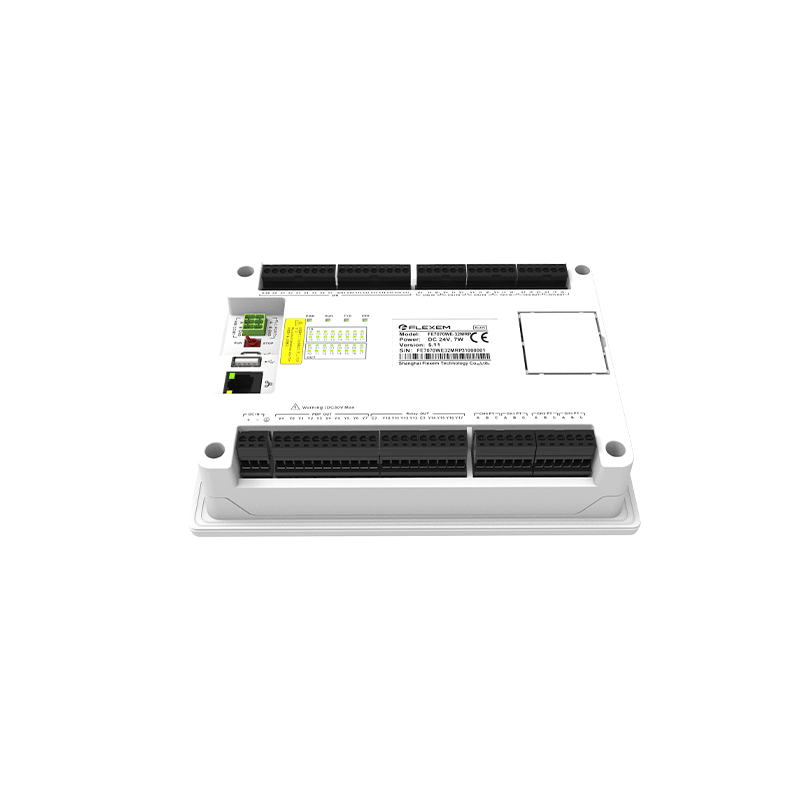

FE7070WE-32MR is a cost-effective HMI+PLC all-in-one solution. It has 7" resistive touch screen, and 16I+16O (8*NPN + 8*Relay) PLC. The cutout size is 7 inch with high density, and space-saving features. Main-board conformal coating, adapting to various harsh environments. User-friendly configuration software, easy to use. Easy to install.

FEATURES FE7070WE-32MR Human-Machine Interface Display Display 7" 16:9 TFT LCD Resolution 1024×600 Colors 24-bit Brightness 350 cd/m² Backlight LED LCD Lifetime 50000 hours Touch Panel 4-wire industrial resistive touch panel CPU Cortex-A7(1GHz,dual-core) Storage 128MB DDR3+4GB EMMC RTC Built-in Ethernet 1*RJ45,10M/100M self-adaptive USB Port 1*USB Type-C 2.0 port;1*USB Type-A 2.0 port Serial Port 1*RS485(COM1),signal isolation Program Download Method USB/USB Slave/Ethernet LCD Viewing Angles(T/B/L/R) 85°/85°/85°/85° Configuration Software FStudio Corresponding HMI
Model in FStudio Sotware FE7070WE Programmable Logic Controller CPU ARM 32-bit CortexTM-M3 CPU Digital Input 16-channel Input Digital Output 8-channel Transistor(NPN)Output + 8-channel Relay Output Analog Input 4 channels,4~20mA/0~10V,16-bit resolution,signal isolated Analog Output 2 channels,4~20mA/0~10V,12-bit resolufion,signal
isolated PT100 4 channels,three-wire PT100,signal isolated User Program Memory 150K Bytes Non-volatile Memory or Retentive Memory 4K Bytes Timer In total: 256
100ms Timer:206(timing range from 0.1 to3276.7 seconds)
10ms Timer:46(timing range from 0.01 to327.67 seconds)
1ms Timer: 4 (timing range from 0.001 to 32.767 seconds) Counter 235 High-Speed Interrupt Rising and falling edge interrupts on X0~X4,3 timer interrupts Program Execufion Mode Cyclic Scanning Processing Speed General Instructions:0.1μs
Functional Instructions (ON state 5μs;OFF state 0.5μs) Programming Language Ladder Diagram &Standard C Language Serial Communication Port 1*RS485(PORT1),supports Mitsubishi FX2N and
Modbus RTU protocol,signal isolated Programming Port USB Programming Software FlexLogic Corresponding PLC Model in FlexLogic Software FL3-32MR-DC HMI+PLC All-in-One Machine Rated Power <10W Rated Voltage DC24V,operatonal range:DC 18V~30V Power Protection With an isolated power supply module,lightning surge
protection Power Interruption
Tolerance <5ms CE & RoHS EN61000-6-2:2019 and EN61000-6-4:2019 standards certified;
RoHS certified;lightning surge±1kV；
group pulse±2kV;electrostatic contact 4kV,air discharge 8kV Operating Temperature 0~50℃ Storage Temperature -20~60℃ UV Resistance Operating in hgh UV environment is prohibited (e.g.,in direct sunlight) Environmental Humidity 10%~90%RH (non-condensing) Vibration Endurance 10~25Hz(X/Y/Z direction,2G/30 minutes) Cooling Method Natural air cooling Protection Level Front:IP65(with flush panel cabinet installation),Rear：IP20 Conformal Coating Mainboard conformal coating,and glue dispensing Enclosure Material Engineering Plastics Cutout Dimensions 190mm×136mm Dimensions 204mm×145mmX48mm Weight About 750g
