About this product
- Size: 130mm×94mm×48mm
- Color: Blake
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: 130mm×94mm×48mm
- Color: Blake
- Exports to: Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | 130mm×94mm×48mm |
|---|---|
| Color | Blake |
Product details
| Size | 130mm×94mm×48mm |
|---|---|
| Color | Blake |
From the supplier

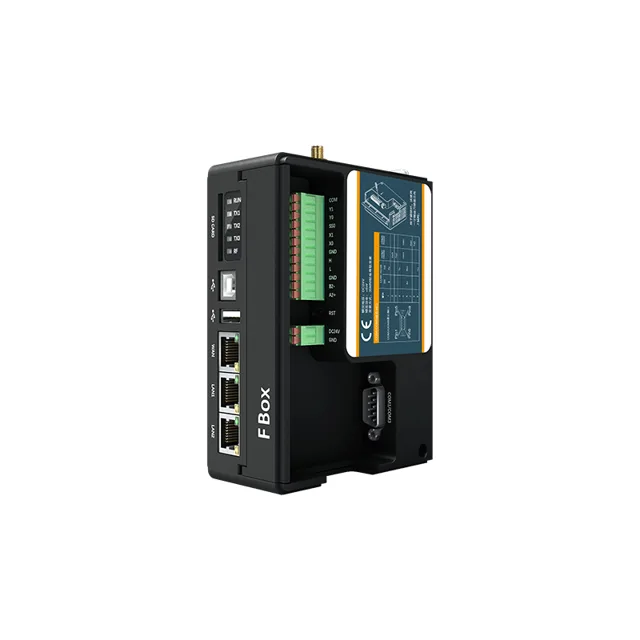

FBox series products are on-site intelligent data acquisition terminals in the industrial Internet of Things platform, which can easily realize remote data acquisition, remote download and remote maintenance of on-site equipment.
FEATURES FBox-Wifi Network Access Ethernet,WiFi CPU 600MHz ARM Cortex-A8 Storage 128MB Flash+128MB DDR3 Ethernet 3 lines of 10M/100M Ethernet Port SD Card Available USB Port 1 USB Device 2.0, 1 USB Host 2.0 IO Port 2-line optoelectronic isolated digital input,
2-line relay output (Maximum 5A) Serial Communication Ports COM1:RS232/RS485/RS422,COM2:RS485,COM3:RS232 Network Frequency Range IEEE802.11b/g/n
compatible WLAN
IEEE 802.11e
QoS Enhancement(WMM) RTC Built-in Rated Power <5W Input Voltage DC24V,working range:DC9V-28V PowerProlection Protect from thunder strike and surging Power Interruption Tolerance <3mS Certification CE,RoHS Operating Temperature -10-60℃ Storage Temperature -20-70℃ Environmental Humidity 10-90%RH (Non condensation) Vibration Endurance 10-25Hz(X/Y/Z direction 2G/30minutes) Cooling Natural cooling Dimensions 130mm×94mm×48mm(without antenna) Weight About 320g Endosure Material Engineering plastic Transparent Transmission / VPN Transparent Transmission Available Data Monitoring 300 points Alarm Item 100points Historical Item 30 points Hisiorical Data Storage Duration 180 days Edge Computing It supports scipts programming Network Protocols It supports over 400 industrial devices protocols Management & Maintenance Support import,export,and remote update of configuration files
From the supplier
FBox series products are on-site intelligent data acquisition terminals in the industrial Internet of Things platform, which can easily realize remote data acquisition, remote download and remote maintenance of on-site equipment.
FEATURES FBox-Wifi Network Access Ethernet,WiFi CPU 600MHz ARM Cortex-A8 Storage 128MB Flash+128MB DDR3 Ethernet 3 lines of 10M/100M Ethernet Port SD Card Available USB Port 1 USB Device 2.0, 1 USB Host 2.0 IO Port 2-line optoelectronic isolated digital input,
2-line relay output (Maximum 5A) Serial Communication Ports COM1:RS232/RS485/RS422,COM2:RS485,COM3:RS232 Network Frequency Range IEEE802.11b/g/n
compatible WLAN
IEEE 802.11e
QoS Enhancement(WMM) RTC Built-in Rated Power <5W Input Voltage DC24V,working range:DC9V-28V PowerProlection Protect from thunder strike and surging Power Interruption Tolerance <3mS Certification CE,RoHS Operating Temperature -10-60℃ Storage Temperature -20-70℃ Environmental Humidity 10-90%RH (Non condensation) Vibration Endurance 10-25Hz(X/Y/Z direction 2G/30minutes) Cooling Natural cooling Dimensions 130mm×94mm×48mm(without antenna) Weight About 320g Endosure Material Engineering plastic Transparent Transmission / VPN Transparent Transmission Available Data Monitoring 300 points Alarm Item 100points Historical Item 30 points Hisiorical Data Storage Duration 180 days Edge Computing It supports scipts programming Network Protocols It supports over 400 industrial devices protocols Management & Maintenance Support import,export,and remote update of configuration files
About the supplier
Main products: PLC Programmable Controller Systems and Software, Human-Machine Interfaces, Servo Motors and Drives
- ✓Exhibited at 5 recent Canton Fairs
- ✓Manufacturer
- ✓Founded 2010
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- ✓1 certificate on file
Manufacturing exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
- Exhibited at 5 recent Canton Fairs
- Manufacturer
- Founded 2010
- Canton Fair Premium Supplier
