Product Description

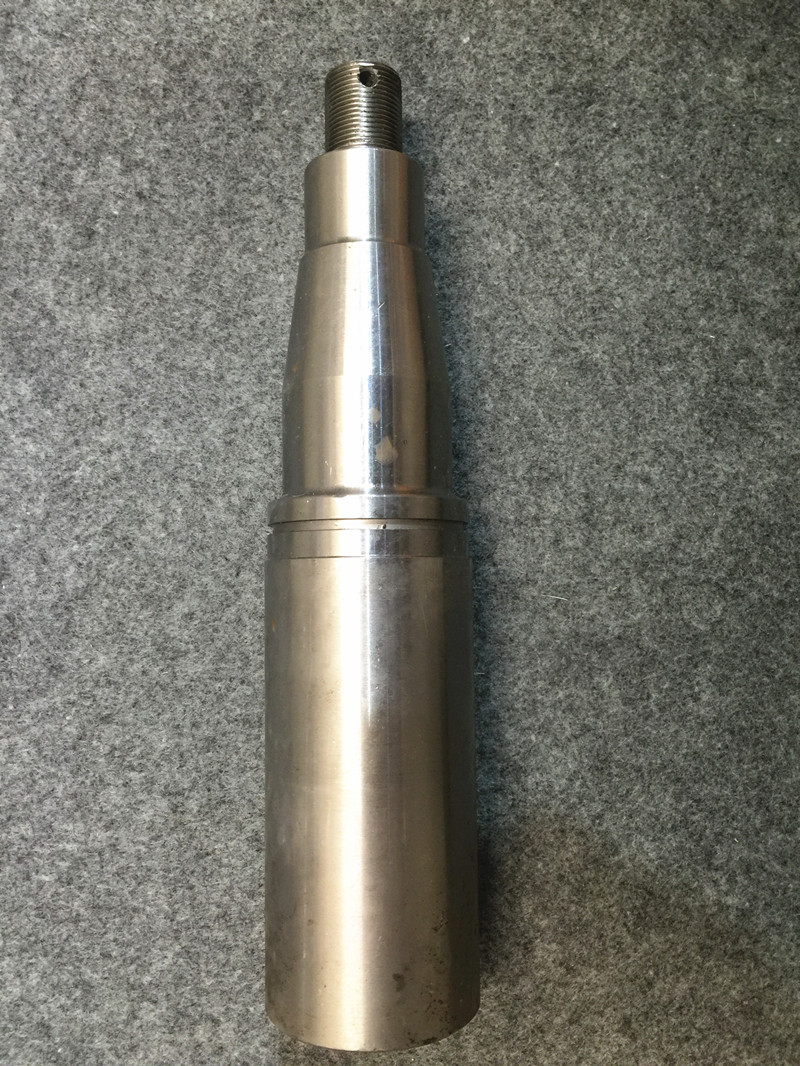

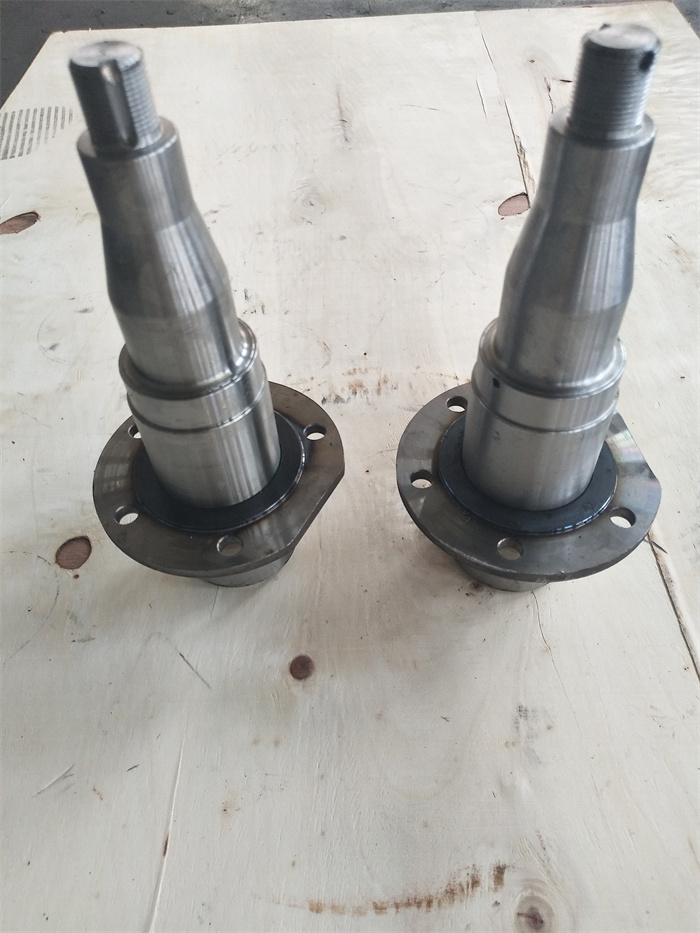

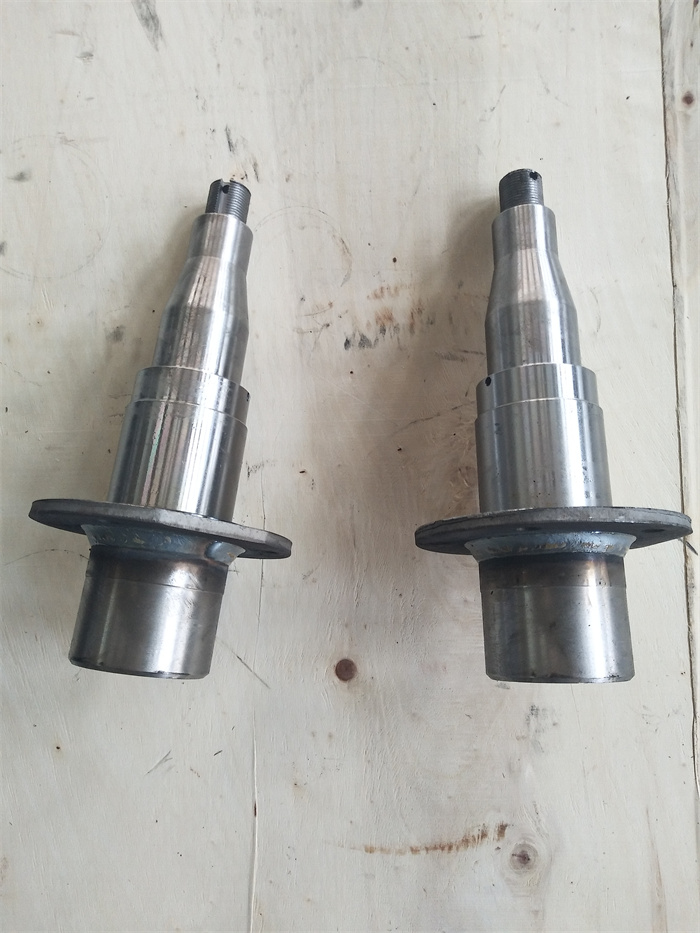

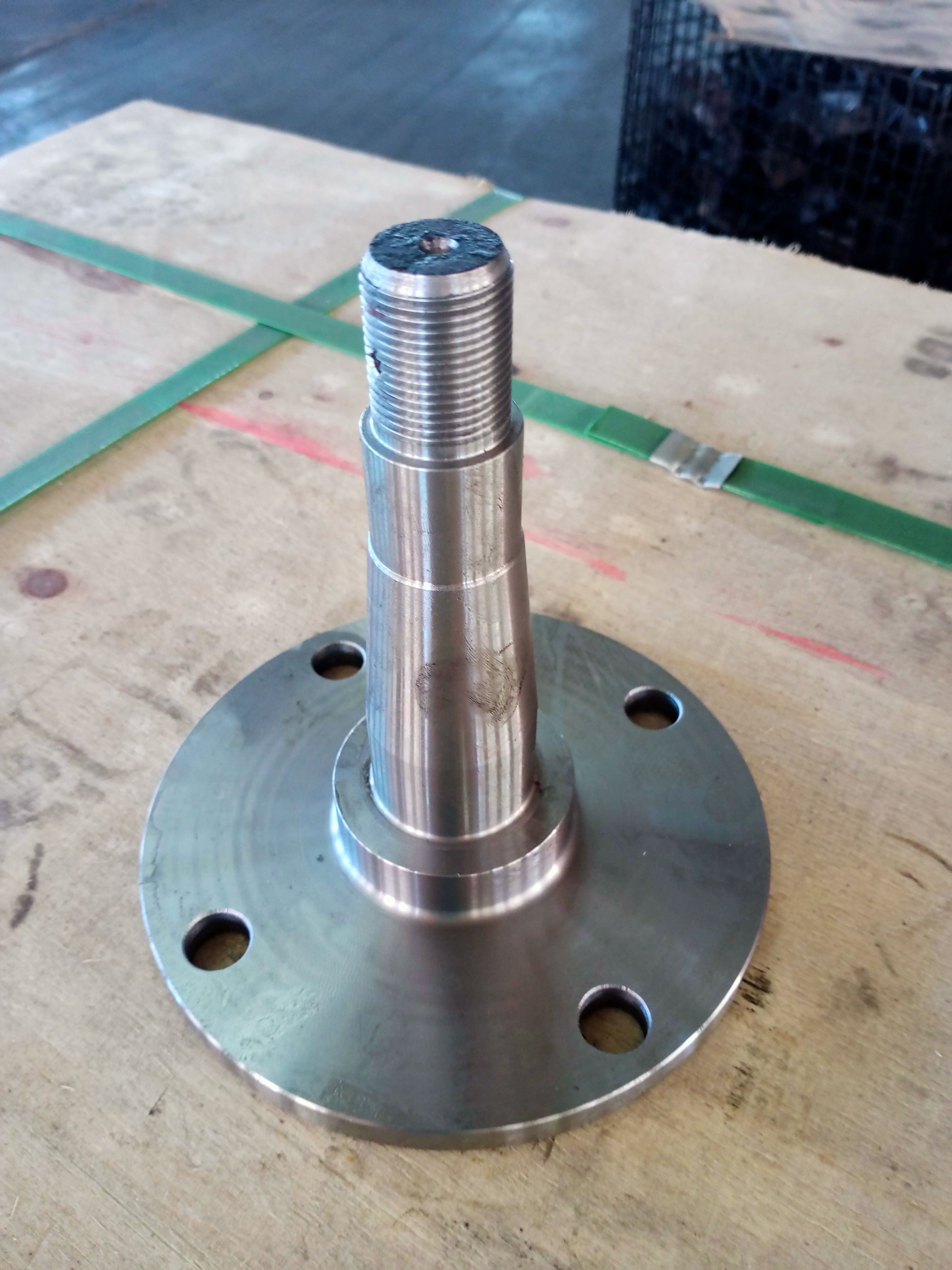

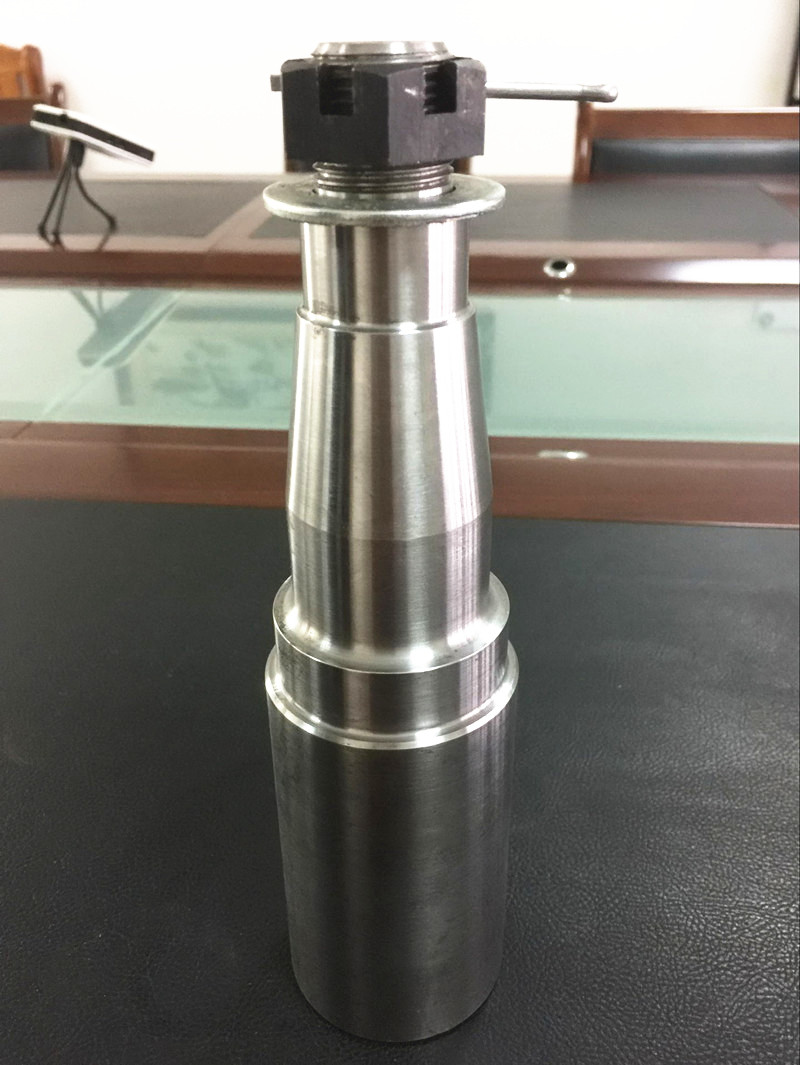

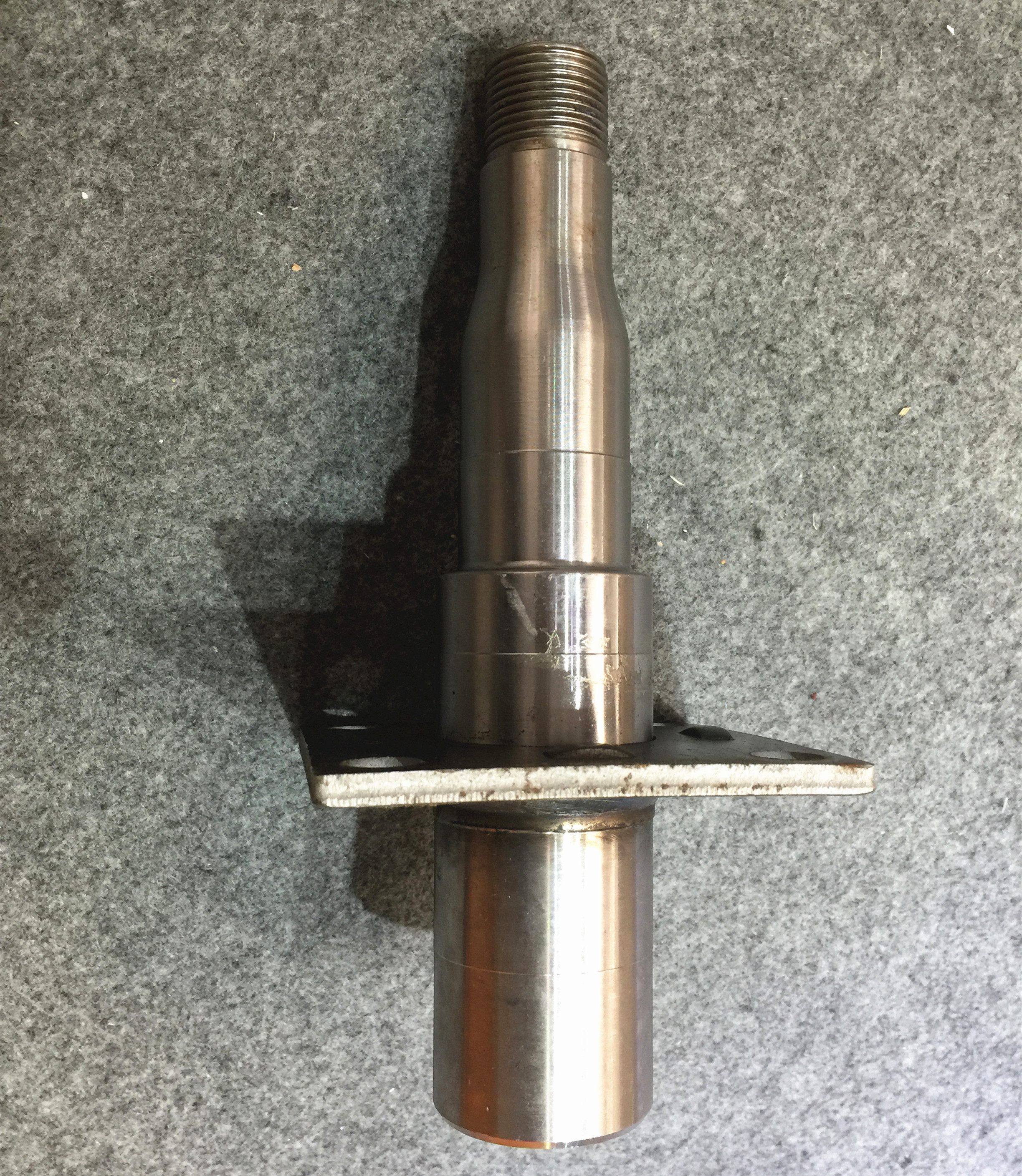

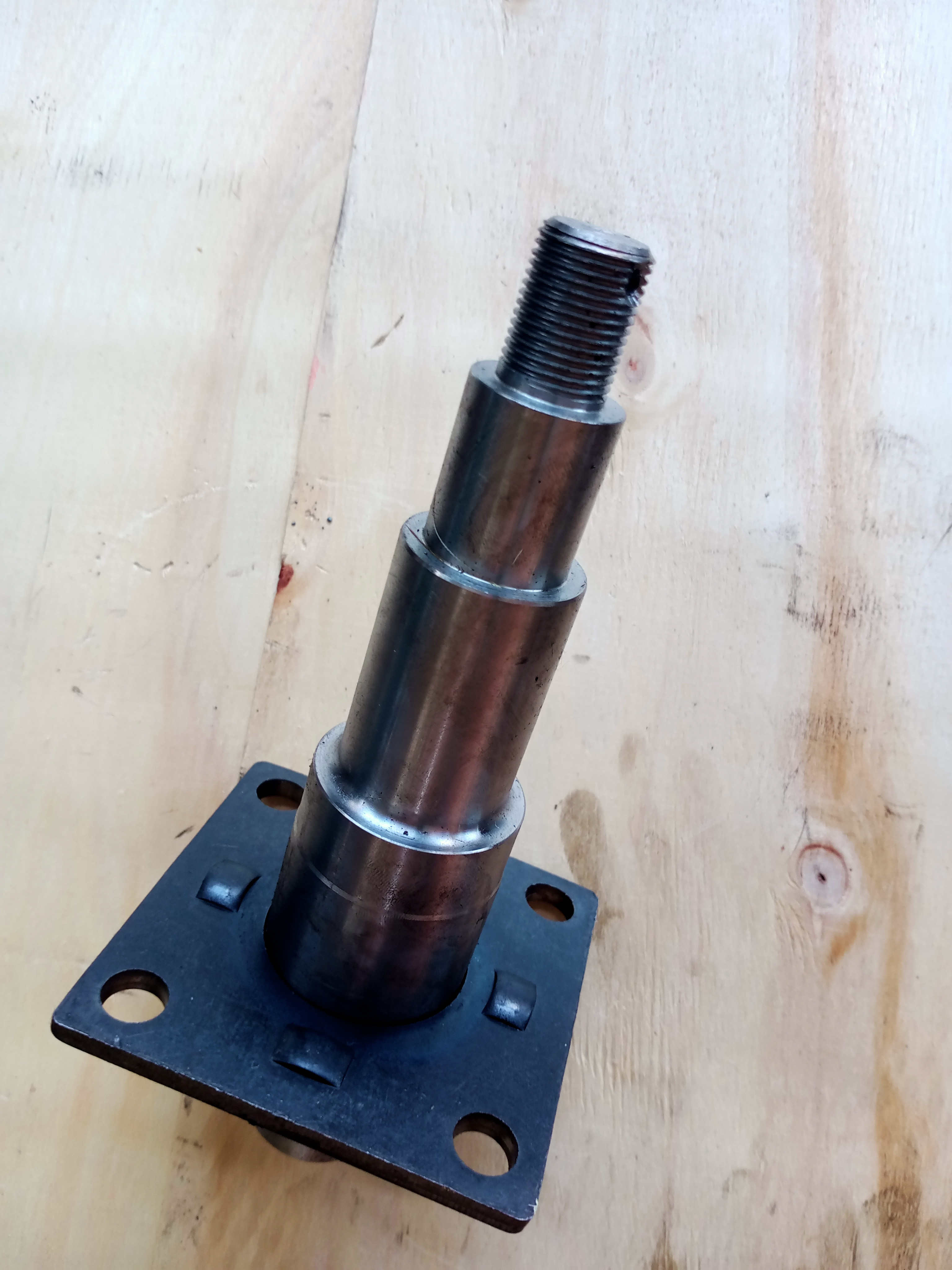

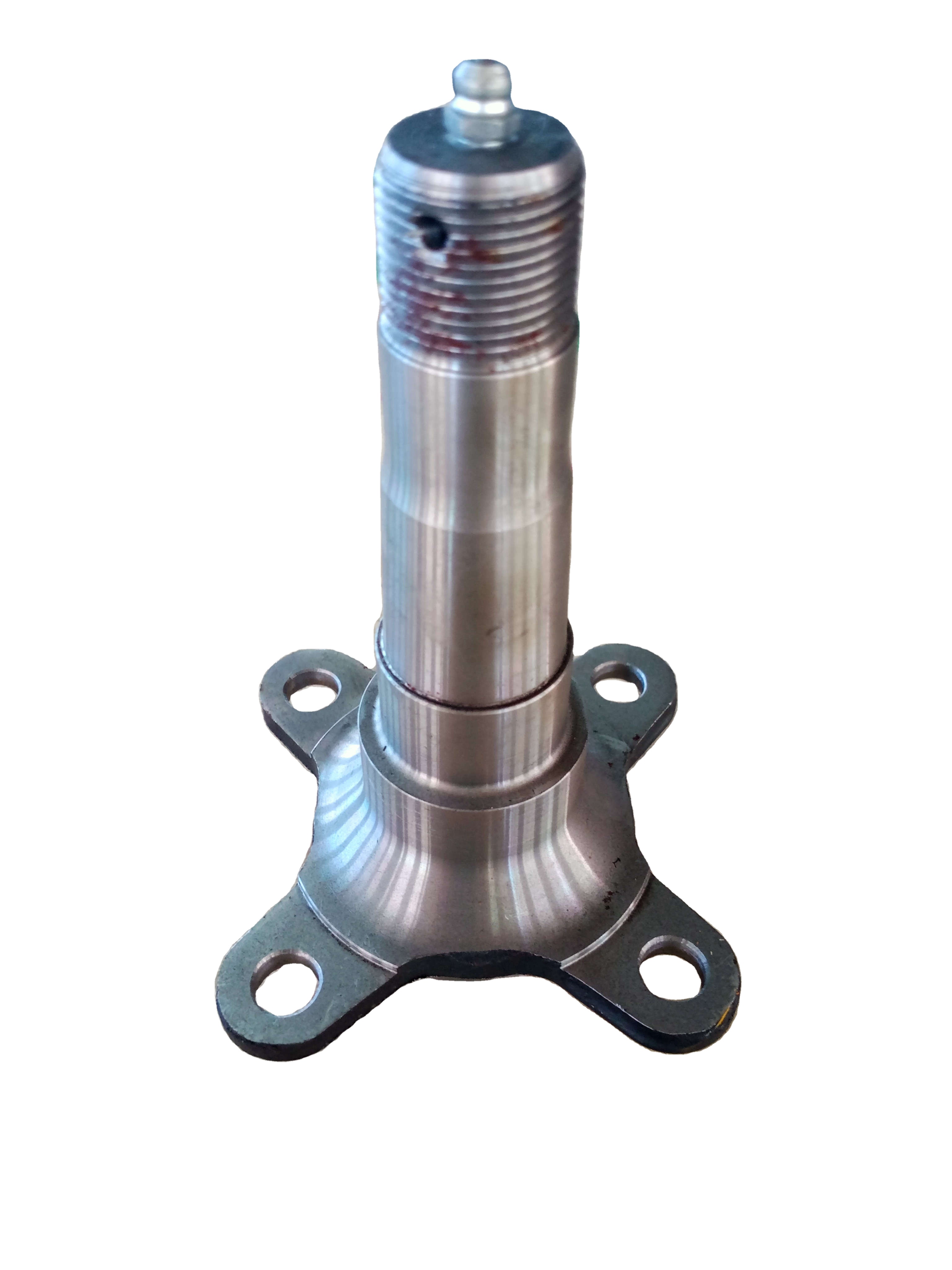

Factory Price Spare Axle Parts Straight Trailer Spindle

Axle spindles are components used on the steering axle of a vehicle as well as on a trailer and are designed to fasten the braking system and mount the wheels and tires to the axle. On a steering axle, the axle spindles are fastened to the axle assembly by the use of ball joints or king pins, and the wheel hub is attached to the spindle with a castellated nut. The wheel bearings ride on the axle spindles in both applications, with a trailer's spindles often being mounted to an axle as a welded or bolt-on component.

Unlike a drive axle, the axle spindles are not charged with powering the vehicle. In an automobile application, the axle spindles are used to allow the front tires to turn, so the spindles are required to pivot on the axle. In the common straight-axle configuration, king pins are used as a type of hinge, allowing the spindles to pivot on the ends of the axle. Tie rods, drag links and similar components are attached to points on the axle spindles to push and pull the spindles, creating a turning motion as the steering wheel and the steering box are turned by the vehicle's operator.

Specification of Round Straight Axle Spindle Supplied Directly by Factory:

Item

Part NO.

(Black painted finished)

Part NO.

(Hot glvanize finished)

Specification

Straight Axle

(39mm round)

39R65”P

39R65”G

Straight axle 39mm round L=1651mm

39R67”P

39R67”G

Straight axle 39mm round L=1701mm

39R76”P

39R76”G

Straight axle 39mm round L=1930mm

39R77”P

39R77”G

Straight axle 39mm round L=1955mm

39R78”P

39R78”G

Straight axle 39mm round L=1981mm

Straight Axle

(40mm square)

40S65”P

40S65”G

Straight axle 40mm square L=1651mm

40S67”P

40S67”G

Straight axle 40mm square L=1701mm

40S77”P

40S77”G

Straight axle 40mm square L=1955mm

40S84”P

40S84”G

Straight axle 40mm square L=2133mm

Straight Axle

(45mm square)

45S65”P

45S65”G

Straight axle 45mm square L=1651mm

45S66”P

45S66”G

Straight axle 45mm square L=1676mm

45S67”P

45S67”G

Straight axle 45mm square L=1701mm

45S77”P

45S77”G

Straight axle 45mm square L=1955mm

45S84”P

45S84”G

Straight axle 45mm square L=2133mm

Straight Axle

(50mm square)

50S76”P

50S76”G

Straight axle 50mm square L=1930mm

45S84”P

45S84”G

Straight axle 45mm square L=2133mm

Related Products

Company Information

Establishing in 1995, Guilin Pengyuan Trading Co., Ltd. is a manufacturer and trader combined company. We have enough tests on the products to ensure the quality of the products and their goods will be delivered after strict quality inspection. We had associated and independent factory named "Guilin Pengda Automobile Parts Manufactory Co., Ltd." which located in Guilin, occupying an area of 23,067 square meters. We have successful foreign trading experience in Europe, North America, South America etc..,

As a member of GM Automobile Group and Association of Quality Management of Mechanics Industry of China. In March 2005, Pengyuan passed TS16949 Quality System Certification. Our products turned out by our enterprise have been selling well in markets at home and abroad, and got high appreciation from overseas buyers.

We are capable of producing iron casting, steel casting, nonferrous metal casting, forging, punching and riveting, welding, heat treatment, mechanical processing, etc.

Production workshop and equipment:

Pengyuan is well-equipped with all kinds of trailer parts.

We has 487 sets of physical performance, chemical analysis,

metallographic inspection and other testing equipment.

Our products include:
1. Spindle
2. Hub and drum assembly
3. Brake assembly
4. Leaf spring
5. Square axle beam and axle
6. Other axle part
1) Couple
2) U-bolt kit

More Products

Exhibition Style

Packing&Shipping

As for the transportation of products, our company supports various sea, land and air international transportation. Please confirm the specific transportation plan during the negotiation.

Choose to contact us>>

FAQ

1: Could you please make us an offer as soon as possible?

In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.

2: Could you please provide us with the specifications of the products?

Sure, please confirm the product code you need before that.

3: How can you guarantee the quality of your products?

Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.

4: How to solve the problems in the later stage?

We are confident in our products. We pack them well to make sure they are well protected.

5: What's your best price for this product?

It depends on the specific number of orders you want. The more the quantity is the better the price.
