Product Description Trailer Parts 7000 lbs Trailer Brake Axle

A trailer axle primary purpose in life is to support and align the spindles, which in turn keeps the hubs and wheels (and your trailer) running straight and true.
Trailer axles come in all manner of shapes and designs and unless the trailer is mass produced or using independent or torsion style suspension/axles, then they are almost always custom built to suit the trailer and its end use.
Depending on design and setup, axles can dramatically affect the tow height, the deck height, the trailer stability when fully loaded and the way the trailer tracks behind the tow vehicle.

Unless the axle is professionally designed & manufactured, getting the axle design right for your trailer, can, in most cases be a bit of hit and miss, with either a poorly under built axle or a heavy, overbuilt axle that is much stronger and heavier than required being fitted. Straight beam axles are commonly machined from a single piece of solid square or round bar and although heavier than hollow section axles, they are inherently stronger and less likely to suffer from stress fatigue. One piece machined axles are normally beyond the realm of the home trailer fabricator and need to be professionally sourced or machined.

More specification of Pengyuan trailer axle:

Item

Part NO.
(Black Painted Finished)

Part NO.
(Hot galvanized Finished)

Specification

Straight Axle
(39mm round)

39R65"P

39R65"G

Straight axle 39mm round L=1651mm

39R67"P

39R67"G

Straight axle 39mm round L=1701mm

39R76"P

39R76"G

Straight axle 39mm round L=1930mm

39R77"P

39R77"G

Straight axle 39mm round L=1955mm

39R78"P

39R78"G

Straight axle 39mm round L=1981mm

Straight Axle
(40mm square)

40S65"P

40S65"G

Straight axle 40mm square L=1651mm

40S67"P

40S67"G

Straight axle 40mm square L=1701mm

40S77"P

40S77"G

Straight axle 40mm square L=1955mm

40S84"P

40S84"G

Straight axle 40mm square L=2133mm

Straight Axle
(45mm square)

45S65"P

45S65"G

Straight axle 45mm square L=1651mm

45S66"P

45S66"G

Straight axle 45mm square L=1676mm

45S67"P

45S67"G

Straight axle 45mm square L=1701mm

45S77"P

45S77"G

Straight axle 45mm square L=1955mm

45S84"P

45S84"G

Straight axle 45mm square L=2133mm

Straight Axle
(50mm square)

50S76"P

50S76"G

Straight axle 50mm square L=1930mm

45S84"P

45S84"G

Straight axle 45mm square L=2133mm

Overlay Axle
(40mm square)

W-40S2180G

Overlay axle 40mm square L =2180mm

Overlay Axle
(45mm square)

W-45S2180G

Overlay axle 45mm square L =2180mm

Overlay Axle
(45mm square)

W-45S2235G

Overlay axle 45mm square L =2235mm

Overlay Axle
(45mm square)

W-45S2320G

Overlay axle 45mm square L =2320mm

Related Products

Company Information

Establishing in 1995, Guilin Pengyuan Trading Co., Ltd. is a manufacturer and trader combined company. We have enough tests on the products to ensure the quality of the products and their goods will be delivered after strict quality inspection. We had associated and independent factory named "Guilin Pengda Automobile Parts Manufactory Co., Ltd." which located in Guilin, occupies an area of 23,067 square meters. We have successful foreign trading experience in Europe, North America, South America etc..,

As a member of GM Automobile Group and Association of Quality Management of Mechanics Industry of China. In March 2005, Pengyuan passed TS16949 Quality System Certification. Our products turned out by our enterprise have been selling well in markets at home and abroad, and got high appreciation from overseas buyers.

We are capable of producing iron casting, steel casting, nonferrous metal casting, forging, punching and riveting, welding, heat treatment, mechanical processing, etc.

Production workshop and equipment:

Pengyuan is well-equipped with all kinds of trailer parts.

We has 487 sets of physical performance, chemical analysis,

metallographic inspection and other testing equipment.

Our products include:

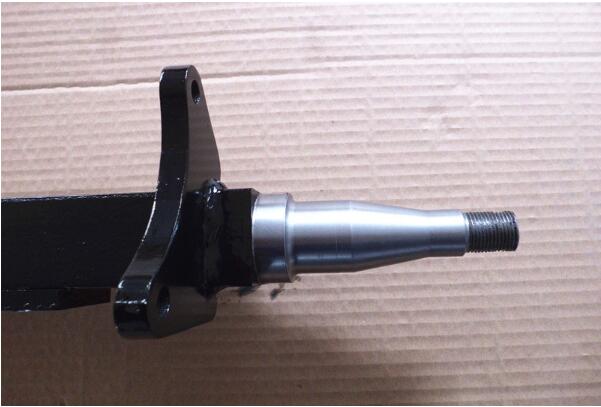

1. Spindle

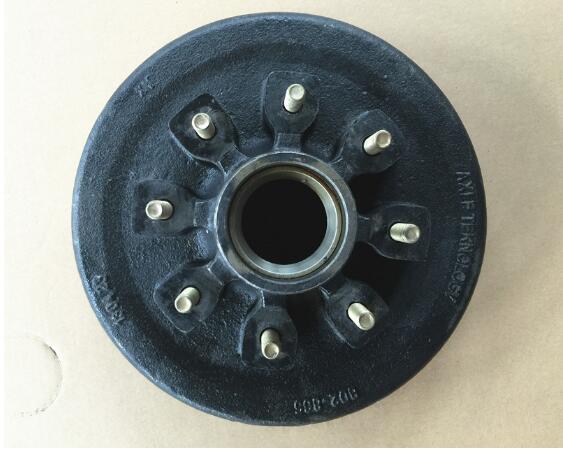

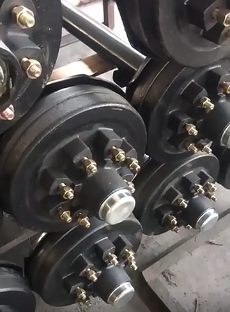

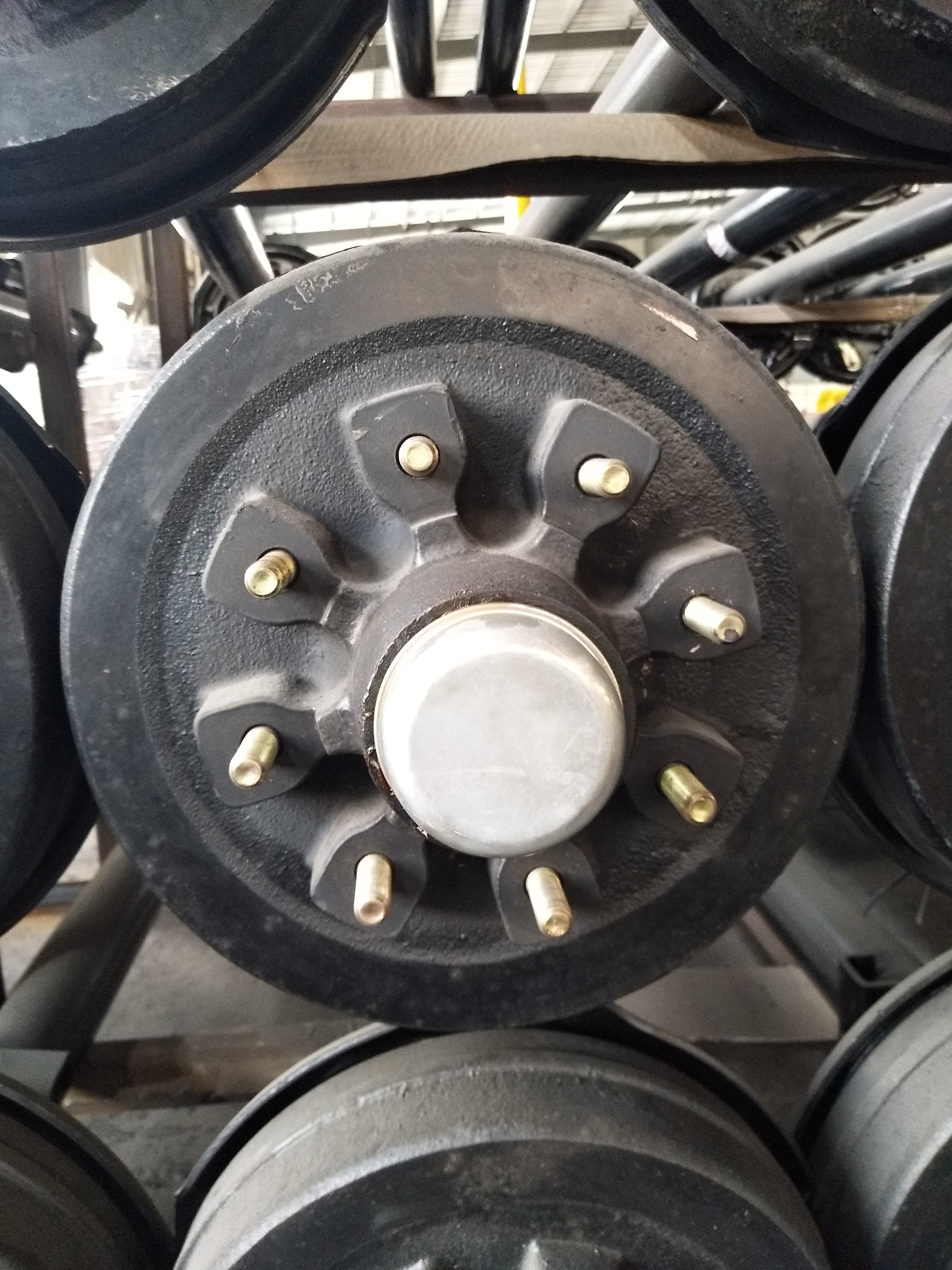

2. Hub and drum assembly

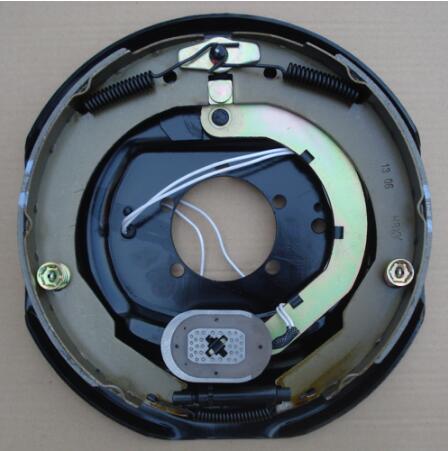

3. Brake assembly

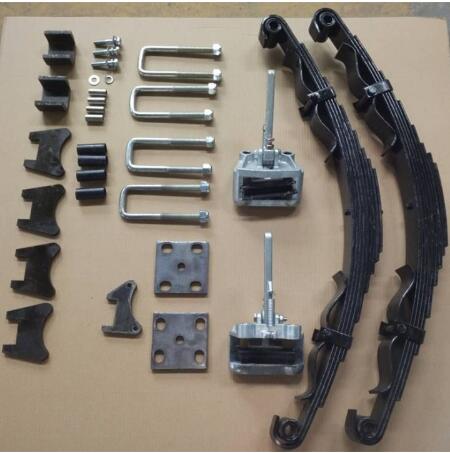

4. Leaf spring

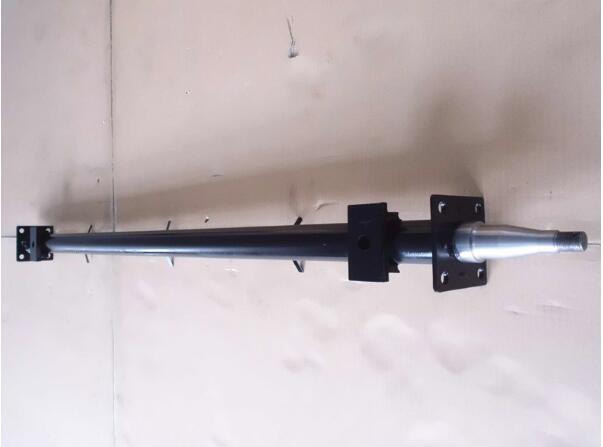

5. Square axle beam and axle
6. Other axle part
1) Couple
2) U-bolt kit
