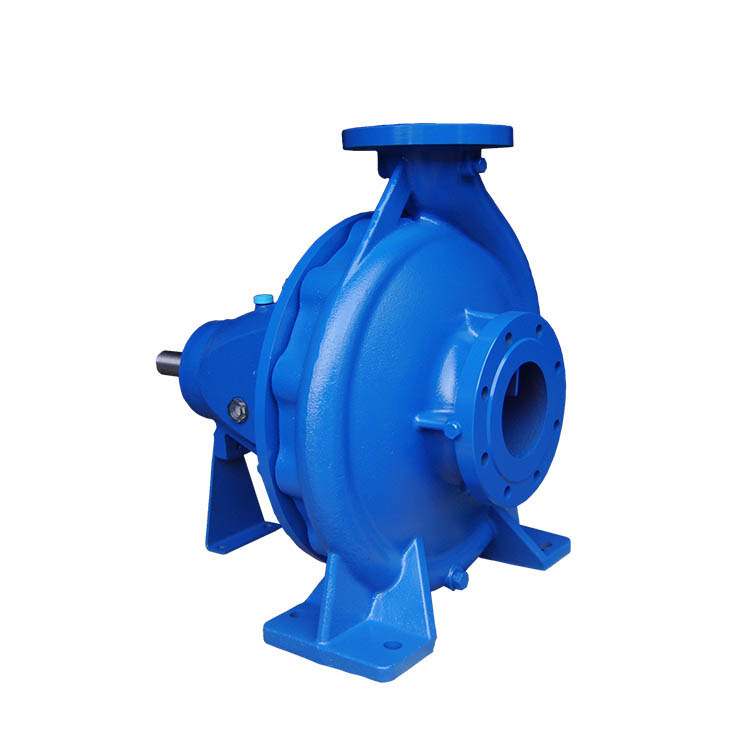

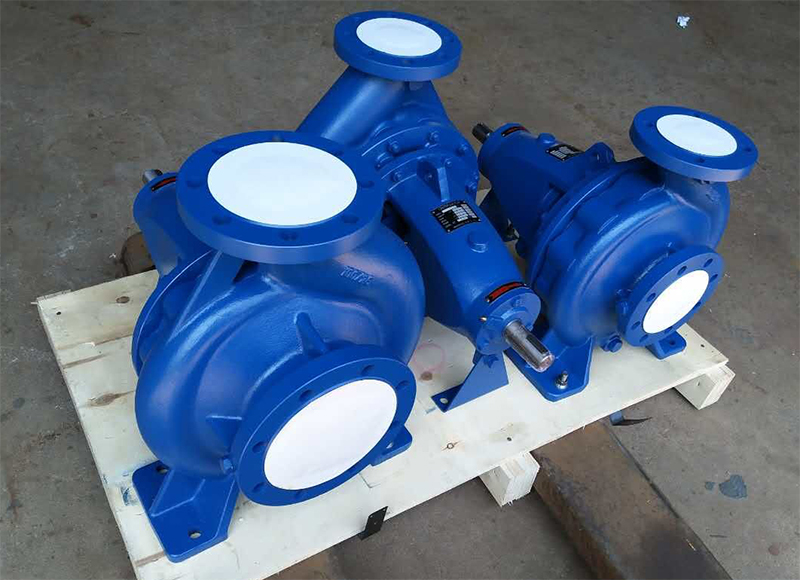

End Suction Centrifugal Pump(Din24255 / BS EN 733 standard)
PREEMINENCE PUMP CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
End Suction Centrifugal Pump(Din24255 / BS EN 733 standard)
PREEMINENCE PUMP CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Cast Iron
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: Cast Iron
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | Cast Iron |
|---|
Product details
| Materials | Cast Iron |
|---|
From the supplier
●Pumps manufactured and designed and built to international standard of DIN 24255(EN733),
ensuring reliability and long lasting high performance.
Applications
- Cooling water
- Water supply/distribution
- Fire protection
- Irrigation
- Pressure boosting
- Circulating
- Refrigeration
Specifications
Inlet Diamater: 50~300mm
Out Diameter: 32~250mm
Capacity: Q up to 1100 m3/h (50Hz)
Head: H up to 150 m (50Hz)
Temperature: T up to 105°C
Working Pressure: 10Bar standard, 16Bar optional
Speed: n 2900/1450/980/740/580 rpm
3500/1750/1180/890/710 rpm

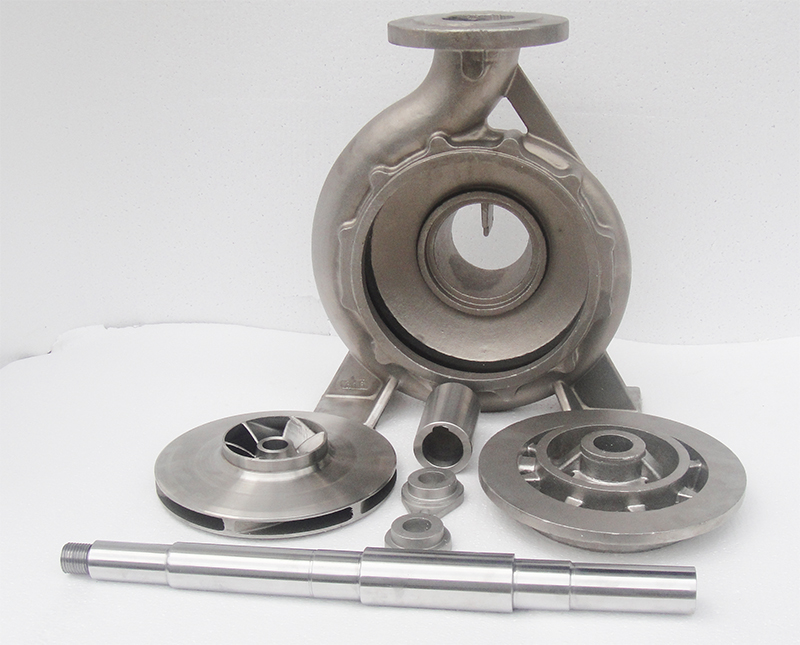

Materials
Casing: Cast iron

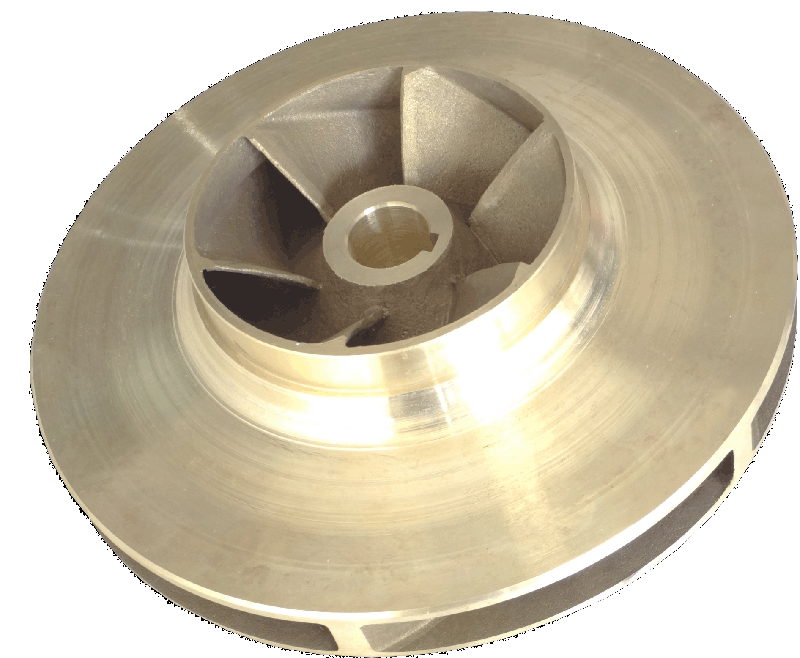

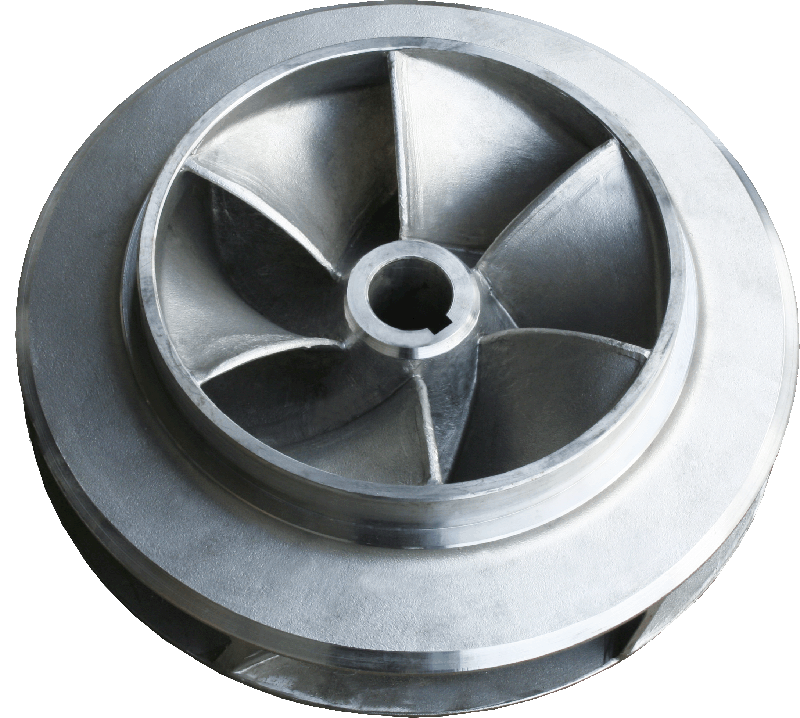

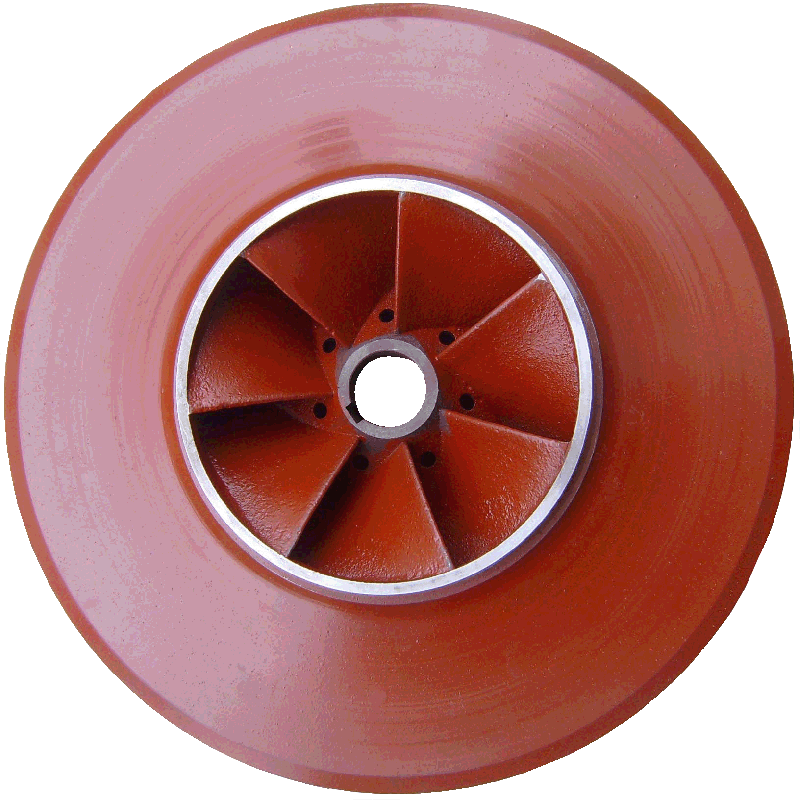

Impeller: Cast iron/Stainless steel304 as standard, Duplex stainless steel on request
Shaft: Stainless steel 420 standard,option SUS304,SUS316 ,Duplex steel
Wear ring: Cast iron/Stainless steel
Bearing: Original Japanese Brand NTN as standard
Standard shaft sealing is mechanical seal Gland packing on request.
-Mechanical seal: Carbon/Ceramics /Viton
Shaft carried in grease life lubricated bearings (Oil lubrication , Grease lubrication available on request)
From the supplier
●Pumps manufactured and designed and built to international standard of DIN 24255(EN733),
ensuring reliability and long lasting high performance.
Applications
- Cooling water
- Water supply/distribution
- Fire protection
- Irrigation
- Pressure boosting
- Circulating
- Refrigeration
Specifications
Inlet Diamater: 50~300mm
Out Diameter: 32~250mm
Capacity: Q up to 1100 m3/h (50Hz)
Head: H up to 150 m (50Hz)
Temperature: T up to 105°C
Working Pressure: 10Bar standard, 16Bar optional
Speed: n 2900/1450/980/740/580 rpm
3500/1750/1180/890/710 rpm
Materials
Casing: Cast iron
Impeller: Cast iron/Stainless steel304 as standard, Duplex stainless steel on request
Shaft: Stainless steel 420 standard,option SUS304,SUS316 ,Duplex steel
Wear ring: Cast iron/Stainless steel
Bearing: Original Japanese Brand NTN as standard
Standard shaft sealing is mechanical seal Gland packing on request.
-Mechanical seal: Carbon/Ceramics /Viton
Shaft carried in grease life lubricated bearings (Oil lubrication , Grease lubrication available on request)
