From the supplier
This series of products is one kind of thermoses powder coating made of epoxy resin, curing agent, pigment and other auxiliaries. They have the features of high speed and good electrical insulation.
Feature:
Granularity
100~200μm>=70%
260μm<=0.5%
External appearance
flat and smooth, slight orange peel is allowed
Edge coverage rate
>=30%
Impact strength
>=50kg.cm
Adhesion(cross-cut)
<=2 grade
Pencil hardness
>=H
Flexibility
<=3mm
Neutral salt spray
no obvious change within 500h
Volume resistivity
>=1×104 Ω.cm
Electric intensity
>=30kv/mm
Field of application:

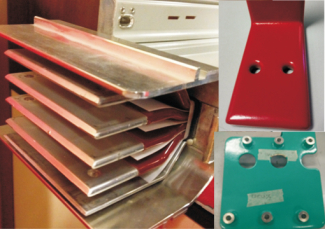

Mainly used for painting the stators and rator core as groove insulation, especially good for those motor rotors of the automobiles, motorcycles and hair dries.
Packing
Double PP bags, N.W 20kg/carton
Shelf life
12 month within 30℃,avoid direct sunlight
Health and Safety
Refer to the MSDS
