About this product
- Materials: epoxy resin
- Color: Red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: epoxy resin
- Color: Red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | epoxy resin |
|---|---|
| Color | Red |
From the supplier

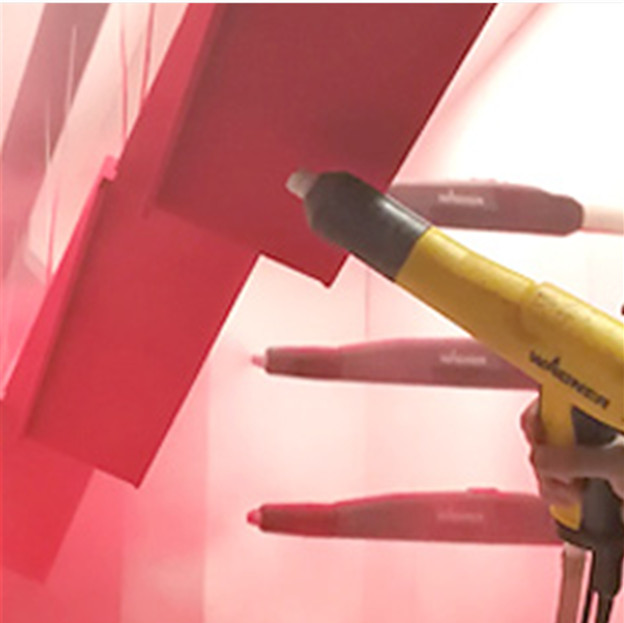

Thermosetting Electrostatic Tribo Spray Powder Coating Paint
COLORS AVAILABLE
- RAL colors coating powder
- Pantone colors
- Color-matching is available
GENERAL TYPES
- Polyester /Hybrid powder coating color
- Epoxy Powder coating color
- Metallic powder coating color

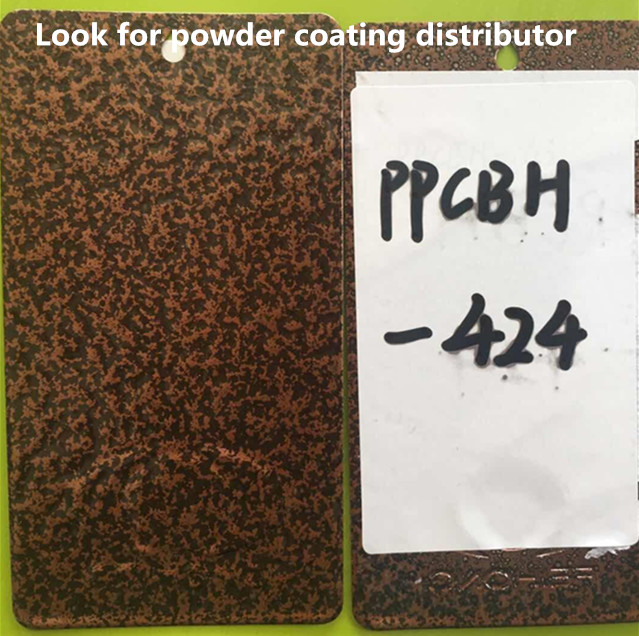

- Hammer tone color powder coating
- Texture color powder coating powder
Textures include sand grain, hammer, silk pattern, sand textured, marble,metallic, multi-color.
PHYSICAL PROPERTIES
- Specific gravity :1.2 ~ 1.8g/cm3 up to colors
- Particle size distribution:100% less than 100 microns (depending on the specific indicators art effects may be, according to the special requirements of painting adjusted)
- Level of liquidity:24 ~ 27 mm
CURING CONDITIONS
180 °C ~ 200 °C (work piece temperature), 10-15 minutes
AVERAGE COVERAGE
8-12 square meters / kg, thickness 60 microns (100% of the powder coating utilization rate)
PACKING
Outside carton lined with two layers of polyethylene bags, each containing 20 kg net weight.
STORAGE AND TRANSPORT
Stored in less than 30 °C, ventilated, dry, clean room, not near the fire source, heating, avoid direct sunlight, the product in the transport should be to prevent rain, sun, prolonged sun exposure.Storage products in line with the above conditions, since the date of production, effective storage period is 6 months.Over the storage period may be re-tested and the results were consistent with, can still be used.
HEALTH AND SAFETY
Coating powder is a non-toxic products, but should be avoided in the course of inhalation of dust.Proposed operators wear appropriate dust mask, glasses.If possible, try to avoid long-term skin contact with powder coating
Mechanical property
Testing items
Standards and methods
Inspecting index
Impact strength
GB/T1732-1993, AS3715 2.8
>50kg/cm
Bending resistance
GB/T1185-88, AS1580 402.1, ISO9227
Pass 2-5 millimeters
Adhesion CHECKED TEST
GB/T9286-88,2mm Cross cut, ISO2409
Pass100/100, passes 0 levels
Cupdrawing:Erichsen, ISO1520
Erichsen, ISO1520
Pass 3-7 millimeters
Pencil hardness
GB/T6739-86, Mitsubishi
Pass H-2H
Chemical resistance and weather resistance
Salt spray test
GB/T1771-91,500 hours
The cross section of corrosion less than 2MM
Hot and damp resistance test
GB/T17740-79(89),1000 hours
Without air bubbles, loses the light slightly
Acid resistance
10% CH3COOH, 240 hours
Without air bubbles, the surface without damage
Alkali resistance
10% NaOH, 240 hours
Without air bubbles, the surface without damage
Heat resistance
200degree,1 hour
The color change is lower than E=1.5
Solvent resistance
MEK24 hours soaked in solvent-free
Without air bubbles, the surface without damage
Uvioresistant
QUV-313,500 hours
Gloss higher than 80% lower than the
Munsell color change level
Water tolerance of
2 hours
No bubble, not falling, losing light
