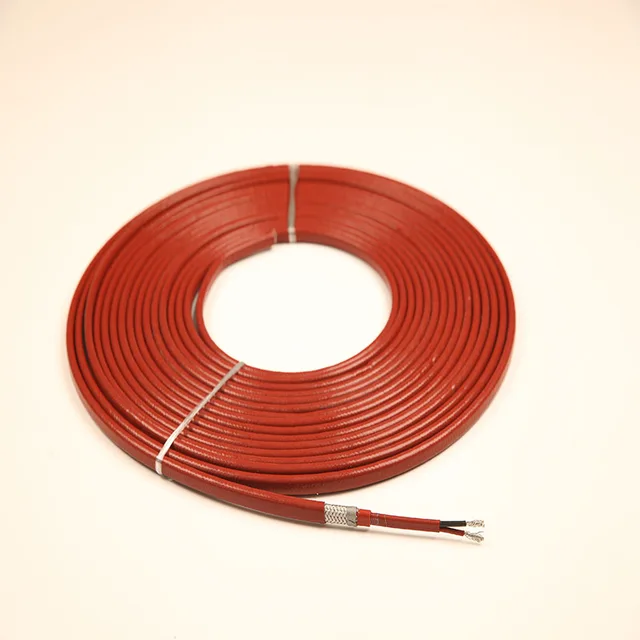

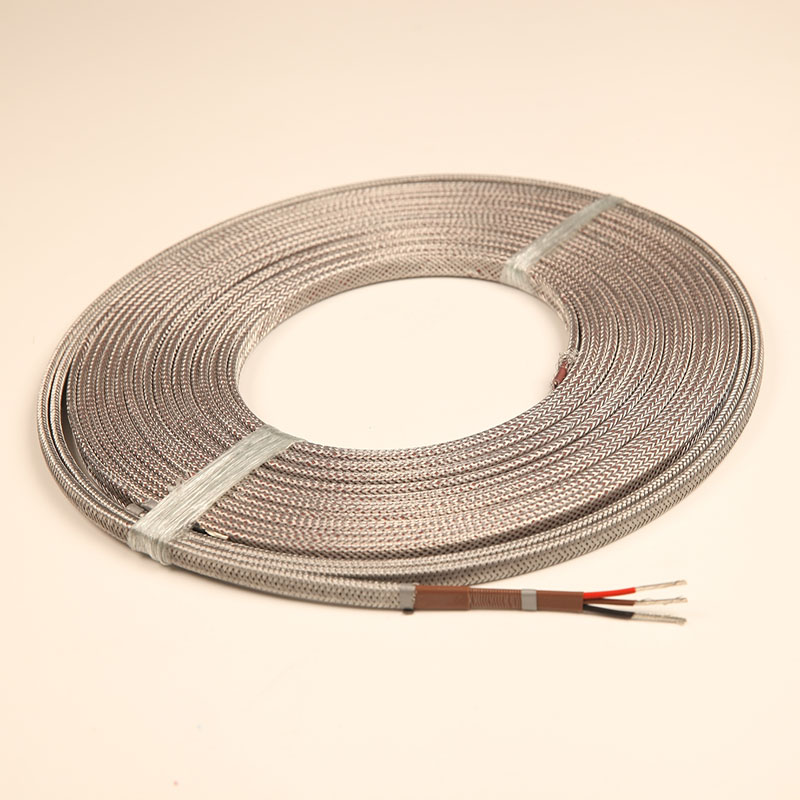

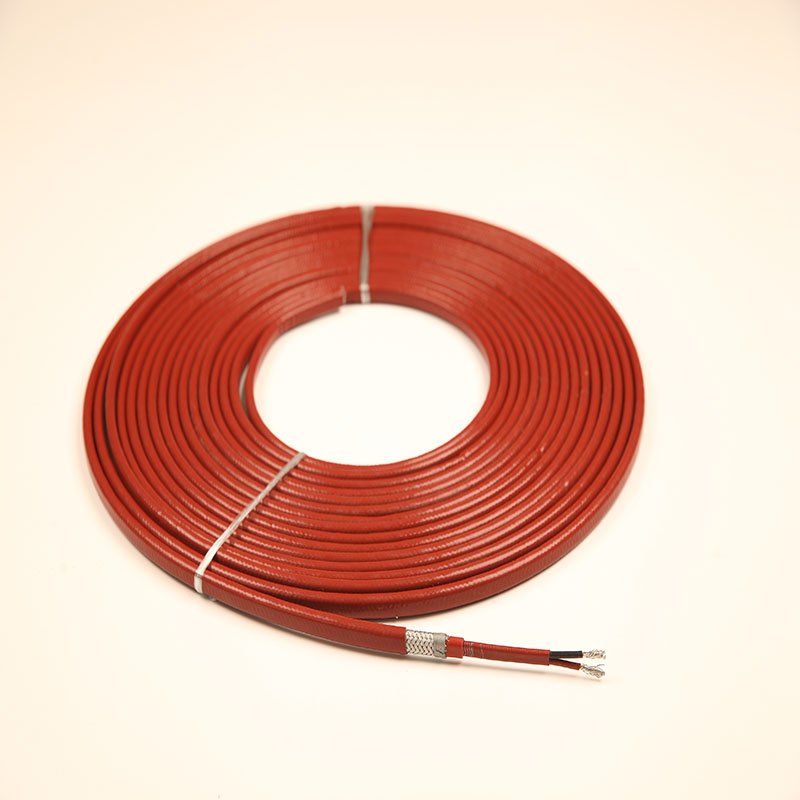

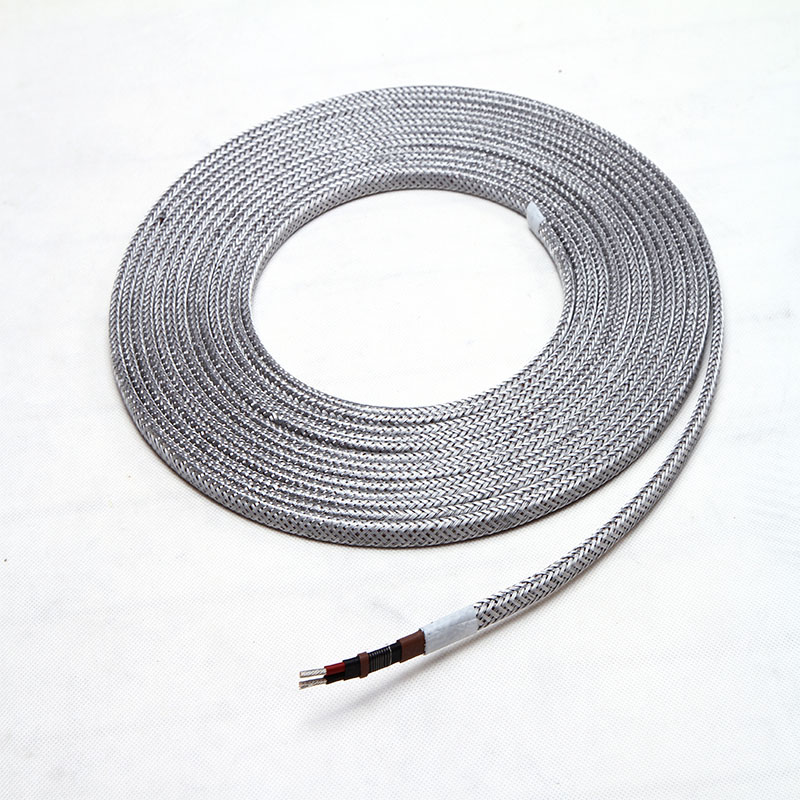

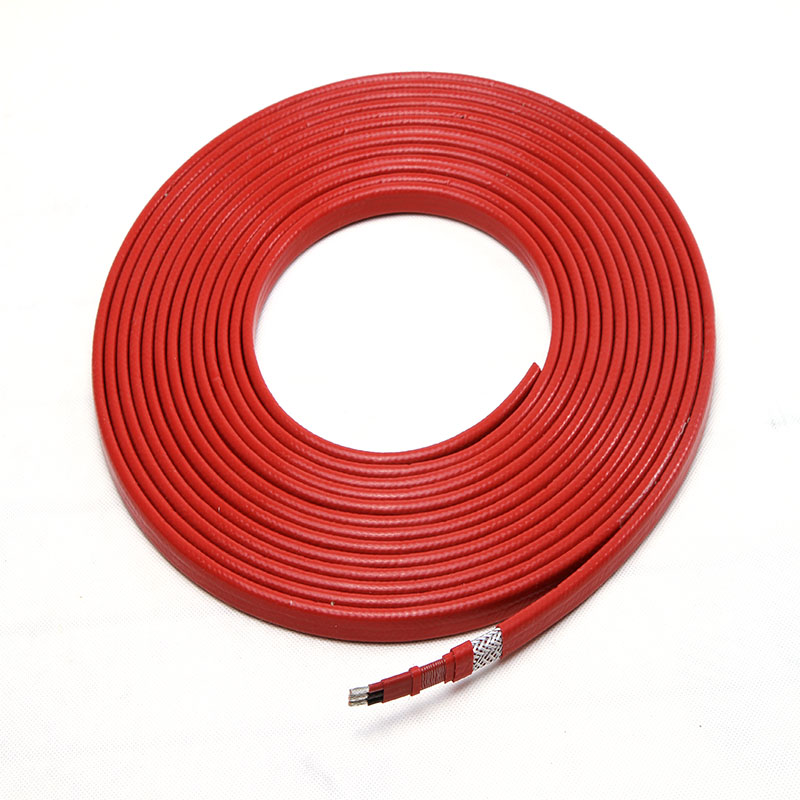

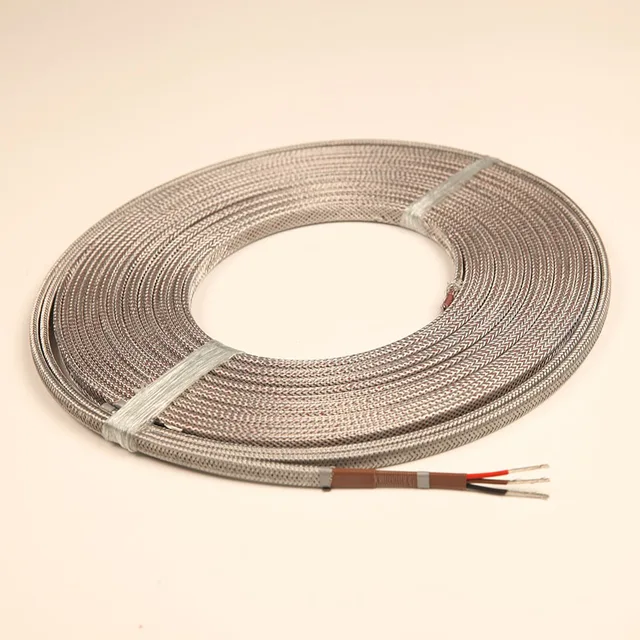

Parallel  Constant Wattage Heating trace Cable RDP2

Introduction:

Parallel constant wattage heating cable can be used for pipe and equipment freeze protection and process temperature maintenance requiring high power output or high temperature exposure.

Application
Parallel constant wattage heating cable can be used for pipe and equipment freeze protection and process temperature maintenance requiring high power output or high temperature exposure. This type provide an economical alternative to self regulating heating cable but requires more skill for installation and more advanced control and monitor system. Constant wattage heating cables can provide process temperature maintenance up to 150°C and can withstand exposure temperatures up to 205°C with power on.

Working principle
Two paralleled stranded copper wire as the bus wires with insulation layer FEP, then wrap the nickel-chromium alloy as the heating wire connect with bus wires at regular intervals, form the parallel resistance. Finally covered with insulation jacket FEP. When the bus wires power on, each parallel resistance begin to heat, thus form a continuous heating cable.

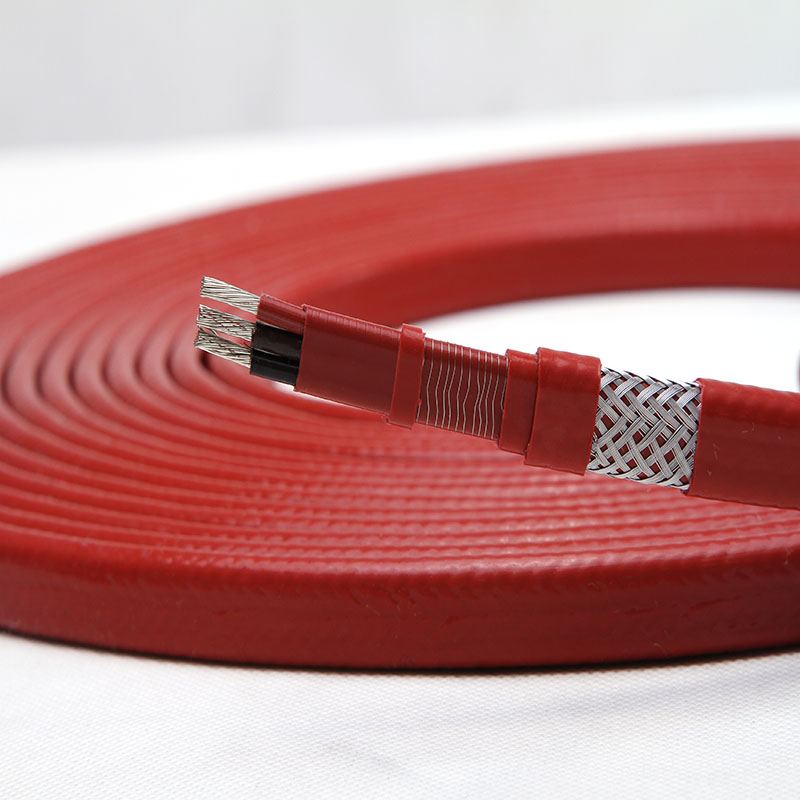

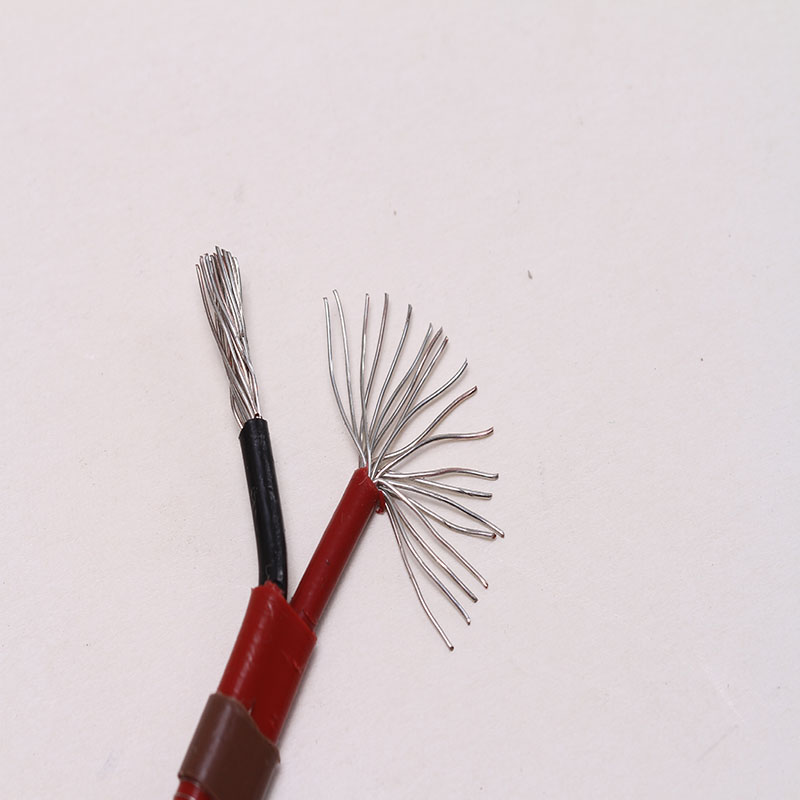

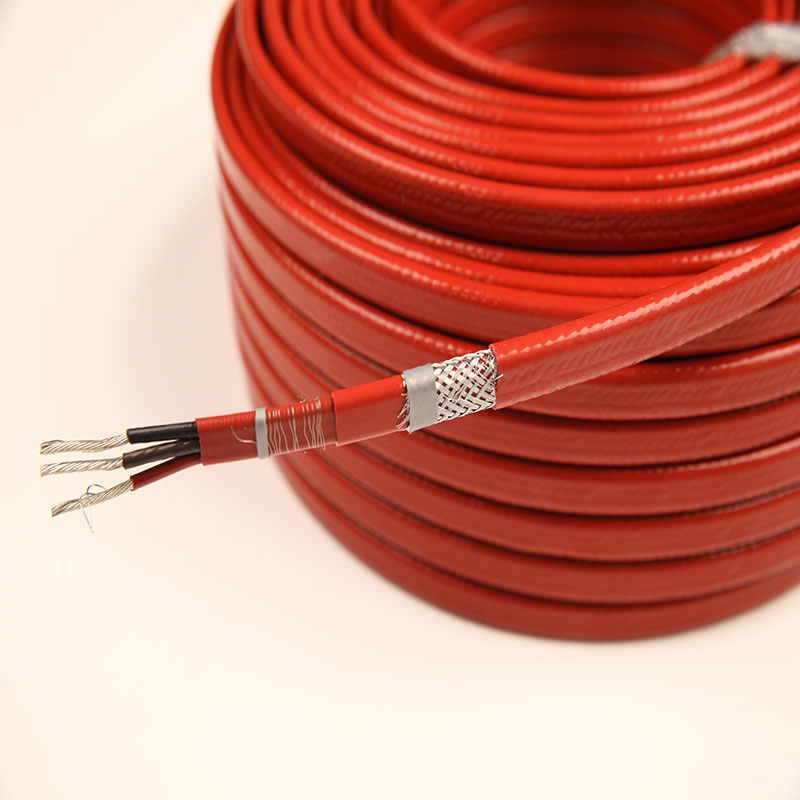

Structure

1. Tinned copper stranded wire

2. FEP insulation layer

3. FEP insulation layer

4. Ni-Cr alloy wire

5. PEP insulation layer

6. Tinned copper Metal braid

7. FEP outer sheath

Technical Date:

Rated voltage: 220V

Max. exposure temperature: 205°c

Normality insulation resistance: ≥20M ohm

Protection level: IP54

Dielectric strength: 2000V 50Hz/1min

Insulation material: FEP

Size: 6.3×9.5mm

Certifications: CE EAC ATEX

MOQ: 1000m

Parallel constant wattage heating trace cable

Code

Output

Max了length

Max maintain temp

Max exposure temp

RDP2(Q)-J3-10

10

210

150

205

RDP2(Q)-J3-20

20

180

120

205

RDP2(Q)-J3-30

30

150

90

205

RDP2(Q)-J3-40

40

130

65

205
