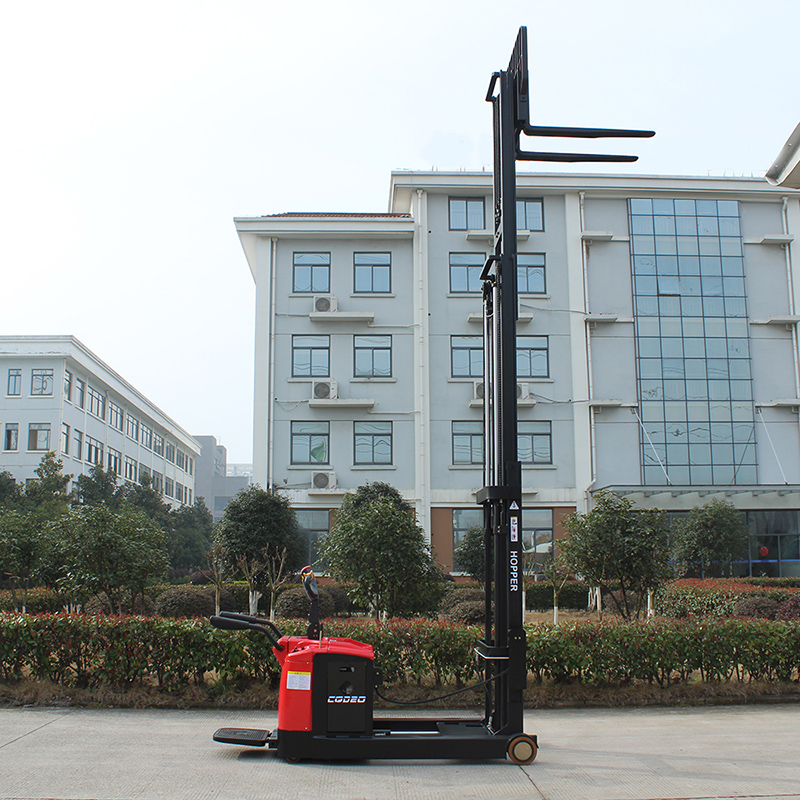

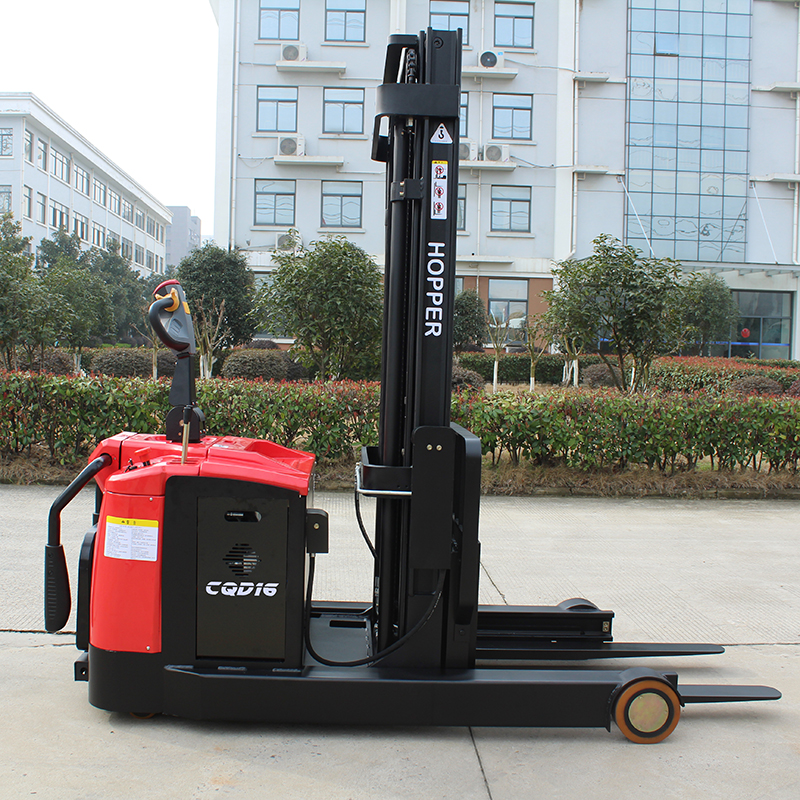

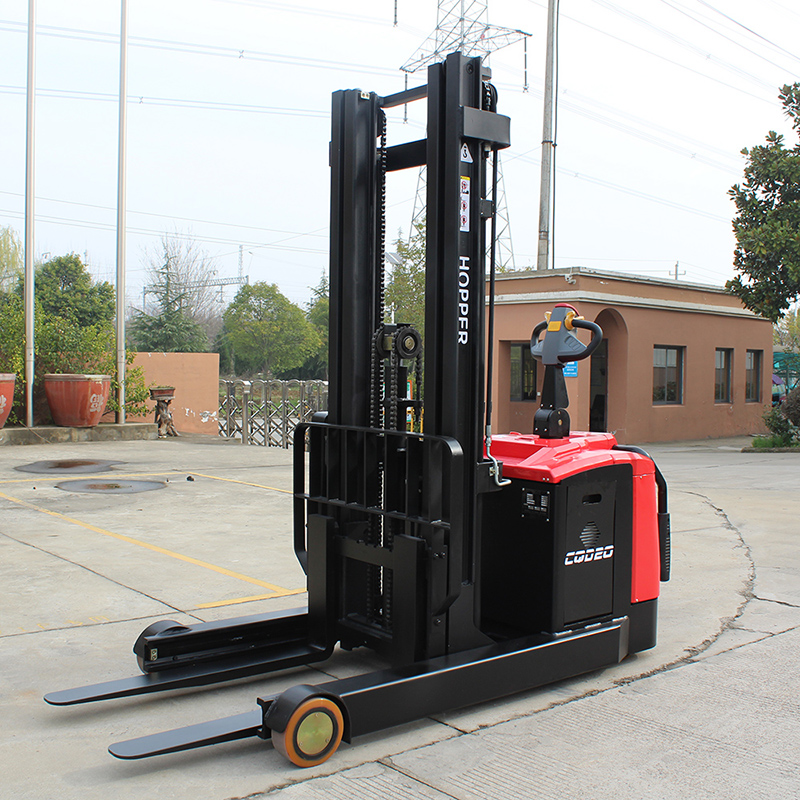

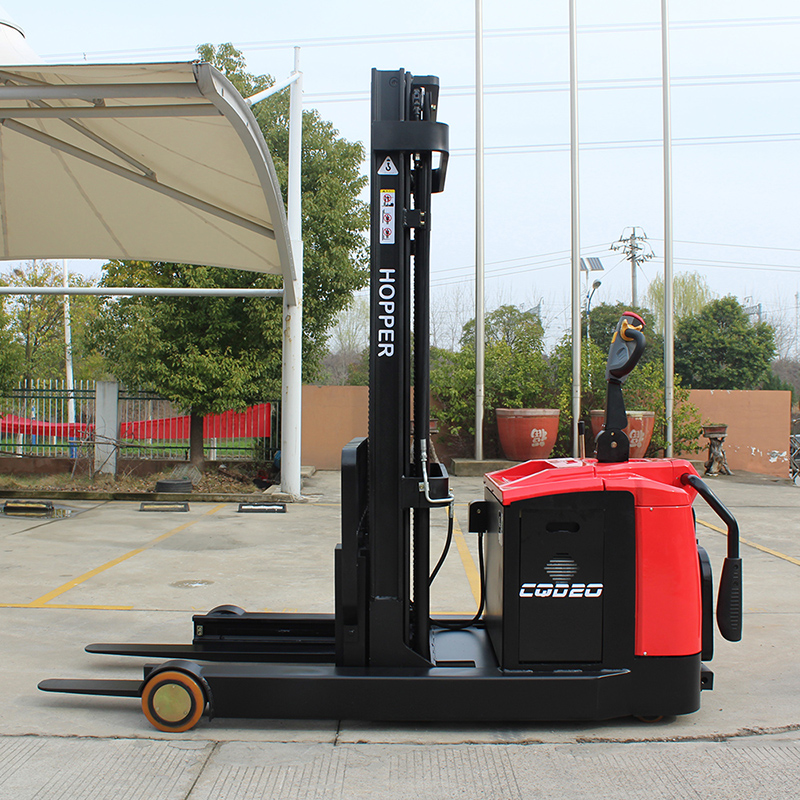

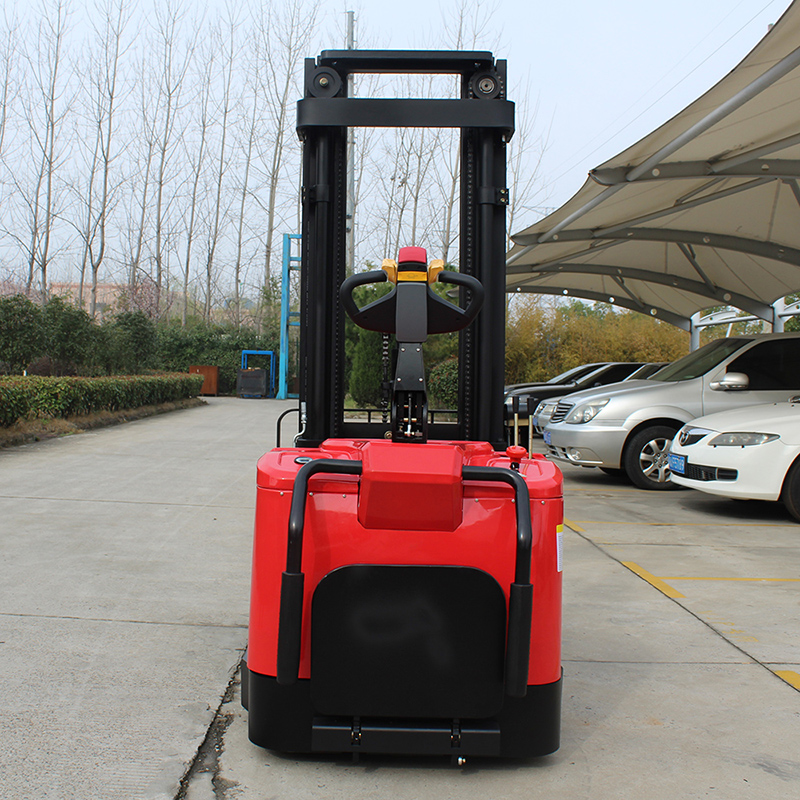

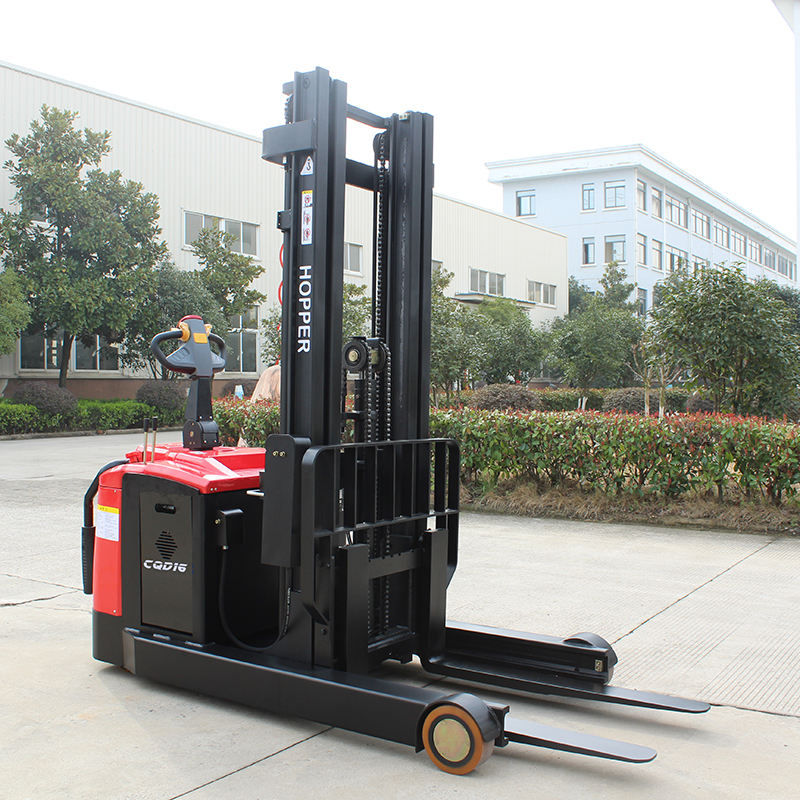

Electric Reach Stacker CQD16
LEOCH BATTERY(JIANGSU) CORP.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Electric Reach Stacker CQD16
LEOCH BATTERY(JIANGSU) CORP.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: Electric Reach Stacker
- Size: 2331*1030*2040
- Color: red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: Electric Reach Stacker
- Size: 2331*1030*2040
- Color: red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | Electric Reach Stacker |
|---|---|
| Size | 2331*1030*2040 |
| Color | red |
Product details
| Materials | Electric Reach Stacker |
|---|---|
| Size | 2331*1030*2040 |
| Color | red |
From the supplier
1. Vertical driving wheel, driving efficiency, easy installation & maintenance.
2. Compact struture and low gravity. #Electric Reach Stacker#
3. Tilting system forks easy for loading and stacking. #Electric Reach Stacker#
Electric Reach Stacker CQD16 Technical Parameters
ModelCQD16
Load capacity/rated load
1600 kgLoad center distanceC600 mmOverall length(without fork/with fork)L1/L21806/2331mmOverall widthb11030 mmOverall heighth2040 mmwheelbaseY1412 mmHeight(handle)h41385 mmFork height,loweredh340 mmReach distanceL4580 mmLift heighth11600/3000/5500mmMin.ground clearancem152 mmForks outside widthb2740 mmForks dimensions/e/l40/100/1070mmMax.lift speed unladen
160 mm/sMax.lift speed laden
120 mm/sMax. travel speed unladen
6 km/hMax.travel speed laden
6 km/hMin.outside turning radiusWa1650 mmMax. gradability,laden
5 %Max. gradability,unladen
8 %Weight(unladen)
1980 kgBattery capacity
240 AhBattery voltage
24 VLift motor(DC)
3 KWDrive motor(AC)
2 KWAisle width for lengthways1000*1200 tray2715 mmAisle width for lengthways800*1200 tray2675 mmContainer quantity20GP/40HQ/6/12unit
From the supplier
1. Vertical driving wheel, driving efficiency, easy installation & maintenance.
2. Compact struture and low gravity. #Electric Reach Stacker#
3. Tilting system forks easy for loading and stacking. #Electric Reach Stacker#
Electric Reach Stacker CQD16 Technical Parameters
ModelCQD16
Load capacity/rated load
1600 kgLoad center distanceC600 mmOverall length(without fork/with fork)L1/L21806/2331mmOverall widthb11030 mmOverall heighth2040 mmwheelbaseY1412 mmHeight(handle)h41385 mmFork height,loweredh340 mmReach distanceL4580 mmLift heighth11600/3000/5500mmMin.ground clearancem152 mmForks outside widthb2740 mmForks dimensions/e/l40/100/1070mmMax.lift speed unladen
160 mm/sMax.lift speed laden
120 mm/sMax. travel speed unladen
6 km/hMax.travel speed laden
6 km/hMin.outside turning radiusWa1650 mmMax. gradability,laden
5 %Max. gradability,unladen
8 %Weight(unladen)
1980 kgBattery capacity
240 AhBattery voltage
24 VLift motor(DC)
3 KWDrive motor(AC)
2 KWAisle width for lengthways1000*1200 tray2715 mmAisle width for lengthways800*1200 tray2675 mmContainer quantity20GP/40HQ/6/12unit
