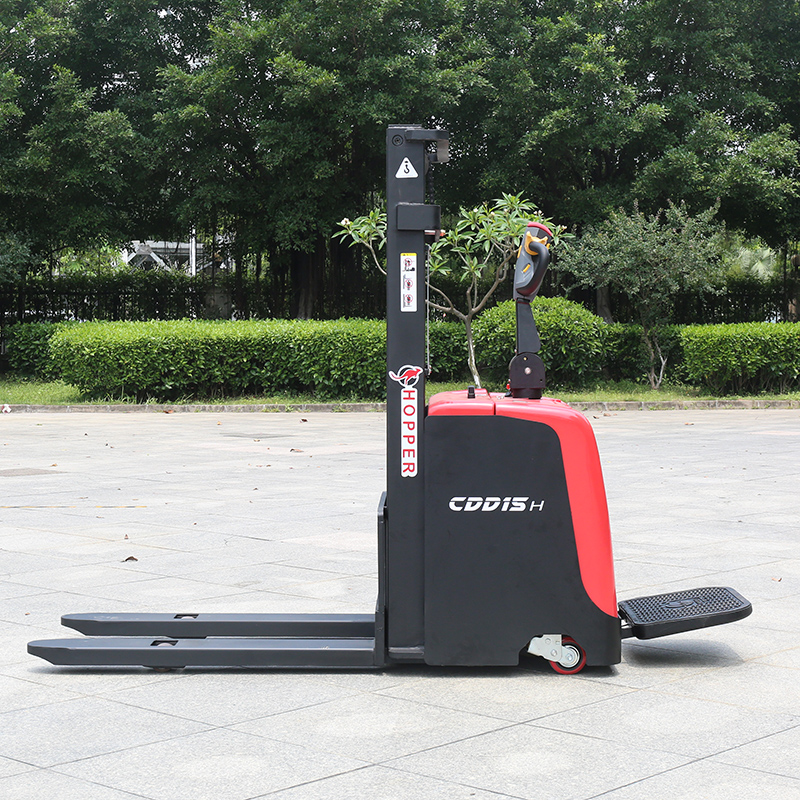

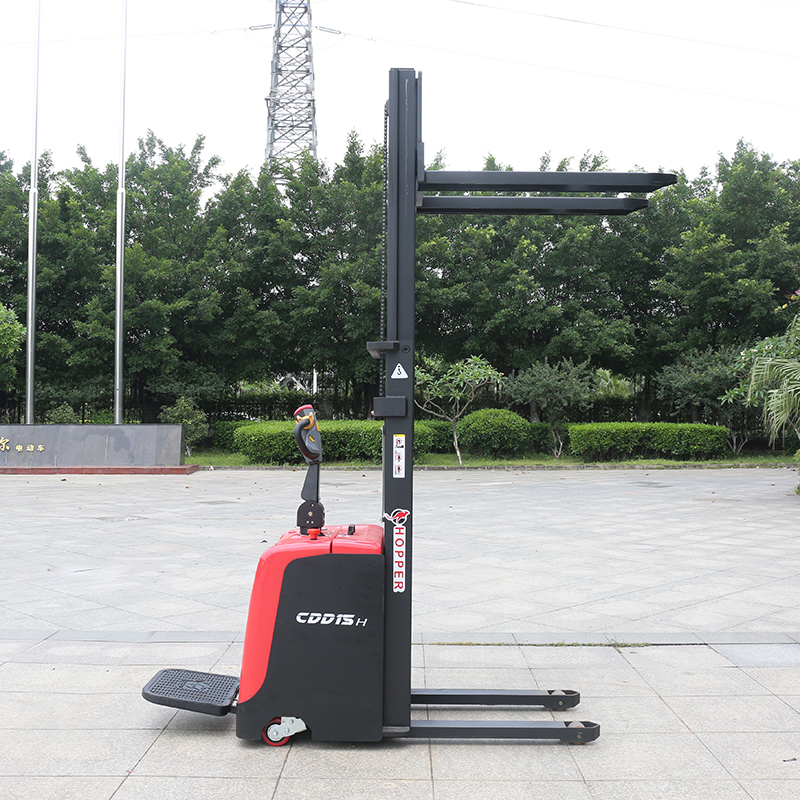

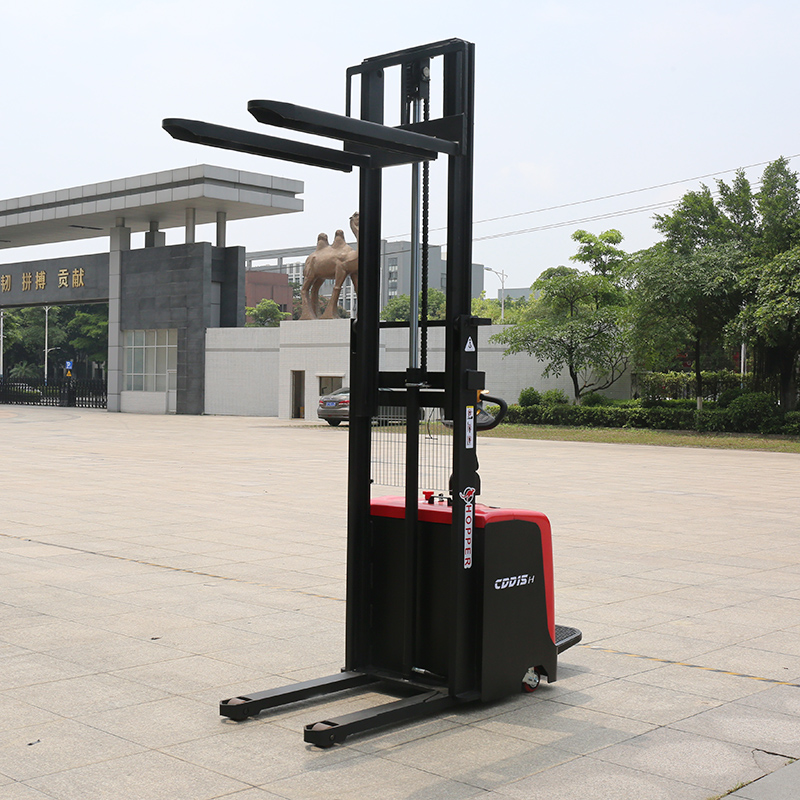

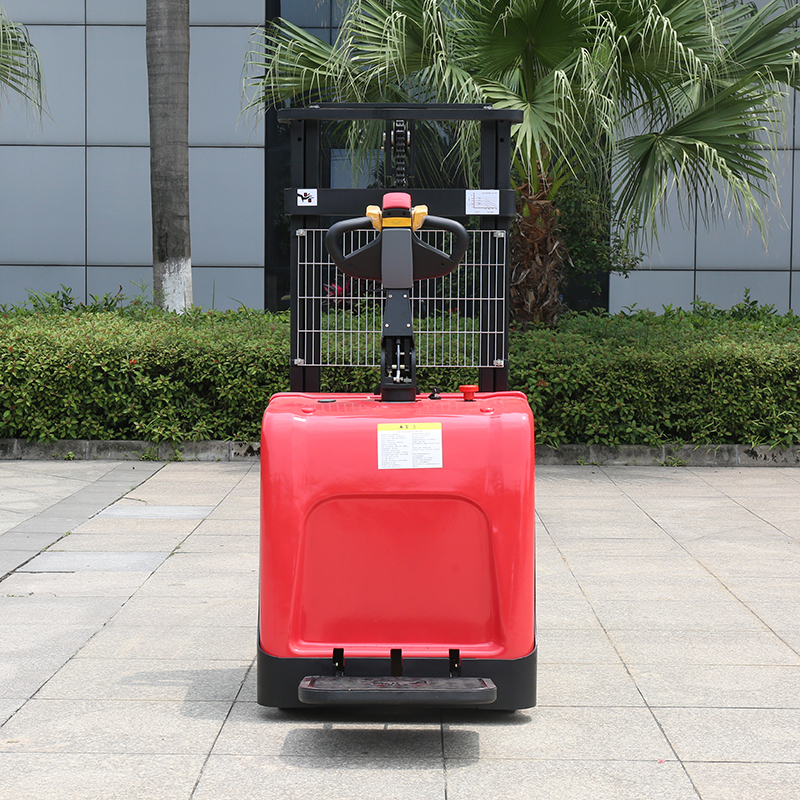

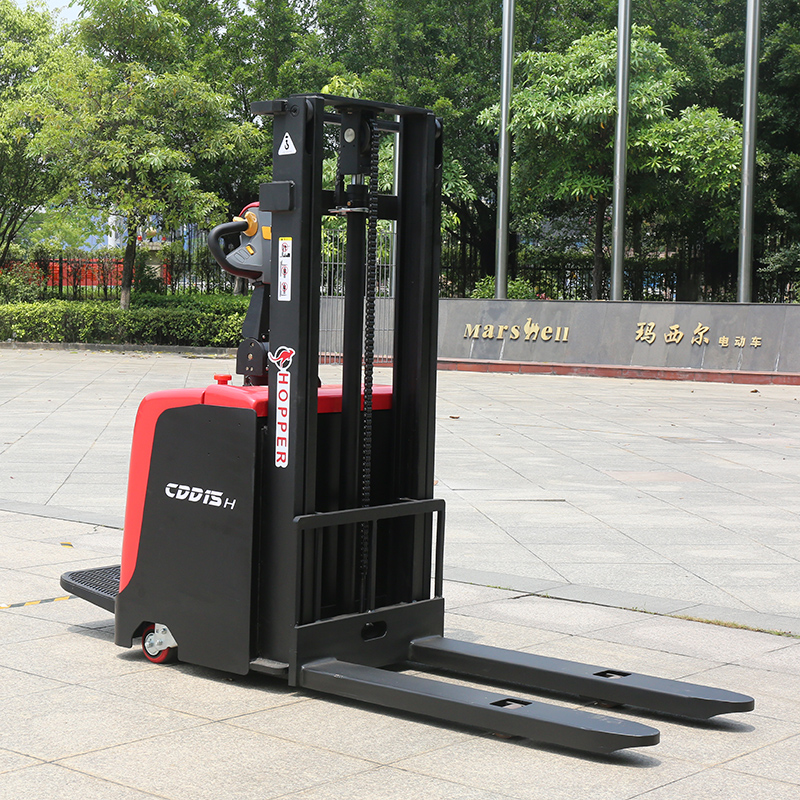

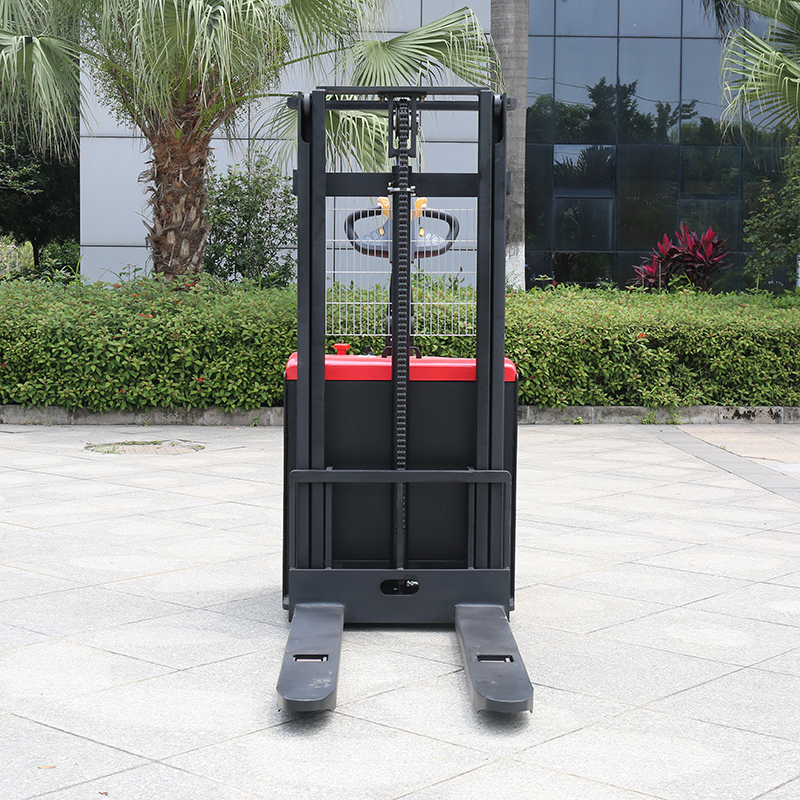

Electric Pallet Stacker CDD15H
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Electric Pallet Stacker CDD15H
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Electric Pallet Stacker
- Size: 2415*790*3000
- Color: red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: Electric Pallet Stacker
- Size: 2415*790*3000
- Color: red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | Electric Pallet Stacker |
|---|---|
| Size | 2415*790*3000 |
| Color | red |
From the supplier

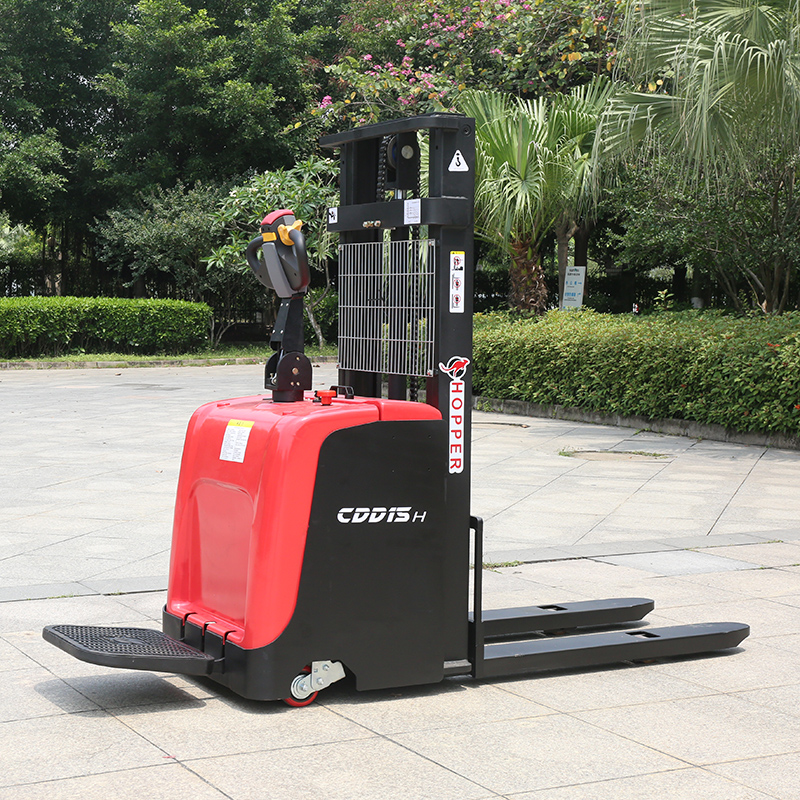

Electric Pallet Stacker CDD15H Advantages
1. AC drive control precision,maintenance-free, safe and reliable.
2. High-performance hydraulic station, low noise, small vibration, high efficiency.
3. HMI design of the control handle, easy for left and right hand operation, improve the driving comfort.
4. Electronic steering systems, lightweight, low noise, more effort.
5. Emergency reverse device, more safety.
6. Electromagnetic, regenerative braking system.
7. High vehicle automatic deceleration function.
8. Two-way solenoid valve, which achieve three lowering speed model.

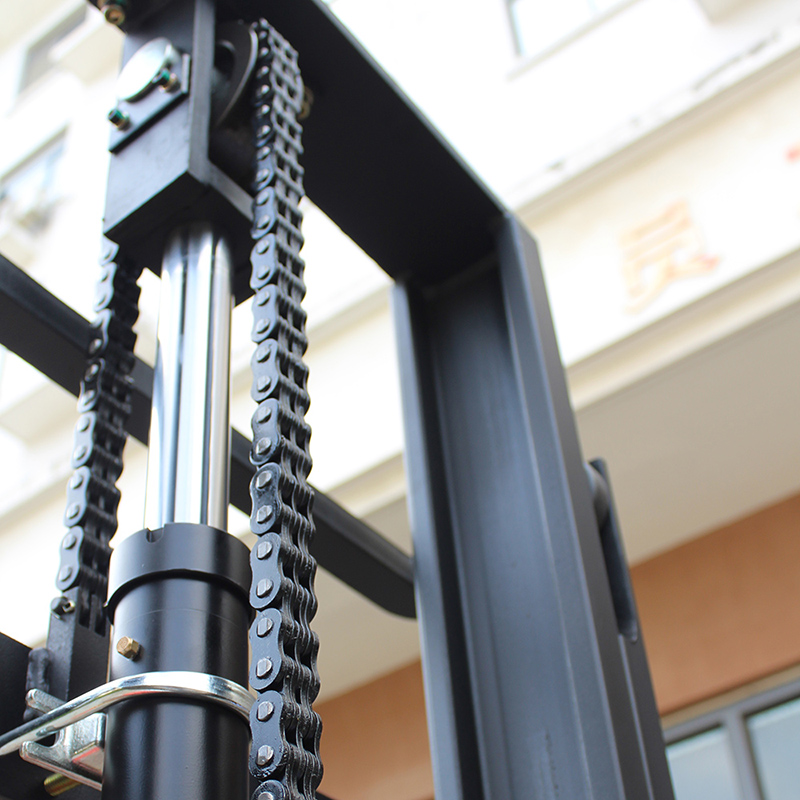

9. Wide view mast, clear visibility.
Electric Pallet Stacker CDD15H Technical Parameters
ModelCDD15HPower Type
ElectricOperation Type
Stand-onSteering Mode
MechanicalLoad Capacity Qkg1500Load Center Cmm500Wheelbase ymm1235Total Weight(With Battery)
kg780Axle Load( Loaded):rear/front
kg880/1400Axle Load( Unloaded):rear/front
kg570/210Overall Length L1/L2mm1950/2415Overall Width W1mm790Lifting Heighth1mm3000Height with Mast Restrationh2mm2035Height with Mast Extendedh4mm3505Fork Sizel/e/smm1150×160×60Width of Forkb2mm550/685Ground Clearance at Forkh3mm85Ground Clearance at center of wheelbasem1mm30Height of Operating Handlebar(Min./Max.)h14mm1000/1450Turning Radius(Footboard Fold/Unfold)Wamm1535/1970Right Stack Aisle Width
(Pallet size 1000*1200,Footboard Fold/Unfold)Astmm2445/2880Right Stack Aisle Width
(Pallet size 800*1200,Footboard Fold/Unfold)Astmm2380/2810Tyre Type
PolyurethaneTyre Size(Front)
mmΦ80*70Tyre Size(Balance Wheel)
mmΦ130*50Tyre Size(Driving Wheel)
mmΦ250*80Tyres Number (x=drive wheel)
2/1x+2Traveling Speed(Loaded/Unloaded)
Km/h5/5.5Lifting Speed(Loaded/Unloaded)
mm/s80/125Lowering Speed(Loaded/Unloaded)
mm/s150/90Max. Gradeability(Loaded/Unloaded)
%5/8Service Brake Type
ElectromagneticParking Brake Type
ElectromagneticDrive Motor Power(S2-60min)
KWAC1.5Pump Motor Power(DC) S3-15%
KW2.2Battery Voltage/Capacity K5
V/Ah24/100Battery Weight
kg60Controller Brand
ZAPIController Model
AC0Noise Level
dB70
About the supplier
Main products: Fueled motorcycles,Motorcycle battery,Other Motorcycle Parts
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Industry and Trade Company
- ✓Founded 2003
- ✓Canton Fair Premium Supplier
- ✓Brand exhibitor
- ✓National high-tech enterprise
- ✓AEO-certified exporter (customs-trusted)
- Exhibited at 10 of the last 10 Canton Fairs
- Industry and Trade Company
- Founded 2003
- Canton Fair Premium Supplier
