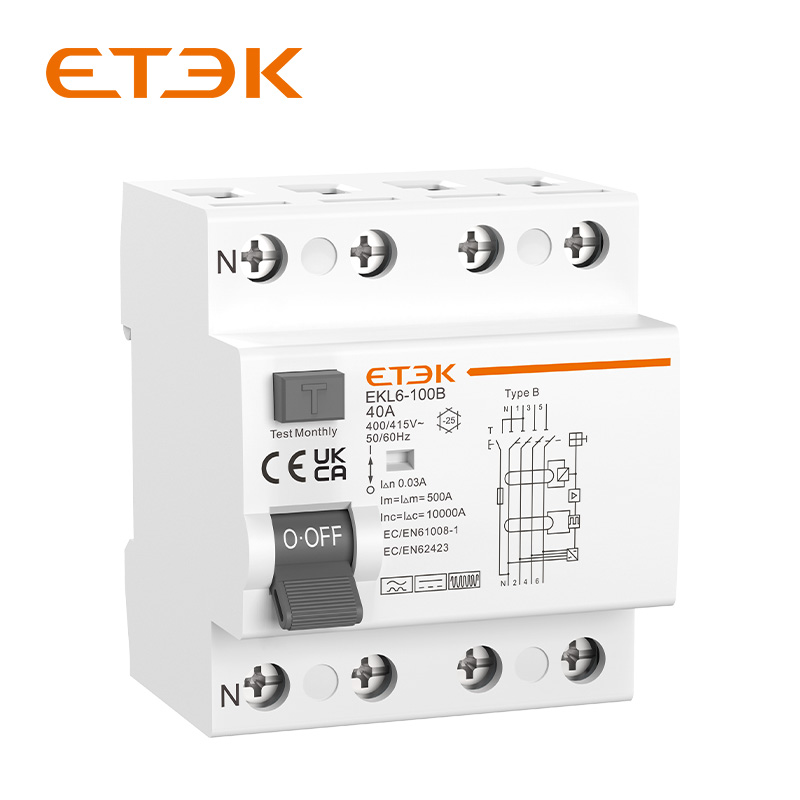

EKL6-100B Type B RCD has novel appearance design, compact structure, good reliability, and high safety. The products comply with IEC61008-1, IEC62423. They ensure higher protection levels with maximum operational continuity under all working conditions. Type B RCDs can ensure maximum safety in many applications, such as EV Charging Station, Crane and Elevator, PV and Wind power plants, etc.

Standard IEC61008-1, IEC62423 No. of poles 1P+N, 3P+N Rated voltage (Ue) 2P(1P+N): 110/230/240V, 4P(3P+N): 240/400/415V Rated current (In) 16,25,32,40,63,80,100A Type of protection (electric leakage) B Rated residual operation current(I△n) 30,100,300mA Residual current off-time under I△n ≤0.1s Rated frequency 50/60Hz Rated breaking capacity 10kA Rated impulse withstands voltage (1.5/50) Uimp 4kV Electrical life 2,000 Cycles Mechanical life 4,000 Cycles Ambient temperature -25℃~+40℃, Max.95% humidity Terminal connection type Cable/Pin-type busbar/Fork-type busbar Connection From top and bottom
