Product Overview:

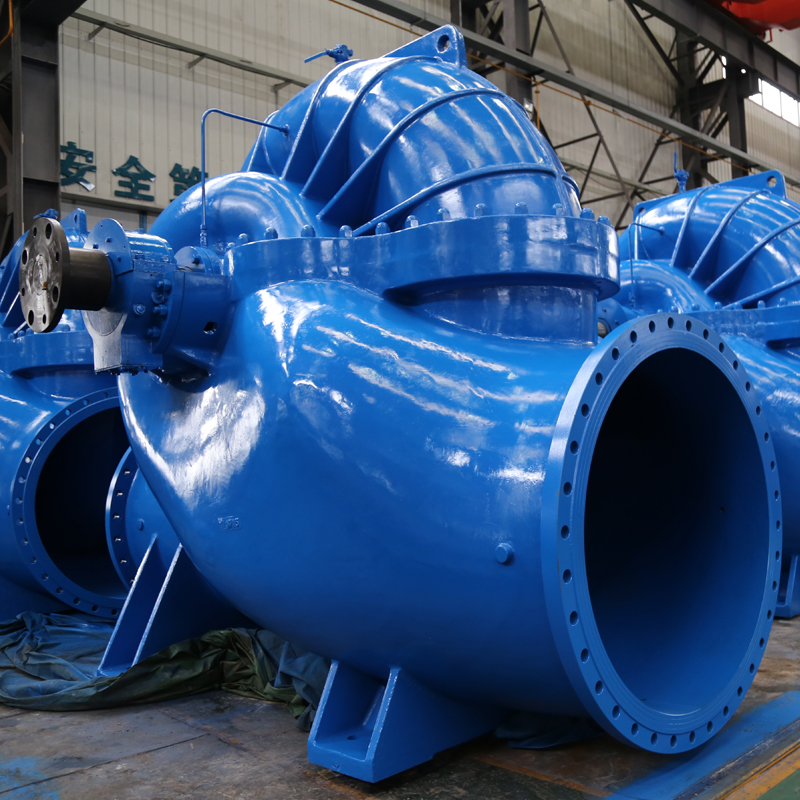

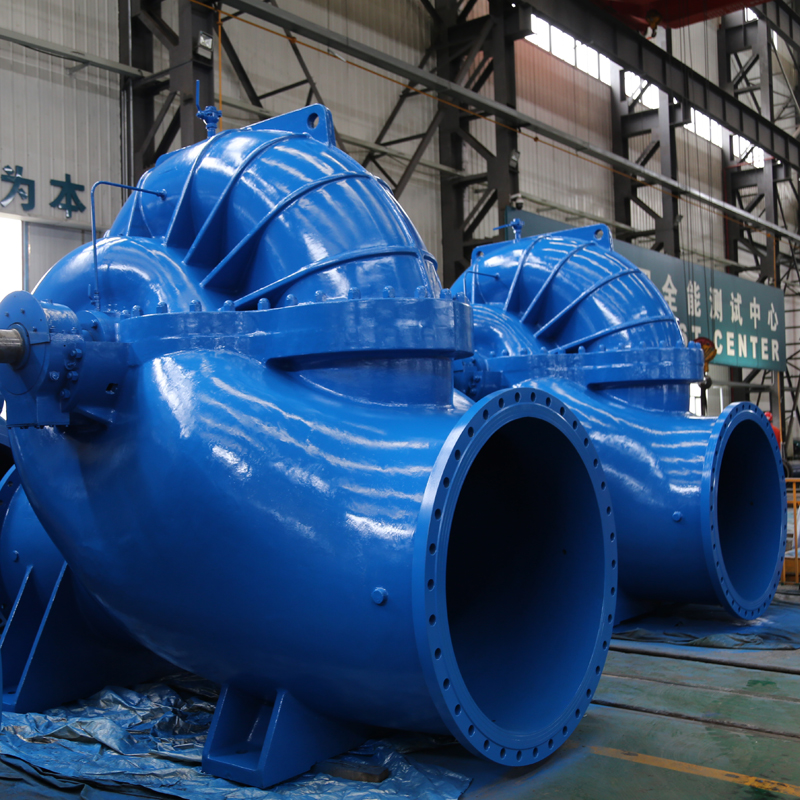

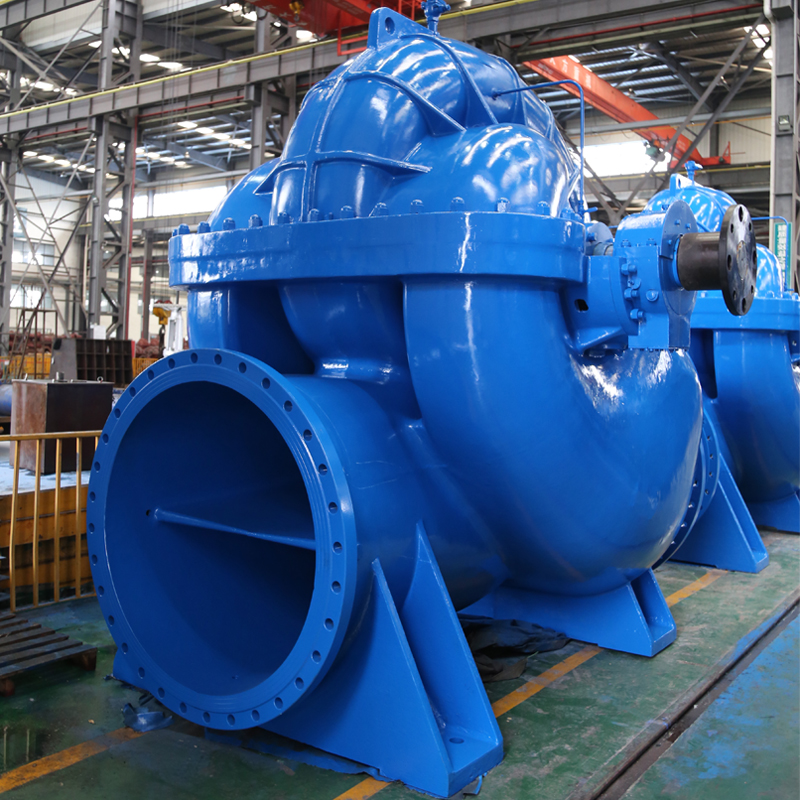

S series single-stage horizontal type double suction split casing pump is used to transport clean water and liquids which physical and chemical properties similar to water. The maximum temperature of the liquid should not exceed 80℃. It has the following characteristics:

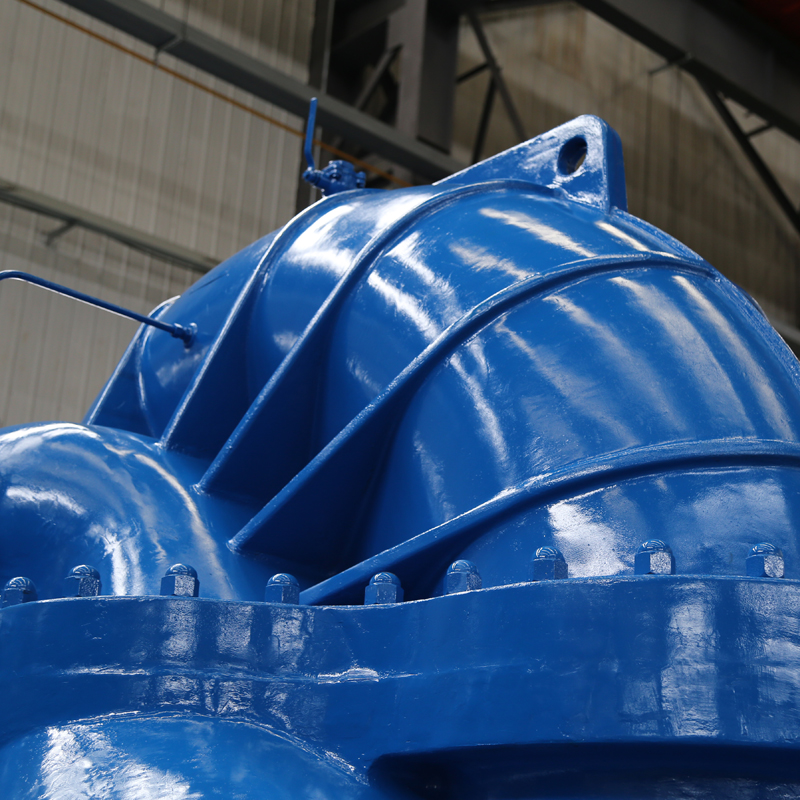

1. The pump casing is split type, so there is no need to dismantle the water inlet, drainage pipeline and motor room (or other driver) during maintenance.

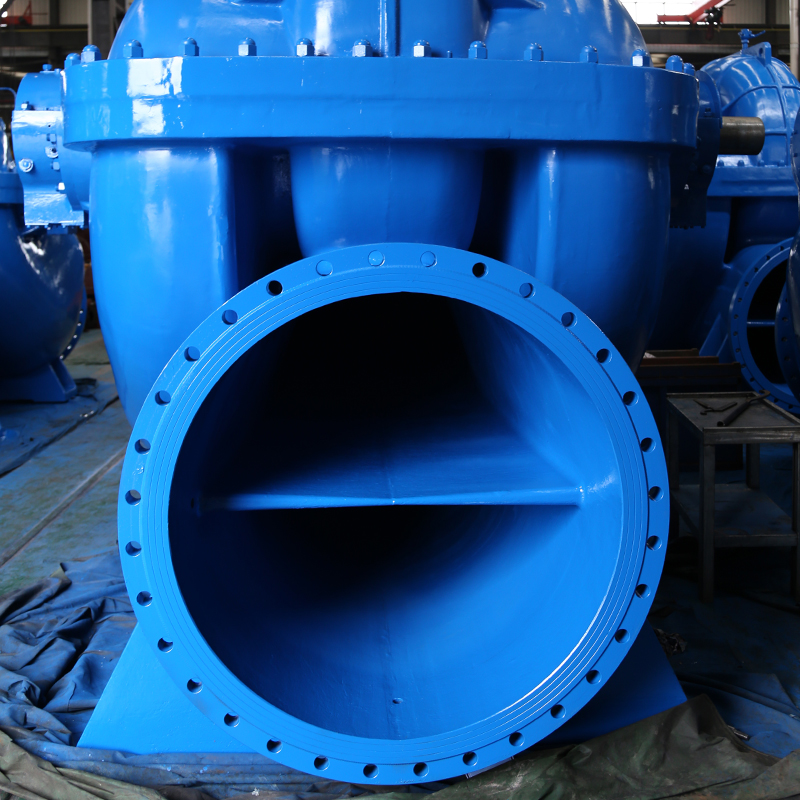

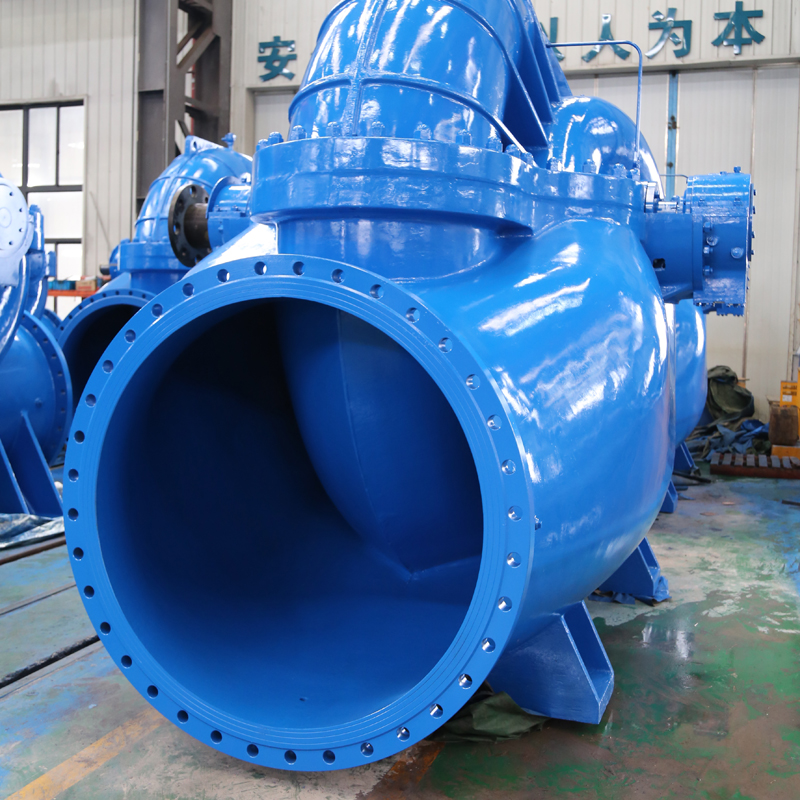

2. The impeller room consists of the pump body and the pump cover. The inlet and outlet flanges are provided with pipe screw holes for installing the vacuum gauges and pressure gauges, and the lower portion of the inlet and outlet flanges have pipe screw holes for water discharge.

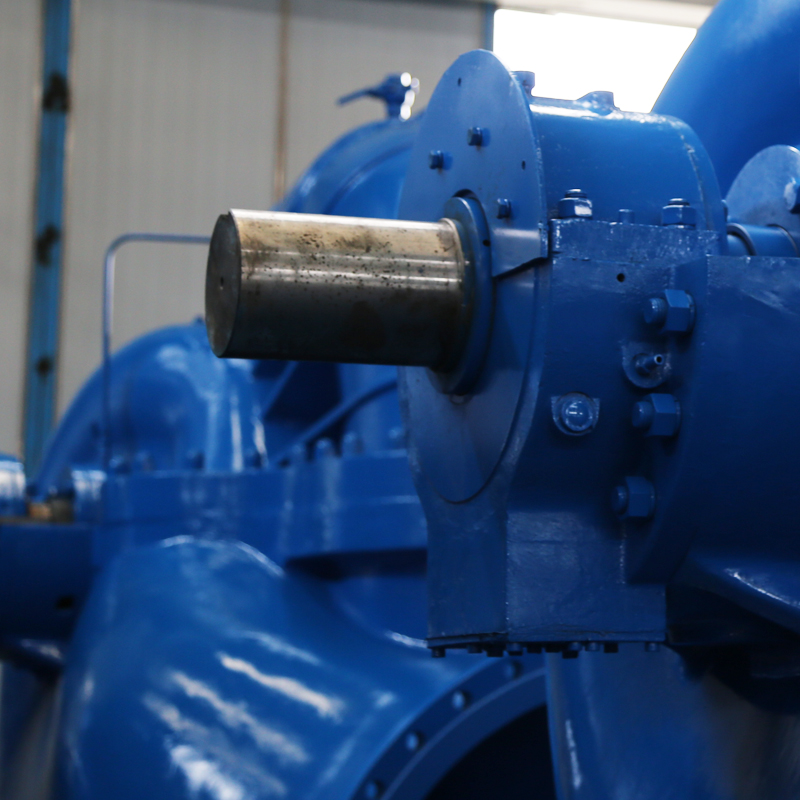

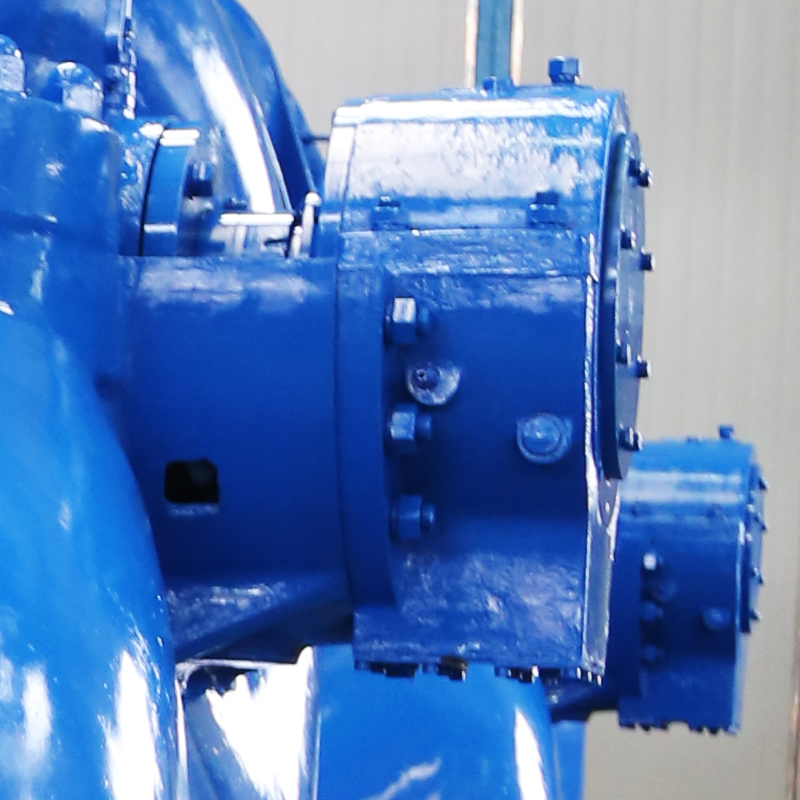

3. The pump shaft is supported by two single-row radial ball bearings, which are installed in the bearing bodies at both ends of the pump body and lubricated by butter. Double suction sealing ring is used to reduce water leakage of the impeller.

Application:

It is mainly used for liquid delivery in waterworks, air-conditioning circulating water, building water supply, irrigation, drainage pumping station, power station, industrial water supply system, fire fighting system, shipping industry, etc.

Working conditions:

Working ranges:

Outlet diameter：80～800 mm

Flow rate：≤ 10500 m3/h

Head：≤ 140 m

Working temperature：＜80℃

Solid content：≤ 80mg/L

Allowable working pressure：≤ 2.5 MPa

Allowable testing pressure：≤ 3.75 MPa

Frequency: 50Hz / 60Hz

Protection Grade: IP54/IP55

Insulation Class: F / H

Motor Type: Dry type three-phase induction motor
