Product Overview:

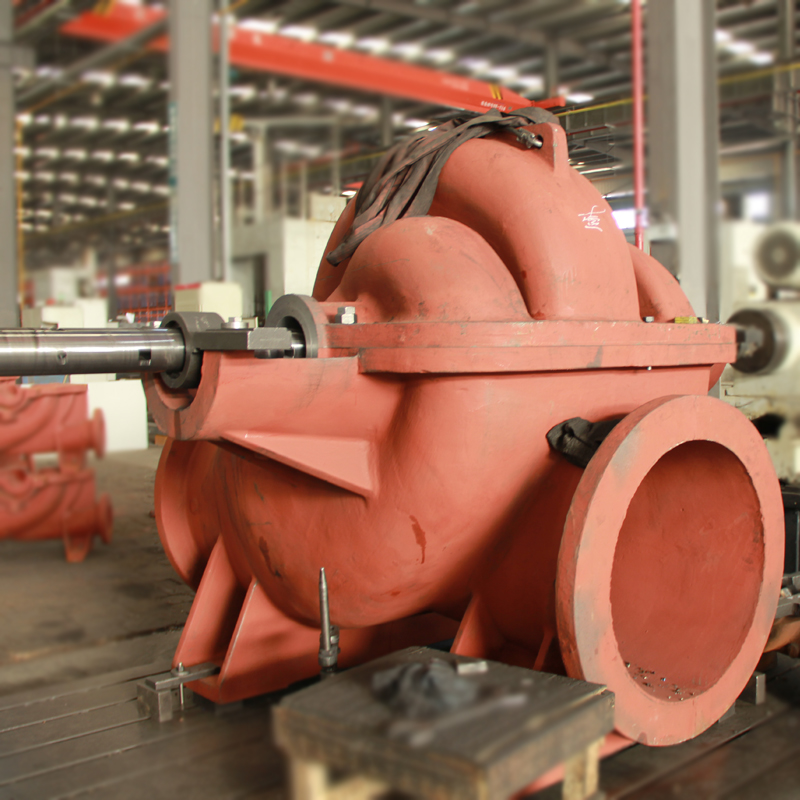

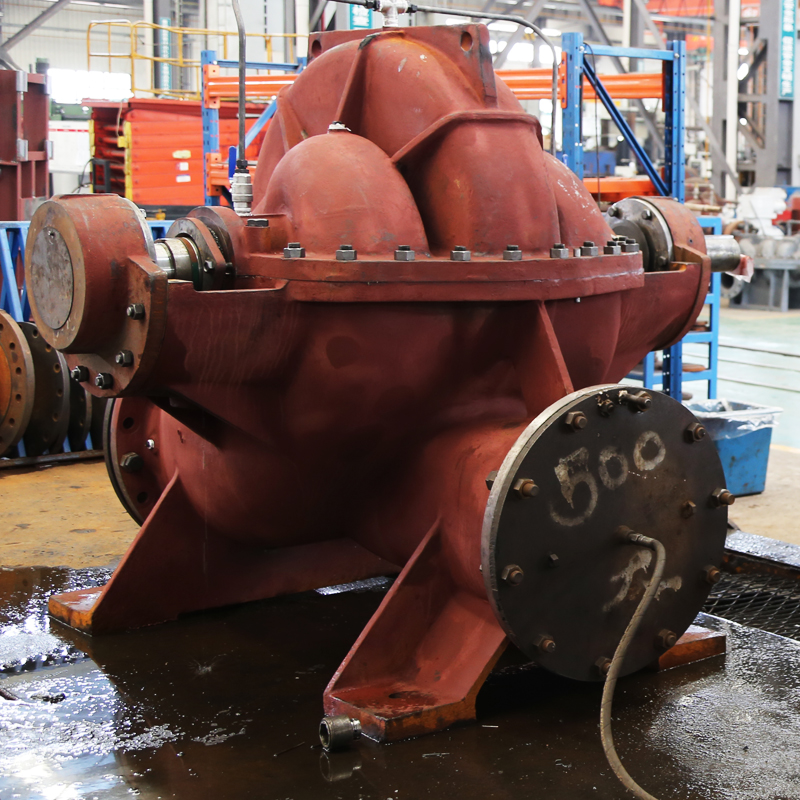

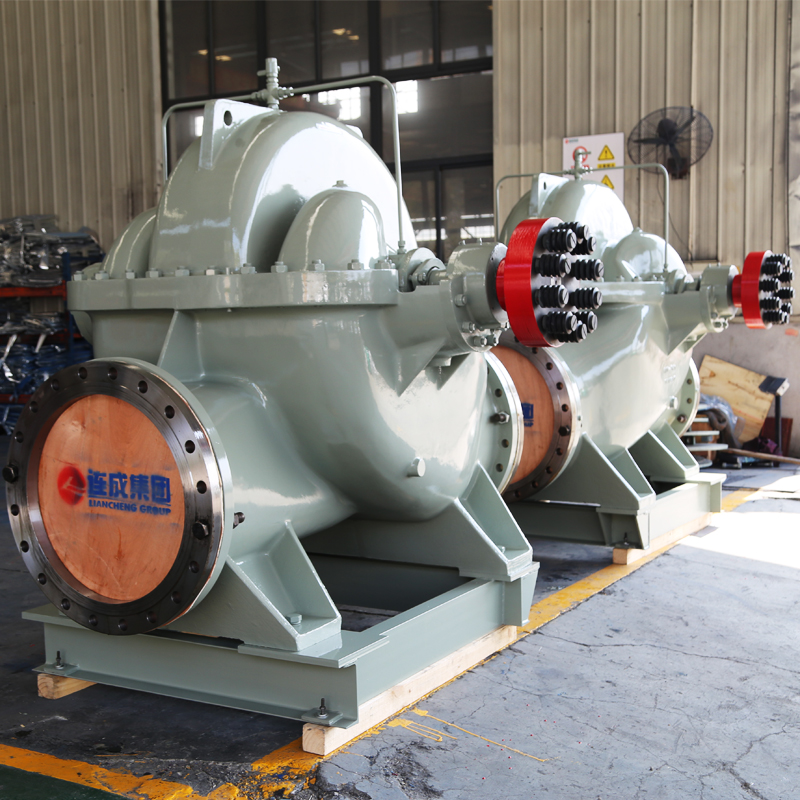

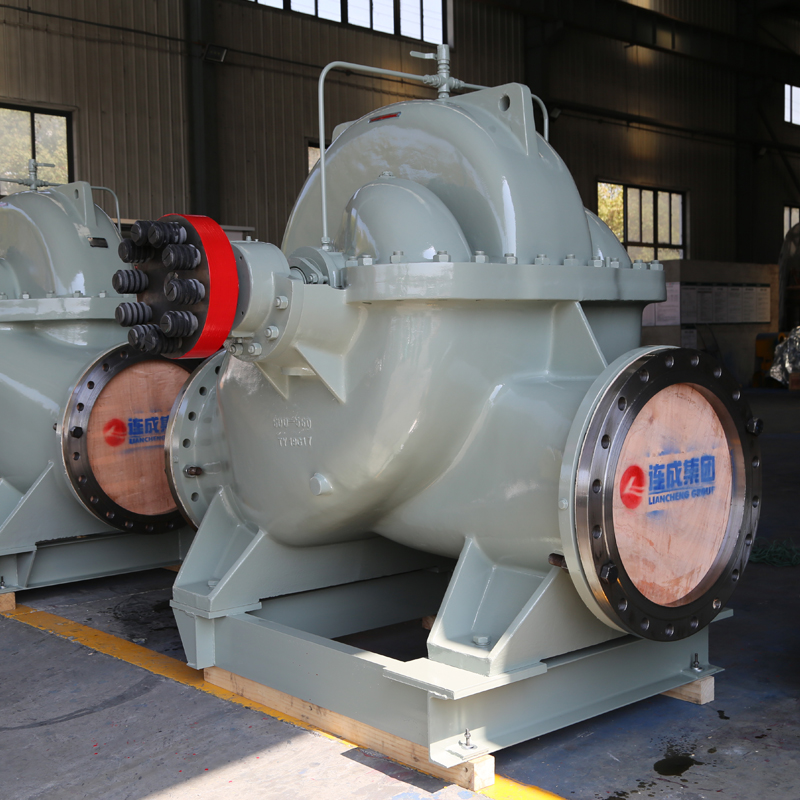

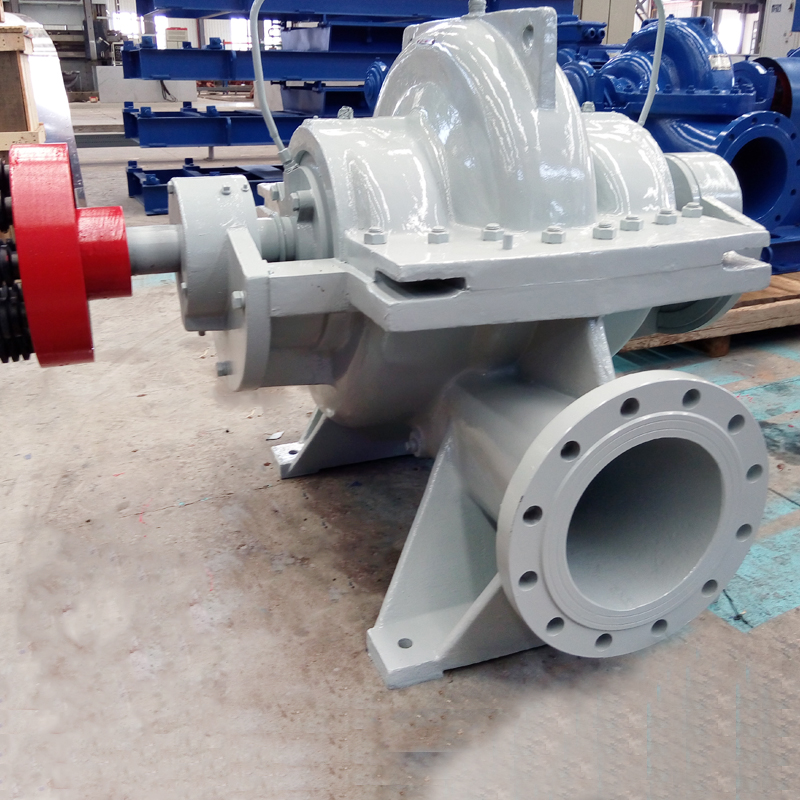

SLO SLOW series single-stage double suction split casing pump adopts excellent hydraulic model and unique design, with elaborate manufacturing and strict inspection makes the technical performance being in the leading domestic level. It can completely replace the imported pumps and save the a lot of foreign exchange and investment. It has the following structural characteristics:

1. Compact structure; Beautiful appearance, good stability and easy installation.

2. Stable operation; The optimized design of the double suction impeller reduces the axial force to a minimum, and the blade has excellent hydraulic performance, and is precision casting. The inner surface of the pump casing and the impeller surface are extremely bright, with significant anti-cavitation performance and high efficiency.

3. Bearings use SKF and NSK brand to ensure smooth operation, with low noise and long service life.

4. The shaft seal uses BURGMANN mechanical seal or packing seal. It can guarantee 8000 hours of operation without leakage.

5. Installation type; No need to make adjustment during assembly, Vertical type or horizontal type is available.

Application:

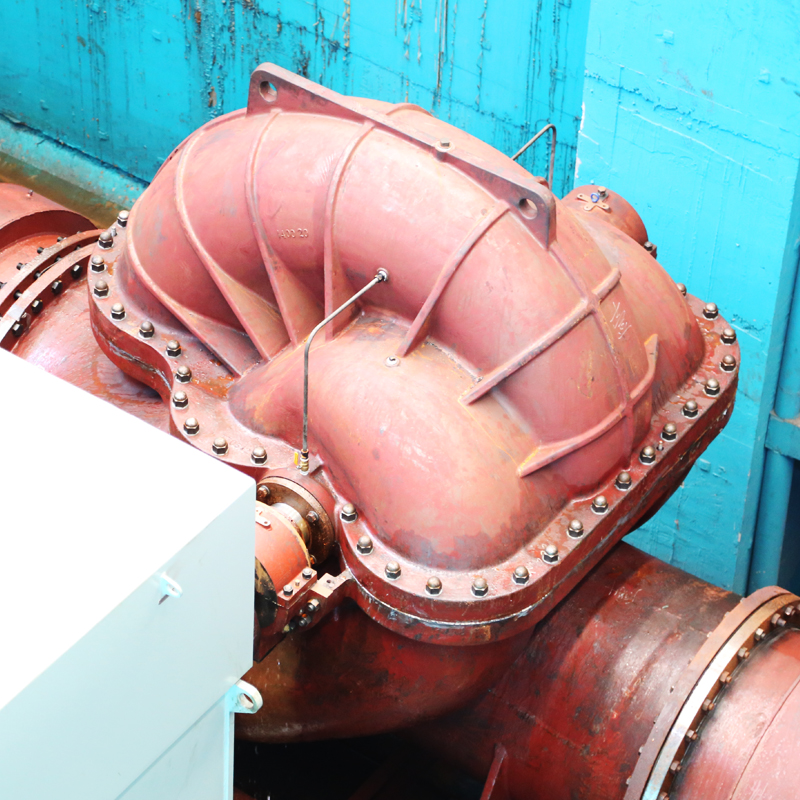

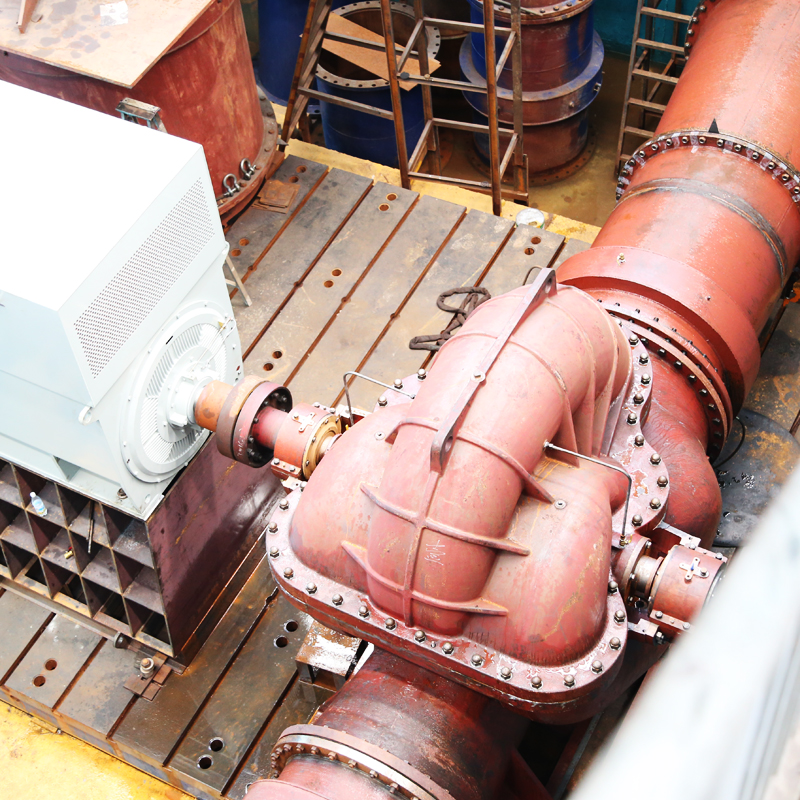

It is mainly used for liquid delivery in waterworks, air-conditioning circulating water, building water supply, irrigation, drainage pumping station, power station, industrial water supply system, fire fighting system, shipping industry, etc.

Working conditions:

Working ranges:

Outlet diameter：80～1400 mm

Flow rate：≤ 30000 m3/h

Head：≤ 200 m

Working temperature：＜105℃

Solid content：≤ 80mg/L

Allowable working pressure：≤ 2.5 MPa

Allowable testing pressure：≤ 3.75 Mpa
