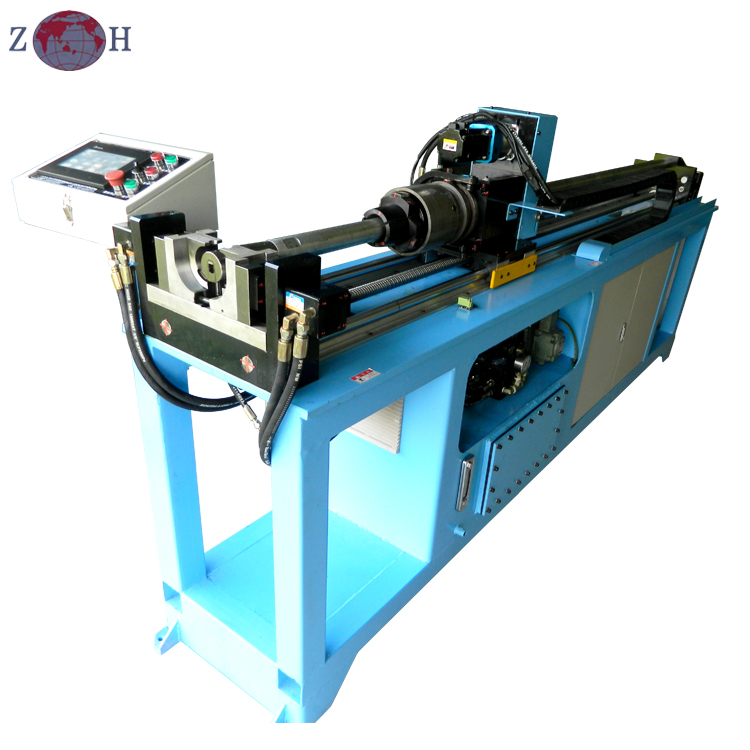

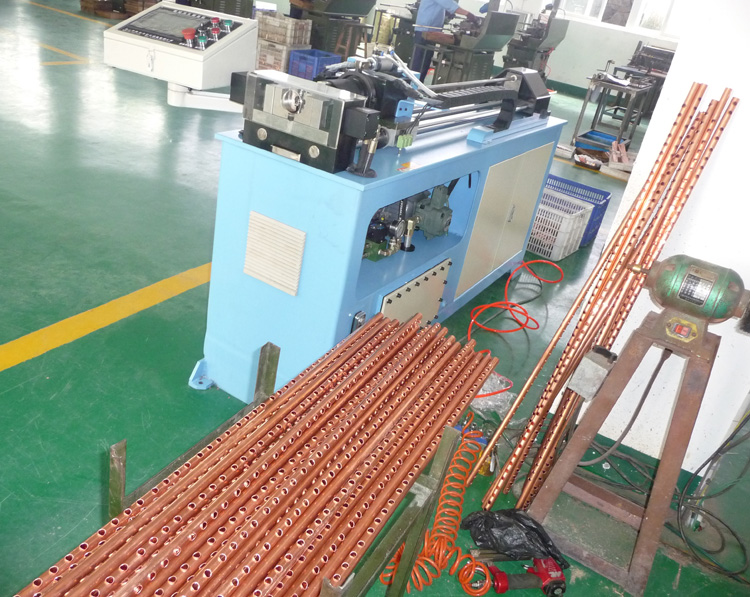

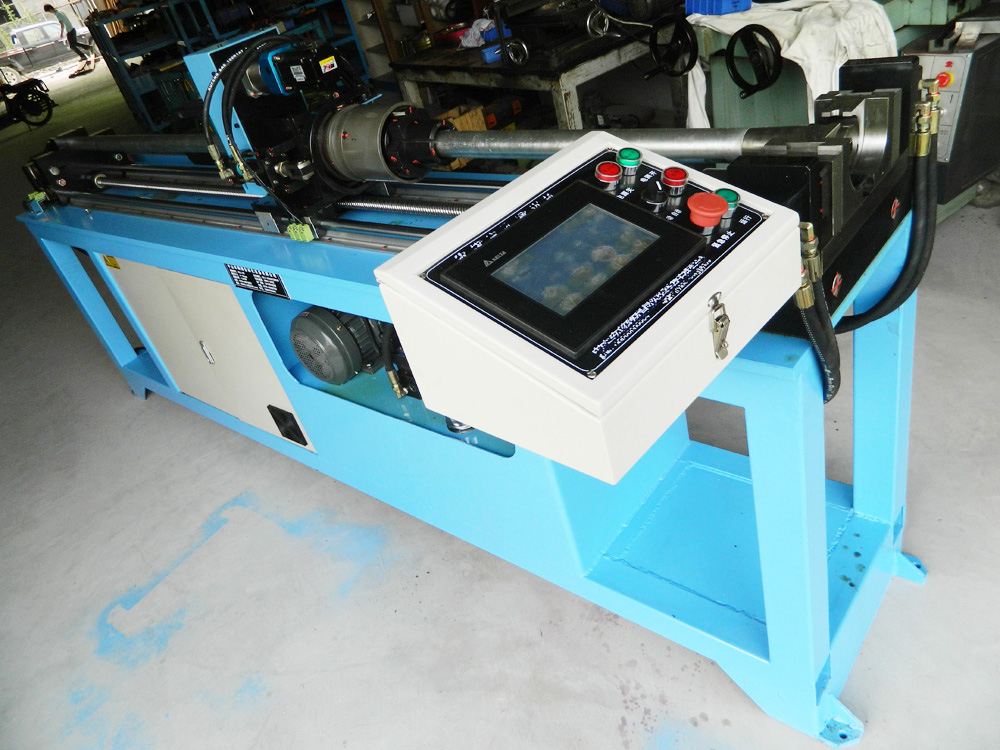

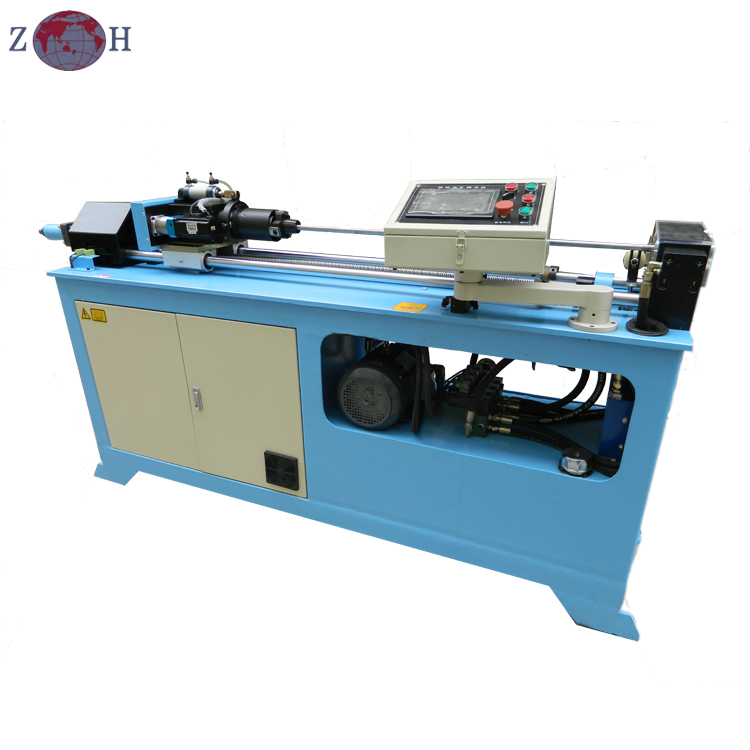

This machine is specially designed for punching collar holes on copper tubes in AC conditioners.
This machine is 2-axis control, suitable for punching two rows collar holes on same tube.
I Main features:
- l Servo feeding, servo rotating, hydraulic punching
- l PLC + HMI, full automatic, only manual loading & unloading
- l Good punching & drawing result, high efficient
- l Medium-speed wire cut molds, more than 100,000 times punching life
II Main technical data
No.
Item
Data
1
Max. copper tube diameter
Φ40mm
2
Min. copper tube diameter
Φ12.0mm
3
Copper tube wall thickness
1-2.7mm
4
Max. tube length
1500mm
5
Min. collar hole diameter
Φ5.0mm
6
Collar hole inner diameter precision
±0.05mm
7
Min. space between two holes
25mm @10mm hole
8
Hole collar height
Tube diameter Φ16mm
1.5mm
Tube diameter > Φ16mm
2mm
9
Verticality between collar and tube
≤0.1mm
10
Feeding speed
600mm/S
11
Rotating speed
360°/S
12
Feeding axis position precision
±0.10mm
13
Rotating axis position precision
±0.10°
14
Max. clamping force
800kg
15
Max. punching force
2000kg
16
Clamping method
hydraulic
17
Punching efficiency
3~5 seconds per hole
18
Hydraulic station pump motor power
2.2kW
19
Total power
3.5KW
20
Dimension
Around 2200 x 560 x 1250mm
III Structure and configuration
3.1 Composition: main body, feeding device, punching device, rotating device, clamping device, hydraulic system, electric control system and cooling system.
3.2 Hydraulic station is equipped with air cooling system.
3.3 Hydraulic valves and pump are SHENGER from Taiwan
3.4 PLC is Mitsubishi from Japan; HMI is Weinview from Taiwan; Servo motor is from Taiwan
3.5 Control system has automatic counting function which can count processing quantity.
3.6 Processing data can be pre-set and saved in the PLC and can be recalled for next time use.
