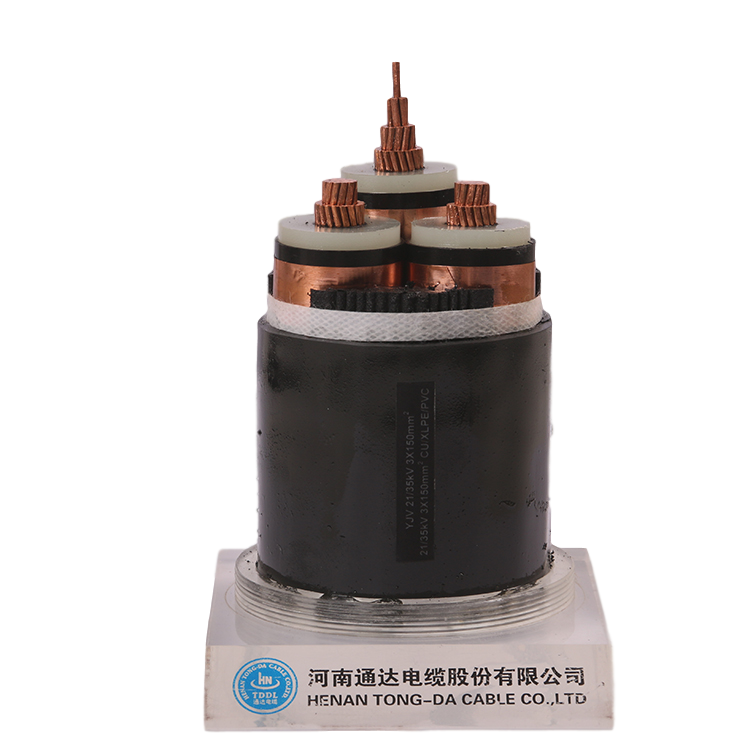

Copper conductor, XLPE insulated, Copper Tape screened, PVC sheathed medium voltage power cable
HENAN TONG-DA CABLE CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Copper conductor, XLPE insulated, Copper Tape screened, PVC sheathed medium voltage power cable
HENAN TONG-DA CABLE CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier
YJV (N2XSEY) Three-core 6/10kV 8.7/15kV 12/20kV 18/30kV
CU / XLPE / CTS / PVC
(Copper conductor, XLPE insulated, Copper Tape screened, PVC sheathed)
Application:
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants.

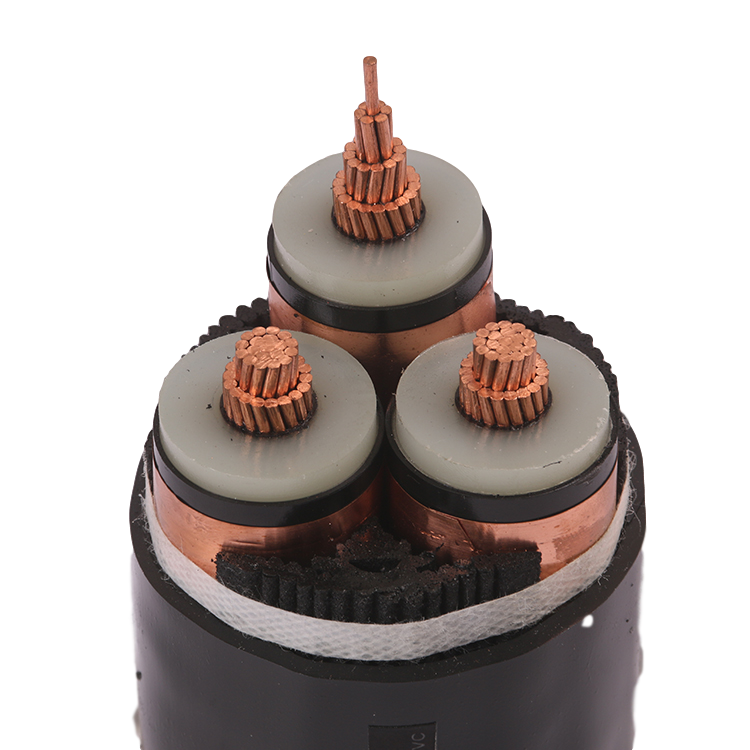

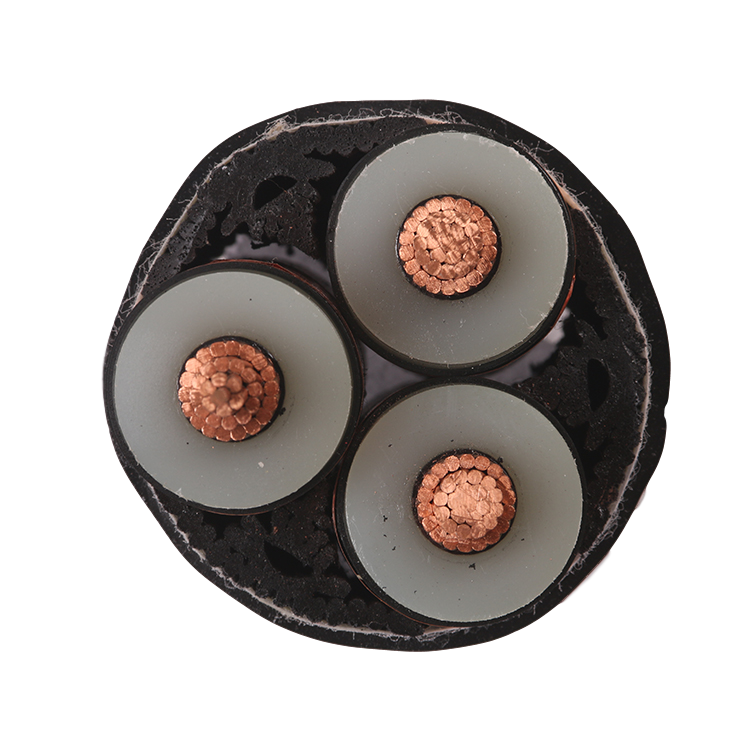

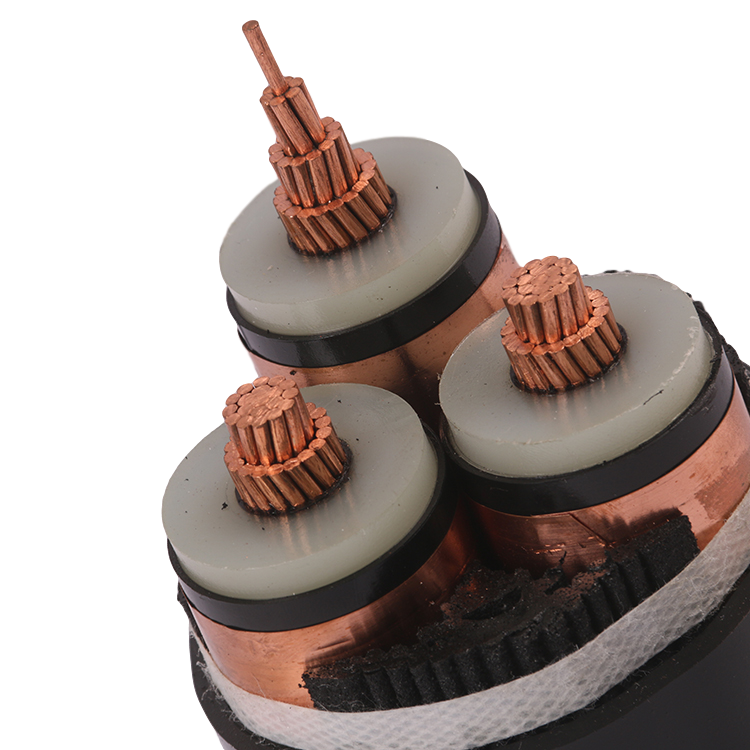

Construction ：
- 1) Conductor : Copper ,Class 1 or Class 2,solid or stranded Circular conductors
- 2) Conductor screen: Non-metallic，semi-conducting compound
- 3) Insulation: Cross-linked polyethylene XLPE
- 4) Insulation screen: Non-metallic，semi-conducting compound
- 5) Metallic screen: Copper tape
- 6) Filler: Non-hygroscopic material
- 7) Binder tape: Non-hygroscopic material
- 8) Oversheath: Polyvinyl chloride PVC
SPECIFICATIONS:
IEC 60228 Conductors of insulate cables
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 2:Cables for rated voltages of 6 kV(Um=7.2kV) and 30 kV(Um=36kV)
No. of cores and nominal cross section
Thickness of Insulation
Thickness of
Sheath
Approx.overall Diameter
Approx. weight
Max. DC resistance of conductor（20℃）
Current carrying capacity
(mm2)
(mm)
(mm)
(mm)
(kg/km)
(Ω/km)
In Air(A)
In Ground(A)
YJV (N2XSEY) - 6/10kV
3X25
3.4
2.2
39.3
1868
0.727
120
135
3X35
3.4
2.3
41.7
2242
0.524
145
165
3X50
3.4
2.4
44.7
2718
0.387
175
190
3X70
3.4
2.5
48.5
3470
0.268
220
240
3X95
3.4
2.6
52.2
4358
0.193
265
285
3X120
3.4
2.7
55.4
5189
0.153
305
320
3X150
3.4
2.8
58.9
6091
0.124
350
365
3X185
3.4
2.9
62.7
7311
0.0991
395
410
3X240
3.4
3.1
67.9
9135
0.0754
470
480
3X300
3.4
3.3
73.0
11060
0.0601
535
540
3X400
3.4
3.5
79.9
13727
0.0470
610
610
YJV (N2XSEY) - 8.7/15kV
3X25
4.5
2.4
44.4
2218
0.727
120
135
3X35
4.5
2.5
46.8
2611
0.524
145
165
3X50
4.5
2.6
49.8
3110
0.387
175
190
3X70
4.5
2.7
53.7
3891
0.268
220
240
3X95
4.5
2.8
57.3
4807
0.193
265
285
3X120
4.5
2.9
60.6
5663
0.153
305
320
3X150
4.5
3.0
64.0
6591
0.124
350
365
3X185
4.5
3.1
67.9
7839
0.0991
395
410
3X240
4.5
3.3
73.0
9703
0.0754
470
480
3X300
4.5
3.4
78.0
11632
0.0601
535
540
3X400
4.5
3.7
85.1
14388
0.0470
610
610
No. of cores and nominal cross section
Thickness of Insulation
Thickness of
Sheath
Approx.overall Diameter
Approx. weight
Max. DC resistance of conductor（20℃）
Current carrying capacity
(mm2)
(mm)
(mm)
(mm)
(kg/km)
(Ω/km)
In Air(A)
In Ground(A)
YJV (N2XSEY) - 12/20kV
3X35
5.5
2.7
51.7
2843
0.524
150
160
3X50
5.5
2.8
54.3
3323
0.387
175
190
3X70
5.5
2.9
58.4
4116
0.268
220
235
3X95
5.5
3.0
62.3
5056
0.193
265
285
3X120
5.5
3.1
65.3
5942
0.153
305
320
3X150
5.5
3.2
68.5
6931
0.124
350
365
3X185
5.5
3.3
72.4
8163
0.0991
395
410
3X240
5.5
3.5
78.0
10027
0.0754
465
475
3X300
5.5
3.6
83.0
12117
0.0601
530
535
3X400
5.5
3.9
89.3
14792
0.047
615
605
YJV (N2XSEY) - 18/30kV
3X35
8.0
3.0
63.3
3672
0.524
170
153
3X50
8.0
3.1
65.8
4186
0.387
204
181
3X70
8.0
3.2
69.9
5032
0.268
253
221
3X95
8.0
3.4
73.8
6024
0.193
304
262
3X120
8.0
3.5
76.9
6949
0.153
351
298
3X150
8.0
3.6
80.1
7981
0.124
398
334
3X185
8.0
3.7
84.0
9264
0.0991
455
377
3X240
8.0
3.8
89.5
11200
0.0754
531
434
3X300
8.0
4.0
94.6
13356
0.0601
606
489
3X400
8.0
4.2
100.9
16115
0.0470
696
553
