It is mainly used for tensile, bending, compression, shearing, peeling and tearing tests of various metallic and non-metallic materials.

Characteristics:

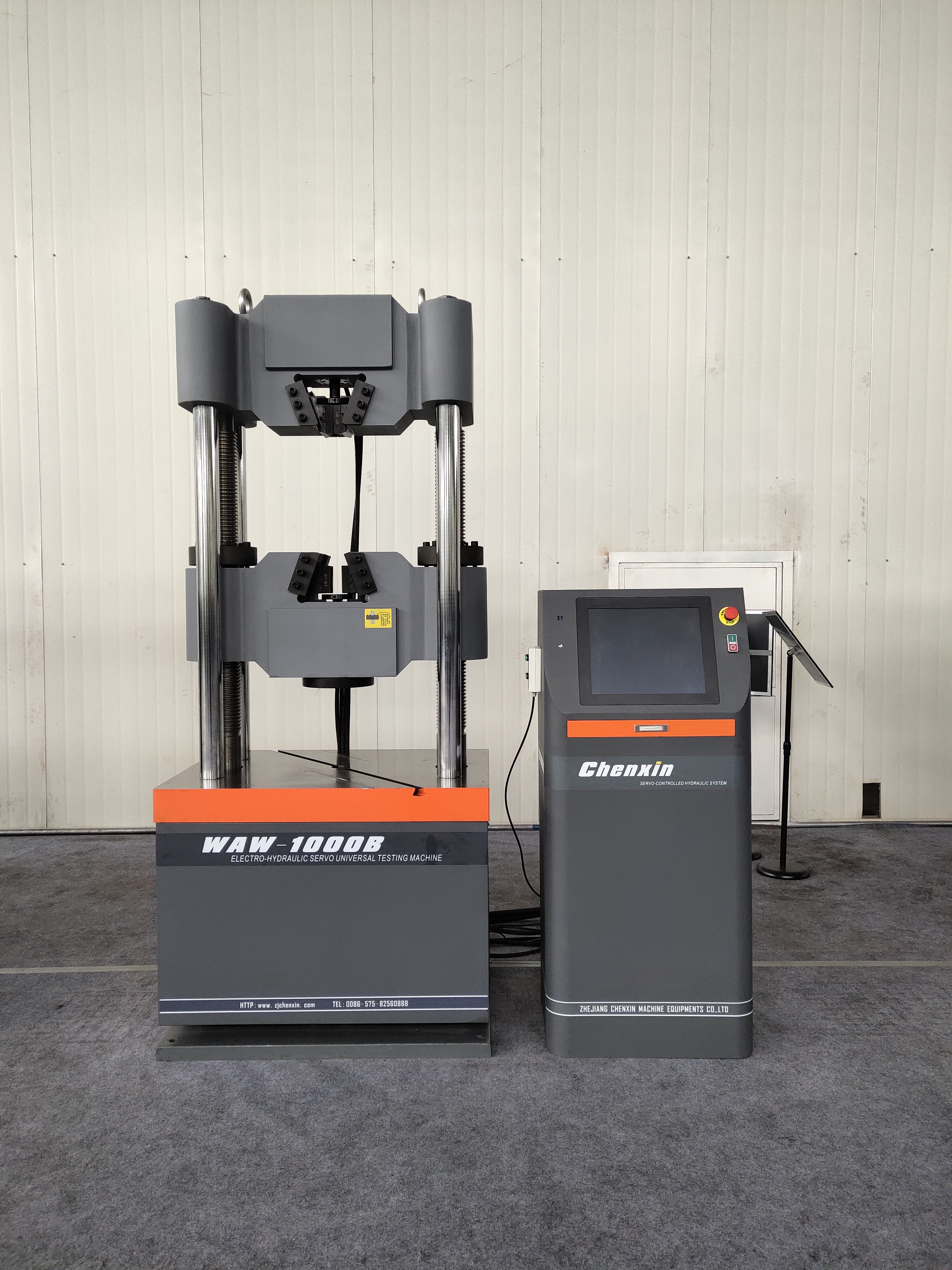

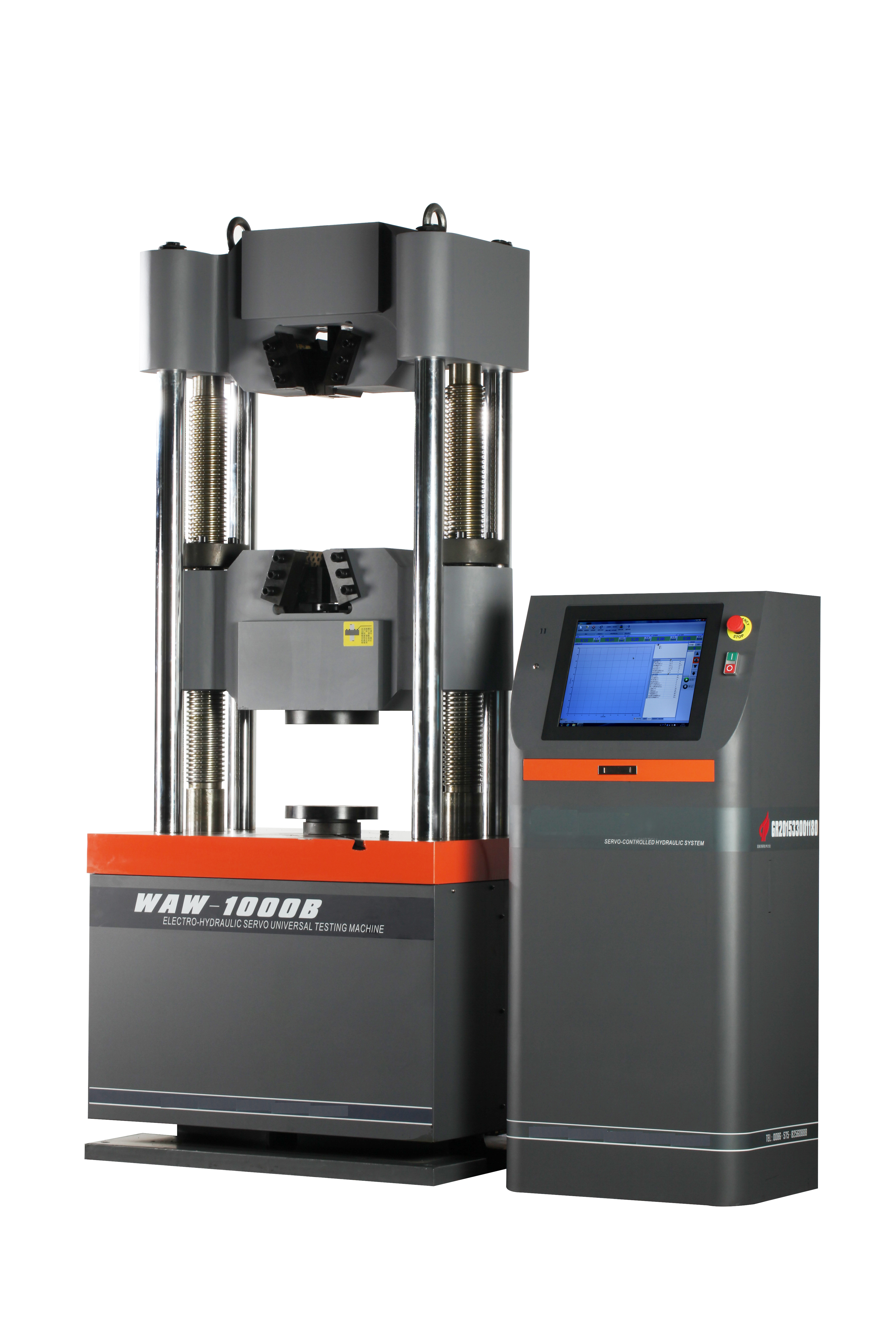

1. 1. Adopts four-column frame (WAW-100B and WAW-300B) structure and six-column frame (WAW-600B and WAW-1000B) structure with lower cylinder, good rigidity and stable structure.

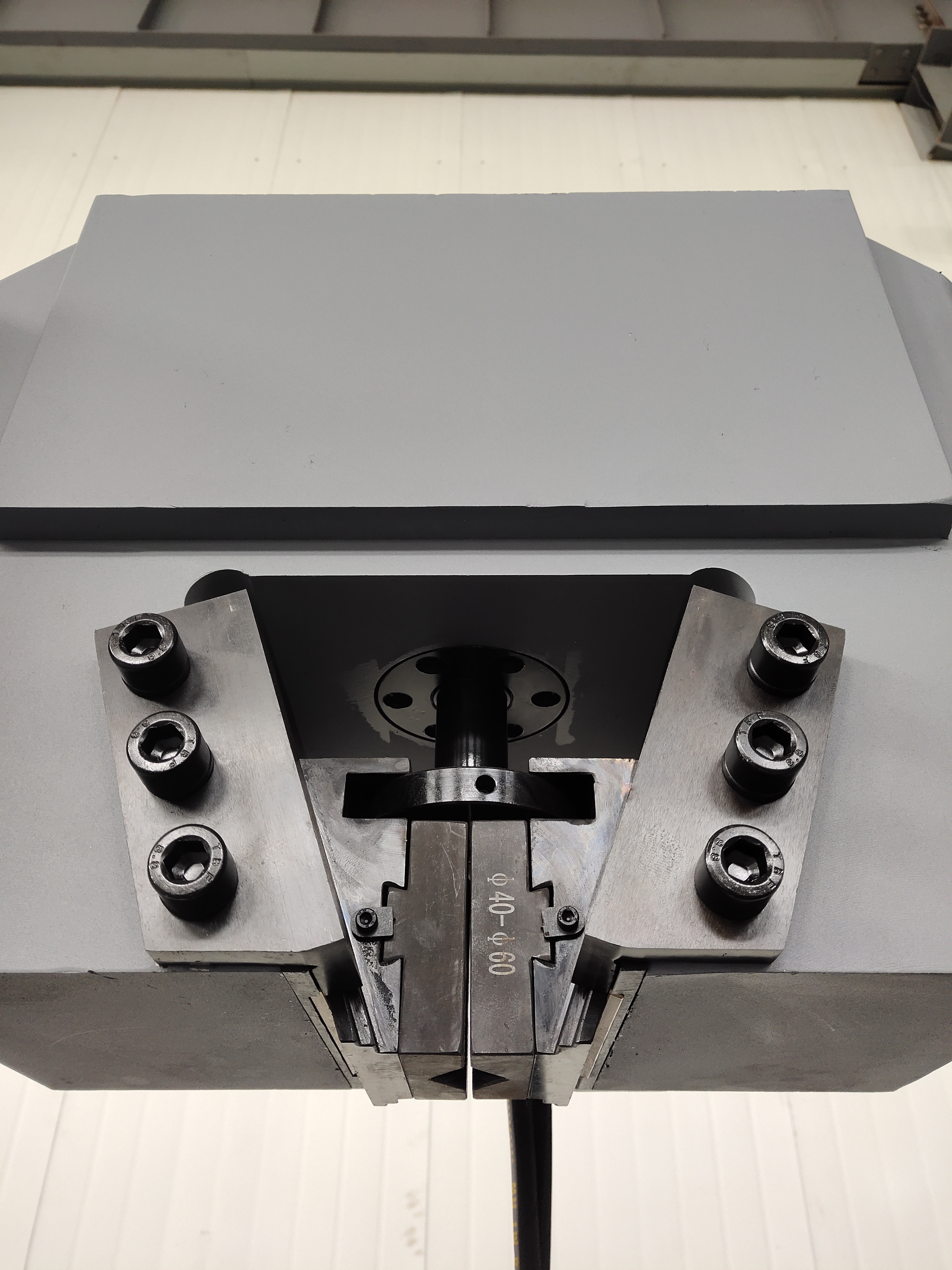

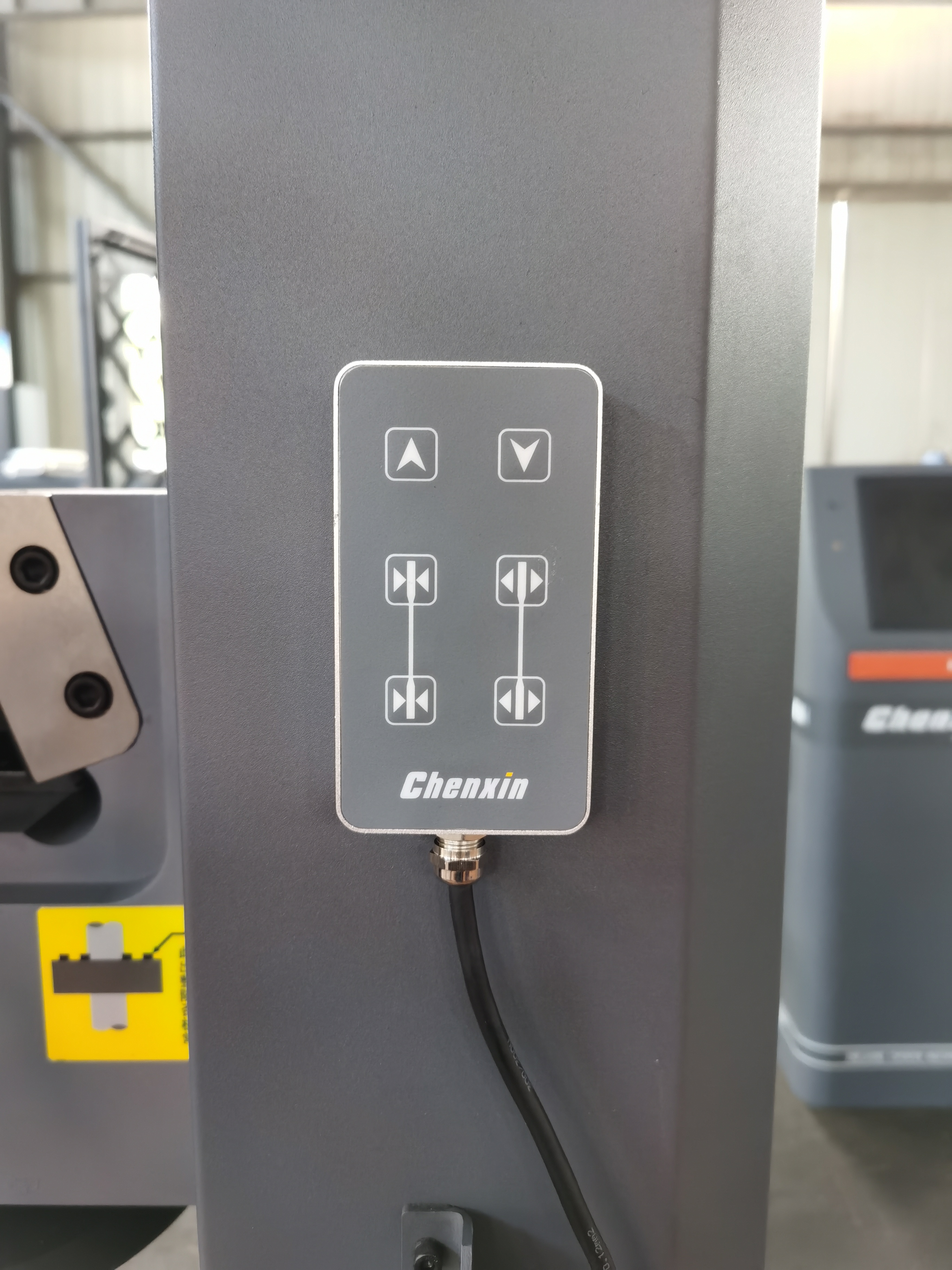

2. 2. Adopts hydraulic automatic clamping
3. 3. Adopts class C3 high precision plunger type weighing transducer, Not affected by temperature, it has the characteristics of high accuracy, good stability and good output linearity. The accuracy error of force indication is ≤1%.
4. 4. Adopts high precision displacement sensor

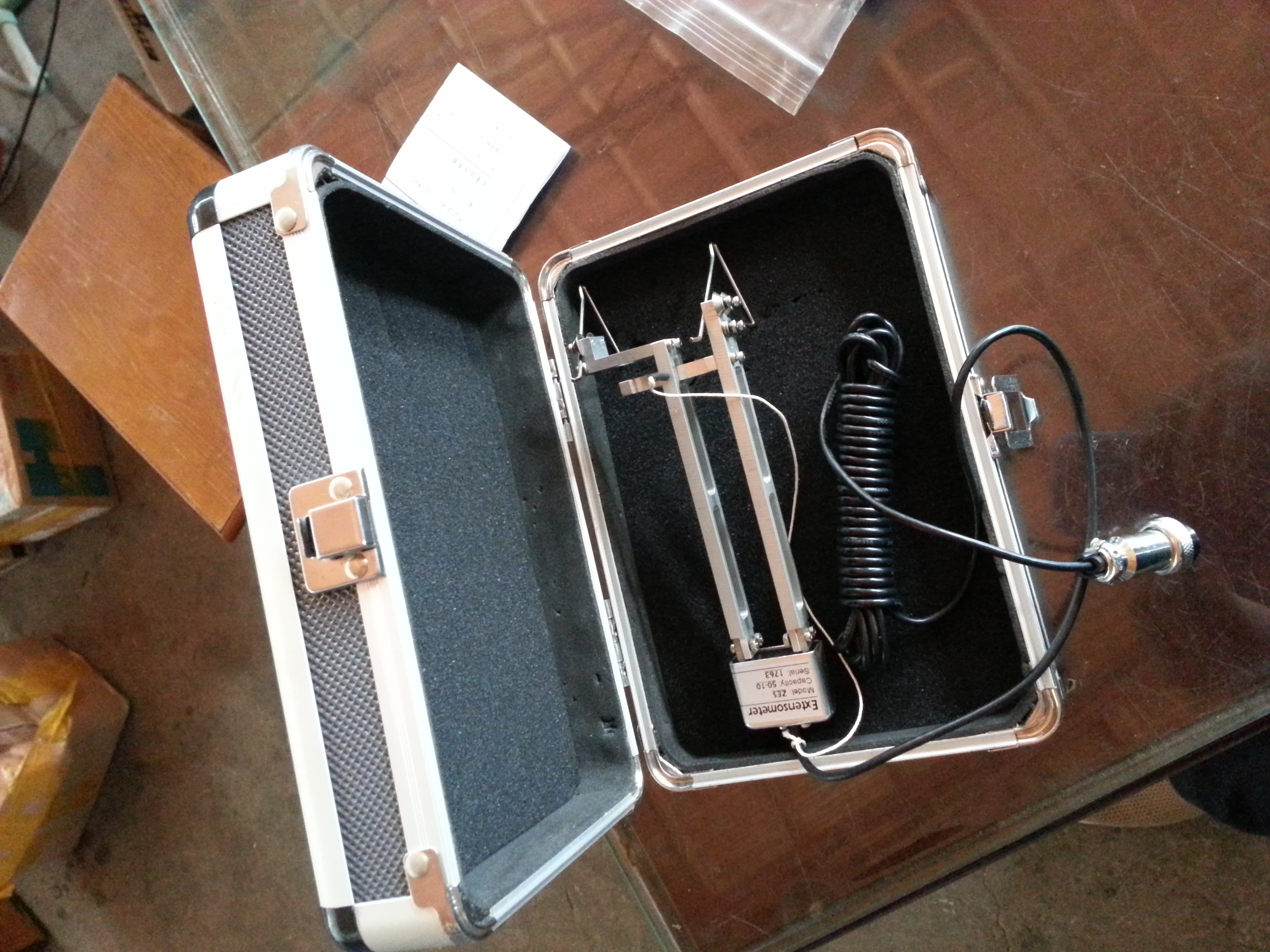

5. 5. Adopts high precision extensometer for deformation
6. 6. Adopts high performance servo valves for control
7. 7. The double-nut reverse clearance elimination structure is adopted to solve the problem of crack enlargement of parts caused by wear and tear of nuts during long-term operation. The loading rate is guaranteed, which is much higher than the standard of GB228.
8. 8. Can realize constant rate force control, constant rate stress control, constant rate strain control, constant rate stroke control, low cycle fatigue control and user self-programming control, etc.

   9. Can make curves like: force-deformation, force-displacement, stress-strain, force-time, etc

   10. The networked measurement and control system has the functions of gain adjustment and zero fullness to ensure the smooth operation and accurate measurement of the machine.

   11. Adopt PCI Bus Control Mode

   12. Adopts imported product for hydraulic system, for example imported Siemens motor and imported radial plunger pump, makes higher precision, lower noise, better durability, enhance the machine stability.

   13. The computer and electro-hydraulic servo system are used to control loading and fully automatic control. According to the preset stress rate and curve form, the test can be completed independently, and the load, speed, time and test curve can be displayed dynamically. All the tests can be completed by setting only one parameter.

   14. Equipped with the current advanced industrial embedded tablet computer, The withstandable voltage range is 85-250V, and the anti-interference performance is stronger.

   15. Adopts touch screen computer. Operating by touch screen and keyboard.

   16. With Windows software, can automatically get the elastic modulus E, upper yield strength ReH, lower yield strength ReL, stipulated non-proportional extension strength Rt, yield point elongation, etc

   17. Automatic data acquisition and processing by computer and synchronous screen display of test data and curve are adopted. The experimental curves can be enlarged locally and compared by superposition of multiple curves. It has the functions of disk storage, printing test results and test curves of test results, report processing of batch test results, database management, etc. It also has network interface, LAN networking function and seamless remote data connection function.

9.


10. Main technical parameters

11. Model

    WAW-100B

    WAW-300B

    WAW-600B

    WAW-1000B

    WAW-2000B



    Load frame deformation under maximum loading

    Column deformation ≤0.45mm

    Oil cylinder position

    On bottom

    Load frame

    Oil cylinder max. load

    580KN

    780KN

    1500KN

    2000KN

    2800KN

    Oil cylinder linearity

    Ellipticity

    ≤0.015mm

    Verticality

    ≤⊥0.03mm

    Roughness

    ≤Ra0.4um

    Oil source

    Oil pump

    Flow

    2ml/rev

    4ml/rev

    6ml/rev

    Pressure

    6.5mpa

    19.5mpa

    23.5mpa

    24mpa

    24.8mpa

    Transducer

    Sensitivity coefficient

    2mv/v

    Nonlinearity

    0.2%FS

    Repeatability

    0.05%FS

    Maximum test force

    100KN

    300KN

    600KN

    1000KN

    2000KN

    Force indication value relative error

    ≤±1%

    Force resolution

    1/300000FS

    Displacement measuring range

    0.1%-100%FS

    Deformation measuring range

    0.1%-100%FS

    Deformation indicating error

    ≤±1%

    Deformation resolution

    1/300000FS

    Lower crossbeam elevating speed

    200mm/min

    Displacement constant speed control range

    0.5-90mm/min

    Speed control precision error

    ≤±2% set value

    Distance between platens

    600mm

    600mm

    700mm

    700mm

    1000mm

    Tensile space

    600mm

    600mm

    700mm

    700mm

    1000mm

    Effective distance between columns

    435mm

    435mm

    565mm

    650mm

    700mm

    Clamp width of flat specimen

    ≤40mm

    ≤60mm

    ≤70mm

    ≤80mm

    ≤110mm

    Clamp thickness of flat specimen

    0-15mm

    0-20mm

    0-30mm

    0-40mm

    0-40mm

    Clamp diameter of round specimen

    6-20mm

    10-32mm

    13-40mm

    20-60mm

    20-70mm

    Platen size

    φ235mm

    φ235mm

    240*240mm

    240*240mm

    240*240mm

    Piston stroke

    200mm

    200mm

    250mm

    250mm

    250mm

    Total power

    1.5+0.55kW

    1.5+0.55kW

    2.2+1.5kW

    3+0.75kW

    4+1.1kW

    Voltage

    ACX380V±10%, 50Hz

    Load frame dimension

    740*460*1965mm

    800*600*2150mm

    1000*700*2350mm

    1100*760*2700mm

    Control cabinet size

    620*440*1400mm

    Load frame weight

    1700Kg

    1700mm

    2500mm

    3500Kg

    4500Kg
