Main Features

1. WMTCNC 3-Axis Turning Centers TX700 is a turning center able to flexibly handle various workpieces.

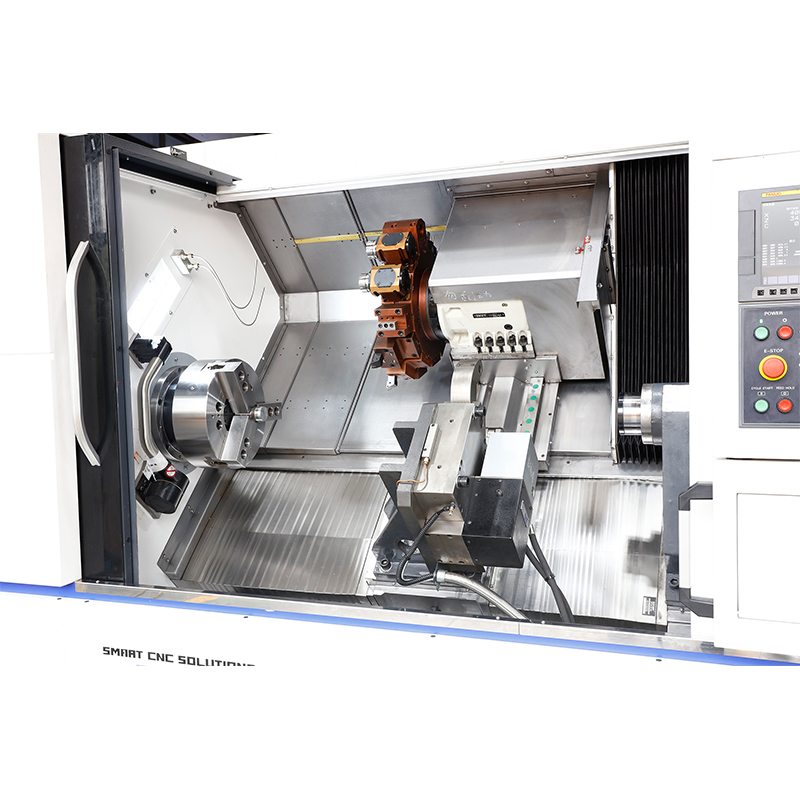

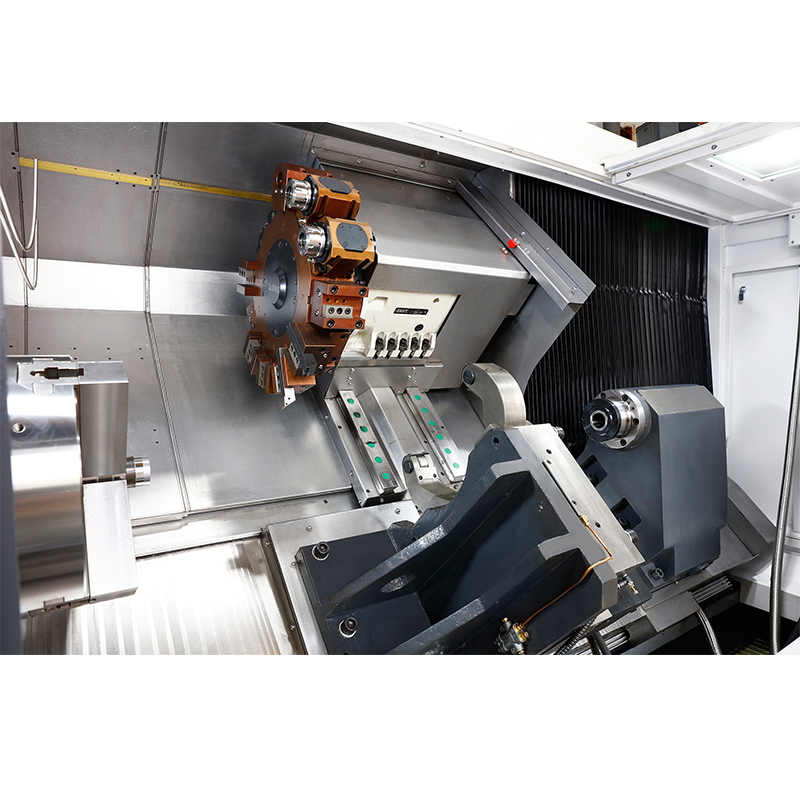

2. The 12-station Power Turret enables the operator to machine simple to complex workpieces with one easy setup operation.
3. These models also feature a Direct Drive Spindle( Integrated Motor) that reaches high speed while maintaining strict rigidity and exceptional C-Axis accuracy.
4. The models can satisfy a wide range of users from beginners of shop production to group corporation with experienced technicians.
5. WMTCNC Turning center have a heavy-duty cast base with "True Align"Slant bed design.
6. The machine bed, head stock, turret and tailstock are aligned on the same plane.
7. This Unique design feature reduces heat build-up and resulting thermal expansion.
8. Cylindrical Roller type guideways and large diameter high precision ballscrew provides improved rigidity and higher accuracy.
9. With a very low coefficient of friction, they consume less power and do not require adjustment.
10. The tailstock body is positioned by hydraulic traction bar on roller linear guideway.
11. Tremendous reduction in set up, compared to hydraulic sleeve type manual tailstock.

Specifications Specification Unit TX700 Capacity Chuck size inch 15 Max. swing dia. over bed mm 1300 Max. length of workpiece mm 650 Max. swing dia. over slide mm 500 Spindle Spindle bore mm 105 Max. dia. of through-hole mm 91 Spindle nose type A2-8 Spindle speed rpm 1800 Main motor power kW Belt:22/18.5 Axis X axis travel mm 280 Z axis travel mm 1300 X/Z rapid traverse m/min 15/20 Turret No. of tool stations pcs 12 Tool shank size BMT65 Max. speed of driving tool rpm 4000,*5000 Tailstock Type of tailstock SST-LM,*SPT Taper of tailstock quill MT5 Travel of tailstock mm 100-1300 Others Power capacity kVA 45 Overall dimension (LxWxH) mm 4550X2270X2550 Weight (about) kg 10500 Machine Details
