CNC Flat Bed Lathe CNC210

10/10 fairsForeign Trade CompanyModel CNC210
CNC Flat Bed Lathe CNC210
Price on request

The supplier hasn’t listed a price. We can get their current prices and MOQ.

Service
From $29 per supplier (Verify)
You get
Phone and video verification, a quote sheet and a written report
Turnaround
3 business days
Contact details
Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

About this product

  • Materials: metal
  • Size: 1300X800X1500mm
  • Color: grey
  • Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
  • Made in: Anhui, China

Product details

Materialsmetal
Size1300X800X1500mm
Colorgrey

From the supplier

Main Features
  1. The machine can process precisely internal or external diameter,face,taper and threading with high efficiency.

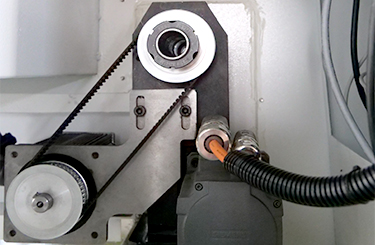

  2. DC brushless spindle motor.
  3. Small occuping,lower energy consumption,easy operation,suitable for small processing.
  4. High-quality spindle by high-precision grinding and support by Angular contact bearing.
  5. Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine.
  6. Macro arithmetic operation can be performed,the processing of complex parts,fully functional,economical and practical with a textbook for teaching.
Specifications Specification CNC210 Capacity Max. swing over bed 210mm Distance between centers 400mm Rail width 100mm Spindle Spindle bore dia. 26mm Spindle taper MT4/5C(Optional) Spindle speed 3000rpm Axis X-axis travel 105mm Z-axis travel 300mm X rapid speed 5000mm/min Z rapid speed 5000mm/min Motor Spindle motor power 1.2kw Main motor type Srevo motor Controller system After 990TDB X motor torque 1.9N.m Z motor torque 1.9N.m Min. setting unit 0.001mm Turret Type Electric type No. of tool stations 4 position Max. section of tool 10x10mm Tailstock Tailstock dia. 22mm Tailstock tavel 50mm Tailstock taper MT2 Machine Dimensions Packing size(without stand) 1170X700X860mm Overall size 1300X800X1500mm N.W(without stand) 200kg N.W 230kg Machine Details

About the supplier

WMT CNC INDUSTRIAL CO.,LTD

Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe

  • Exhibited at 10 of the last 10 Canton Fairs
  • Foreign Trade Company
  • Founded 2014
  • 1 certificate on file
See all products from this supplier →
Supplier
WMT CNC INDUSTRIAL CO.,LTD
Chizhou, Anhui, China
65
trust
  • Exhibited at 10 of the last 10 Canton Fairs
  • Foreign Trade Company
  • Founded 2014
  • 1 certificate on file
Canton Fair booth: 20.1I32-33 · Large Machinery & Equipment (140th session)
