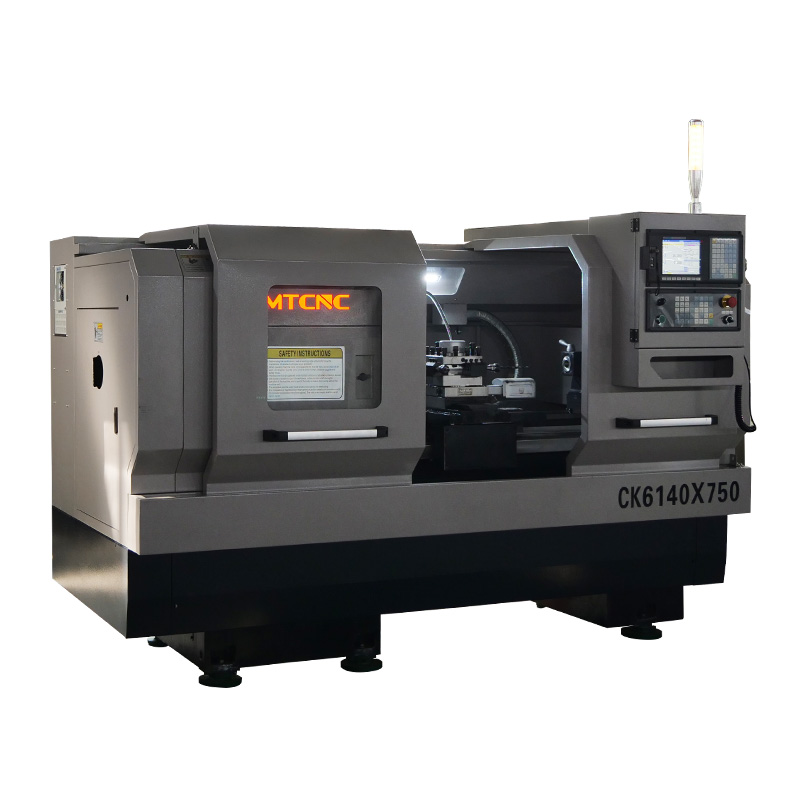

CNC flat-bed lathe CK6140
WMT CNC INDUSTRIAL CO.,LTD
See what’s includedHide breakdown
- FOB goods (100)
- $1,025,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $35,875
- Section 301 tariff (25.0%)
- $256,250
- Customs fees (MPF/HMF)
- $1,916
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,025,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $35,875
- Section 301 tariff (25.0%)
- $256,250
- Customs fees (MPF/HMF)
- $1,916
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
CNC flat-bed lathe CK6140
WMT CNC INDUSTRIAL CO.,LTDSee what’s includedHide breakdown
- FOB goods (100)
- $1,025,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $35,875
- Section 301 tariff (25.0%)
- $256,250
- Customs fees (MPF/HMF)
- $1,916
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,025,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $35,875
- Section 301 tariff (25.0%)
- $256,250
- Customs fees (MPF/HMF)
- $1,916
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: metal
- Size: 1700/2050/2520/3050x1400x1680mm
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: metal
- Size: 1700/2050/2520/3050x1400x1680mm
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | metal |
|---|---|
| Size | 1700/2050/2520/3050x1400x1680mm |
| Color | Grey |
Product details
| Materials | metal |
|---|---|
| Size | 1700/2050/2520/3050x1400x1680mm |
| Color | Grey |
From the supplier
Main Features
1、High precision hard rail CNC flat bed lathe.

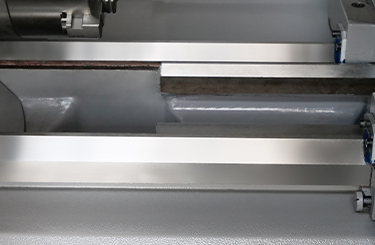

2、Bed guideway adopts induction quenching, hardness HRC50 or so.

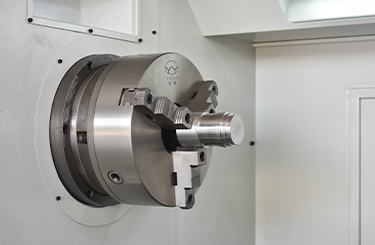

3、Spindle adopts high precision bearings to ensure rigidity and precision.
4、High quality grinding grade ball screw ensures more stable positioning accuracy.
5、Integrated cast iron base ensures high rigidity of the whole machine.
Specifications
Specification CK6140 Capacity Chuck size 10'' Max. swing dia. over bed 400mm Max. swing dia. over slide Φ240mm(Φ220mm) Distance between center 500/750/1000/1500mm Width of bed 330mm Spindle Spindle speed range 150-2200rpm Spindle bore Φ60mm Max. dia. of through-hole Φ50mm Spindle nose A2-6 Spindle taper MT6 Axis X axis travel 250mm Z axis travel 500/750/1000/1500mm X/Z axis rapid traverse 6/8m/min Turret Type Electrical type No. of tool stations 4,*6,*8 position Max. section of tool 25x25mm Tailstock External diameter Φ55mm Travel of tailstock quill 120mm Taper of tailstock quill MT4 Motor Spindle motor power 5.5kw,*7.5kw Coolant pump power 120w Machine Dimensions Overal dimension (L×W×H) 1700/2050/2520/3050x1400x1680mm Packing size(L×W×H) 1850/2250/2640/3200x1530x2020mm N.w 1400/1600/1800/2200kg G.w 1600/1800/2000/2400kgMachine Details
From the supplier
Main Features
1、High precision hard rail CNC flat bed lathe.
2、Bed guideway adopts induction quenching, hardness HRC50 or so.
3、Spindle adopts high precision bearings to ensure rigidity and precision.
4、High quality grinding grade ball screw ensures more stable positioning accuracy.
5、Integrated cast iron base ensures high rigidity of the whole machine.
Specifications
Specification CK6140 Capacity Chuck size 10'' Max. swing dia. over bed 400mm Max. swing dia. over slide Φ240mm(Φ220mm) Distance between center 500/750/1000/1500mm Width of bed 330mm Spindle Spindle speed range 150-2200rpm Spindle bore Φ60mm Max. dia. of through-hole Φ50mm Spindle nose A2-6 Spindle taper MT6 Axis X axis travel 250mm Z axis travel 500/750/1000/1500mm X/Z axis rapid traverse 6/8m/min Turret Type Electrical type No. of tool stations 4,*6,*8 position Max. section of tool 25x25mm Tailstock External diameter Φ55mm Travel of tailstock quill 120mm Taper of tailstock quill MT4 Motor Spindle motor power 5.5kw,*7.5kw Coolant pump power 120w Machine Dimensions Overal dimension (L×W×H) 1700/2050/2520/3050x1400x1680mm Packing size(L×W×H) 1850/2250/2640/3200x1530x2020mm N.w 1400/1600/1800/2200kg G.w 1600/1800/2000/2400kgMachine Details
