CNC flat-bed lathe CK6132
- FOB goods (100)
- $760,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $26,600
- Section 301 tariff (25.0%)
- $190,000
- Customs fees (MPF/HMF)
- $1,585
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
CNC flat-bed lathe CK6132
- FOB goods (100)
- $760,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $26,600
- Section 301 tariff (25.0%)
- $190,000
- Customs fees (MPF/HMF)
- $1,585
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: metal
- Size: 1600×1120×175mm
- Color: Black and grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: metal
- Size: 1600×1120×175mm
- Color: Black and grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | metal |
|---|---|
| Size | 1600×1120×175mm |
| Color | Black and grey |
From the supplier
Main Features
1, High precision hard rail CNC flat bed lathe.

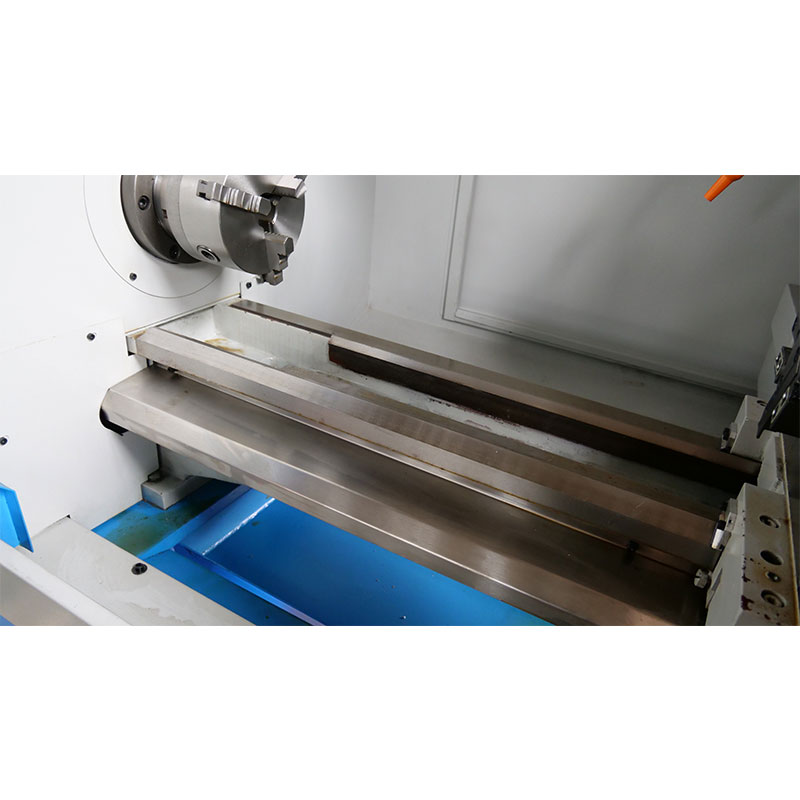

2、Bed guideway is induction quenched, hardness HRC50 or so.

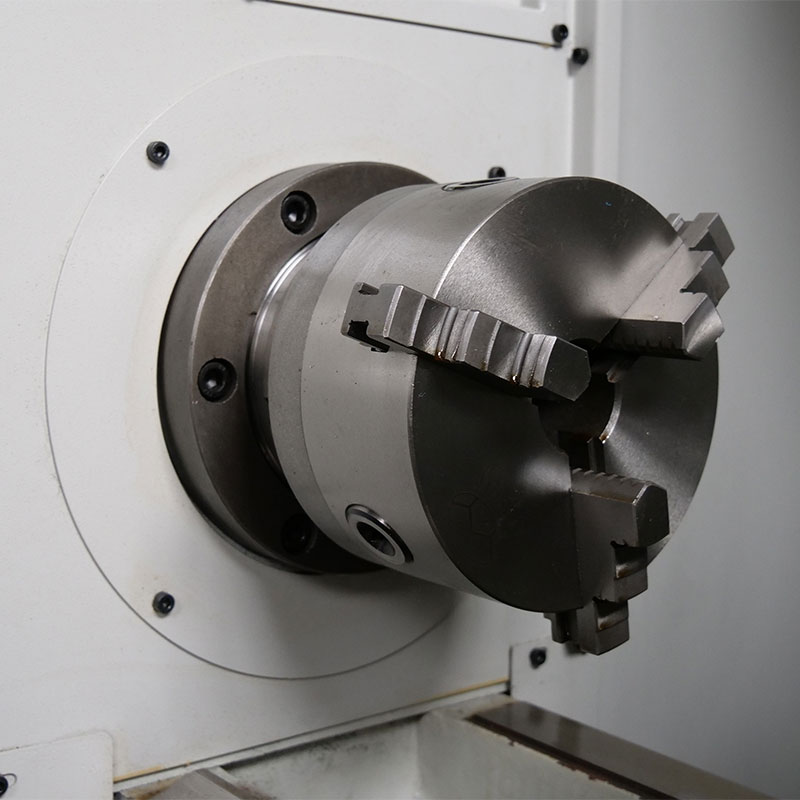

3、Spindle adopts high precision bearings to ensure rigidity and precision.
4、High quality grinding grade ball screw ensures more stable positioning accuracy.
5、Integrated cast iron base ensures high rigidity of the whole machine.
Specifications
Specification CK6132 Capacity Chuck size 6”, *8'' Max. swing dia. over bed 360mm Max. swing dia. over slide 150 mm Distance between center 500/750/1000mm Width of bed 215mm Spindle Spindle speed range 150-2500 rpm Spindle bore Φ40mm Max. dia. of through-hole Φ28mm Spindle nose A2-5 Spindle taper MT5 Axis X axis travel 180mm Z axis travel 500/750/1000mm X/Z axis rapid traverse 6/8m/min Turret Type Electrical type No. of tool stations 4, *6 position Max. section of tool 4P (20x20mm),*6P (16x16mm) Tailstock External diameter Φ32mm Travel of tailstock quill 100mm Taper of tailstock quill MT4 Motor Spindle motor power 4kw Coolant pump power 120w Machine Dimensions Overal dimension (L×W×H) 1620/1850/2150x1150x1600mm Packing size(L×W×H) 1780/1960/2260x1320x2000mm N.w 800/900/1050kg G.w 950/1100/1300kgMachine Details
About the supplier
Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2014
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2014
- 1 certificate on file
