From the supplier

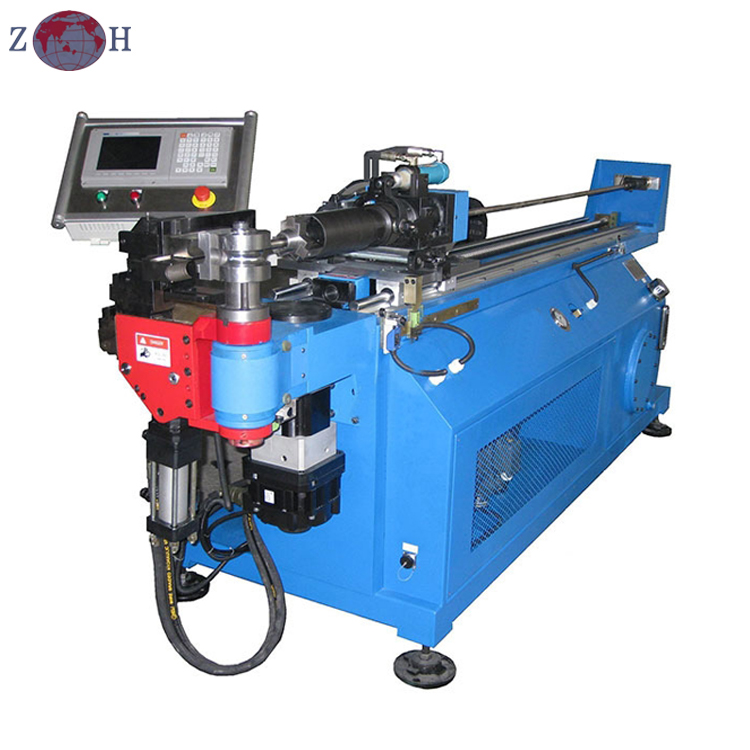

I Main features
1)The machine frame and body adopt keel structure to ensure machine with high intensity, rigidity, and stability.
2) The bending head is designed in integral box structure and bending arm adopts precise teeth chain as transmission, high precision.
3) Special clamping structure ensures enough clamping force, not to damage workpiece.
4) The core rod is of universal joint type, exempting from lubrication.
5) Machine has self-testing function for detecting original of X and Z axis and dead point alarming.
6) 8” LCD displayer, integrative antifouling keyboard
- 7) CNC controller can save 400 units programs for 400 products, G-M code, with RS232 interface
- 8) Program has auto-calibration function for bending angle and length, auto counting, auto alarming, power-off memory.
II Main technical data
Item
Data
Suitable bending tube diameter
Copper/aluminum
Max. 20mm
Carbon steel
Max. 16mm
Suitable tube wall thickness
Copper/aluminum
Max. 1.5mm
Carbon steel
Max. 1.0mm
Max. bending angle
0- 200º
3D rotating angle
360º
Max. bending radius
R80mm
Min. bending radius
R10mm
Max. workpiece length
1800mm (through-type)
Feeding stroke
0-1200mm
General bending efficiency
2.2 sec. per bend
Feeding speed
1-1200mm/sec.
Rotating speed
0-600 º/sec.
Bending speed
0-300 º/sec.
Re-positioning precision
Feeding axis
±0.05mm
Rotating axis
±0.05º
Bending axis
±0.05º
Servo motor power
Feeding axis
1.5kW
Rotating axis
0.75kW
Bending axis
3.0kW
Pneumatic pressure
0.5-0.7MPa
Power supply
380V, 3Phase, 50Hz
Machine dimension
2500 x 620 x 1300mm
Weight
About 1200kg
III Main configuration
- CNC controller: self-made CNC control system
- Servo motors and drivers: Mitsubishi from Japan
- Ball screw and linear guide: THK from Japan
- Approaching switches & sensors: Autonics from Korea
- Circuit breaker: Fuji from Japan
- Main bearings: NSK from Japan
- Buttons: Schneider
