Product Description

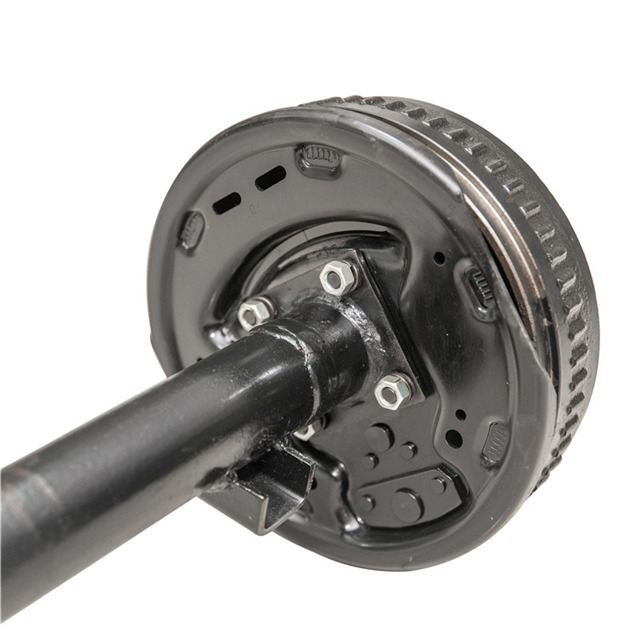

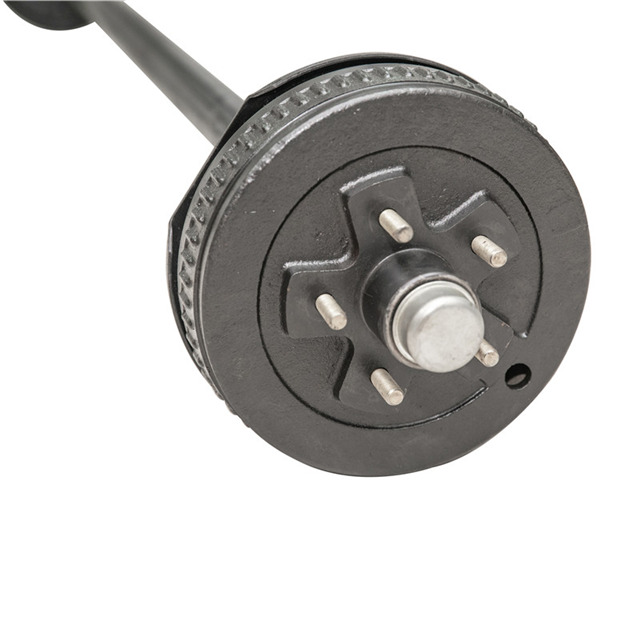

China Factory Customized Trailer Steering Axle With Electric Brake

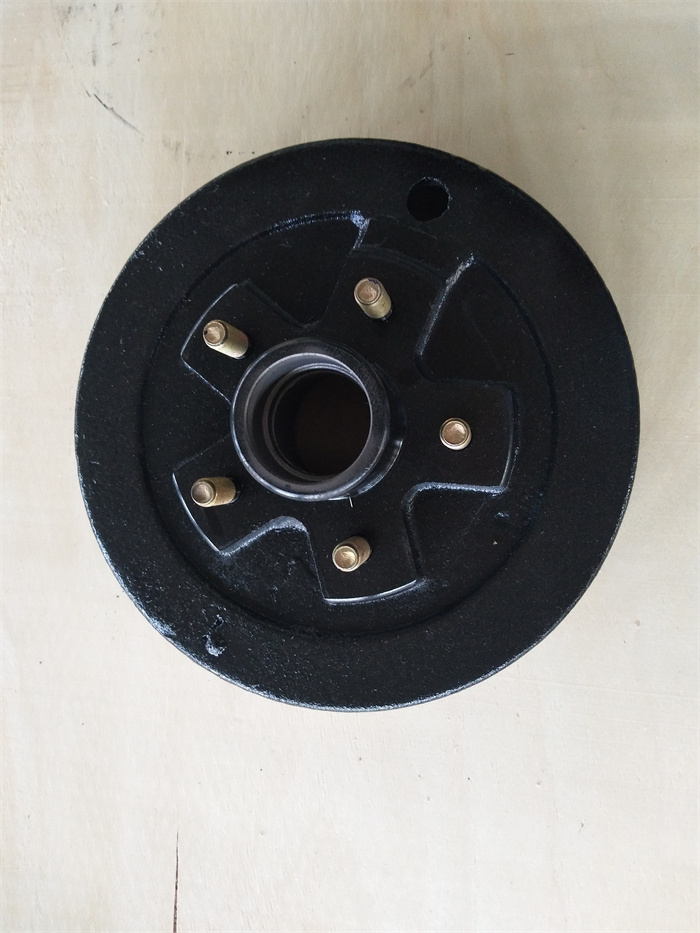

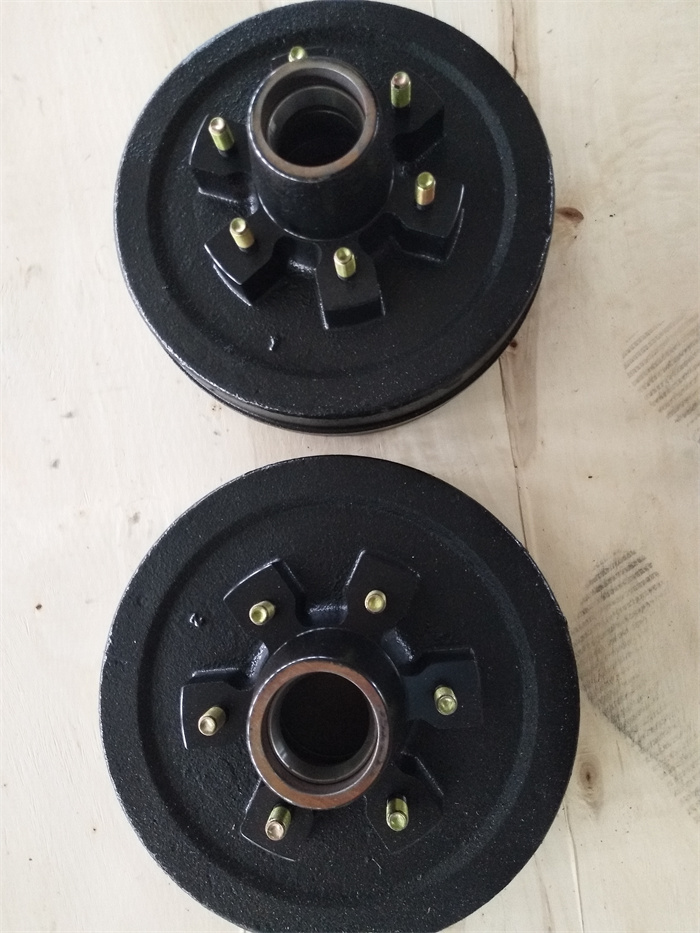

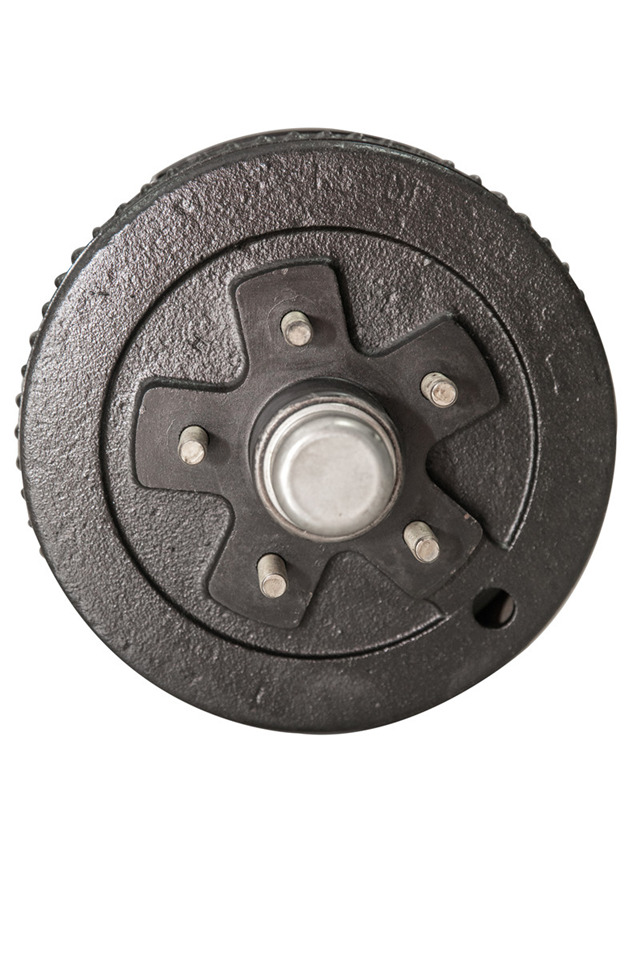

Trailer Axle: 2 3/8" diameter x 3/16" nominal wall round tubing. Hub/Drum: Idler hubs and hub/drums available in a 5-4.5", 5-4.75", 5-5", 5-5.5", or 6-5.5"bolt circle. Lubrication: Grease. Spindle: Type 84 with an inner journal dimension of 1 3/8" and an outer journal dimension of 1 1/16". Includes brake flange - You can add brakes for future use. Trailer Axle price does not include springs, hangers, or u-bolts. Trailer Axles are available in different lengths and hub faces. Maximum Overhang = 17.5" Minimum Overhang = 14" Overhang is the difference between the spring center and the hub face. Exceeding the maximum overhang will result in reduced axle capacity. Minimum Overhang dimensions are based on zero offset wheels and physical clearances; and are determined by suspension type, wheel and tire combination. Axle seats and lug nuts come loose with axle. Trailer axle assembly contains trailer axle beam with pressed in spindles and four bolt mount brake flange, hubs (races pressed), bearings, grease cap, and grease seal, axle seats, and lug nuts.

Features:

Axle beam acts as part of your trailer's suspension system

Replace an axle on your trailer

Fabricate a suspension system to fit your application

High-strength steel construction

Bend in axle creates zero camber angle for even road-to-tread contact across the width of your trailer's tires

Best for straight-line acceleration and steady, controlled towing

Under slung design - spring seats welded to underside of axle for mounting leaf springs

Low ride height makes it easier to load and unload your trailer

Straight, EZ-Lube spindles - no drop

Built-in grease zerks for simple lubrication

Spring seats and spindles are welded on

Cast iron idler hubs are sturdy and durable

Bearings, races, seals, grease caps, wheel studs, lug nuts, and marine-grade wheel bearing grease included

Limited 1-year warranty

Specs:

Weight capacity: 3,500 lbs

Hub-face-to-hub-face length: 70"

Flange-to-flange length: 82-5/8"

Hub bolt pattern: 5 on 4-1/2"

Tubing outer diameter: 2-3/8"

Spindle size: 1-1/16"

Brake flange configuration: 4 bolt

Grease cap outer diameter: 1.986"

Wheel stud diameter: 1/2"

Wheel size: 13" - 17-1/2"

Bearing, Race, and Seal Information

Bearings

Inner bearing: L68149

Outer bearing: L44649

Races

Inner race: L68111

Outer race: L44610

Seal: 10-19

Inner diameter: 1.719"

Outer diameter: 2.565"

More specification of Pengyuan trailer axle:

Item Part NO.
(Black Painted) Part NO.
(Hot glvanized) Specification Straight Axle(39mm round) 65"P 39R65"G L=1651mm 67"P 39R67"G L=1701mm 76"P 39R76"G L=1930mm 77"P 39R77"G L=1955mm 78"P 39R78"G L=1981mm Straight Axle(40mm square) 65"P 40S65"G L=1651mm 67"P 40S67"G L=1701mm 77"P 40S77"G L=1955mm 84"P 40S84"G L=2133mm Straight Axle(45mm square) 65"P 45S65"G L=1651mm 66"P 45S66"G L=1676mm 67"P 45S67"G L=1701mm 77"P 45S77"G L=1955mm 84"P 45S84"G L=2133mm Straight Axle(50mm square) 76"P 50S76"G L=1930mm 84"P 45S84"G L=2133mm Overlay Axle(40mm square) W-40S2180G L=2180mm Overlay Axle(45mm square) W-45S2180G L=2180mm Overlay Axle(45mm square) W-45S2235G L=2235mm Overlay Axle(45mm square) W-45S2320G L=2320mm Related Products

Company Information

Establishing in 1995, Guilin Pengyuan Trading Co., Ltd. is a manufacturer and trader combined company. We have enough tests on the products to ensure the quality of the products and their goods will be delivered after strict quality inspection. We had associated and independent factory named "Guilin Pengda Automobile Parts Manufactory Co., Ltd." which located in Guilin, occupies an area of 23,067 square meters. We have successful foreign trading experience in Europe, North America, South America etc..,

As a member of GM Automobile Group and Association of Quality Management of Mechanics Industry of China. In March 2005, Pengyuan passed TS16949 Quality System Certification. Our products turned out by our enterprise have been selling well in markets at home and abroad, and got high appreciation from overseas buyers.

We are capable of producing iron casting, steel casting, nonferrous metal casting, forging, punching and riveting, welding, heat treatment, mechanical processing, etc.

Production workshop and equipment:

Pengyuan is well-equipped with all kinds of trailer parts.

We has 487 sets of physical performance, chemical analysis,

metallographic inspection and other testing equipment.

Our products include:
1. Spindle
2. Hub and drum assembly
3. Brake assembly
4. Leaf spring
5. Square axle beam and axle
6. Other axle part
1) Couple
2) U-bolt kit

More Products

More Details, click here

Packaging & Shipping

As for the transportation of products, our company supports various sea, land and air international transportation. Please confirm the specific transportation plan during the negotiation.

Choose to contact us>>

FAQ

1: Could you please make us an offer as soon as possible?

In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.

2: Could you please provide us with the specifications of the products?

Sure, please confirm the product code you need before that.

3: How can you guarantee the quality of your products?

Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.

4: How to solve the problems in the later stage?

We are confident in our products. We pack them well to make sure they are well protected.
