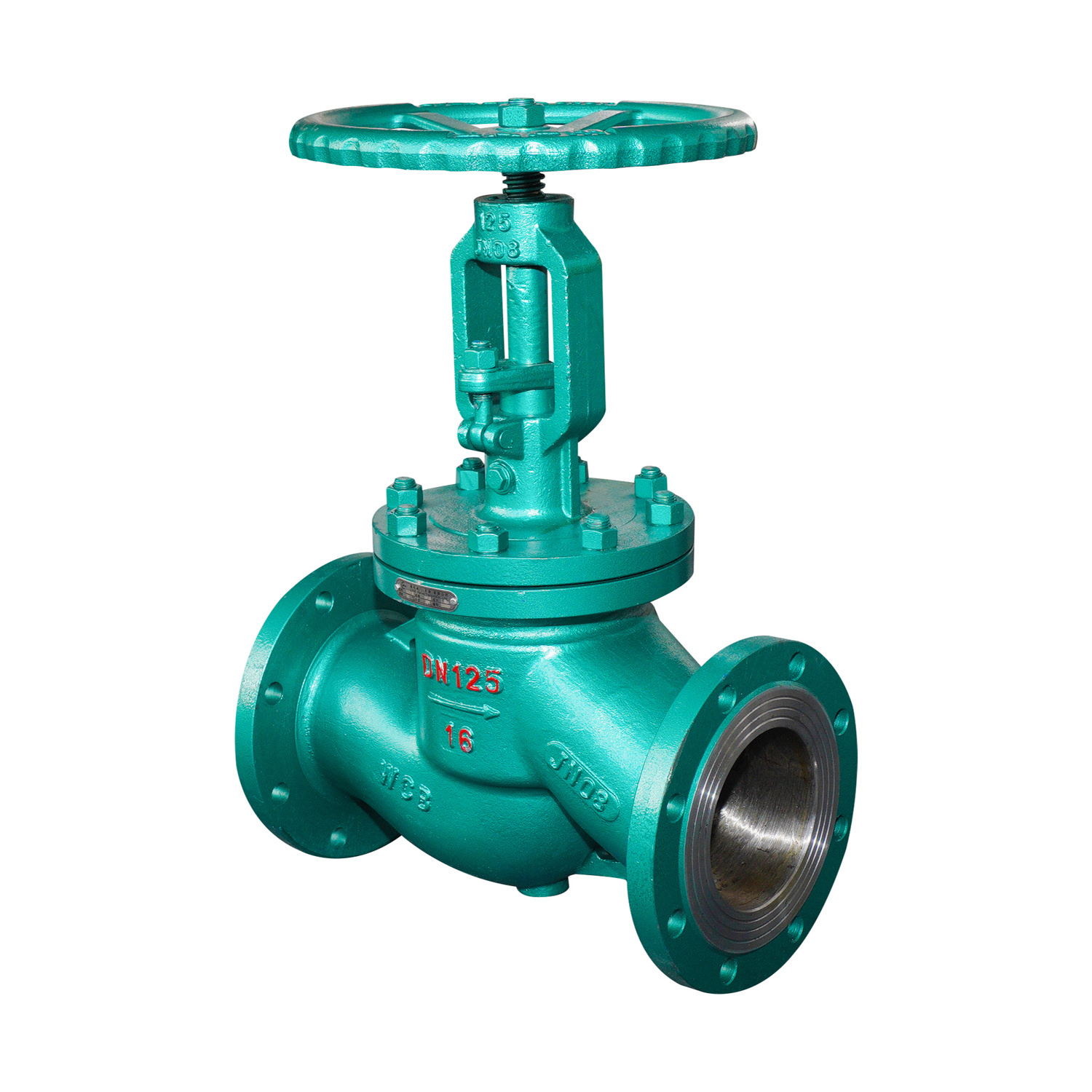

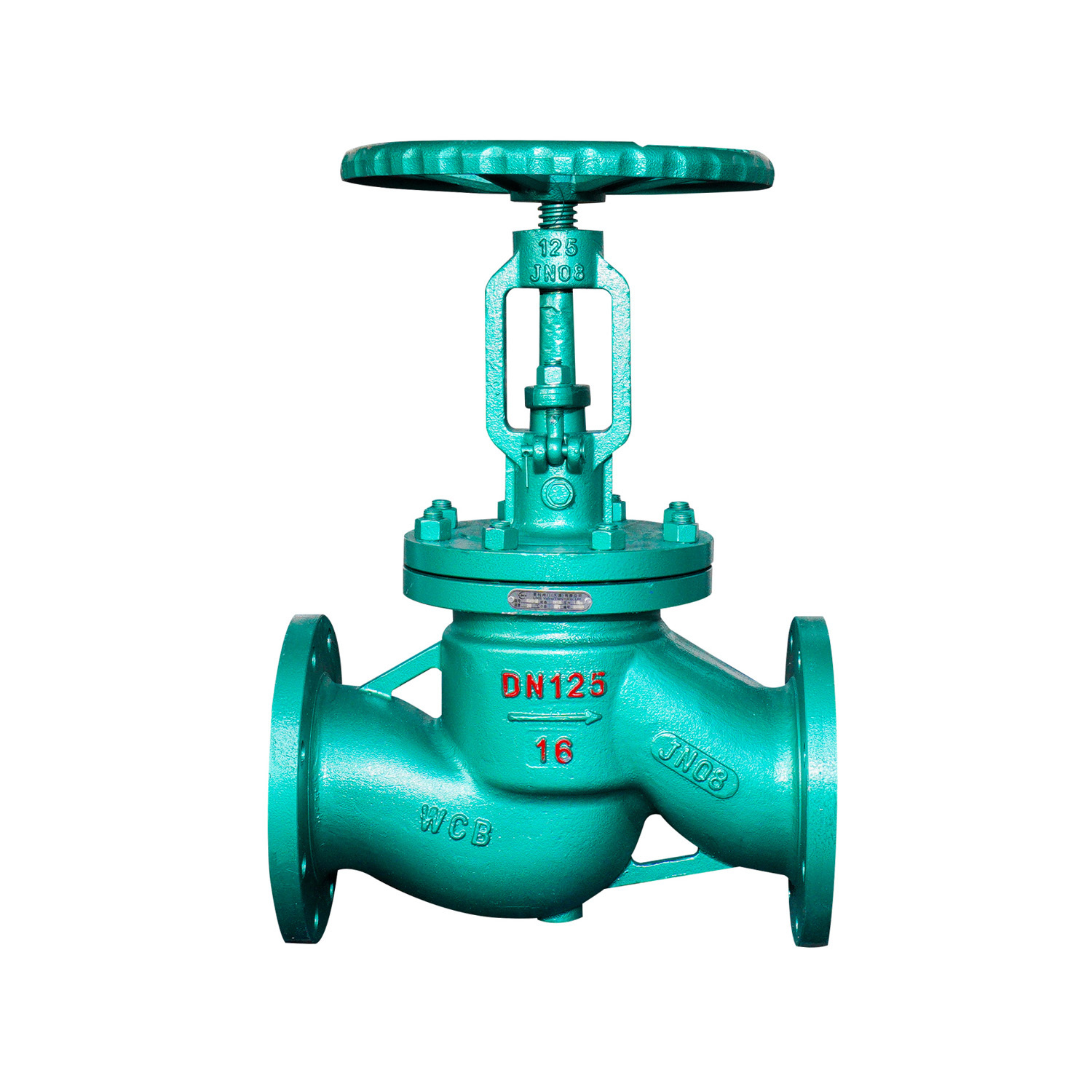

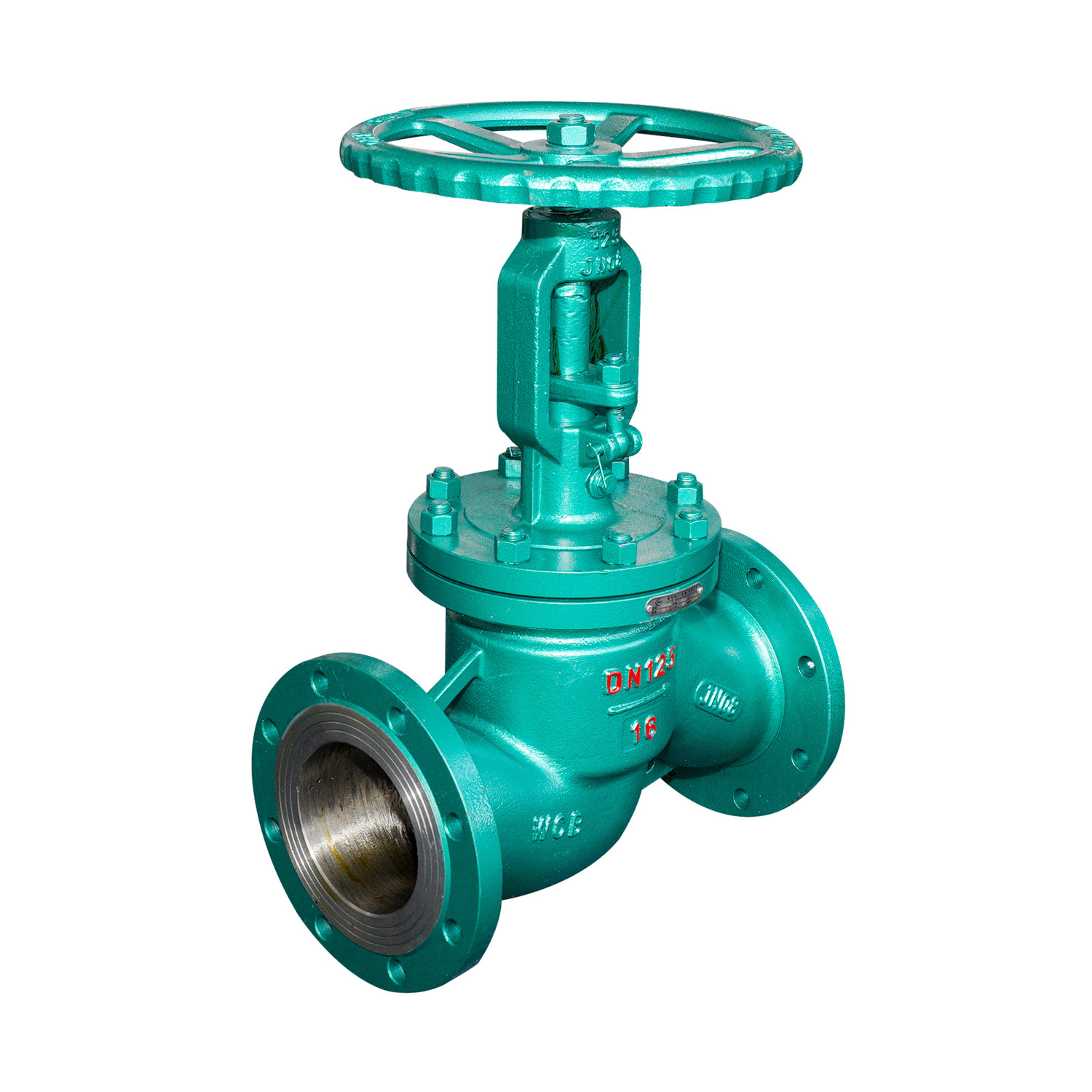

Cast steel flange stop valve

Cast steel flange stop valve

In industrial production and fluid control systems, valves play a crucial role. They are like the guardians of fluid pipelines, precisely regulating the flow and cutoff of the medium. Among various types of valves, the cast steel flange stop valve, with its unique structural advantages, excellent sealing performance, and wide applicability, has become an indispensable equipment component in many fields. This article will deeply explore the structural features, working principles, application fields, and maintenance and care of the cast steel flange stop valve, with the aim of providing valuable references for relevant practitioners.

I. Structural Characteristics

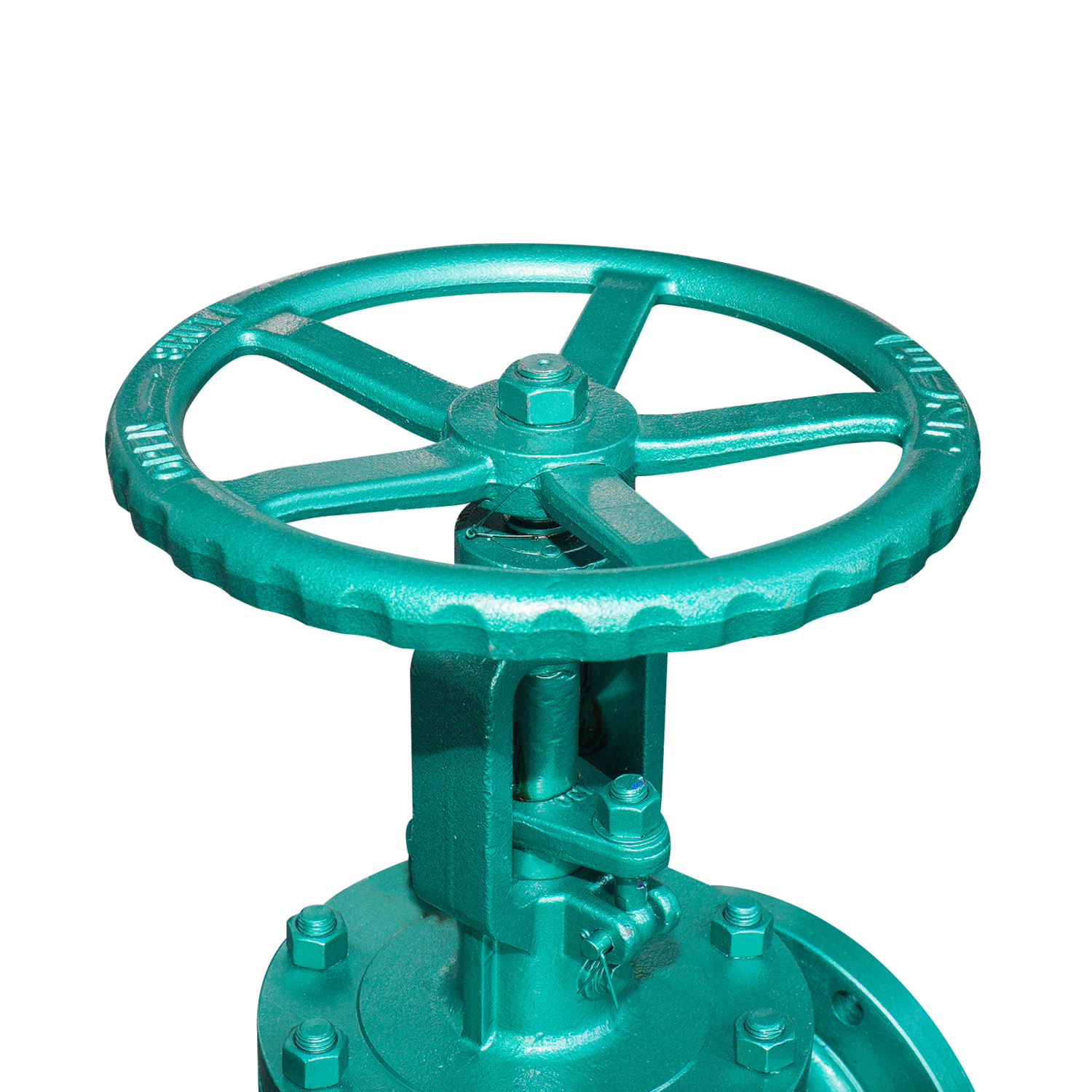

Cast steel flange stop valve, as the name suggests, is mainly made of cast steel and is connected to the pipeline system through a flange. This type of valve is usually composed of components such as the valve body, valve cover, valve disc (or valve core), valve stem, packing box, handwheel (or other driving device), etc. The valve body is made of high-quality cast steel, which has good strength and corrosion resistance, and can withstand high working pressure and temperature fluctuations. It is suitable for harsh working conditions. The flange connection design makes it convenient for the installation and disassembly of the valve, improving the flexibility and maintainability of the system.

The valve disc and valve seat usually adopt metal hard sealing or soft sealing structures. Hard sealing is suitable for high-temperature and high-pressure environments, while soft sealing can ensure sealing performance while reducing the operating torque, and is suitable for low-temperature, low-pressure and highly demanding sealing performance scenarios. The valve stem design usually adopts leak-proof structures, such as T-shaped grooves, packing box seals, etc., which effectively prevent the leakage of the medium and ensure the safe operation of the system.

II. Working Principle

The working principle of the cast steel flange stop valve is relatively simple and intuitive. When the handwheel (or electric or pneumatic actuator) is rotated clockwise, the valve stem drives the valve disc to rise, and the passage between the valve disc and the valve seat gradually opens, allowing the medium to flow smoothly; conversely, when the handwheel is rotated counterclockwise, the valve disc descends until it tightly adheres to the valve seat, forming a seal, and the flow of the medium is cut off. This on-off action is direct and clear, making it easy to operate and control.

It is worth noting that the flow resistance of a stop valve is relatively high because the valve disc needs to overcome the resistance of the medium during the opening process, and the flow channel design is not as smooth as that of ball valves or gate valves. Therefore, in situations where precise flow regulation is required or strict requirements are imposed on fluid resistance, other types of valves may need to be considered.

III. Application Domains

The cast steel flange stop valve, with its sturdy and durable construction and reliable sealing, is widely used in various industries such as petroleum, chemical engineering, power, metallurgy, and water treatment. In oil and gas transmission pipelines, it serves as a crucial control component, ensuring the stable transmission and safe isolation of the medium; in chemical production, it can effectively prevent the leakage of corrosive media, protecting the production environment and personnel safety; in water treatment systems, the cast steel flange stop valve is used to regulate and control water flow, ensuring water quality safety and treatment efficiency.

IV. Maintenance and Care

To ensure the long-term stable operation of the cast steel flange stop valve, regular maintenance is of vital importance. Firstly, it is necessary to regularly check the sealing performance of the valve, including the fit between the valve disc and the valve seat, as well as the sealing effect of the packing gland. Any leakage found should be dealt with promptly. Secondly, keep the valve body and the connecting flange clean to avoid corrosion or jamming caused by debris accumulation. Additionally, for stop valves driven by electric or pneumatic means, it is necessary to check the integrity of the electrical circuits and pneumatic pipelines to ensure the normal operation of the driving device. Finally, establish a valve usage record to track information such as the number of valve openings and closings, and the maintenance history, providing a basis for preventive maintenance.

In conclusion, the cast steel flange stop valve, as an important member in the field of fluid control, with its unique performance and wide range of application areas, provides a solid guarantee for the safety and efficiency of industrial production. By deeply understanding its structural features, working principles, and maintenance knowledge, we can better utilize its functions and promote the sustained and healthy development of industrial production.
