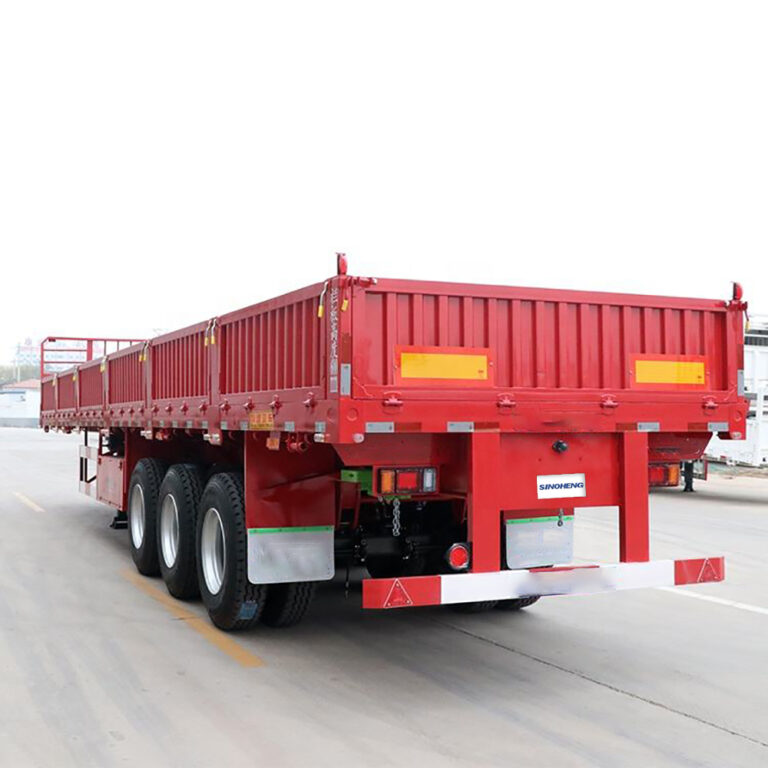

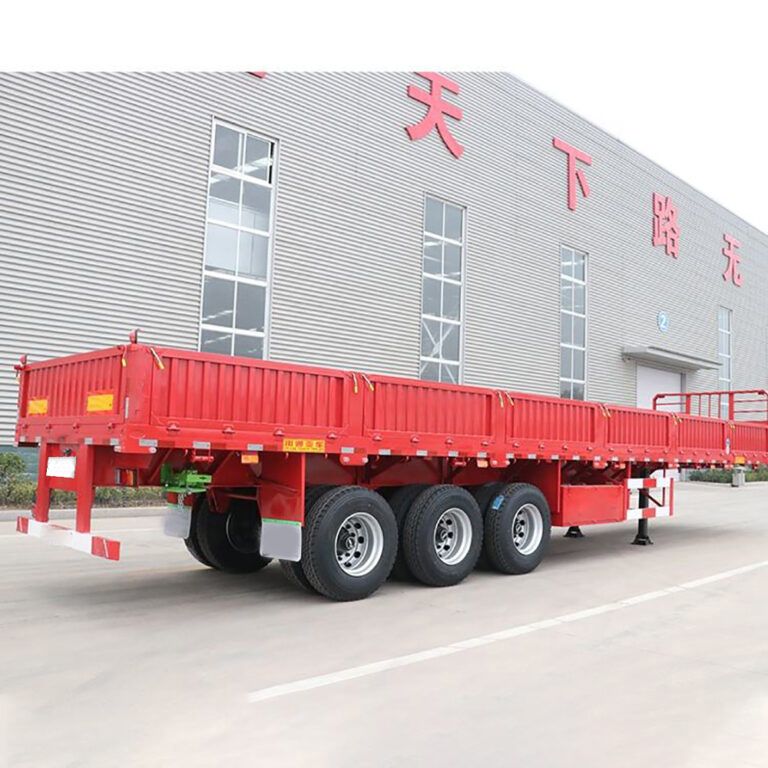

Type 13m cargo trailer Ross Weight About 7.5 tons Outer side dimension(mm) 13000mm× 2500mm × 2850mm Loading Capacity (Ton) ≤ 50T AXLES 13 T /PER, 3axles FUWA Brand, Tire 12.00R22.5, 13pieces Triangle or double coin brand Rim 9.00-22.5, 13pieces China Brand Suspension Mechanical suspension (America Type) Spring leaf 90(W)mm*13(Thickness)mm *10pices, heavy duty type King pin JOST brand 2.0 or 3.5 inch bolts type Support leg 28T or JOST brand E100 Main Beam Height: 500mm, upper plate is 14mm, middle plate is 8mm,
down plate is 16mm ; Material is Q345B Steel . Plateform 3mm diamond plate steel Side beam 16# channel steel Brake chamber WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tank Fuel tank 1000L Hooks With Twist Locks 12 pieces (Lifting type) Valve WABCO valve ABS Without Light LED light Voltage 24V Receptacle 7 ways (7 wire harness) Tool box One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking
bar) Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint Shipping Terms Transport by RORO or 45FT container.
