Specification of 3 Axles Tipper Semi Trailer-30CBM

DIMENSIONS

Tare Weight

12500kgs

Payload

50000kgs

Overall  Length

10200mm

Overall  Width

2550mm

Dump body size(mm)

8700x2300x1500

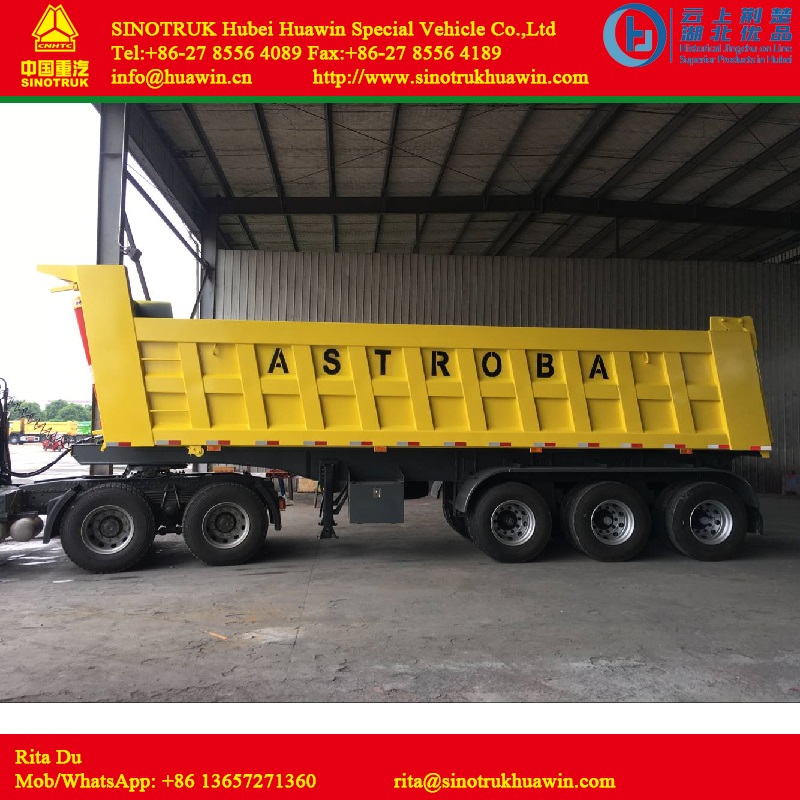

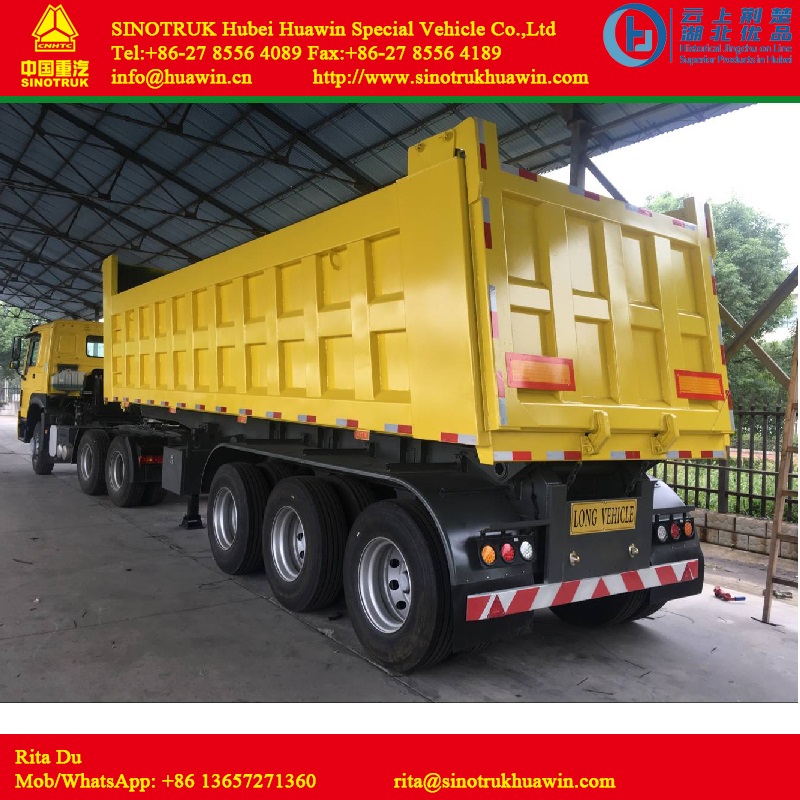

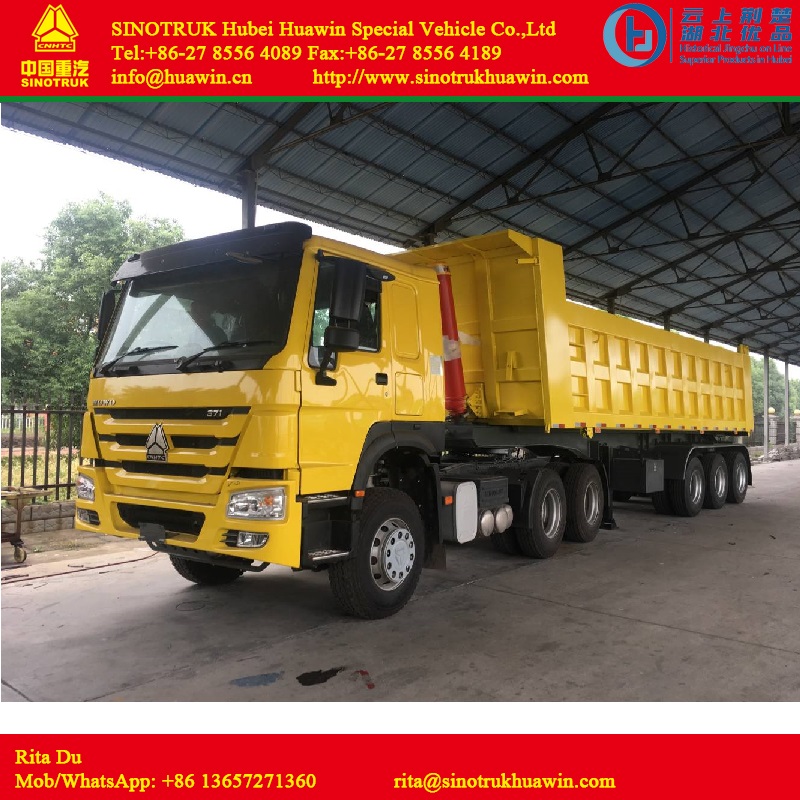

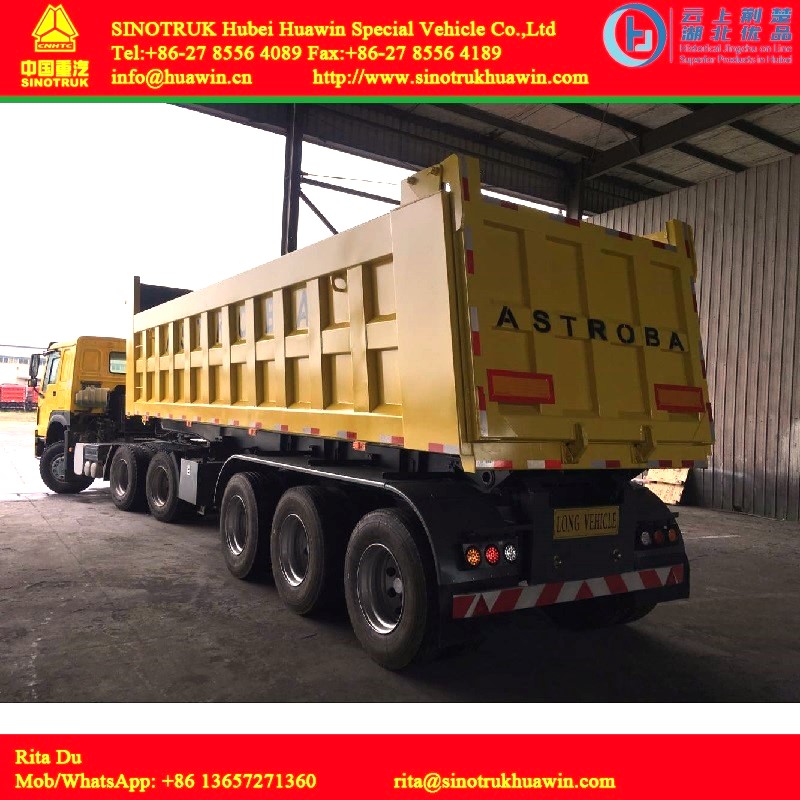

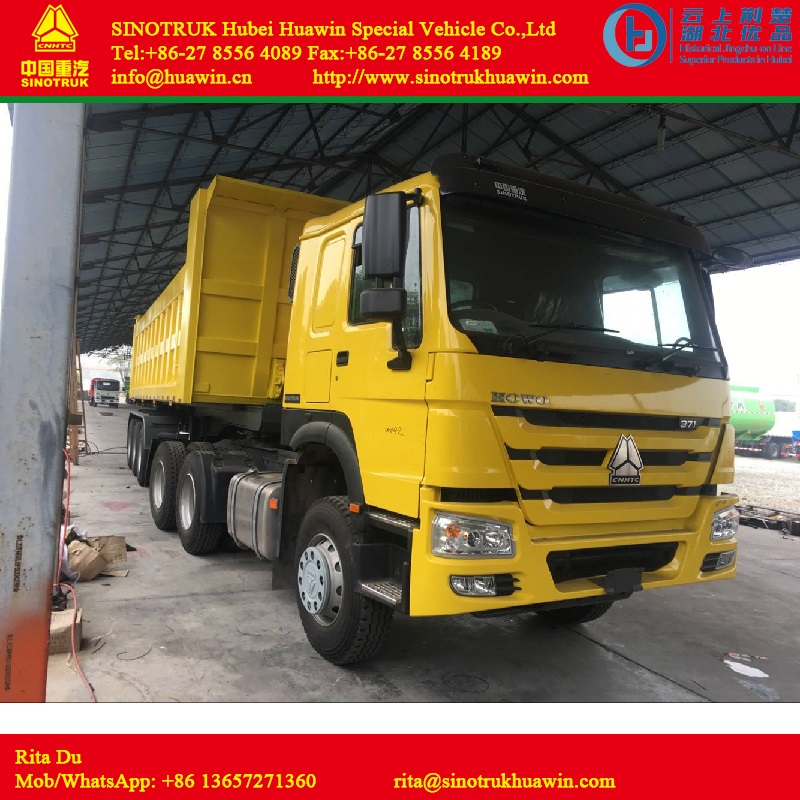

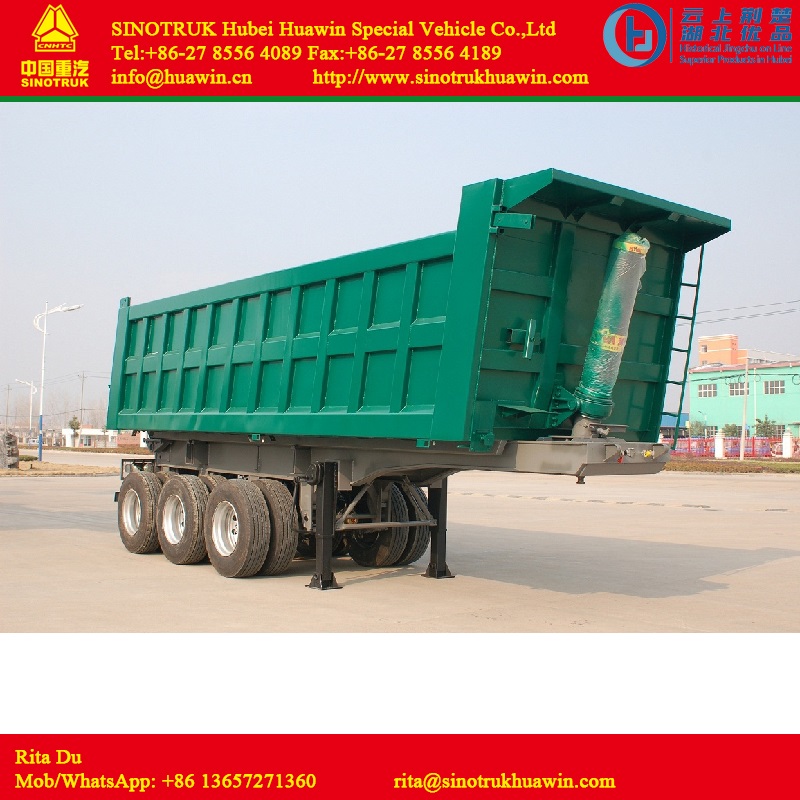

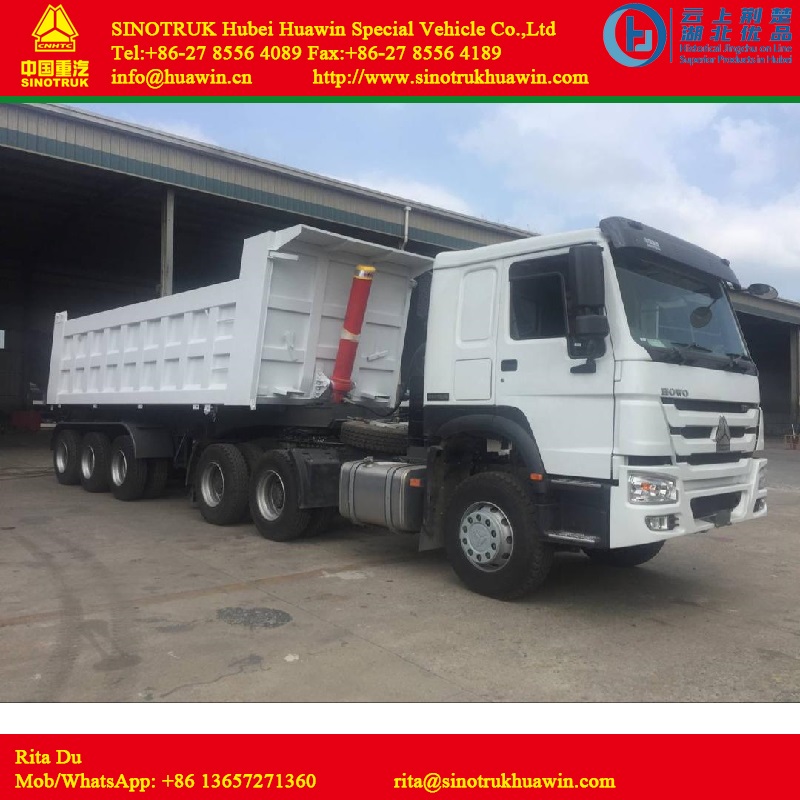

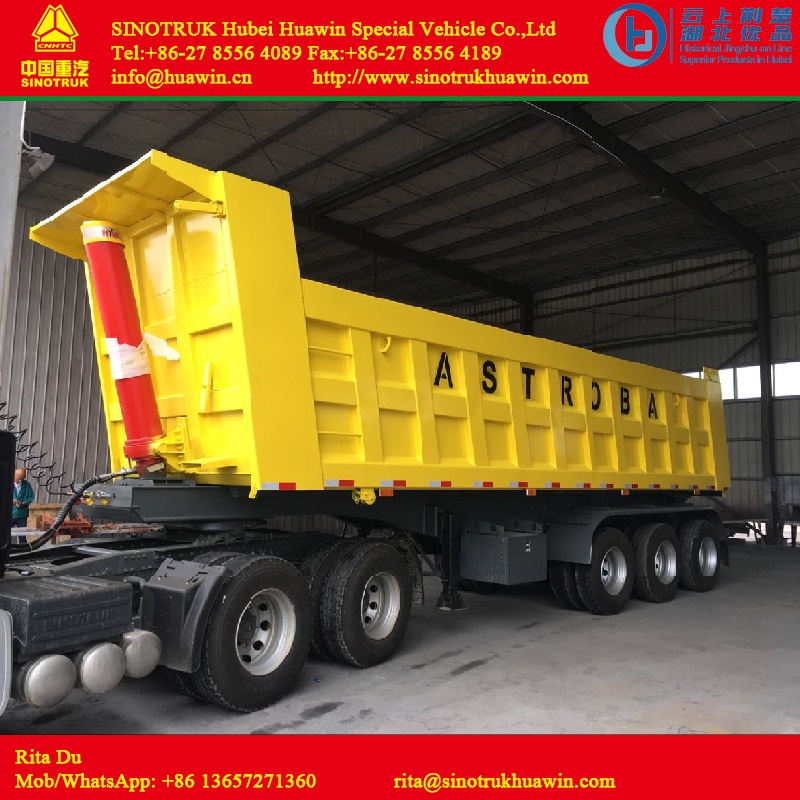

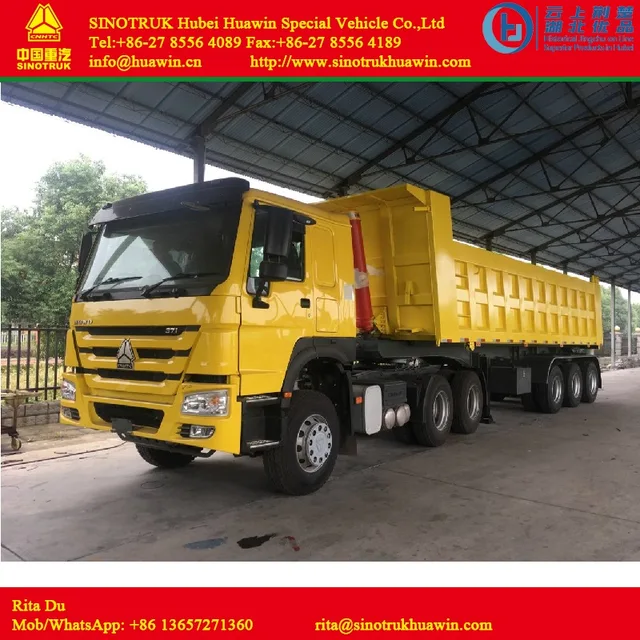

Photo for reference, final produce can be made according to exact requirements

DUMPER BODY

Volume

Square-shape, 30 m3

Side Wall

6mm thickness

Front Wall and floor

8mm thickness

SPECIFICATION

Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm; Bottom Flange 16mm,width 140mm.

Axle

3 axles

FUWA 13 tons

Hydraulic System

One set of HYVA cylinder

Suspension

German design mechanical suspension

King Pin

JOST brand 2” Bolt-in King Pin

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

Tyre

12.00R20 tire with one spare tire, in total 13 pieces

Spare Tire

One set of spare tire including a carrier

Braking System

WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box

2. COMPANY INTRODUCTION

SINOTRUK HUAWIN is key branch factory of SINOTRUK Group. SINOTRUK HOWO and A7 are sold well in China domestic market and overseas market. SINOTRUK HQ manufactures truck chassis and HUAWIN manufactures truck body and trailer.

3. Q & A

1) Q: How do you ensure quality of your products?

    A: 1. Main parts of truck(engine, transmission and axle) are made by SINOTRUK itself even transmission shaft.

         2. Automobile delivery test will be carried out before the vehicle leaves the factory, such as cab test, rain test, road test

2) Q: What's your price advantage?

    A: 1. As key branch factory of SINOTRUK group, we get the best chassis cost price from our HQ.

        2. We are factory and truck body is provided at cost price.

        So whether you want truck or trailer, we can provide you the factory-direct price. Of course, customization is acceptable.

3) Q: What after-sale service you can provide?

    A: With branches in over 40 countries, over 160 distributors, over 330 service centers and over 310 parts offices in overseas market, our team can solve your problems within 3 working days or 5 working days.

4) Q: What's your warranty?

    A: 1. Half one year/50,000km quality guarantee for three key parts axle, beam and landing gear, whichever comes the first.
        2. Other spare part could be supplied by OEM at cost prices.
        3. Regularly callback to know the vehicle's working status

5) Q: What's the payment term?

    A: T/T and L/C. Usually 30% deposit and 70% balance payment before shipment , all by T/T, or 30% deposit by T/T and 70% balance payment by L/C. Welcome to negotiate.

6) Q: How long is the production time?

    A: 30-35 days for truck chassis and tractor. 45-50 days for for dump trucks, mixer trucks, cargo trucks. 55-60 days for very special truck, such as crane truck, man lift truck.

7) Q: How can I inspect my finished trucks?

    A: After truck is finished, we will send you the pictures and videos of the finished trucks. Of course, welcome you or your friend to our factory to inspect the trucks.

8) Q: What shipment can I choose?

    A: It depends to shipping lines to destination port. Here're popular shipments for your reference: RO RO, Bulk cargo vessel, Container, 40FR, Busdeck.
