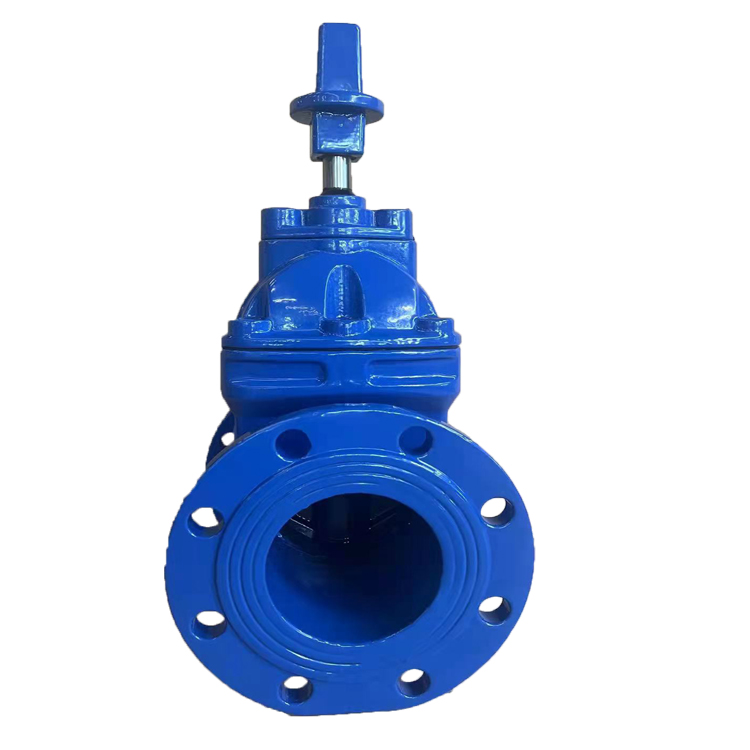

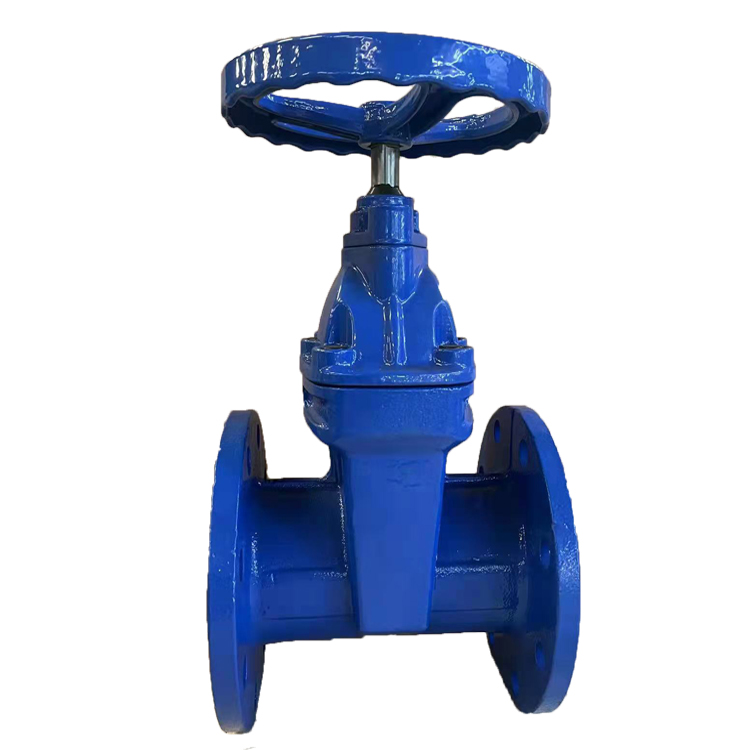

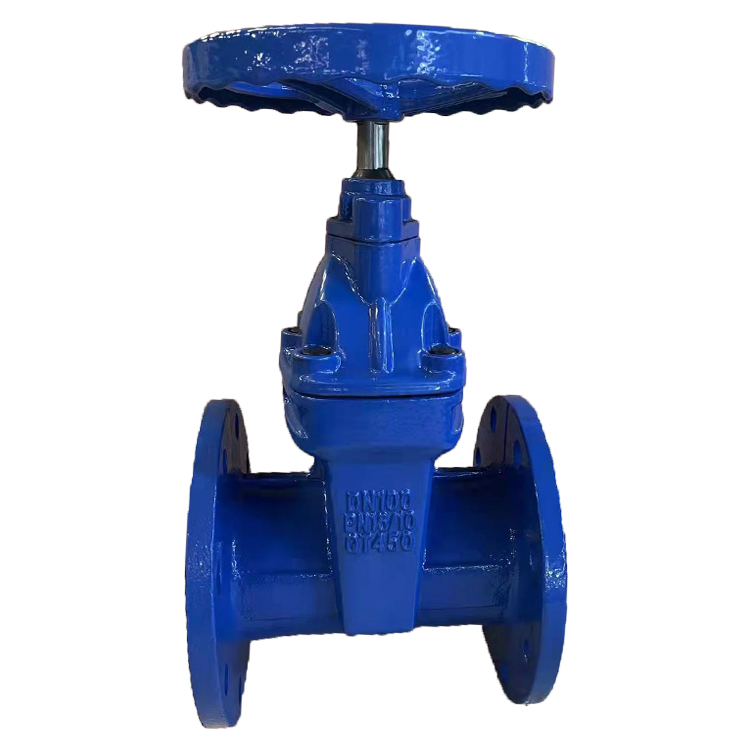

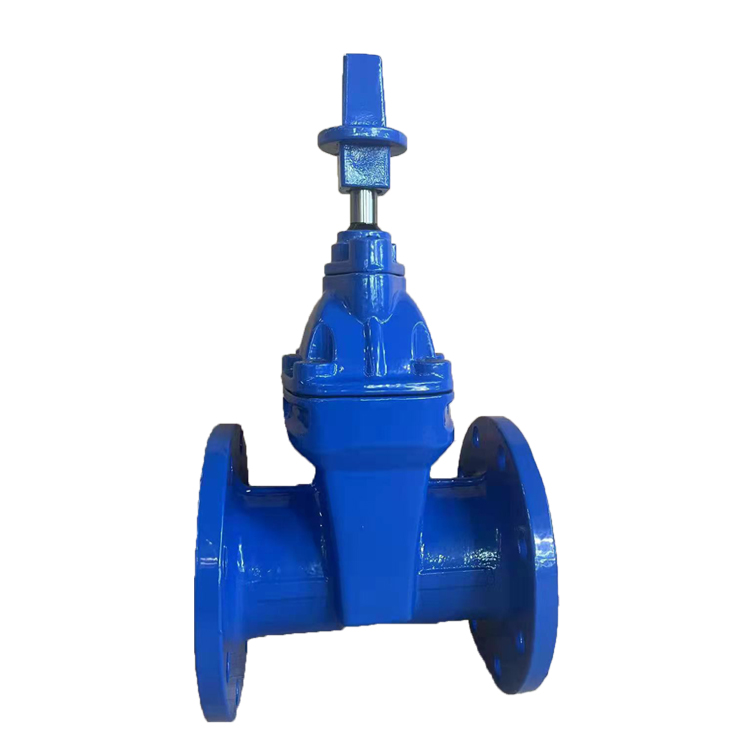

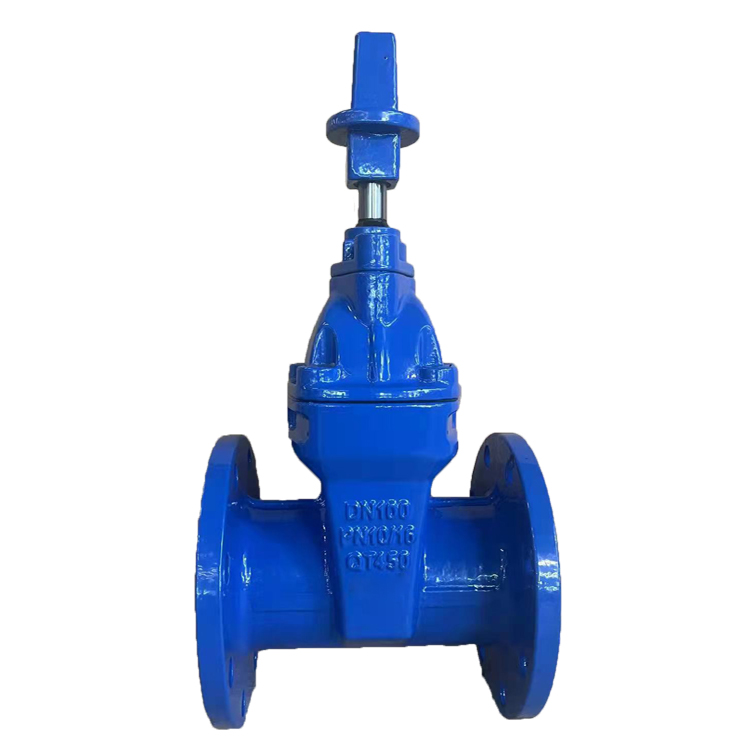

BS5163 Resilient Gate Valve

Main Image Summary:

Size: DN50-DN300

Operation: Spindle cap/Hand wheel

Working pressure: PN16

Temperature Range: 0 0C - 1000C

Face to Face: BS 4504

Flange drilled: PN16

Description

This BS 5163 Resilient Gate Valve is widely used in the various pipelines of water supply and drainage, sewage disposal and irrigation to cut off medium flow. It is the stringent application of epoxy coating, lab-tested and proven to protect the metal body from the environment corrosive elements. The gate valves come standard with spindle cap, but hand wheels or electric actuators are optional upon your request.

Advantages:

1, The craft of resin sand molding makes the inside and outside bodies of BS 5163 Resilient Gate Valves very smooth, which are look attractive and comfortable after epoxy coating.

2, The use of vulcanized rubber to ensure accurate geometry and the connection of rubber and ductile iron discs is firm to gain stable performance of sealing.

3, Pressure test to every single valve can ensure 100% products without leakage after sales and all these BS 5163 Resilient Gate Valves are granted 3 years’ warranty.

Components: BS5163 TypeB

No.

Part

Material

1

Body

Ductile Iron

2

Seat ring

NBR

3

Wedge Disc

Ductile Iron+EPDM

4

Stem

Stainless Steel

5

Bonnet

Ductile Iron

6

Yoke

Ductile Iron

7

Spindle Cap

Ductile Iron

Components: BS5163

No.

Part

Material

1

Body

Ductile Iron

2

Wedge Disc

Ductile Iron+EPDM

3

Bonnet

Ductile iron

4

Stem

Stainless Steel

5

O-ring

NBR

6

Gland

Ductile iron

7

Hand Wheel

Ductile Iron

Dimension(50-300)

DN

50

65

80

100

125

150

200

250

300

L

178

190

203

229

254

267

292

330

356

H

239

263

300

318

380

417

534

631

714

D(PN10)

165

185

200

220

250

285

340

395

445

D(PN16)

165

185

200

220

250

285

340

405

460
