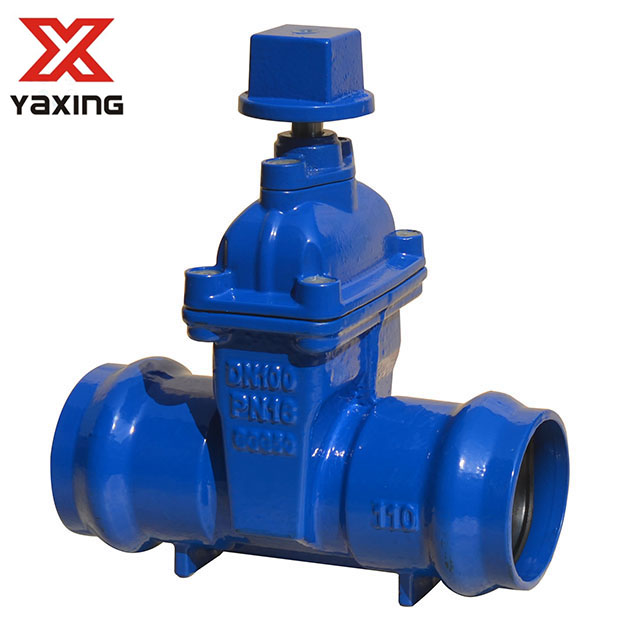

Socket end Resilient seated gate valve with Cap-nut
BOTOU YAXING FLUID EQUIPMENT CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Socket end Resilient seated gate valve with Cap-nut
BOTOU YAXING FLUID EQUIPMENT CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: DUCTILE IRON
- Size: DN50-DN300
- Color: EPOXY POWDER COATED -DARK BLUE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
About this product
- Materials: DUCTILE IRON
- Size: DN50-DN300
- Color: EPOXY POWDER COATED -DARK BLUE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
Product details
| Materials | DUCTILE IRON |
|---|---|
| Size | DN50-DN300 |
| Color | EPOXY POWDER COATED -DARK BLUE |
Product details
| Materials | DUCTILE IRON |
|---|---|
| Size | DN50-DN300 |
| Color | EPOXY POWDER COATED -DARK BLUE |
From the supplier
Features
The ductile iron core is fully vulcanized with EPDM rubber, no iron parts are exposed to the medium and the excellent rubber vulcanization prevents creeping corrosion underneath the rubber.
Guides in the wedge and on the valve body ensure a uniform closure, safe operation ensured as the guides prevent overloading of the stem.
Stainless steel stem with rolled threads for high strength.
The valve can replace stem seals under pressure.
Full bore.
Body inside and outside fusion bonded epoxy coating with excellent corrosion resistant performance.² Suitable for PVC pipes, easy installation.
Standard
Seat:1.1*PN(in bar), Body:1.5*PN(in bar)
Technical Parameters
Main Raw Material
Components may be substituted with equivalent or higher class materials.
Dimension
SizeL(mm)PVC tubes(mm)H(mm)DN5025063280DN6527075305DN8028090350DN100300110390DN125325125470DN150350160525DN200400200630DN250450250780DN300500300870
From the supplier
Features
The ductile iron core is fully vulcanized with EPDM rubber, no iron parts are exposed to the medium and the excellent rubber vulcanization prevents creeping corrosion underneath the rubber.
Guides in the wedge and on the valve body ensure a uniform closure, safe operation ensured as the guides prevent overloading of the stem.
Stainless steel stem with rolled threads for high strength.
The valve can replace stem seals under pressure.
Full bore.
Body inside and outside fusion bonded epoxy coating with excellent corrosion resistant performance.² Suitable for PVC pipes, easy installation.
Standard
Seat:1.1*PN(in bar), Body:1.5*PN(in bar)
Technical Parameters
Main Raw Material
Components may be substituted with equivalent or higher class materials.
Dimension
SizeL(mm)PVC tubes(mm)H(mm)DN5025063280DN6527075305DN8028090350DN100300110390DN125325125470DN150350160525DN200400200630DN250450250780DN300500300870
