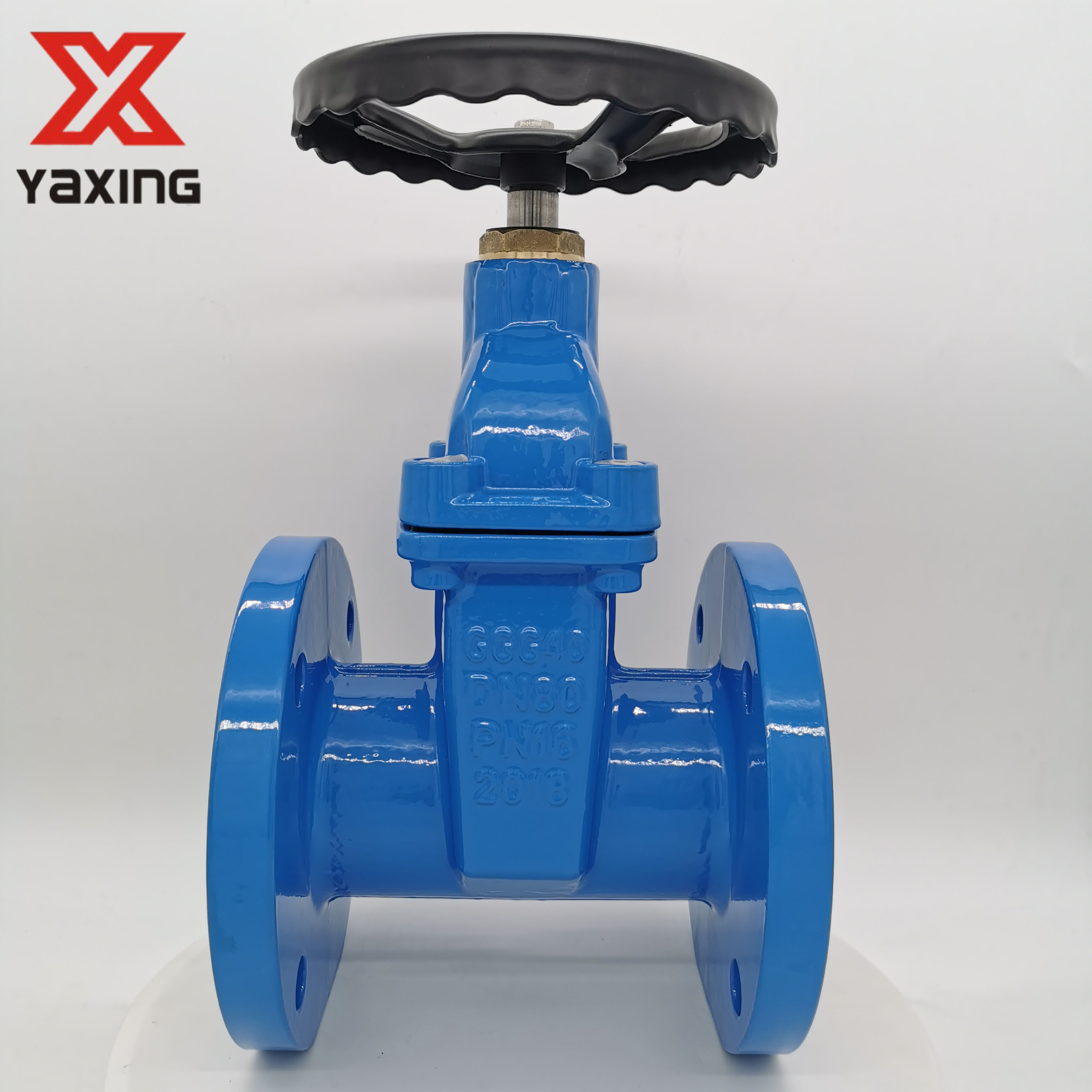

BS5163 NRS (not lifting) Flat Flanged Elastic seat Gate Valves/water gate Valves
BOTOU YAXING FLUID EQUIPMENT CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
BS5163 NRS (not lifting) Flat Flanged Elastic seat Gate Valves/water gate Valves
BOTOU YAXING FLUID EQUIPMENT CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: DUCTILE IRON , CAST IRON
- Size: DN40-1200
- Color: EPOXY POWDER COATED-DARK BLUE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
About this product
- Materials: DUCTILE IRON , CAST IRON
- Size: DN40-1200
- Color: EPOXY POWDER COATED-DARK BLUE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
Product details
| Materials | DUCTILE IRON , CAST IRON |
|---|---|
| Size | DN40-1200 |
| Color | EPOXY POWDER COATED-DARK BLUE |
Product details
| Materials | DUCTILE IRON , CAST IRON |
|---|---|
| Size | DN40-1200 |
| Color | EPOXY POWDER COATED-DARK BLUE |
From the supplier
Product Description
BS5163 NRS（non-rising stem）Flat Face Flange Resilient seat gate valve / water sluice valve
Features
² The ductile iron core is fully vulcanized with EPDM rubber, no iron parts are exposed to the medium and the excellent rubber vulcanization prevents creeping corrosion underneath the rubber.
² Guides in the wedge and on the valve body ensure a uniform closure, safe operation ensured as the guides prevent overloading of the stem.
² Stainless steel stem with rolled threads for high strength.
² The valve can replace stem seals under pressure.
² Full bore.
² Body inside and outside fusion bonded epoxy coating with excellent corrosion resistant performance.
Standard
Design standard
BS5163, EN1171
Flange drilling standard
EN1092-2 PN10/PN16/PN25
Face to face standard
EN558-1 Series 3
Hydraulic test standard
EN1074-1 and 2 /EN12266
Seat:1.1*PN(in bar), Body:1.5*PN(in bar)
Technical Parameters
Nominal diameter(mm)
40～1200
40～1200
Nominal pressure(Mpa)
1.0
1.6
Testing pressure
Shell(Mpa)
1.5
2.4
Seal(Mpa)
1.1
1.76
Suitable temperature
-40°C～150°C
Suitable medium
Drinking water、sewage、seawater、irrigation,or other neutral liquid.
Main Raw Material
1
Body
Ductile Iron
9
Gland bolt
Steel gr.8.8
2
Wedge
Ductile Iron+EPDM
10
Handwheel
Ductile Iron
3
Wedge Nut
Brass
11
Gland
Ductile Iron
4
Stem
Stainless steel
12
O-ring
EPDM rubber
5
Bonnet gasket
EPDM rubber
13
Nut
Stainless steel
6
Bonnet
Ductile iron
14
Washer
Steel
7
Thrust collar
Brass
15
Bonnet bolt
Steel gr.8.8
8
O-ring
EPDM rubber
Components may be substituted with equivalent or higher class materials.
From the supplier
Product Description
BS5163 NRS（non-rising stem）Flat Face Flange Resilient seat gate valve / water sluice valve
Features
² The ductile iron core is fully vulcanized with EPDM rubber, no iron parts are exposed to the medium and the excellent rubber vulcanization prevents creeping corrosion underneath the rubber.
² Guides in the wedge and on the valve body ensure a uniform closure, safe operation ensured as the guides prevent overloading of the stem.
² Stainless steel stem with rolled threads for high strength.
² The valve can replace stem seals under pressure.
² Full bore.
² Body inside and outside fusion bonded epoxy coating with excellent corrosion resistant performance.
Standard
Design standard
BS5163, EN1171
Flange drilling standard
EN1092-2 PN10/PN16/PN25
Face to face standard
EN558-1 Series 3
Hydraulic test standard
EN1074-1 and 2 /EN12266
Seat:1.1*PN(in bar), Body:1.5*PN(in bar)
Technical Parameters
Nominal diameter(mm)
40～1200
40～1200
Nominal pressure(Mpa)
1.0
1.6
Testing pressure
Shell(Mpa)
1.5
2.4
Seal(Mpa)
1.1
1.76
Suitable temperature
-40°C～150°C
Suitable medium
Drinking water、sewage、seawater、irrigation,or other neutral liquid.
Main Raw Material
1
Body
Ductile Iron
9
Gland bolt
Steel gr.8.8
2
Wedge
Ductile Iron+EPDM
10
Handwheel
Ductile Iron
3
Wedge Nut
Brass
11
Gland
Ductile Iron
4
Stem
Stainless steel
12
O-ring
EPDM rubber
5
Bonnet gasket
EPDM rubber
13
Nut
Stainless steel
6
Bonnet
Ductile iron
14
Washer
Steel
7
Thrust collar
Brass
15
Bonnet bolt
Steel gr.8.8
8
O-ring
EPDM rubber
Components may be substituted with equivalent or higher class materials.
