Visit the SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD store

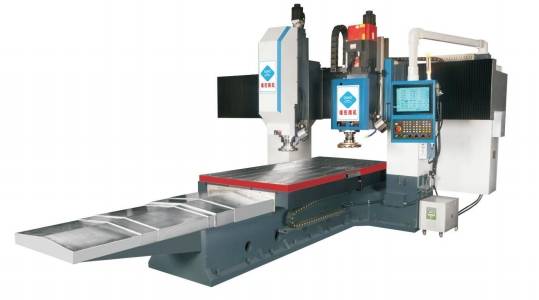

BOHO MACHIENRY,Three Linear guide way vertical
2/10 fairsForeign Trade Company
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Visit the SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD store
BOHO MACHIENRY,Three Linear guide way vertical
2/10 fairsForeign Trade Company
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: ·
- Color: ·
- Performance classification: Mid-Range CNC Machine ToolsEconomical CNC Machine ToolsOther
- Certification: Other
- Process usage: Metal-Forming CNC Machine ToolsMetal-Cutting CNC Machine ToolsOther
- Numerical control: Other
- Exports to: Mainland China, Africa, Middle East, South Asia, Central Asia, Latin America, Russia, Other European Countries
About this product
- Size: ·
- Color: ·
- Performance classification: Mid-Range CNC Machine ToolsEconomical CNC Machine ToolsOther
- Certification: Other
- Process usage: Metal-Forming CNC Machine ToolsMetal-Cutting CNC Machine ToolsOther
- Numerical control: Other
- Exports to: Mainland China, Africa, Middle East, South Asia, Central Asia, Latin America, Russia, Other European Countries
Product details
| Size | · |
|---|---|
| Color | · |
| Performance classification | Mid-Range CNC Machine ToolsEconomical CNC Machine ToolsOther |
| Certification | Other |
| Process usage | Metal-Forming CNC Machine ToolsMetal-Cutting CNC Machine ToolsOther |
| Numerical control | Other |
| Movement method | Other |
| Control method | Other |
| Processing precision | Other |
From the supplier
Item
MV-865
Unit
Work table
Work table size
1000*500
mm
MAX. Load capacity
550
kg
T slot(number of slot-size* distance)
5-18*100
mm
Work
capacity Travel of X/Y/Z axis 800/550/580 mm Distance from spindle centerline to column guide surface 570 mm Distance from spindle nose to work table surface 100-700 mm Spindle Spindle taper specifications BT40-150 Spindle speed 12000 r/min Spindle motor power 7.5/11 kW Spindle drive type Direct-connected spindle Tool Taper BT40 Pull studs specifications BT40-I Feed X/Y/Z axis serve motor power 13/13/22 Nm X/Y/Z axis serve motor speed 3000/3000/3000 rpm X/Y/Z axis guide way XYZ:45/45/45Linear roller mm feed 1-10000 mm/min Min. feed 0.001 mm CNC controller system HNC/MITSUBISHI/FANUC/
Others
capacity Travel of X/Y/Z axis 800/550/580 mm Distance from spindle centerline to column guide surface 570 mm Distance from spindle nose to work table surface 100-700 mm Spindle Spindle taper specifications BT40-150 Spindle speed 12000 r/min Spindle motor power 7.5/11 kW Spindle drive type Direct-connected spindle Tool Taper BT40 Pull studs specifications BT40-I Feed X/Y/Z axis serve motor power 13/13/22 Nm X/Y/Z axis serve motor speed 3000/3000/3000 rpm X/Y/Z axis guide way XYZ:45/45/45Linear roller mm feed 1-10000 mm/min Min. feed 0.001 mm CNC controller system HNC/MITSUBISHI/FANUC/
Others
About the supplier
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
- ✓Exhibited at 2 recent Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 1999
- ✓1 certificate on file
33
trust
- Exhibited at 2 recent Canton Fairs
- Foreign Trade Company
- Founded 1999
- 1 certificate on file
Canton Fair booth: 17.1B33 · Power Machinery and Electric Power (139th session)
