BelFone Professional Repeater Module BF-TR925
Fujian BelFone Communications Technology Co. Ltd
See what’s includedHide breakdown
- FOB goods (100)
- $222,600
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $7,791
- Section 301 tariff (25.0%)
- $55,650
- Customs fees (MPF/HMF)
- $913
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $222,600
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $7,791
- Section 301 tariff (25.0%)
- $55,650
- Customs fees (MPF/HMF)
- $913
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
BelFone Professional Repeater Module BF-TR925
Fujian BelFone Communications Technology Co. LtdSee what’s includedHide breakdown
- FOB goods (100)
- $222,600
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $7,791
- Section 301 tariff (25.0%)
- $55,650
- Customs fees (MPF/HMF)
- $913
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $222,600
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $7,791
- Section 301 tariff (25.0%)
- $55,650
- Customs fees (MPF/HMF)
- $913
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from your agent uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 330mm(L)*218mm(W)*88mm(H) mm
- Color: Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: 330mm(L)*218mm(W)*88mm(H) mm
- Color: Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | 330mm(L)*218mm(W)*88mm(H) mm |
|---|---|
| Color | Black |
Product details
| Size | 330mm(L)*218mm(W)*88mm(H) mm |
|---|---|
| Color | Black |
From the supplier

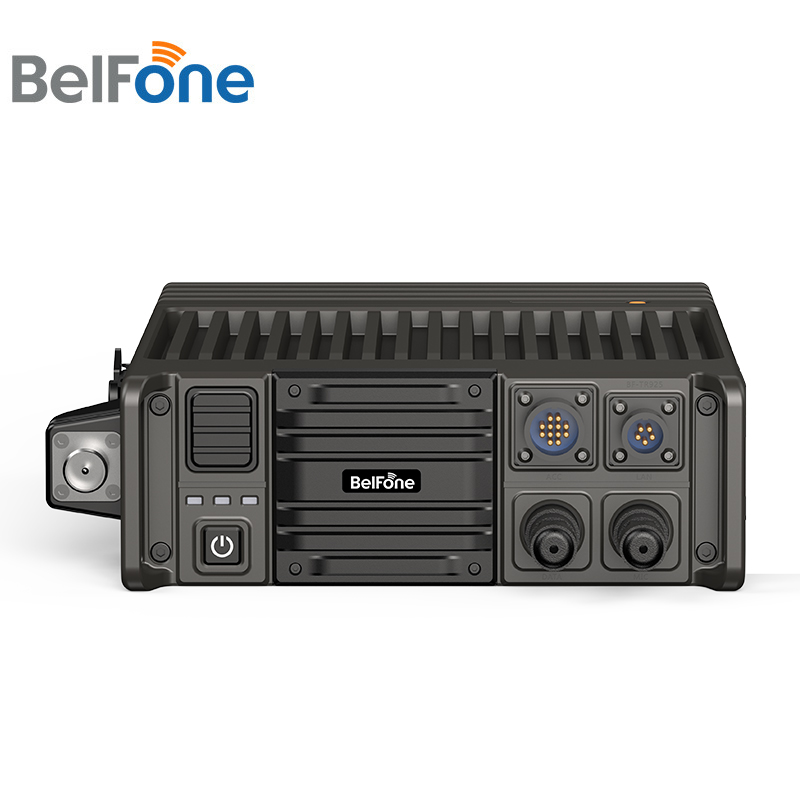

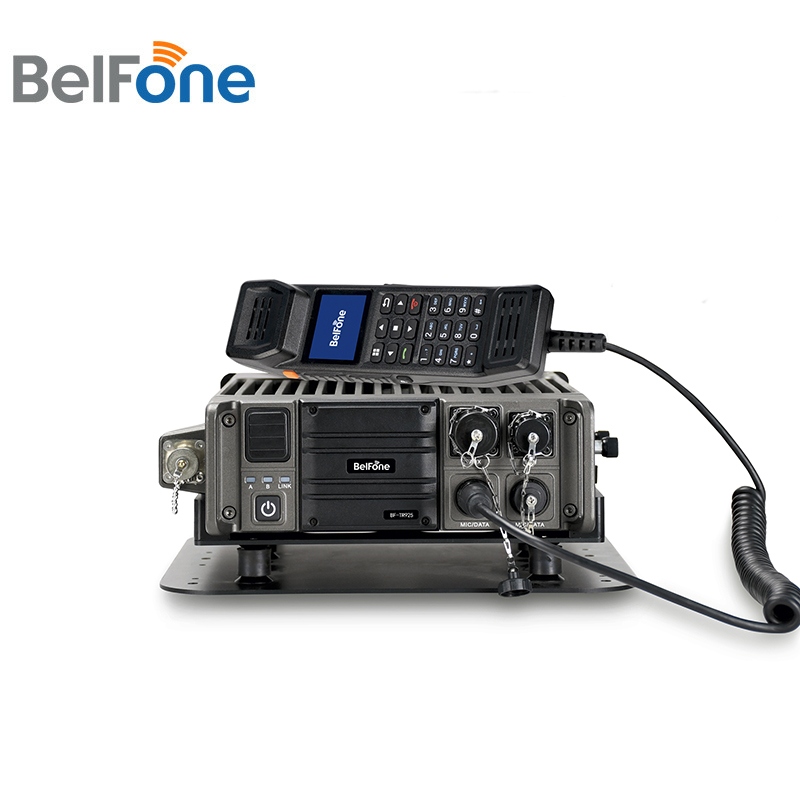

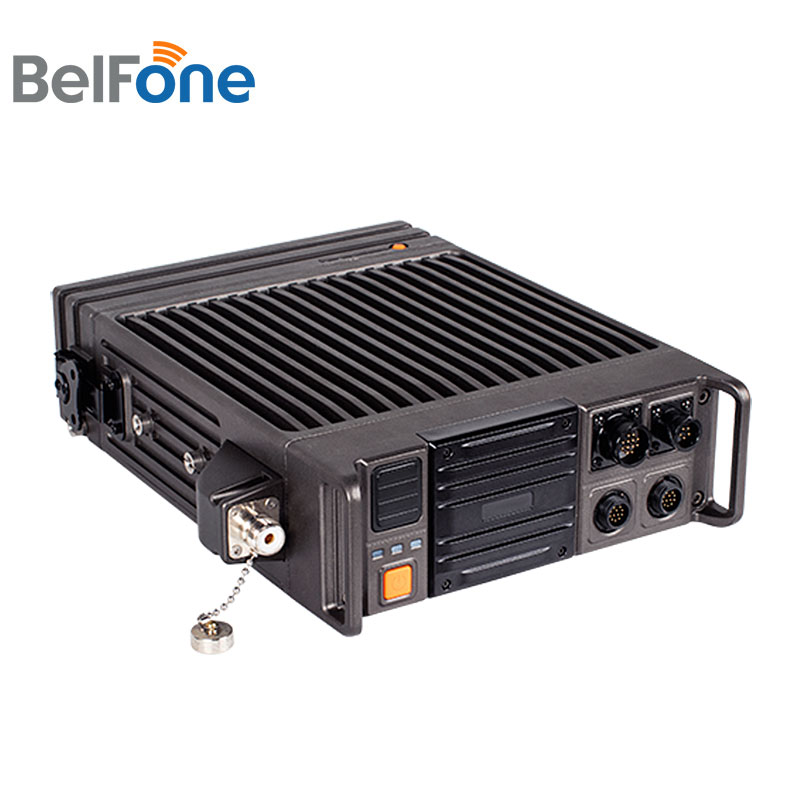

BF-TR925 vehicular or manpack repeater provides on-site communication and remotely connects via IP or satellite. It work as a repeater as well as a dispatcher with BelFone communication systems. With features of fast deployment, flexible networking, IP67 water & dust proof and military standard ruggedness, it usually works with BF-TR900 fixed repeater, when coverage is needed at a special event or incident to swiftly provide local DMR or analog on-site portable radio connection. It delivers high performance, high reliability two-way radio service and is the best choice for harsh outdoor conditions.
Multiple Working Modes - DMR repeater- DMR base radio (DMR Tier I, II)
- Analog base radio
- Simulcast base station
- PSTN gateway (working with BF-TC981) Versatile Connectivity for Harsh Situations - 4G wireless communications link
- Satellite communication link
- Narrowband communication link
- IP connectivity for multi-sites connection Security Design - Power-on password
- Active and passive self-destruction
- AES256 and ARC4 encryption Field-proven Performance and Reliability - IP67 water and dust proof
- Military grade ruggedness, aluminum structure for harsh outdoor conditions
- Superior heat dissipation performance
Specifications
General Frequency Range VHF: 136-174MHz; UHF: 350-390/400-470/450-520MHz Zone 128 Zone 1: 4; Zone 2: 3000; Zone 3: 3000 Channel Capacity 2048 3776 Channel Spacing 12.5KHZ Antenna Impedance 50Q Operating Voltage DC13.8V(±15%), negative ground Current <9A Size 330mm(L)*218mm(W)*88mm(H) mm Weight 6kg Transmitter Output Power 5-50W (continuous) Frequency Stability ≤±0.5ppm (without GPS); ≤±0.2ppm (with GPS) 4FSK Modulation 12.5KHz (data only): 7K60FXD; 12.5KHZ (data and voice): 7K60FXW Adjacent Channel Power Ratio ≤60dB Spurious Radiation -36dBm<1GHz; -30dBm>1GHz Vocoder AMBE Receiver Digital Sensitivity 3%BER≤0.35pV Frequency Stability ≤±0.5ppm (without GPS); ≤±0.2ppm (with GPS) Adjacent Channel Selectivity ≥60dB Intermodulation Immunity ≥70dB Spurious Response ≥70dB Blocking ≥95dB Rated Audio Power Output 2W(8Q) Max. Audio Power Output 10W(8Q) External Environmental Working Temperature -30°C ~ +70°C Storage Temperature -40°C~+85°C Humidity Protection MIL-STD-810 C/D/E/F Shock and Vibration MIL-STD-810 C/D/E/FFrom the supplier
BF-TR925 vehicular or manpack repeater provides on-site communication and remotely connects via IP or satellite. It work as a repeater as well as a dispatcher with BelFone communication systems. With features of fast deployment, flexible networking, IP67 water & dust proof and military standard ruggedness, it usually works with BF-TR900 fixed repeater, when coverage is needed at a special event or incident to swiftly provide local DMR or analog on-site portable radio connection. It delivers high performance, high reliability two-way radio service and is the best choice for harsh outdoor conditions.
Multiple Working Modes - DMR repeater- DMR base radio (DMR Tier I, II)
- Analog base radio
- Simulcast base station
- PSTN gateway (working with BF-TC981) Versatile Connectivity for Harsh Situations - 4G wireless communications link
- Satellite communication link
- Narrowband communication link
- IP connectivity for multi-sites connection Security Design - Power-on password
- Active and passive self-destruction
- AES256 and ARC4 encryption Field-proven Performance and Reliability - IP67 water and dust proof
- Military grade ruggedness, aluminum structure for harsh outdoor conditions
- Superior heat dissipation performance
Specifications
General Frequency Range VHF: 136-174MHz; UHF: 350-390/400-470/450-520MHz Zone 128 Zone 1: 4; Zone 2: 3000; Zone 3: 3000 Channel Capacity 2048 3776 Channel Spacing 12.5KHZ Antenna Impedance 50Q Operating Voltage DC13.8V(±15%), negative ground Current <9A Size 330mm(L)*218mm(W)*88mm(H) mm Weight 6kg Transmitter Output Power 5-50W (continuous) Frequency Stability ≤±0.5ppm (without GPS); ≤±0.2ppm (with GPS) 4FSK Modulation 12.5KHz (data only): 7K60FXD; 12.5KHZ (data and voice): 7K60FXW Adjacent Channel Power Ratio ≤60dB Spurious Radiation -36dBm<1GHz; -30dBm>1GHz Vocoder AMBE Receiver Digital Sensitivity 3%BER≤0.35pV Frequency Stability ≤±0.5ppm (without GPS); ≤±0.2ppm (with GPS) Adjacent Channel Selectivity ≥60dB Intermodulation Immunity ≥70dB Spurious Response ≥70dB Blocking ≥95dB Rated Audio Power Output 2W(8Q) Max. Audio Power Output 10W(8Q) External Environmental Working Temperature -30°C ~ +70°C Storage Temperature -40°C~+85°C Humidity Protection MIL-STD-810 C/D/E/F Shock and Vibration MIL-STD-810 C/D/E/FAbout the supplier
Main products: Dual band/Cross Band Transceiver, Vehicle walkie talkie, PDT Digital Walkie-Talkie, Interphones, Walkie Talkie FRS, DTMB/DAB/CMMB, Other communication facilities
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 1989
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- ✓1 certificate on file
Electronics & Appliance exhibitors show in Phase 1 of the Canton Fair, 15 to 19 October 2026.
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 1989
- Canton Fair Premium Supplier
