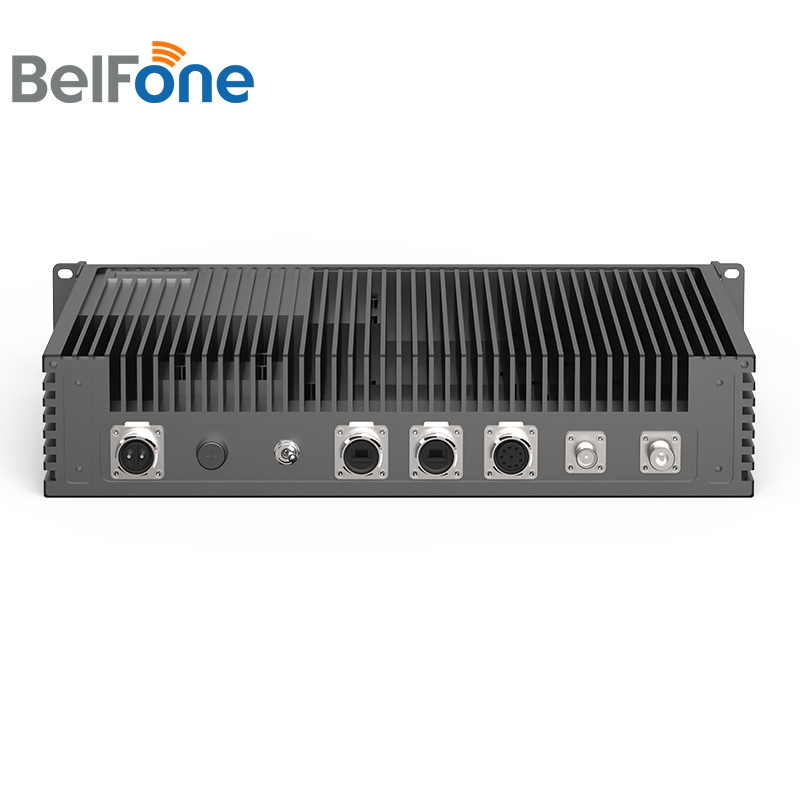

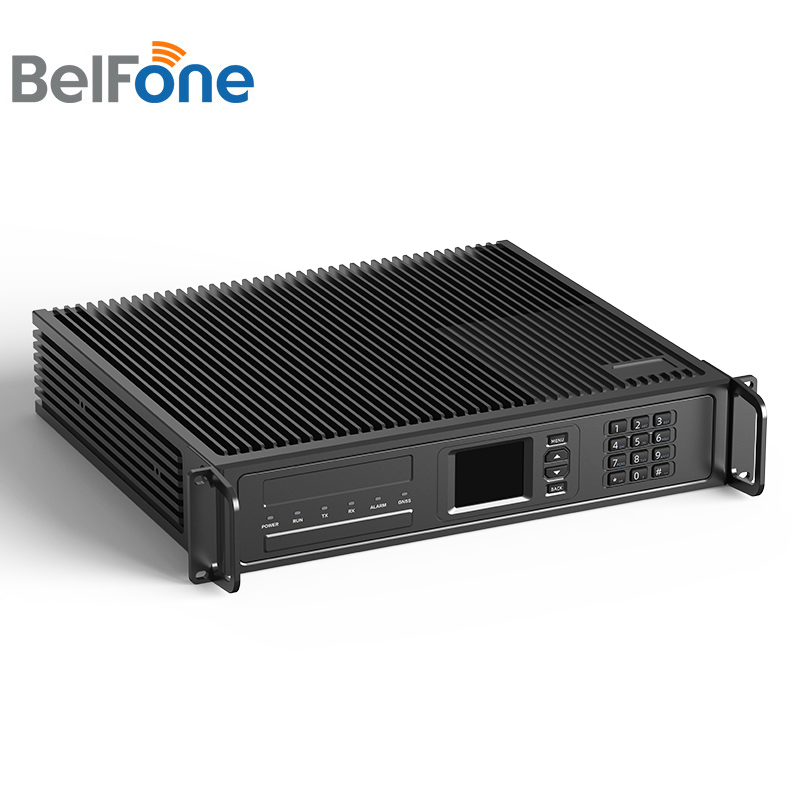

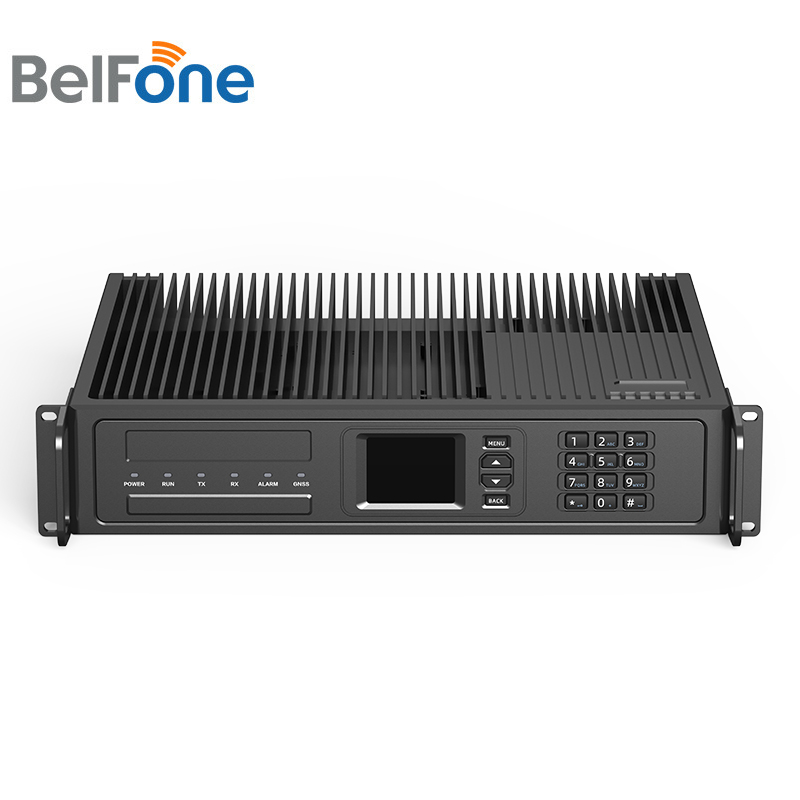

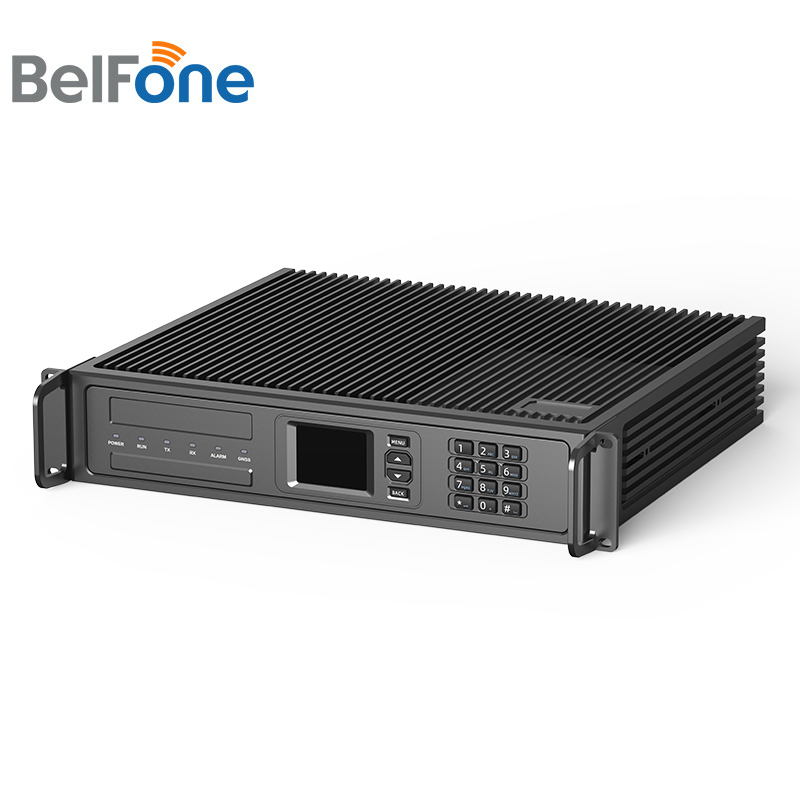

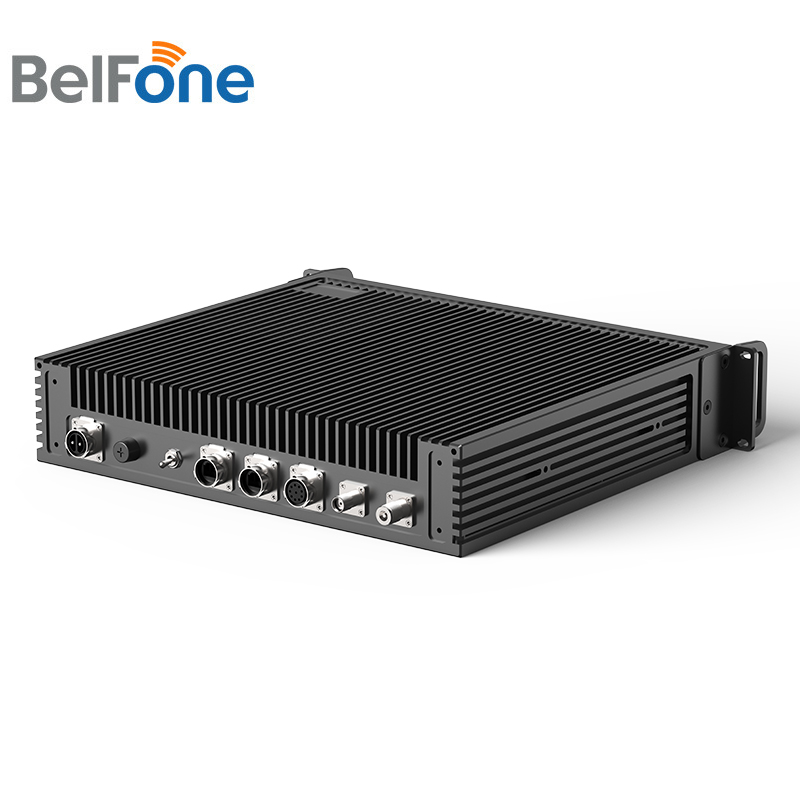

BF-TR955 multi-carrier, all-in-one DMR/PDT Trunked mobile base station features a standard rack-mounted design, integrating channel units, synchronization units, RF distribution units, and base station controllers to meet diversity communication needs. Providing voice Trunking, data collection, personnel positioning, personnel management, dispatching, and other services. It flexibly supports both vehicular mounting and optional portable case deployment. Allowing rapid network establishment and providing integrated command and dispatching services for communications in emergency scenarios of disaster relief, border patrol, emergency response, etc.

DPD (Deep Power Down) Technology
The BF-TR955 digital mobile base station adopts advanced digital predistortion processing technology to further suppress adjacent channel emissions, reduce adverse effects on communication signals, and enhance the amplification efficiency of the RF power amplifier. Significantly enhance communication efficiency, enabling stable and efficient operation in multi-carrier working modes.

Flexible Deployment
BF-TR955 is compact and lightweight with a standard 19-inch 2U rack-mounted structure and is ideal for scenarios where space and performance are critical. It is portable and flexibly supports car mounting, fixed place installation, medium or small vehicle mounting, or even deployed by drones, adaptable for rapid deployment in small, medium, and large-scale communication scenarios.

Highly Integrated
The BF-TR955 digital mobile base station features a highly integrated design, integrating key components and multiple functions into the core chip. Effectively reduces the system failure rate and signal-to-noise ratio, enhancing system stability and reliability.

Multi-Carrier
Compared to standard mobile base stations, the BF-TR955 supports more communication carriers, with each base station supports 5 carriers and a total of 10 Trunking channels. BF-TR955 can flexibly upgrade and expand system capacity based on user planning, supporting up to 8 carriers with a total of 16 service channels, carrying a larger volume of Trunking services.

IP65 Protection
The BF-TR955 fully considers diverse deployment environments. It features a self-cooling design to bring excellent heat dissipation. Adheres to waterproof, dustproof, and shockproof standards, complying with IP65 dustproof and waterproof, it is rugged enough to maintain stable operation even in muddy, rainy, and other harsh and complex environments.

Easy to Operate
The BF-TR955 is equipped with a programmable fully digital keyboard and an HD 2.8-inch semi-transparent color screen that delivers clear visibility even under strong sunlight, allowing personnel to operate efficiently, adjust configurations, and monitor operating status under various lighting conditions.

General Frequency Range UHF3：350-400MHz; UHF1：400-470MHz Carrier Frequency 5 or 8 Multiple Access TDMA Slots 2/carrier frequency Modulation 4FSK，Modulation Index: 0.27 Carrier Spacing ≥250kHz Operating Bandwidth 5MHz(UHF) Duplex Spacing 10MHz(UHF) Working Voltage +48V DC; Customized 24V DC Limit Voltage +43V～63V Maximum Power Consumption ≤200W Working Temperature +15℃～+35℃ Limit Temperature -25℃～+55℃ Storage Temperature -40℃~+85℃ Humidity 5%RH～100%RH Atmospheric Pressure 53.5KPa～106KPa IP Grade IP65 MTBF 100,000 hours MTTR 30Minutes Weight ≤16Kg Dimensions(W*L*H) ≤440mm*390mm*88mm Interface Transceiver RF Interface N-Female GNSS synchronous Interface TNC-Female Receiver Static Sensitivity ≤-124dBm@BER5% Dynamic Receiver Range ≥100dB Stepped Frequency 12.5kHz Co-Channel Interference Suppression -12dB～0dB Adjacent Channel Selectivity ≥60dB@12.5kHz Intermodulation Response Rejection ≥70dB Block ≥84dB Spurious Response Immunity ≥70dB Spurious Emission 9.00kHz～1.00GHz：≤-57dBm@100kHz; 1.00GHz～12.75GHz：≤-47dBm@1MHz Transmitting Rated Transmit Power ≤8W/Carrier (5 Carriers); ≤2W/Carrier (Optional 8 Carriers) FSK Error ≤5% Occupied Bandwidth (OBW) ≤8.5kHz Maximum Frequency Deviation ±3.15kHz Frequency Deviation ≤±100Hz Intermodulation Attenuation ≤-70dB Adjacent Channel Power Ratio ≤-60dB @ 12.5KHz； Frequency Stability 0.5ppm Adjacent Channel Power Ratio ≤-60dB @ 12.5KHz；≤-70dB @ 25KHz Spurious Emission ≤-36dBm@100kHz；≤-30dBm@1.0MHz
