Barcode Wristband printer BB720A
Baobiwanxiang Technologies Co.,Limited
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
Barcode Wristband printer BB720A
Baobiwanxiang Technologies Co.,LimitedThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Free quotes from independent agents · supplier checks approx. $5–$100 · 100% refund if not satisfied
About this product
- Materials: metal
- Size: 148mm(L)*175mm(W)*203mm(H）
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
About this product
- Materials: metal
- Size: 148mm(L)*175mm(W)*203mm(H）
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
Product details
| Materials | metal |
|---|---|
| Size | 148mm(L)*175mm(W)*203mm(H） |
| Color | white |
Product details
| Materials | metal |
|---|---|
| Size | 148mm(L)*175mm(W)*203mm(H） |
| Color | white |
From the supplier
Small size, stable performance
The barcode wrist strap printer BB720A is only half the size of an ordinary desktop printer. It does not occupy any space. It supports intelligent connection and the printing wrist strap is fast and clear.
Upgrade the activity channel and take a glance at the paper
The medical work is busy. If there is a slight error in the wrist strap printer and the paper jams, it will be too late! The paper passage of many printers is hidden, and the paper jam must be removed and repaired by the master. However, the barcode wrist strap printer BB720A opens the paper passage, so you can see clearly how the wrist strap enters and exits. In case of paper jam, you can easily solve it yourself!

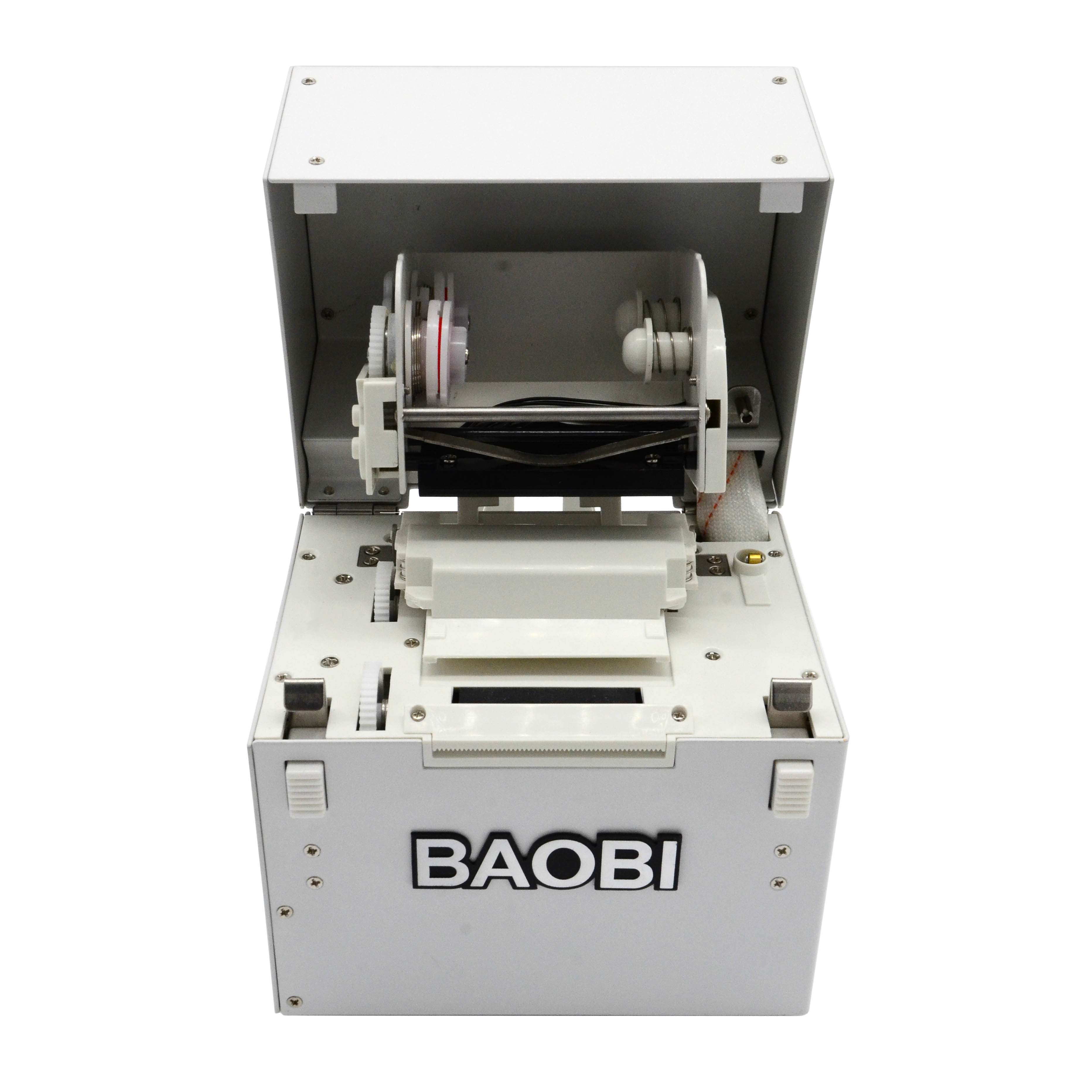

Simple and convenient loading of carbon belt
If thermal transfer printing is used, carbon tape must be installed, which is often said to be a technical activity. However, the carbon tape loading design of the barcode wrist strap printer BB720A is in line with the user's operating habits. Place the carbon tape so that the toner fits the printing surface of the wrist strap!
Intelligent automatic paper feeding
The barcode wrist strap printer BB720A is equipped with a sensor, which will align the printing wrist strap to the access paper port. The wrist strap can automatically enter the channel to reach the accurate printing position, and then press Print to successfully print the wrist strap
Printer specifications
Printer Resolution:
203dpi / 8 dots per mm
Print width:
Maximum 2” / 54mm
Applicable to different styles of BAOBI thermal wristband and BAOBI thermal transfer wristband
printing speed:
Print speed is selectable.
Standard speed: 2.5 ”/ s (60 mm / sec) (5 seconds per wristband)
Maximum speed: 5 ips (120mm/s)
Medium Characteristics:
Maximum wristband/label width:
0.39"/10 mm to 2" / 54 mm
Maximum medium roll size:
5 ”/ 127 mm (external diameter)
Medium thickness:
0.003" / 0.08 mm to 0.0075" / 0.19 mm
Medium type:
Thermal / Thermal transfer medium
Applicable ribbon specifications:
Shaft core: 0.5 ”
Shaft length: 56mm
Ribbon width: within54mm
Ribbon roll external diameter: within 36mm (ribbon length 90m)
Operating Characteristic
Environmental
Operating temperature:40℉/4.4℃ to 104℉/40℃
Storage temperature:-40℉/-40℃ to 140℉/80℃
Operating humidity:20%-85% non-condensing
Storage humidity:5%-85% non-condensing
Electrical
Universal power supply(PFC compliant)
100-240VAC, 50-60Hz (60Watts) External Power Supply
Physical specification
*Width: 148 mm
* Height: 175 mm
* Length: 203 mm
* Weight(N.W): 2.5kg
Operating Parameter
Software
BAOBI Printer Driver
BBDesigner
Programming
BPL+ (Application Programming Interface)
Networking /Connectivity
*USB 2.0 interface
*Serial Port
Font and Graphic
*Support user-defined fonts and graphics-including custom logo
*Font and Barcode rotation: 90, 180, 270 degrees
Barcode
Linear Barcode:Code 39, Code 128A,B&C ，
UCC/EAN-128, Code 93, Codabar, Interleaved 2
of 5, UPC-A, UPC-E, UPC-A with 2 and 5 add on,
UPC-E with 2 and 5 add on, EAN 13, EAN 8, EAN
13 with 2 and 5 add on, EAN 8 with 2 and 5 add
on, Postnet, Standard 2 of 5, Industrial 2 of 5,
LOGMARS,MSI,Codabar and GS1 DataBar
(formerly RSS),Code 11, China Post
2-Dimensional Barcode: PDF-417,Maxicode,DataMatrix,QR
code, Aztec
Accessories
Warranty Card
USB Port Cable
Power Adapter
Power Cord
Printer specifications
Printer Resolution:
203dpi / 8 dots per mm
Print width:
Maximum 2” / 54mm
Applicable to different styles of BAOBI thermal wristband and BAOBI thermal transfer wristband
printing speed:
Print speed is selectable.
Standard speed: 2.5 ”/ s (60 mm / sec) (5 seconds per wristband)
Maximum speed: 5 ips (120mm/s)
Medium Characteristics:
Maximum wristband/label width:
0.39"/10 mm to 2" / 54 mm
Maximum medium roll size:
5 ”/ 127 mm (external diameter)
Medium thickness:
0.003" / 0.08 mm to 0.0075" / 0.19 mm
Medium type:
Thermal / Thermal transfer medium
Applicable ribbon specifications:
Shaft core: 0.5 ”
Shaft length: 56mm
Ribbon width: within54mm
Ribbon roll external diameter: within 36mm (ribbon length 90m)
Operating Characteristic
Environmental
Operating temperature:40℉/4.4℃ to 104℉/40℃
Storage temperature:-40℉/-40℃ to 140℉/80℃
Operating humidity:20%-85% non-condensing
Storage humidity:5%-85% non-condensing
Electrical
Universal power supply(PFC compliant)
100-240VAC, 50-60Hz (60Watts) External Power Supply
Physical specification
*Width: 148 mm
* Height: 175 mm
* Length: 203 mm
* Weight(N.W): 2.5kg
Operating Parameter
Software
BAOBI Printer Driver
BBDesigner
Programming
BPL+ (Application Programming Interface)
Networking /Connectivity
*USB 2.0 interface
*Serial Port
Font and Graphic
*Support user-defined fonts and graphics-including custom logo
*Font and Barcode rotation: 90, 180, 270 degrees
Barcode
Linear Barcode:Code 39, Code 128A,B&C ，
UCC/EAN-128, Code 93, Codabar, Interleaved 2
of 5, UPC-A, UPC-E, UPC-A with 2 and 5 add on,
UPC-E with 2 and 5 add on, EAN 13, EAN 8, EAN
13 with 2 and 5 add on, EAN 8 with 2 and 5 add
on, Postnet, Standard 2 of 5, Industrial 2 of 5,
LOGMARS,MSI,Codabar and GS1 DataBar
(formerly RSS),Code 11, China Post
2-Dimensional Barcode: PDF-417,Maxicode,DataMatrix,QR
code, Aztec
Accessories
Warranty Card
USB Port Cable
Power Adapter
Power Cord
From the supplier
Small size, stable performance
The barcode wrist strap printer BB720A is only half the size of an ordinary desktop printer. It does not occupy any space. It supports intelligent connection and the printing wrist strap is fast and clear.
Upgrade the activity channel and take a glance at the paper
The medical work is busy. If there is a slight error in the wrist strap printer and the paper jams, it will be too late! The paper passage of many printers is hidden, and the paper jam must be removed and repaired by the master. However, the barcode wrist strap printer BB720A opens the paper passage, so you can see clearly how the wrist strap enters and exits. In case of paper jam, you can easily solve it yourself!
Simple and convenient loading of carbon belt
If thermal transfer printing is used, carbon tape must be installed, which is often said to be a technical activity. However, the carbon tape loading design of the barcode wrist strap printer BB720A is in line with the user's operating habits. Place the carbon tape so that the toner fits the printing surface of the wrist strap!
Intelligent automatic paper feeding
The barcode wrist strap printer BB720A is equipped with a sensor, which will align the printing wrist strap to the access paper port. The wrist strap can automatically enter the channel to reach the accurate printing position, and then press Print to successfully print the wrist strap
Printer specifications
Printer Resolution:
203dpi / 8 dots per mm
Print width:
Maximum 2” / 54mm
Applicable to different styles of BAOBI thermal wristband and BAOBI thermal transfer wristband
printing speed:
Print speed is selectable.
Standard speed: 2.5 ”/ s (60 mm / sec) (5 seconds per wristband)
Maximum speed: 5 ips (120mm/s)
Medium Characteristics:
Maximum wristband/label width:
0.39"/10 mm to 2" / 54 mm
Maximum medium roll size:
5 ”/ 127 mm (external diameter)
Medium thickness:
0.003" / 0.08 mm to 0.0075" / 0.19 mm
Medium type:
Thermal / Thermal transfer medium
Applicable ribbon specifications:
Shaft core: 0.5 ”
Shaft length: 56mm
Ribbon width: within54mm
Ribbon roll external diameter: within 36mm (ribbon length 90m)
Operating Characteristic
Environmental
Operating temperature:40℉/4.4℃ to 104℉/40℃
Storage temperature:-40℉/-40℃ to 140℉/80℃
Operating humidity:20%-85% non-condensing
Storage humidity:5%-85% non-condensing
Electrical
Universal power supply(PFC compliant)
100-240VAC, 50-60Hz (60Watts) External Power Supply
Physical specification
*Width: 148 mm
* Height: 175 mm
* Length: 203 mm
* Weight(N.W): 2.5kg
Operating Parameter
Software
BAOBI Printer Driver
BBDesigner
Programming
BPL+ (Application Programming Interface)
Networking /Connectivity
*USB 2.0 interface
*Serial Port
Font and Graphic
*Support user-defined fonts and graphics-including custom logo
*Font and Barcode rotation: 90, 180, 270 degrees
Barcode
Linear Barcode:Code 39, Code 128A,B&C ，
UCC/EAN-128, Code 93, Codabar, Interleaved 2
of 5, UPC-A, UPC-E, UPC-A with 2 and 5 add on,
UPC-E with 2 and 5 add on, EAN 13, EAN 8, EAN
13 with 2 and 5 add on, EAN 8 with 2 and 5 add
on, Postnet, Standard 2 of 5, Industrial 2 of 5,
LOGMARS,MSI,Codabar and GS1 DataBar
(formerly RSS),Code 11, China Post
2-Dimensional Barcode: PDF-417,Maxicode,DataMatrix,QR
code, Aztec
Accessories
Warranty Card
USB Port Cable
Power Adapter
Power Cord
Printer specifications
Printer Resolution:
203dpi / 8 dots per mm
Print width:
Maximum 2” / 54mm
Applicable to different styles of BAOBI thermal wristband and BAOBI thermal transfer wristband
printing speed:
Print speed is selectable.
Standard speed: 2.5 ”/ s (60 mm / sec) (5 seconds per wristband)
Maximum speed: 5 ips (120mm/s)
Medium Characteristics:
Maximum wristband/label width:
0.39"/10 mm to 2" / 54 mm
Maximum medium roll size:
5 ”/ 127 mm (external diameter)
Medium thickness:
0.003" / 0.08 mm to 0.0075" / 0.19 mm
Medium type:
Thermal / Thermal transfer medium
Applicable ribbon specifications:
Shaft core: 0.5 ”
Shaft length: 56mm
Ribbon width: within54mm
Ribbon roll external diameter: within 36mm (ribbon length 90m)
Operating Characteristic
Environmental
Operating temperature:40℉/4.4℃ to 104℉/40℃
Storage temperature:-40℉/-40℃ to 140℉/80℃
Operating humidity:20%-85% non-condensing
Storage humidity:5%-85% non-condensing
Electrical
Universal power supply(PFC compliant)
100-240VAC, 50-60Hz (60Watts) External Power Supply
Physical specification
*Width: 148 mm
* Height: 175 mm
* Length: 203 mm
* Weight(N.W): 2.5kg
Operating Parameter
Software
BAOBI Printer Driver
BBDesigner
Programming
BPL+ (Application Programming Interface)
Networking /Connectivity
*USB 2.0 interface
*Serial Port
Font and Graphic
*Support user-defined fonts and graphics-including custom logo
*Font and Barcode rotation: 90, 180, 270 degrees
Barcode
Linear Barcode:Code 39, Code 128A,B&C ，
UCC/EAN-128, Code 93, Codabar, Interleaved 2
of 5, UPC-A, UPC-E, UPC-A with 2 and 5 add on,
UPC-E with 2 and 5 add on, EAN 13, EAN 8, EAN
13 with 2 and 5 add on, EAN 8 with 2 and 5 add
on, Postnet, Standard 2 of 5, Industrial 2 of 5,
LOGMARS,MSI,Codabar and GS1 DataBar
(formerly RSS),Code 11, China Post
2-Dimensional Barcode: PDF-417,Maxicode,DataMatrix,QR
code, Aztec
Accessories
Warranty Card
USB Port Cable
Power Adapter
Power Cord
