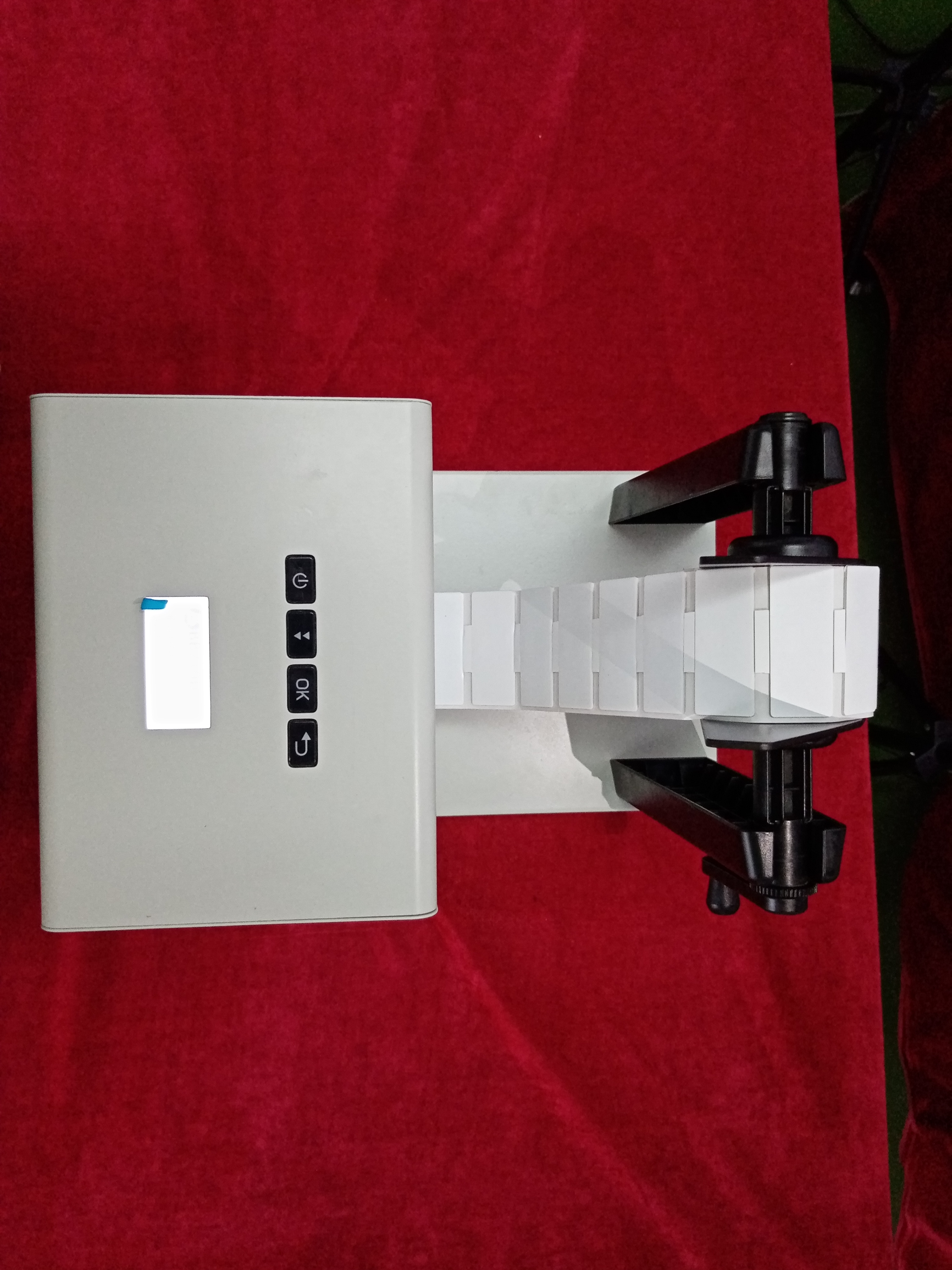

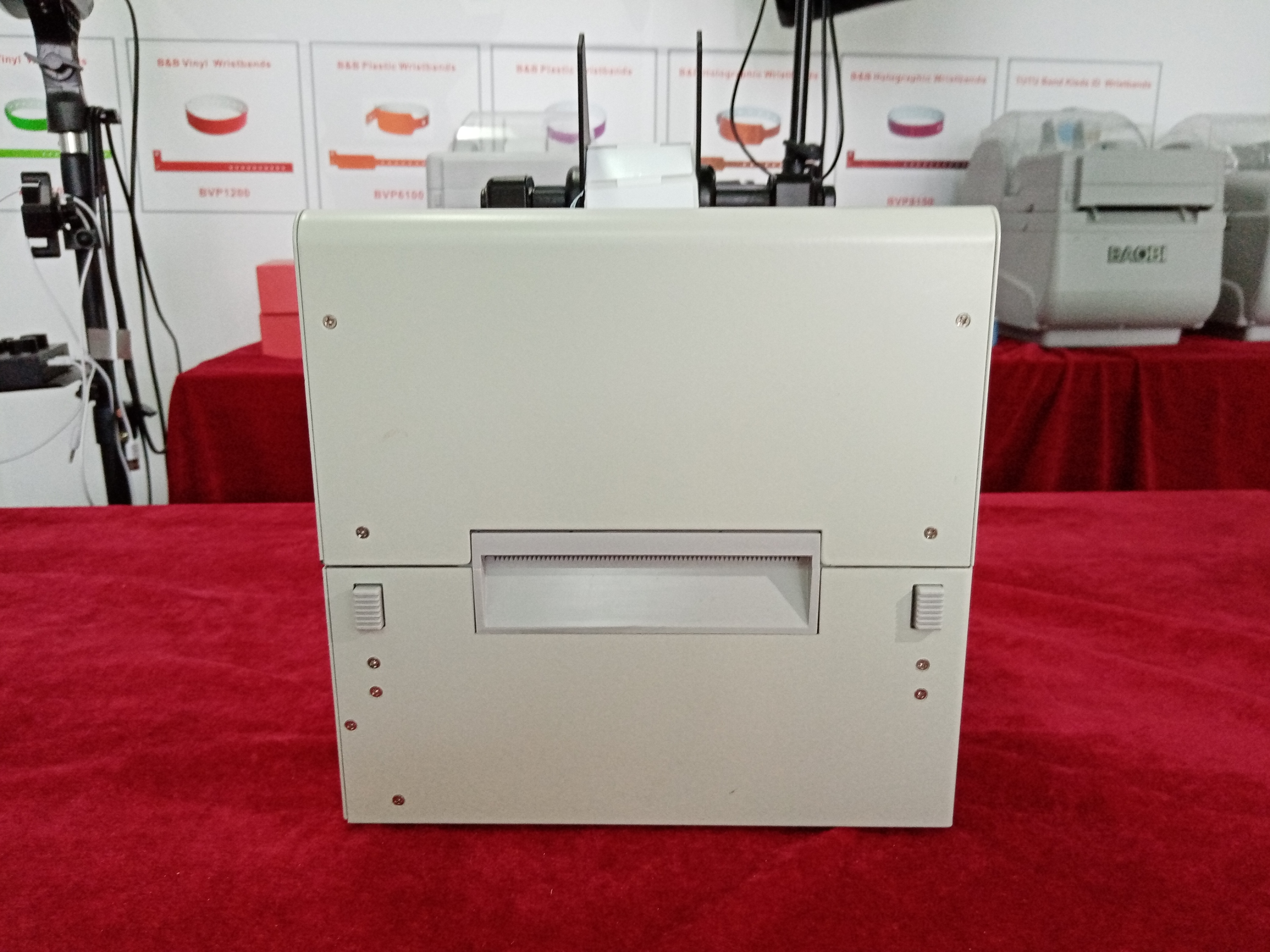

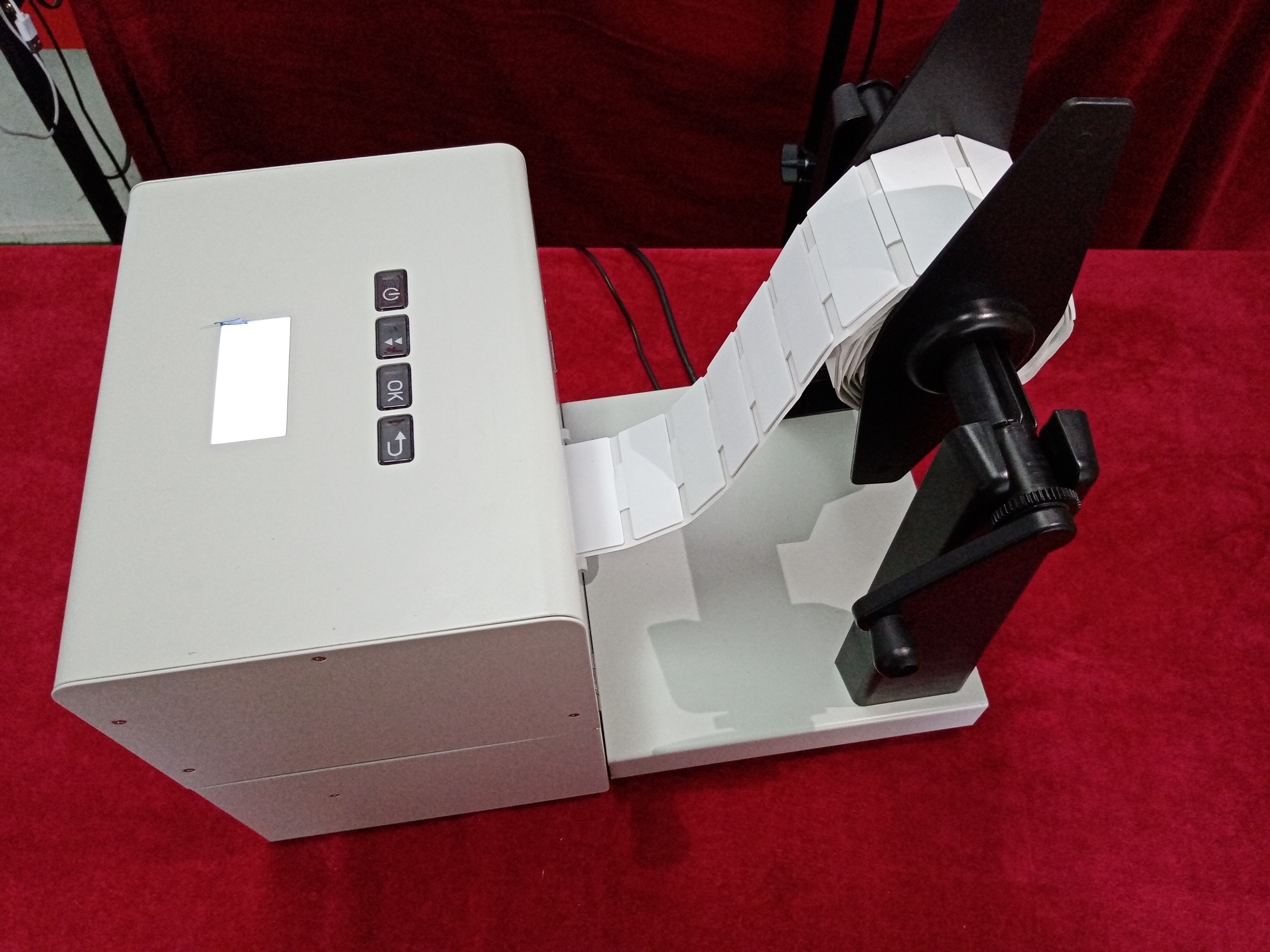

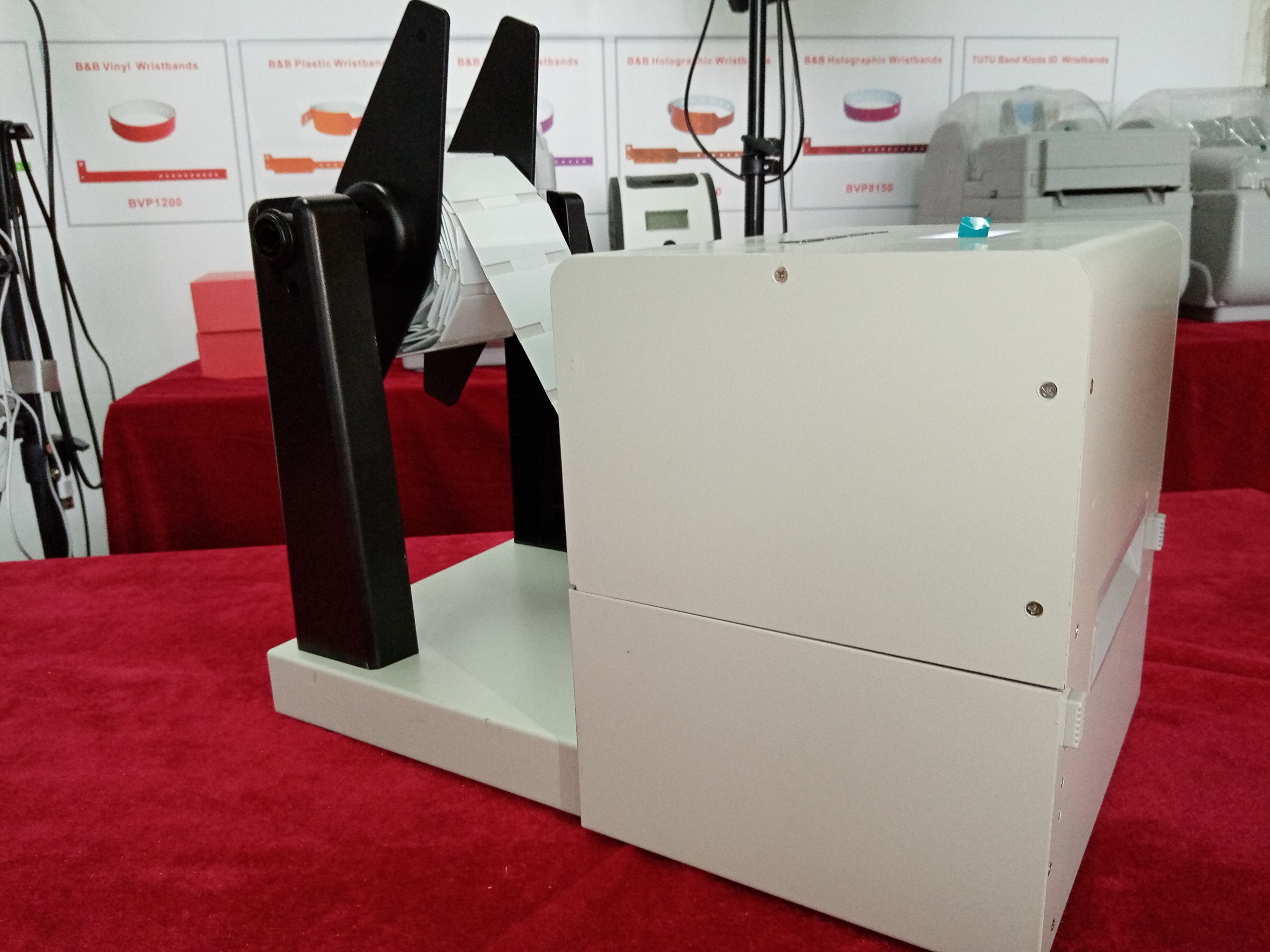

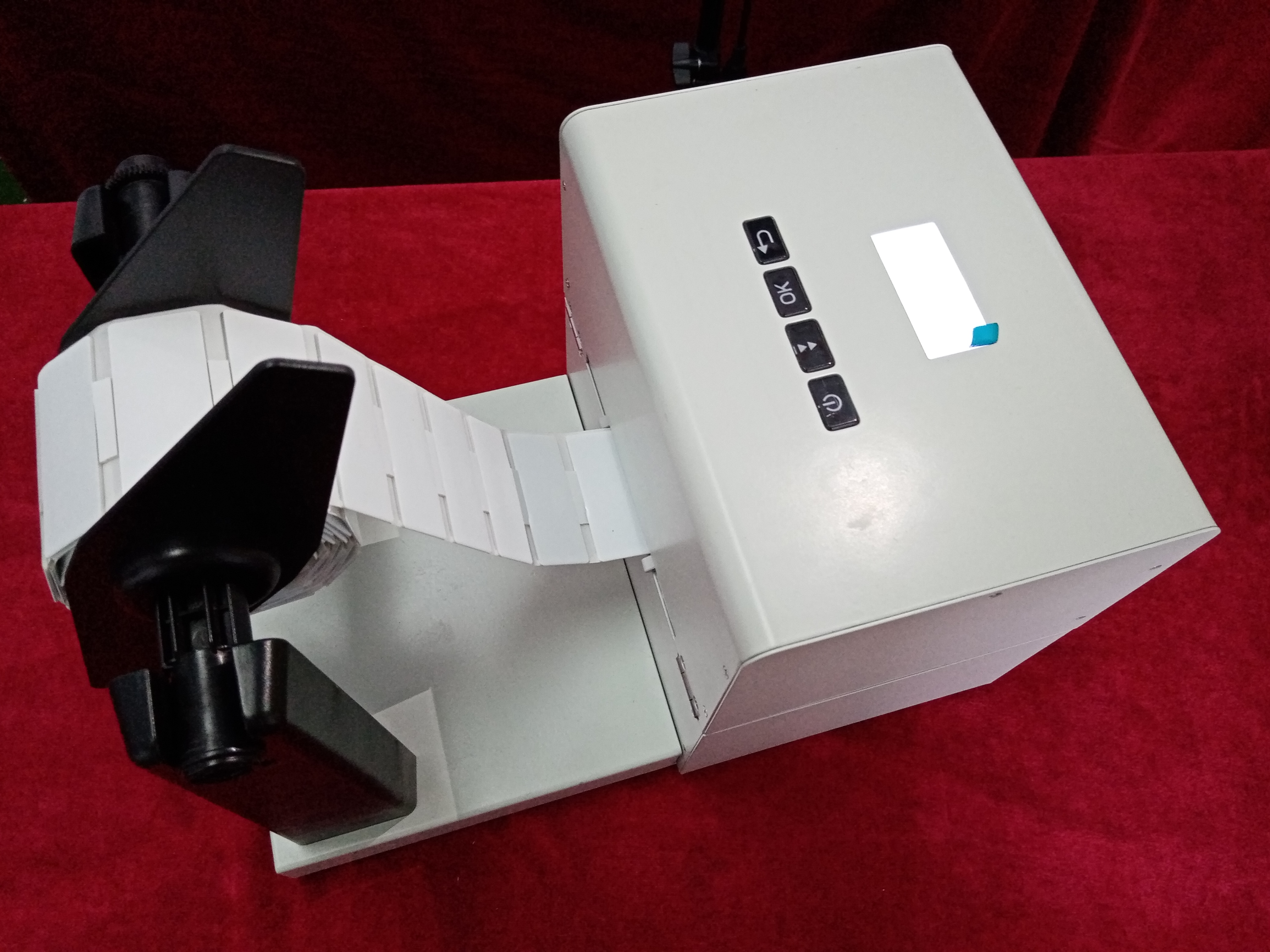

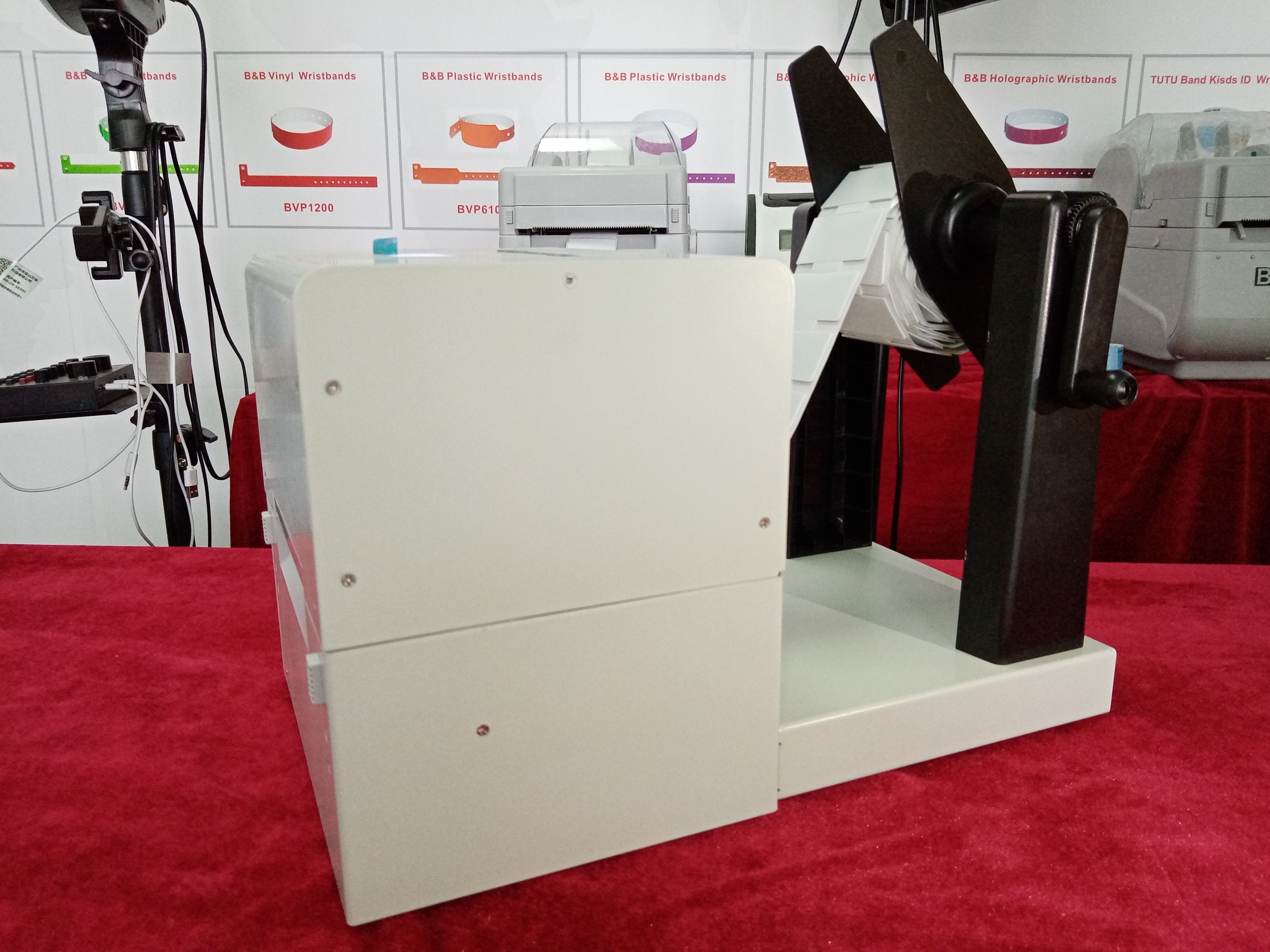

BAOBI RFID PRINTER BB710D

BAOBI patented design, unique flexible anti-metal label printing and RFID writing;

Easy to operate, convenient for anti-metal label applications;

Excellent printing and writing RFID data simultaneously performance, data information is more secure

Unique RFID writing success tips / fail reminder.

Precise positioning, printing and writing minimum antenna space of 3mm;

One-button operation printing and simultaneously RFID writing,efficient and convenient;

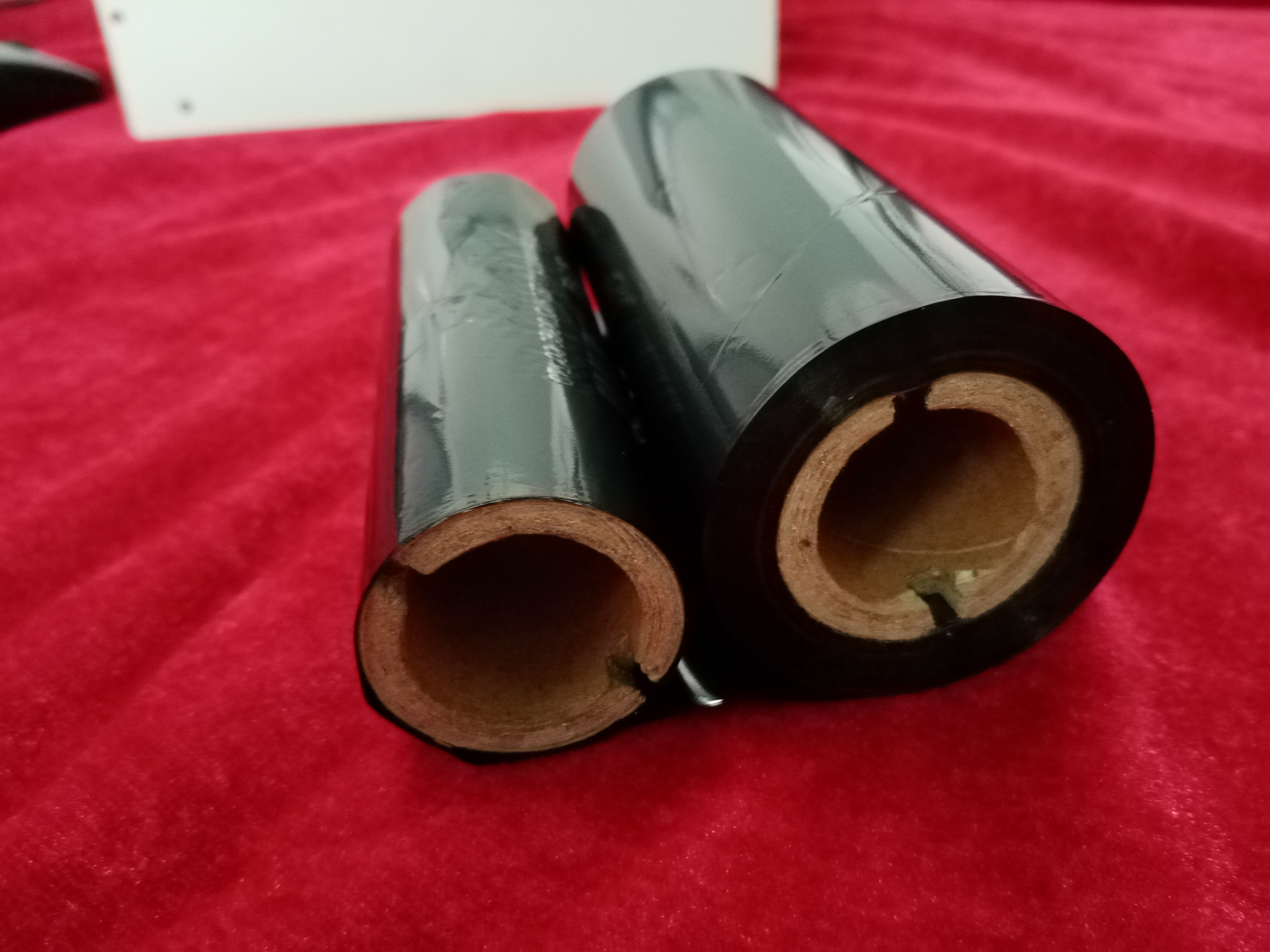

Large-capacity ribbon loading design, can be placed with a ribbon roll of 300m;

RFID printing technology base on Internet of Things is widely used.

It can be used in many fields such as anti-counterfeiting security, transportation, food, library, animals, agriculture, power management, electronic payment, environmental monitoring, smart home, convenience service, public health, and green ecology.

 Standard Features:

* Print mode:direct thermal printing , thermal transfer printing

* Three setting modes: print and write RFID, print only, write RFID only

* Precise positioning, can operate the antenna spacing of 3mm label printing while writing RFID

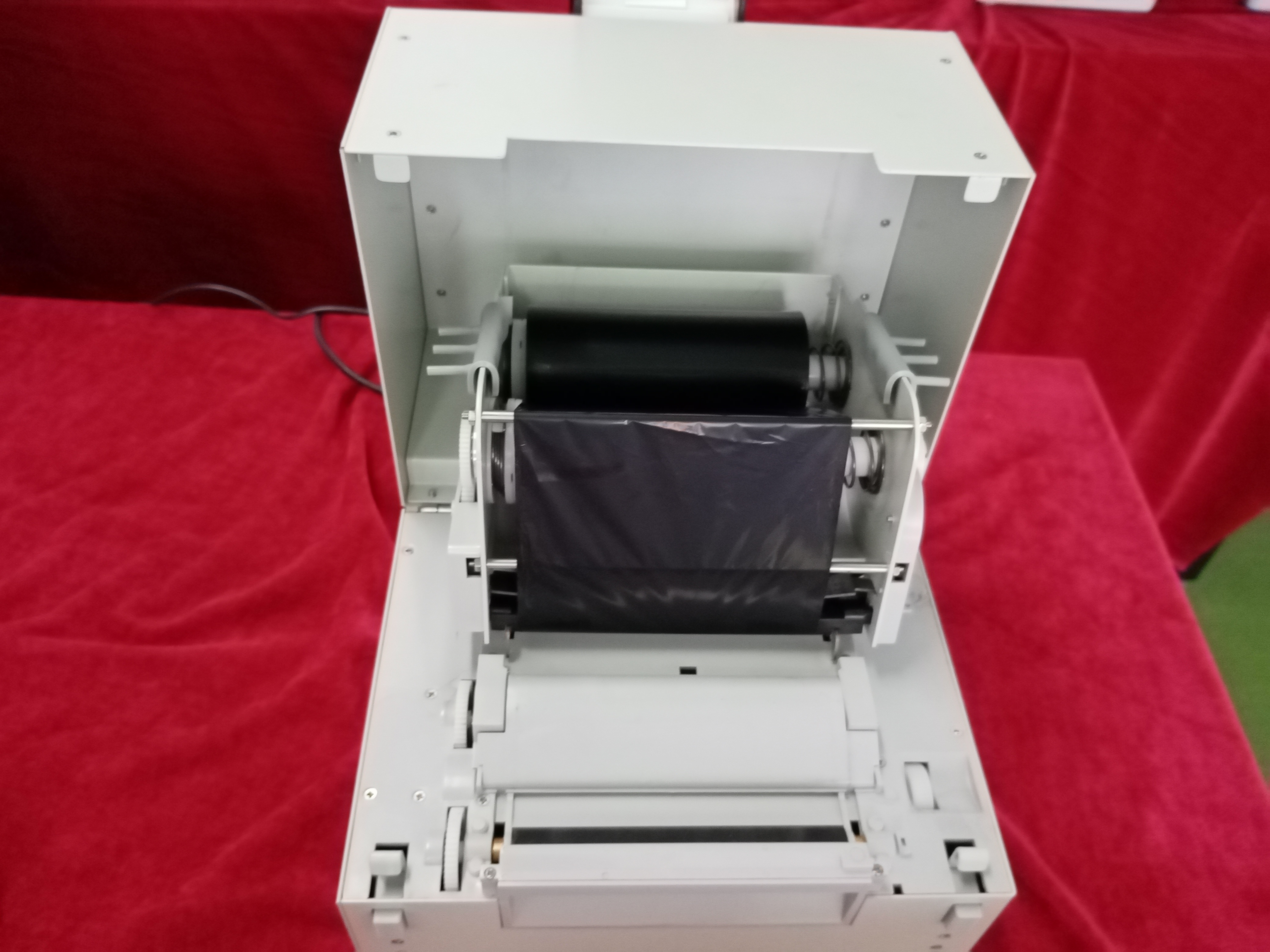

* Fast and easy ribbon loading design

*Simple and convenient for label replacement

*Equipped with LCD screen, show the print status and print quantity in real time.

*Printing channel can be easily opened, quickly clearing paper jams, etc.

*Special removable sensor positioning control, flexible consumable compatibility

* Unique energy control of printer head.

Printer Specifications

Printer Resolution:

203dpi / 8 dots per mm

Print Width:

Maximum 4” / 108mm

Print Speed:

Print speed is selectable.

Standard Speed:

2.5 ”/ s (60mm / sec)

Medium Characteristics:

Maximum Width:

4” / 108mm

Medium Thickness:

0.25mm to 2.0mm

Medium Type:

Thermal/ Thermal Transfer Medium/ Flexible Anti-metal tag

Label Interval:

Minimum space of 3mm

RFID Technical Parameters:

Frequency Protocol

EPC Global UHF Class 1 Gen 2/ISO 18000-6C

Support Chip:

Supports chips compatible with the EPC Global UHF Class 1 Gen 2/ISO 18000-6C protocol, including Monza 3, Monza 4D, Monza 4E, Monza 4QT, Monza 5, Monza R6, Monza R6-P, Monza R6-A,

Monza S6-C, UCODE G2iL, UCODE G2iM, UCODE 7, UCODE 7m, UCODE 7xm,

UCODE 7xm+, UCODE 8, UCODE 8m, UCODE DNA, Alien Higgs 3, Alien Higgs 4, Alien Higgs-EC (H5), etc.

Working Frequency

920MHz-925MHz (other frequencies are optional before leaving the factory)

Work Status Indication

Displayed in the screen

Antenna

Build-in

Operating Characteristic

Environmental

Operating temperature:40 F/4.4 c to 104F/40 C

Storage temperature:-40 F/-40 C to 140 F/80C

Operating humidity:20%-85% non-condensing

Storage humidity:5%-85% non-condensing

Electrical：

Universal power supply(PFC compliant)100-240VAC, 50-60Hz (60Watts) External Power Supply

Physical Specification

*Width: 220 mm

* Height: 248 mm

* Length:333 mm

* Weight(N.W): 4.5kg

Working Parameters

Software

*BAOBI Printer Driver

*BB Designer

Programming

*BPL+ (BAOBI printer interface file)

Networking / Connectivity

USB2.0

*RS-232C serial interface

* Ethernet 10/100 interface (RJ45)

*Wireless 802.11 b/g (* optional)

Fond and Graphic

Support user-defined fonts and graphics-including custom logo

Font and Barcode rotation:90,180,270 degrees

Barcode

*1D barcode: Code 39, Code 128A, B&C, UCC/EAN-128, Code 93, Codabar, Interleaved 2 of 5, UPC-A, UPC-E, UPC-A with 2 and 5 add on, UPC-E With 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on, Postnet, Standard 2 of 5, Industrial 2 of 5, LOGMARS, MSI, Codabar and GS1 DataBar (formerly RSS), Code 11, China Post

*2D barcode: PDF-417, Maxicode, DataMatrix, QR code, Aztec

Accessories

Warranty Card

USB Port Cable

Power Adaptor

Power Cord
