About this product
- Materials: Aluminum Plastic Composite Material
- Size: 1220*2440*6
- Color: flash silver
- Exports to: Mainland China, Africa, USA and Canada, Russia, EU, Other European Countries
- Made in: Zhejiang, China
About this product
- Materials: Aluminum Plastic Composite Material
- Size: 1220*2440*6
- Color: flash silver
- Exports to: Mainland China, Africa, USA and Canada, Russia, EU, Other European Countries
- Made in: Zhejiang, China
Product details
| Materials | Aluminum Plastic Composite Material |
|---|---|
| Size | 1220*2440*6 |
| Color | flash silver |
Product details
| Materials | Aluminum Plastic Composite Material |
|---|---|
| Size | 1220*2440*6 |
| Color | flash silver |
From the supplier

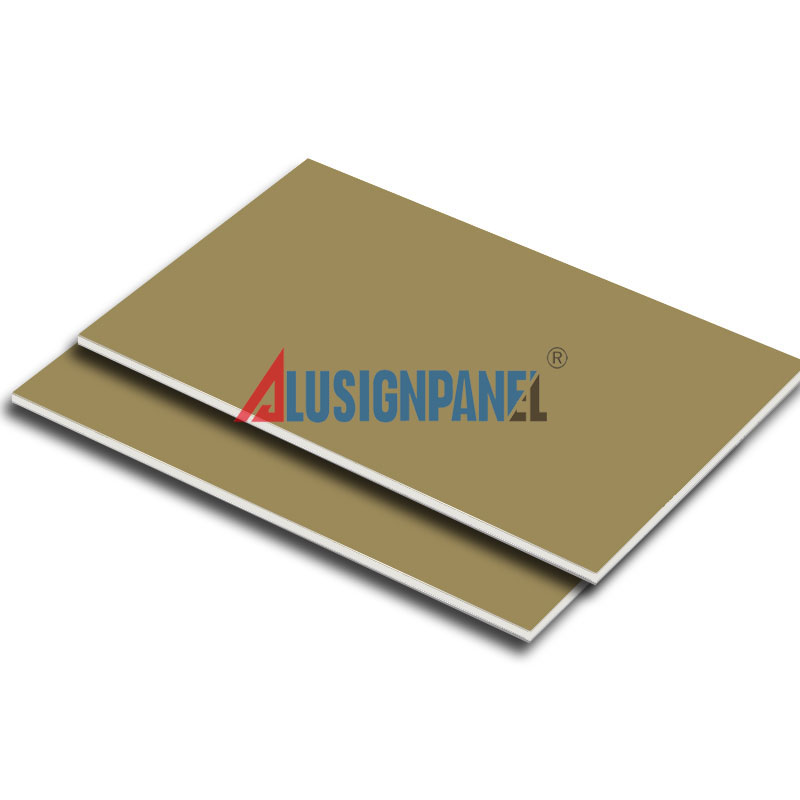

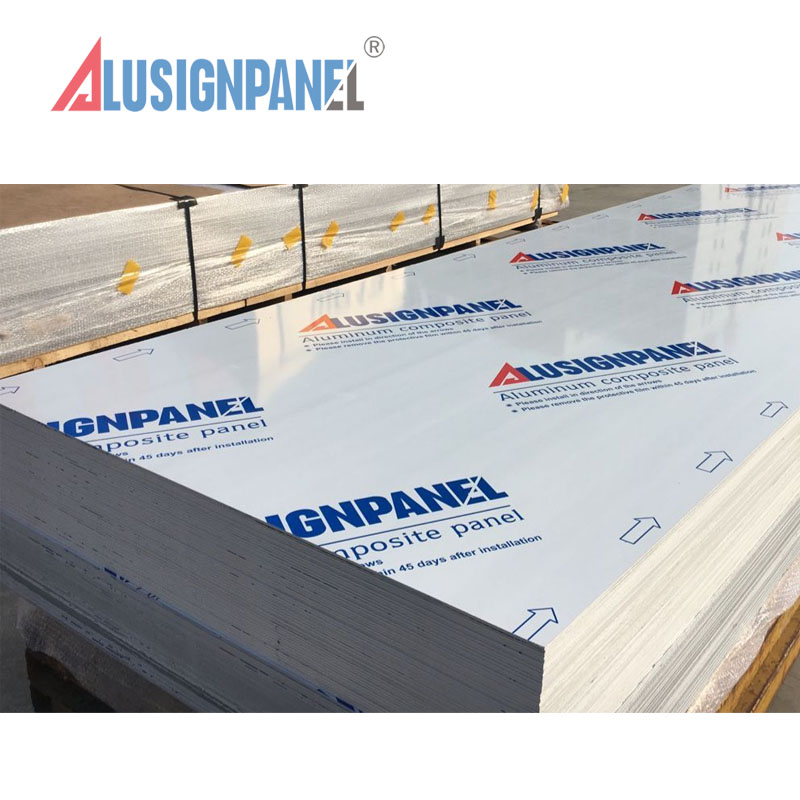

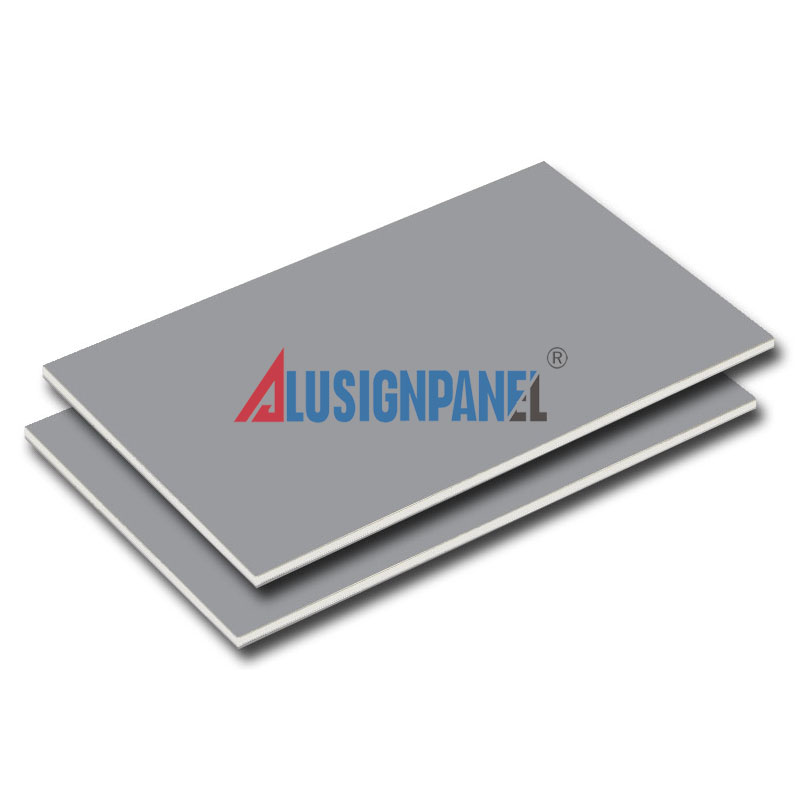

FR PVDF Coating Aluminum Composite Panel

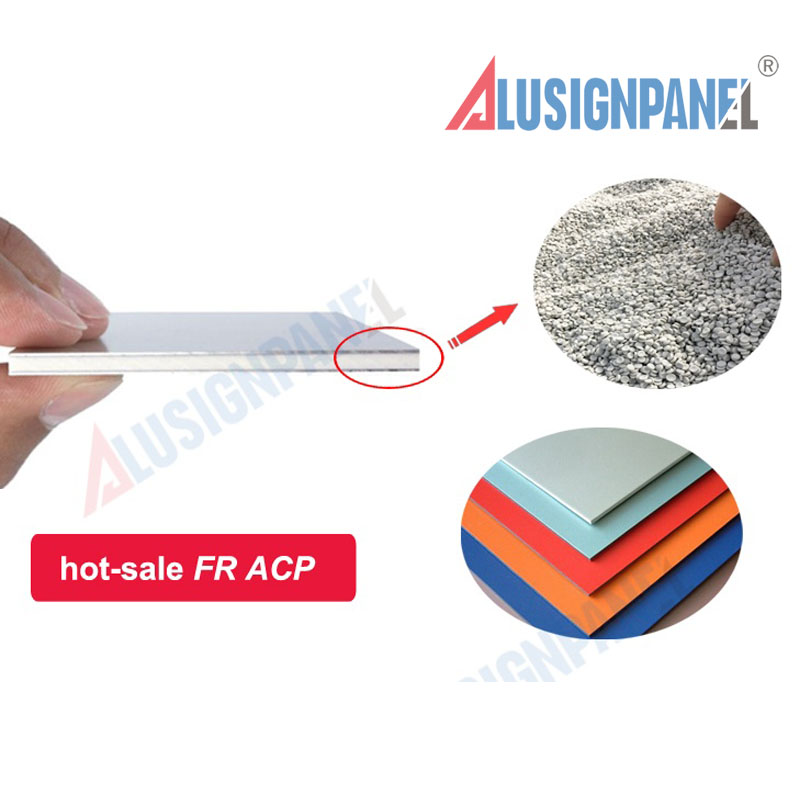

FR ACP is made of fireproof plastic core with two layers of aluminum sheet.
It is one kind of new green material. Because of the additional fireproof element, its fire-resistant feature can reach B1 FR Grade with the FR property test of GB/T8627.
Advantage
- * Easy maintenance
- * Easy processing
- * Colorful surface
- * Hard-burning, FR B1 Grade
- * Non-toxicity and safety
- * Excellent coating property
Fire-resistance Performance Standard
No.
China
Germany
U.S.A.
France
U.K.
GB/T8627
DIN 4102
ASTM E84
NFF16-101
BS-476
1
A1, A2
A1, A2
NC
MO
O
2
B1
B1
A
M1, M2
1
3
B2
B2
B, C
M3
2, 3
Level and Combustion Property
Degree
Item
Degree
Item
A
None-combustion
B1
Hard-combustion
B2
Combustion
B3
Combustible
Degree
Material
The Combustion Performance Indicators
None-combustion
Class A Material
According to GB/T8625 test, the average length of the remaining ≤35cm (including any residual specimen length ≥20cm) for each test and average flue gas temperature peak ≤150℃, no specimen back burner the scene;
According to GB/T8627 test, their smoke density levels (SDR) ≤15;
According to GB/T14002 and GB/T14403 test, its calorific value ≤4.2MJ/kg, and the specimen thermal emission per unit area ≤16.8MJ/m2;
Toxicity materials combustion flu gas of the entire non-lethal concentration of ≥25 mg/L.
Hard-combustion
Class B1 Material
According to GB/T8626 test, its combustion properties should be met GB/T8626, and does not allow any dropping of combustion burn the filter paper;
According to GB/T8625 test, the average of each specimen remaining length ≥15cm (including any residual specimen length ≥0cm), and average peak temperature of gas ≤200℃ in each test.
According to GB/T8627 test, their smoke density levels (SDR) ≤75.
Class B1 Burning Test
No.
Test Item
Test Method
Technical Index
Result
1
Minimum value of remaining length after burning (mm)
GB/T8625-88
> 0
480
2
Average value of remaining length after burning (mm)
GB/T8625-88
≥ 150
160
3
Temperature of smoke (℃)
GB/T8625-88
≤ 200
78
4
Height of fire (mm)
GB/T8625-88
≤ 150
12
5
Grade of smoke density
GB/T8627-88
9
