About this product
- Size: 610*128*88mm
- Color: silver
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea
About this product
- Size: 610*128*88mm
- Color: silver
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea
Product details
| Size | 610*128*88mm |
|---|---|
| Color | silver |
Product details
| Size | 610*128*88mm |
|---|---|
| Color | silver |
From the supplier
Drive unit: 24V DC motor, spring close door
Anti-extrusion device: standard
Power supply voltage: AC220V ± 10%, 50/60Hz
Rated power consumption: 100W (MAX)
Opening time (speed): 3-7S adjustable
Closing time (speed): 3-7S adjustable
Open time: 0.5-30S adjustable
Opening angle: 80°-100°
Drive arm: pull arm, push arm
Unit size: 610 X128 X88 (mm)
Ambient temperature: -20 ~ +45°C
Relative humidity: ≤85%

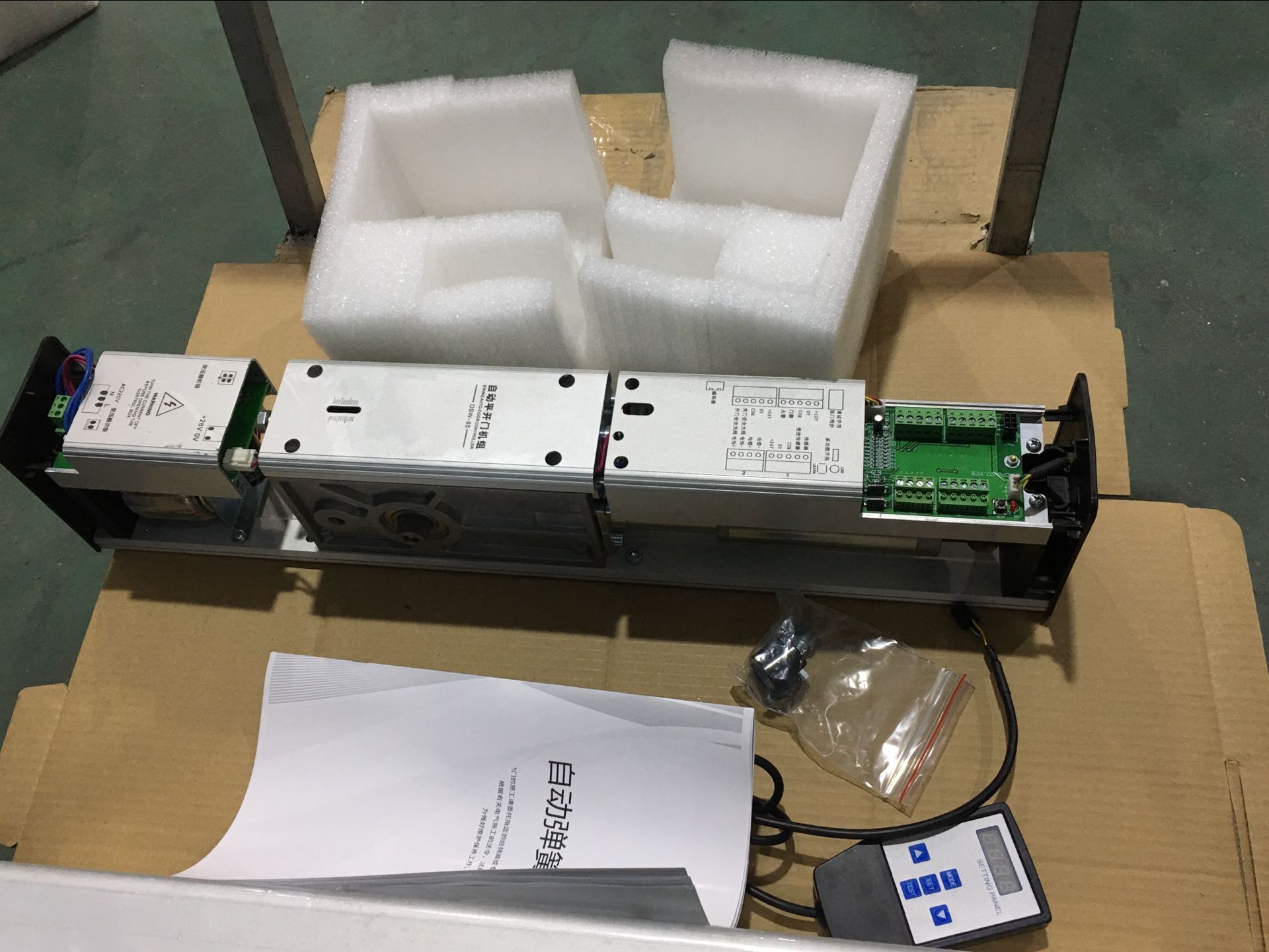

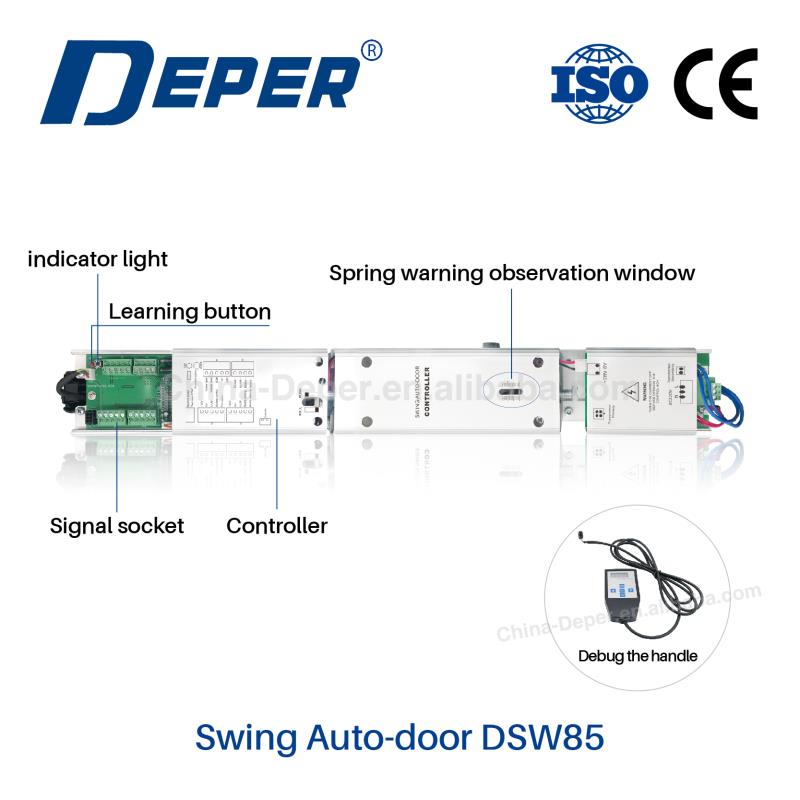

The DSW85 is a microprocessor-controlled automatic door closer that is simple in design and self-monitoring.
The microprocessor provides precise position control and speed control, resulting in the optimal motion mode to control the movement path of each door.
In the event of a power failure, the unit will start closing spring force automatically .
Depending on the application, pull-arm and push-arm mounting is available.
Particularly suitable for use in conjunction with fire doors.
From the supplier
Drive unit: 24V DC motor, spring close door
Anti-extrusion device: standard
Power supply voltage: AC220V ± 10%, 50/60Hz
Rated power consumption: 100W (MAX)
Opening time (speed): 3-7S adjustable
Closing time (speed): 3-7S adjustable
Open time: 0.5-30S adjustable
Opening angle: 80°-100°
Drive arm: pull arm, push arm
Unit size: 610 X128 X88 (mm)
Ambient temperature: -20 ~ +45°C
Relative humidity: ≤85%
The DSW85 is a microprocessor-controlled automatic door closer that is simple in design and self-monitoring.
The microprocessor provides precise position control and speed control, resulting in the optimal motion mode to control the movement path of each door.
In the event of a power failure, the unit will start closing spring force automatically .
Depending on the application, pull-arm and push-arm mounting is available.
Particularly suitable for use in conjunction with fire doors.
