Automatic sensor glass sliding door operators automatic double door opener pedrestian doors
- FOB goods (100)
- $32,250
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $1,129
- Section 301 tariff (25.0%)
- $8,063
- Customs fees (MPF/HMF)
- $152
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Automatic sensor glass sliding door operators automatic double door opener pedrestian doors
- FOB goods (100)
- $32,250
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $1,129
- Section 301 tariff (25.0%)
- $8,063
- Customs fees (MPF/HMF)
- $152
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: 420*14*17cm
- Color: aluminum colour
- Exports to: Mainland China, Middle East, Southeast Asia, Central Asia, Latin America, Russia, Other European Countries
About this product
- Size: 420*14*17cm
- Color: aluminum colour
- Exports to: Mainland China, Middle East, Southeast Asia, Central Asia, Latin America, Russia, Other European Countries
Product details
| Size | 420*14*17cm |
|---|---|
| Color | aluminum colour |
From the supplier

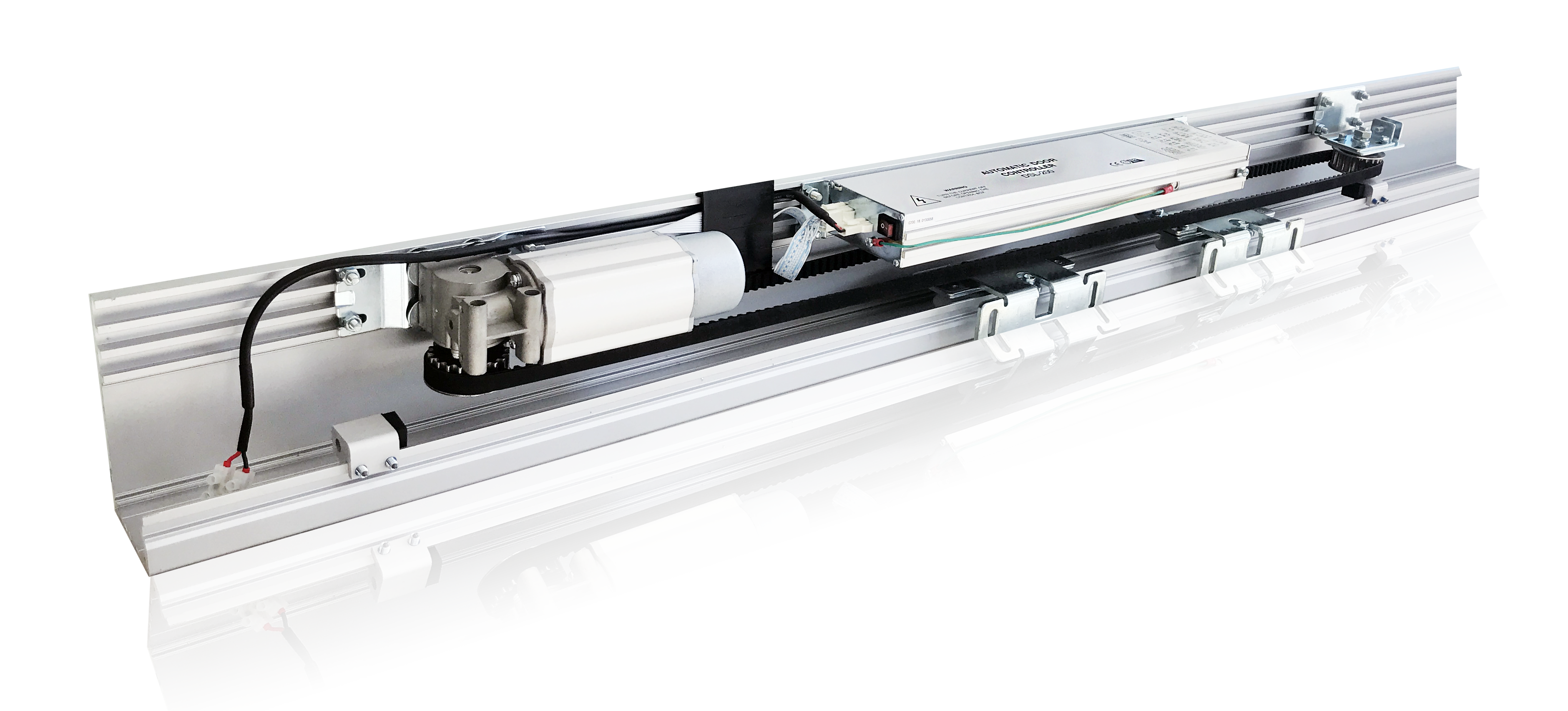

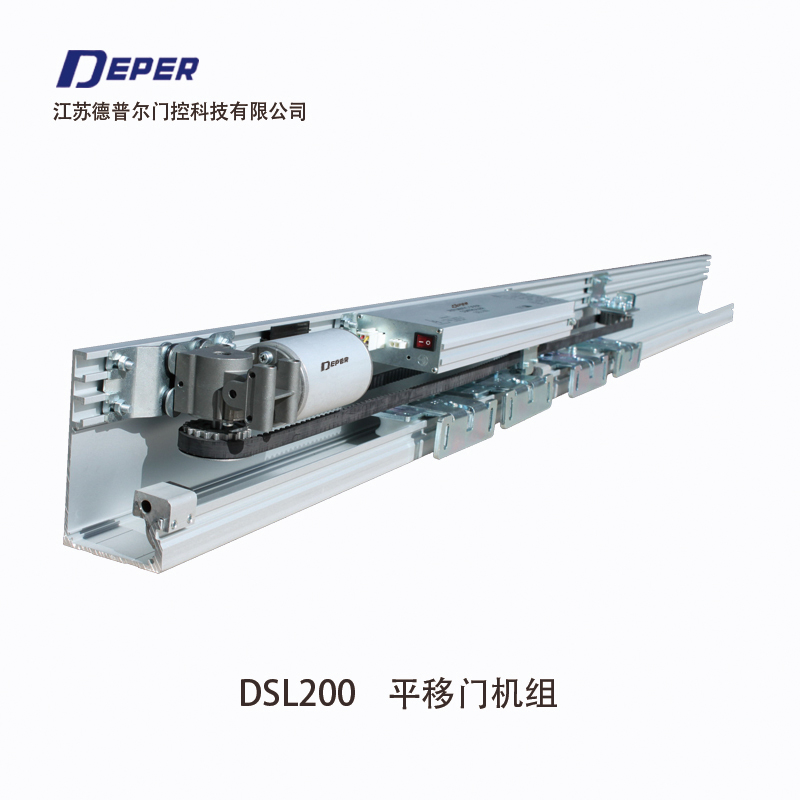

European design automatic sliding door operator 4.2m DSL-200L
With locking function when power is off.
USD 285.00/set MOQ:10sets
(including motor, controller, idle pulley,belt, hanger, senser, guide rail & cover 4200mm )
Total weight:346kgs
Total packing:1.266CBM/10sets
Delivery time: 1-3working days after payment
Door form: single door / double door
Loading weight: ≤1×150kg/≤2×120kg
Clean opening width: 600-1800mm/1000-3000mm
Power supply: 220V ± 10%, 50/60Hz
Rated power: 65W
Opening speed: 200-500mm/S (adjustable)
Closing speed: 200-500mm/S (adjustable)
Open time: 0-9S (adjustable)
Manual force: <30N/<40N
Temperature range: -20 ~ +50℃
Humidity range: <relative humidity 85%
The microcomputer control unit has self-learning function, the drive unit runs smoothly, safely and reliably; the function is complete and can be adapted to individual needs.
When the power is off, the automatic door will hold open and win the escape time. The 200L has a motor lock and no additional electric lock is required.
The European-style structure, the driving device, the control unit and the mechanism are installed on the top groove of the guide rail, the slide rail space is larger, the larger pulley runs smoothly and quiet.
The automatic door does not close when the safety beam guarantor passes. When the emergency stop switch is pressed in an emergency, the door stops running immediately and the safety is fully guaranteed.
Suitable for office buildings, storefronts, banks, restaurants, hotels, shopping centers, laboratories, hospitals and other places.
About the supplier
Main products: Intelligent sunshading & door/window automatic system
- ✓Exhibited at 7 recent Canton Fairs
- ✓Manufacturer
- ✓Founded 2005
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- Exhibited at 7 recent Canton Fairs
- Manufacturer
- Founded 2005
- Canton Fair Premium Supplier
