About this product
- Materials: Metal
- Size: 6000*1800*2100
- Color: Gray white
- Exports to: Mainland China, Africa, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Metal
- Size: 6000*1800*2100
- Color: Gray white
- Exports to: Mainland China, Africa, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Metal |
|---|---|
| Size | 6000*1800*2100 |
| Color | Gray white |
From the supplier
Introduce：
1. Control system: through the combination of PLC, 3D industrial control human-machine interface, servo motor, photoelectric, temperature module temperature control and other systems, the machine can realize the full automatic control of the equipment. The operation is simple and intuitive, reducing the requirements of the operating technicians, and the zero basic staff can operate is our pursuit.
2. Traction: high power servo traction sheet feeding device ensures the traction length of sheet (thickness 0.1mm-1.5mm) and accuracy ± 0.05mm.

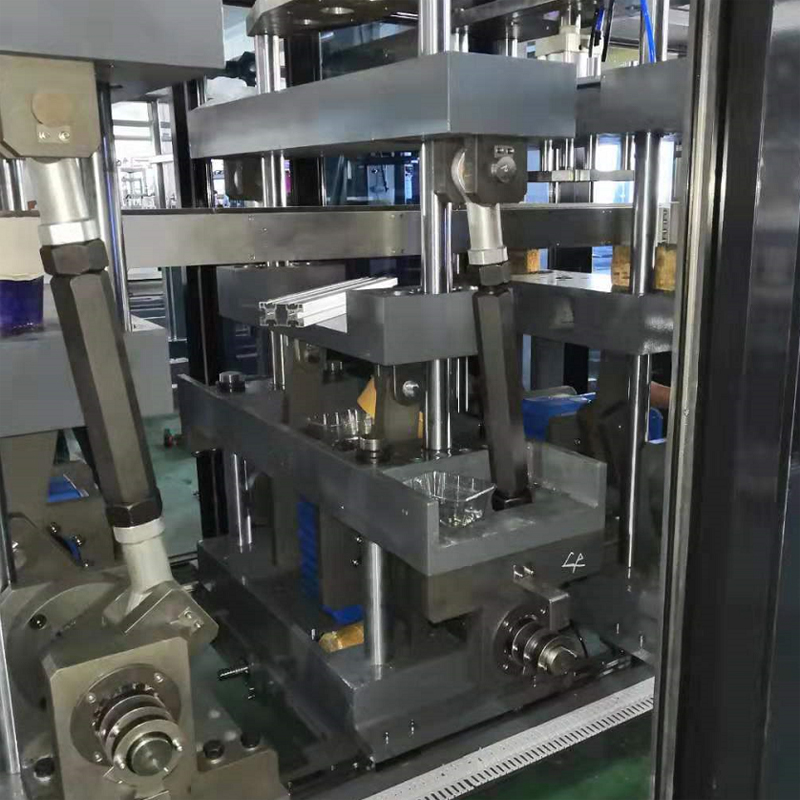

3. Structure: molding, punching and stacking are driven by DELTA servo motor independently. The German five side machining center is carved with high precision equipment to ensure high efficiency and stability of production.

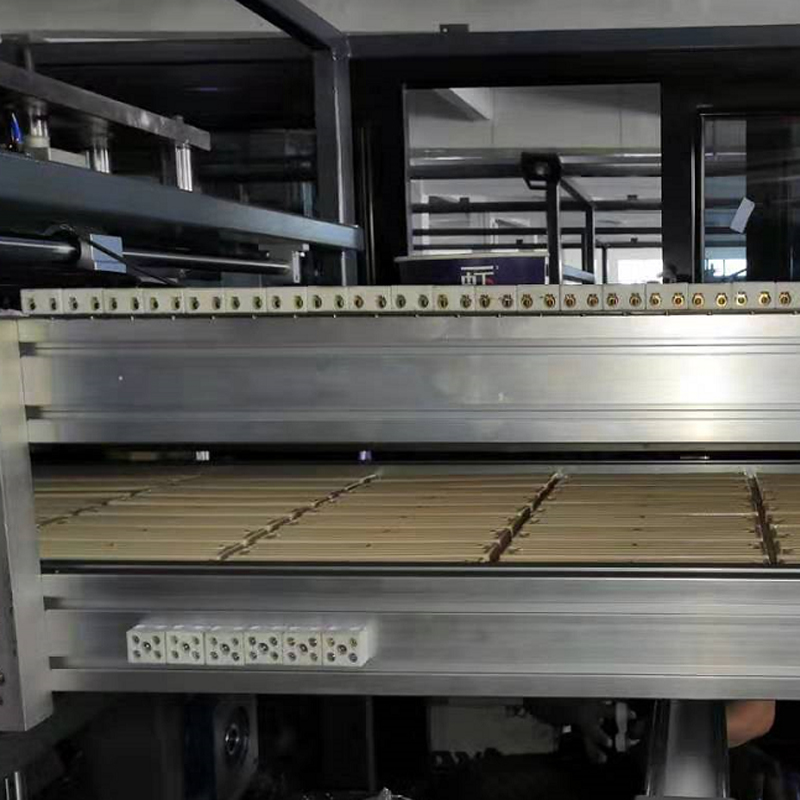

4. Molding: far infrared ceramic heating brick, super long up and down heating system, positive and negative pressure molding device are used to ensure the uniform heating, baking and multi-functional molding control of high-difficulty materials and temperature resistant materials, to ensure the uniform thickness and beautiful appearance of the product, and to ensure the yield of 99.9%.
5. Mold: CNC precision carving and milling of aluminum alloy (imported air permeable aluminum) for forming mold, with positive and negative pressure and water circulation structure; punching mold is made of DC53 steel hardware knife or laser knife (depending on the product); punching mold is made of movable structure laser knife, which improves punching accuracy (within ± 0.2mm error), reduces mold cost, shortens mold production cycle, and makes mold change simple 。
6. Complete machine: it is welded with steel box body, with firm structure and no deformation. Both the bracket and box body are pressurized, with high density (weight 6500kg). The shape is designed with sliding door, beautiful and easy to maintain.
Technical parameter：
Model
YZDB-600A
Maximum blanking speed
10-40times/min
Maximum forming length
460mm
Maximum forming width
580mm
Maximum depth forming
80mm
Applicable materials
PP/PS/PET/PVC/PLA/PC
Material thickness
0.1mm-1.5mm
Heating power
48KW
Motor power
18KW
Power supply and total power
Three-Phase Four-Wire 380V 50Hz (220V 60Hz)
Water supply pressure
0.2MPa
Water consumption
0.3m³/h
Exhaust volume
≥1.0m³/min 7.5KW
Pressure
0.6-0.8MPa
Installation dimension of complete machine
6000×1800×2100mm
Package size of complete machine
5670×1900×2200mm
Maximum material width
600mm
Operating weight
6500KG
