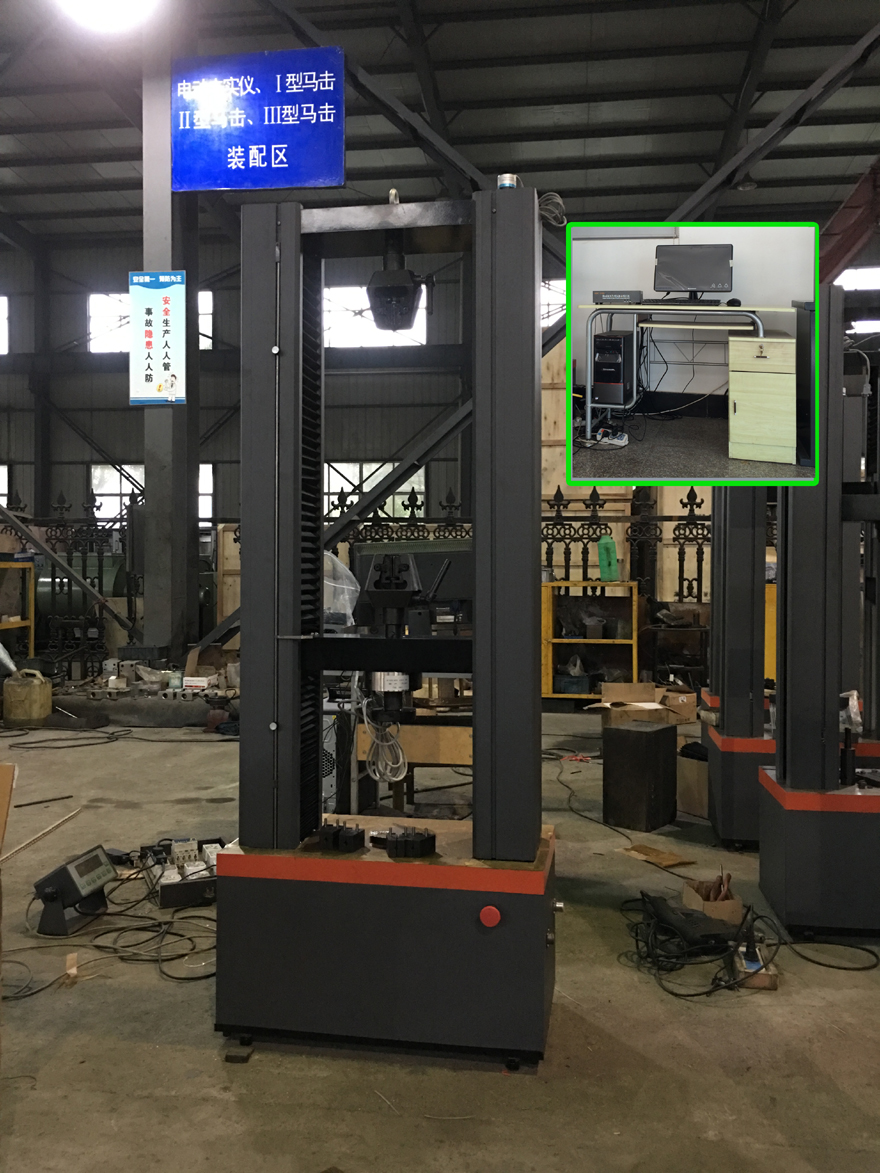

Automatic Electronic Tensile Testing Machine
Zhejiang Chenxin Machine Equipments Co., Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Automatic Electronic Tensile Testing Machine
Zhejiang Chenxin Machine Equipments Co., LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: steel
- Size: 670*380*1650mm
- Color: dark gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: steel
- Size: 670*380*1650mm
- Color: dark gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | steel |
|---|---|
| Size | 670*380*1650mm |
| Color | dark gray |
Product details
| Materials | steel |
|---|---|
| Size | 670*380*1650mm |
| Color | dark gray |
From the supplier
It is used for tensile test, bending test, shear test, teartest, puncture test, burst test and pear test to various metal materials, non-metallic materials and geotextile fabrics, steelplastic geogrid, plastic geogrid and other materials. With characteristics of multi-function, fully automatic, light weighteasy operation, high precision and so on.
Model
CXWDW-10
CXWDW-20
CXWDW-30
CXWDW-50
CXWDW-100
Maximum test force
10KN
20KN
30KN
50KN
100KN
Relative error of indication
±1%
Relative error of displacement
±1%
Relative error of deformation
±1%
measuring range
1%-100%
1%-100%The whole process is measured in different grades
Displacement velocity
0.05-500mm/min
0.05-500mm/min Stepless adjustable
Effective test stroke
0-730mm
Effective test width
360mm
Resolution
1/300000
control mode
Three closed-loop control of force, displacement and deformation
supply voltage
220V 50Hz
Dimension
670*380*1650mm
Weight
200kg
From the supplier
It is used for tensile test, bending test, shear test, teartest, puncture test, burst test and pear test to various metal materials, non-metallic materials and geotextile fabrics, steelplastic geogrid, plastic geogrid and other materials. With characteristics of multi-function, fully automatic, light weighteasy operation, high precision and so on.
Model
CXWDW-10
CXWDW-20
CXWDW-30
CXWDW-50
CXWDW-100
Maximum test force
10KN
20KN
30KN
50KN
100KN
Relative error of indication
±1%
Relative error of displacement
±1%
Relative error of deformation
±1%
measuring range
1%-100%
1%-100%The whole process is measured in different grades
Displacement velocity
0.05-500mm/min
0.05-500mm/min Stepless adjustable
Effective test stroke
0-730mm
Effective test width
360mm
Resolution
1/300000
control mode
Three closed-loop control of force, displacement and deformation
supply voltage
220V 50Hz
Dimension
670*380*1650mm
Weight
200kg
