Product Information:

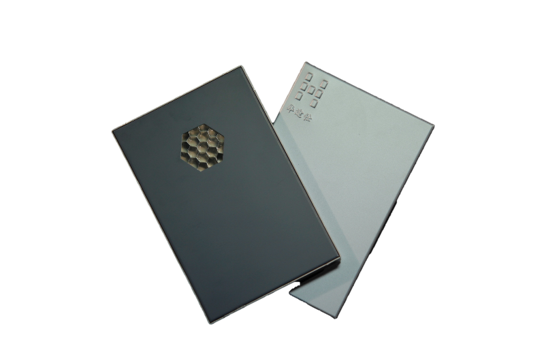

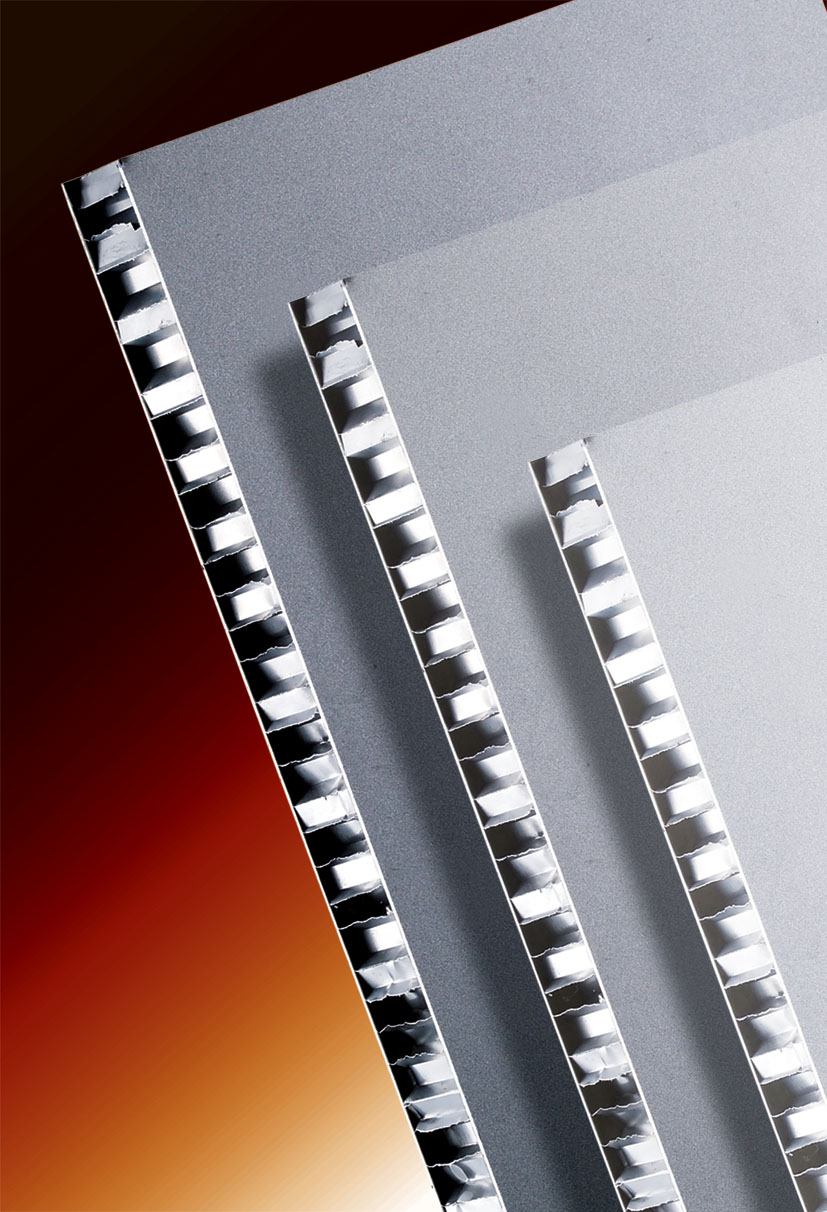

WHOLETOPS brand aluminum honeycomb sandwich panels is the use of the current international advanced aviation technology combined with advanced automatic production equipment, making the aluminum and aluminum honeycomb core bonded to a high-tech environment-friendly decorative materials. We adopt continuous high-temperature compounding technology from German, use high-intensity heat plastic adhesion system, It comply with green product direction, with super weather ability fluorocarbon resin with colored pre-roll coating techniques. High strength, good rigidity, light weight, ultra-smooth, uniform color, sound and heat insulation, thermal insulation, moisture, fire, wind pressure, seismic, weather resistance, long life and easy installation, wide option for color and so on. What’s more, its’ cost performance is far beyond the traditional aluminum composite panel, which is truly ‘Green Environmental Protection, energy conservation’ and really the first choice of material for modern decoration.

Specification:

• 1. Total Thickness: 8mm, 10mm , 12mm, 15mm, 18mm, 20mm, 25mm and so on.
• 2. Top Panel: aluminum alloy sheet coated with fluro-carbon resin((PVDF) coating with 0.8 – 1.0 mm thickness.
• 3. Core: aluminum honeycomb core
• 4. Bottom Panel: aluminum sheet with PVDF coated / Power coated with 0.8—1.0mm thickness
• 5. Surface finish: PVDF coated / Power coated
• 6. Aluminum Alloy: 1100, 3003, 5005
• 7. size: width ≤ 1500mm, length ≤ 5800mm

*Scopes of Application:

• 1. Building exterior walls decoration (especially for high-rise building)Curtain wall decoration, advertising aboard, signboards,ceiling etc.
• 2. Interior decoration, wall partitions, door, ceiling
• 3. Advertising board , signboards,insulation cars,
• 4. prototype of cabinet and so on

* Product advantages:

• 1. light and straightness
• 2. excellent rigidness
• 3. high intensity
• 4. wind pressure resistance
• 5. fireproof, sound and thermal insulation, shock absorption
• 6. even coating and various colors
• 7. easy to maintain and environmental protection
