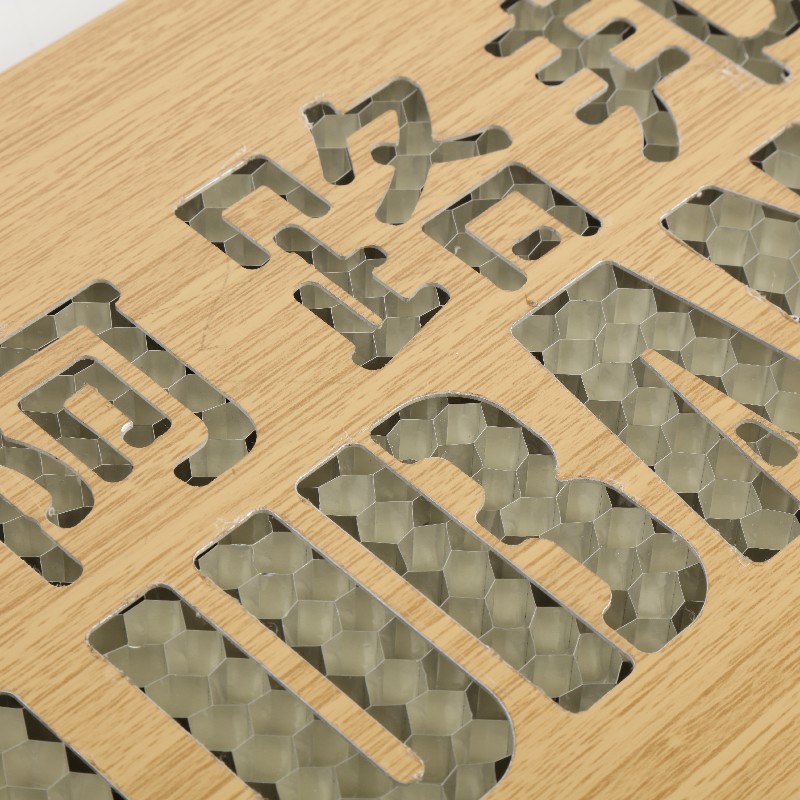

ALUBANG aluminum  honeycomb panel is composed of a honeycomb core sandwiched between two high tensile metal sheets.

1. The top and bottom sheets are fabricated from premium quality 5005 H14 aluminum with thickness between 0.4 and 1.5mm or other metals. They are PVDF coated and offer superior weather resistance.

2. The honeycomb core undergoes anodizing and thus is long lasting. The aluminum foil for the core construction comes with thickness between 0.04 and 0.06mm. The side length for the honeycomb structure ranges from 4 to 6mm. A cluster of honeycomb cores is interconnected to form the core system

which ensures uniform pressure distribution and thus enables the aluminum honeycomb panel to bear extremely high pressures. The core system also ensures the surface flatness of large sized honeycomb sandwich panels.

It is for a variety of applications in transport and industry or architecture, showing excellent product properties such as extraordinary flatness, large variety of colors and high formability.

In contrast to conventional honeycomb composite panels, the system components of metal honeycomb panels are bonded in a continuous process. The material does not become brittle hard but shows tough and resilient properties and excellent peel strength - the basis for a high product quality.

Raw Material

Top Skin: Aluminum, Stainless Steel, Titanium Zinc, Copper
 Core Material: anodized aluminum honeycomb

Bottom Skin: Aluminum or Metals

Characteristics of Metal Honeycomb Panel

• · Large scale, up to 2100*12000mm
• · Extremely low weight
• · Excellent strength
• · High resistance to moisture
• · High resistance to corrosion
• · Excellent thermal conductivity
• · Noncombustible
• · High resistance to fungi
• · UV resistance
• · Acoustic insulation

Application

• Exterior elevators.
• Floors, walls and ceilings for elevators.
• Ramps, platforms and mobile scenarios.
• Structures for military radars.
• Interiors for trucks and buses.
• Vertical partitions.
• Cleanrooms.
• Equipment Fairings.
• Recordable ceilings.
• Support for thin rolling stone, marble and granite.

Comparison at same Rigidity

Honeycomb

Aluminum Composite Panel

Solid Aluminum

Thickness

Weight

Thickness

Weight

Thickness

Weight

1250 kNcm2/m

N/A

3 mm

4.5 kg/m2

2.7 mm

7.3 kg/m2

2400 kNcm2/m

4 mm

5.5 kg/m2

3.3 mm

8.9 kg/m2

5900 kNcm2/m

6 mm

7.3 kg/m2

4.5 mm

12.2 kg/m2

7100 kNcm2/m

6 mm

4.7 kg/m2

N/A

4.8 mm

13.0 kg/m2

21900 kNcm2/m

10 mm

5.0 kg/m2

7.0 mm

18.9 kg/m2

75500 kNcm2/m

15 mm

6.7 kg/m2

10.5 mm

28.4 kg/m2

138900 kNcm2/m

20 mm

7.0 kg/m2

13.0 mm

35.1 kg/m2

221600 kNcm2/m

25 mm

7.3 kg/m2

15.2 mm

41.0 kg/m2

Specification and Parameter

Items

Face Panel

Material: High-grade Al-Mn-Mg alloy

Thickness: 0.7mm or 1.0mm (other thicknesses available)

Other Metal: Stainless Steel, Natural Copper and Titanium-Zinc

Back Panel

Material: High-grade Al-Mn-Mg alloy

Thickness: 0.7mm or 1.0mm (other thicknesses available)

Other Metal: Stainless Steel, Natural Copper and Titanium-Zinc
