description of products

*BESCOMT aluminum foil container production line.

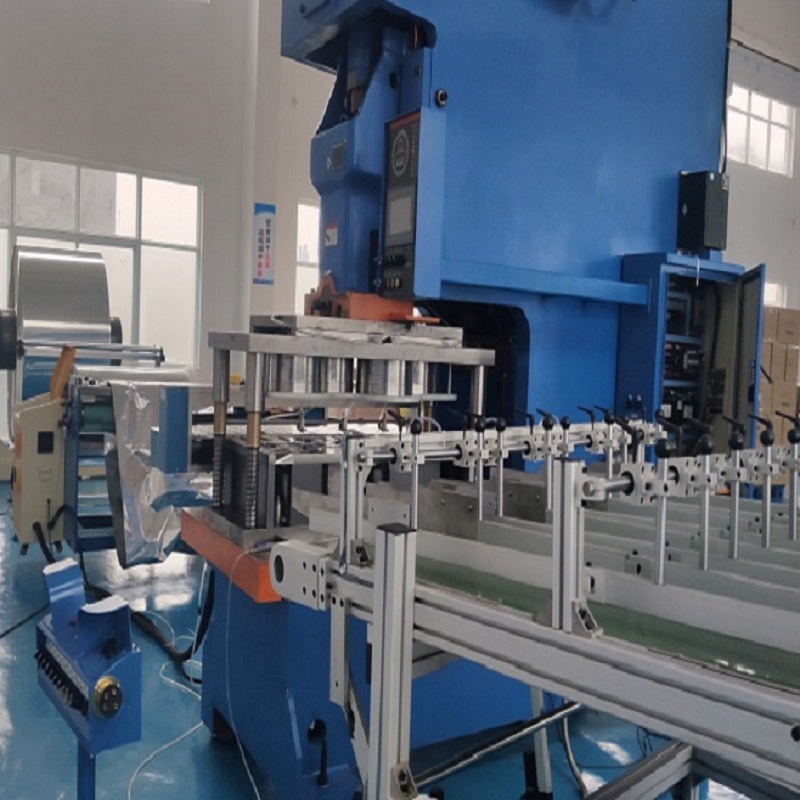

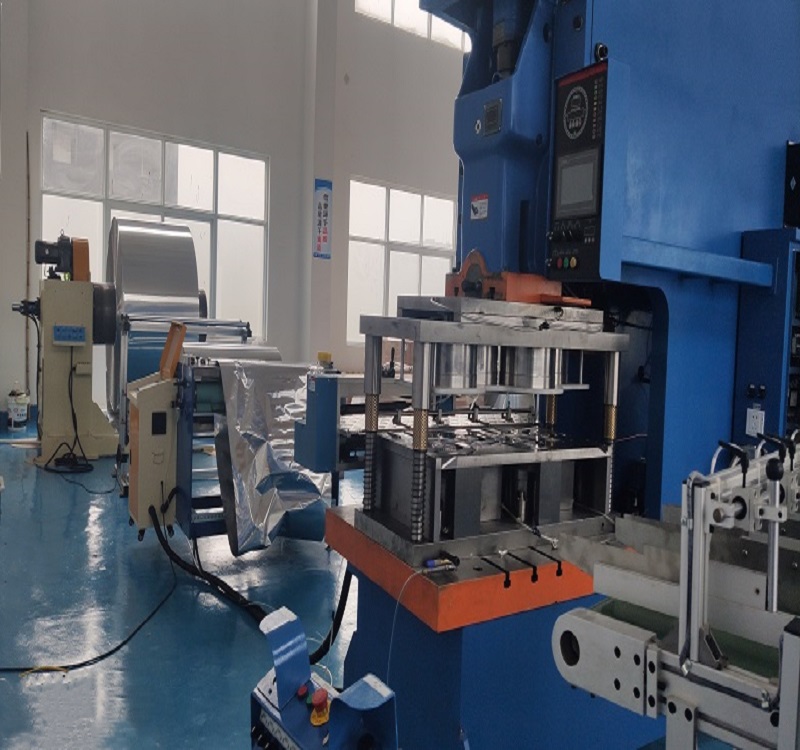

BLA-60 aluminum foil container production line is Dongying beishi machine tool equipment co. LTD .Independently developed aluminum foil container processing equipment.The production line consists of automatic feeder +60 ton punching machine   + mold + automatic stacker + waste recovery system.The price is reasonable,It is suitable for aluminum foil container processing enterprises which produce daily products such as aluminum foil lunch box,egg tart box, barbecue tray, household, catering, food packaging and so onCan process different types of aluminum foil meal boxes, large quantities of food box production.

*Applicable aluminum foil container type.

 Applicable to the production of all aluminum foil container,
 Please consult customer service for details.

*Details of the machine

*specification parameter.

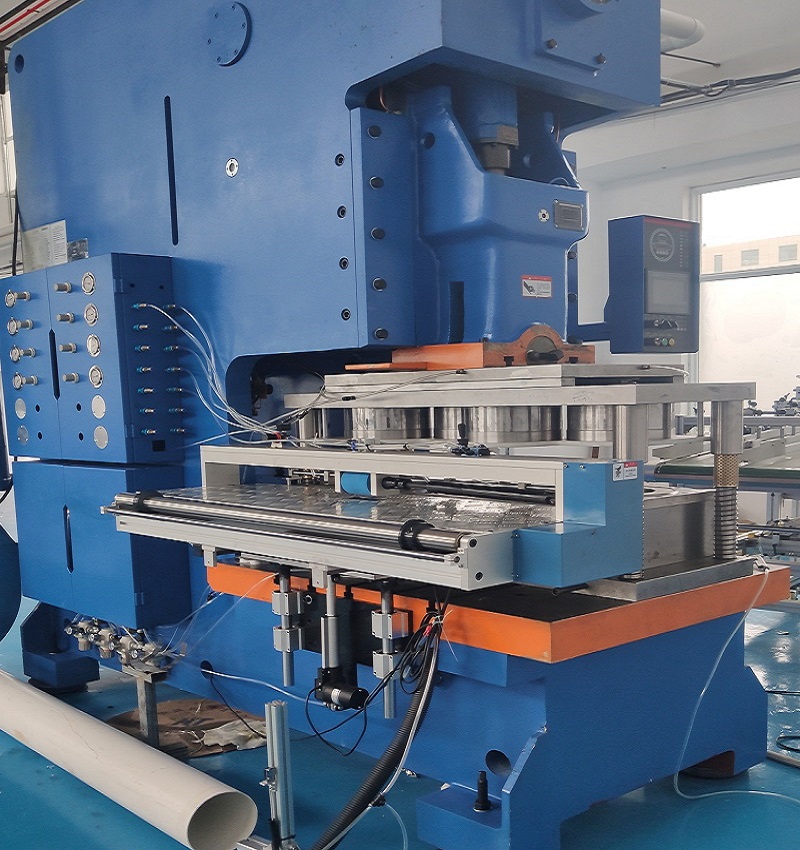

Pneumatic punch features.

1. The fuselage adopts high quality Q235A steel plate welding structure, open c-type structure, heat aging treatment to eliminate internal stress, good rigidity, and accuracy within 0.03mm.The foot is equipped with shock absorbers with high strength The damping effect.2. Crankshaft vertical, compact structure, beautiful appearance;The material is made of 42CrMo forging, and the material and density can meet the standard, and the precision can be within 0.01mm.
3. The sliding block adopts casting structure of high-quality raw materials, which has extremely high shock absorption effect.The internal stress is eliminated by tempering.Hexahedral rectangular guide rail is adopted. The guide rail is made of alloy copper with high wear resistance. Good stability and high precision.
4. Mold height adjustment device: the enclosed height is electrically adjusted, and the display accuracy of the mold height of the slider is 0.1mm.Built-in drive turbine ensures stability and accuracy when adjusting die height.
5. Hydraulic overload protection device: when the gas-liquid type exceeds the rated tonnage by about 10%, it will cause overload reaction, and the slider will stop automatically to ensure that the main parts such as the fuselage will not suffer any damage.Use pneumatic balance cylinder to balance The weight of the slider and the upper die, strong stability, good accuracy;
6. Adopt pneumatic combined friction clutch -- brake, which is low inertia dry clutch and brake.Double valve, sensitive, safe and reliable, with inching, single and continuous operation specifications; Combination of stable, less wear, long life;
6. Main transmission: the friction parts such as gear and gear shaft are processed by grinding after hardening and heat treatment. The precision is guaranteed to be within 0.01mm, with extremely high wear resistance and balance, and ultra-low friction sound.Stable performance, ensure the punch precision and life.
7. CAM: electronic CAM PAC300.Equipped with a set of blowers.T slot size, slot distance, back hole, hole size according to user requirements..Special feeder

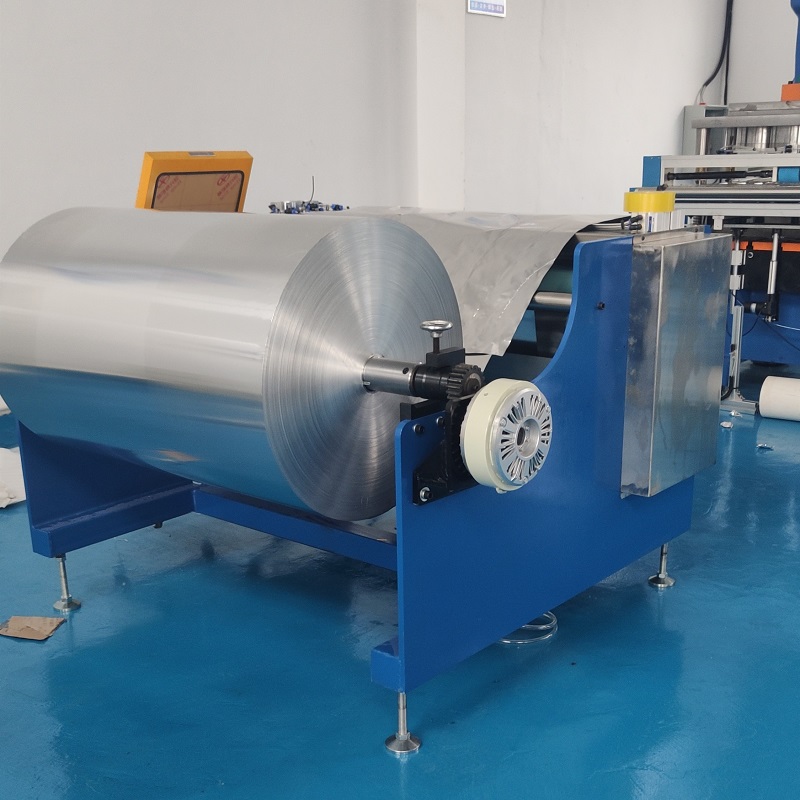

Aluminum foil container feeder features.

◆The feed frame and the feed head are designed separately. The feed head is mounted on the punch to facilitate the feed adjustment.
◆ the frame adopts integral steel structure, superposition module, high feeding precision.
◆ zero tension free tracking feeding, easy to adjust the left and right in the middle.
◆The unwinding tension adopts imported magnetic powder brake, which is suitable for long time uninterrupted operation.
◆Easy to unroll the feeder;The material is simple;Two groups of sticks on the oil refueling easy, oil groove capacity is large..

configuration.

◆Mitsubishi series PLC   ◆ shenzhen display control    ◆seven-inch touch color screen ◆ Japan and spring relay ◆ superior switching power.Finished product collector

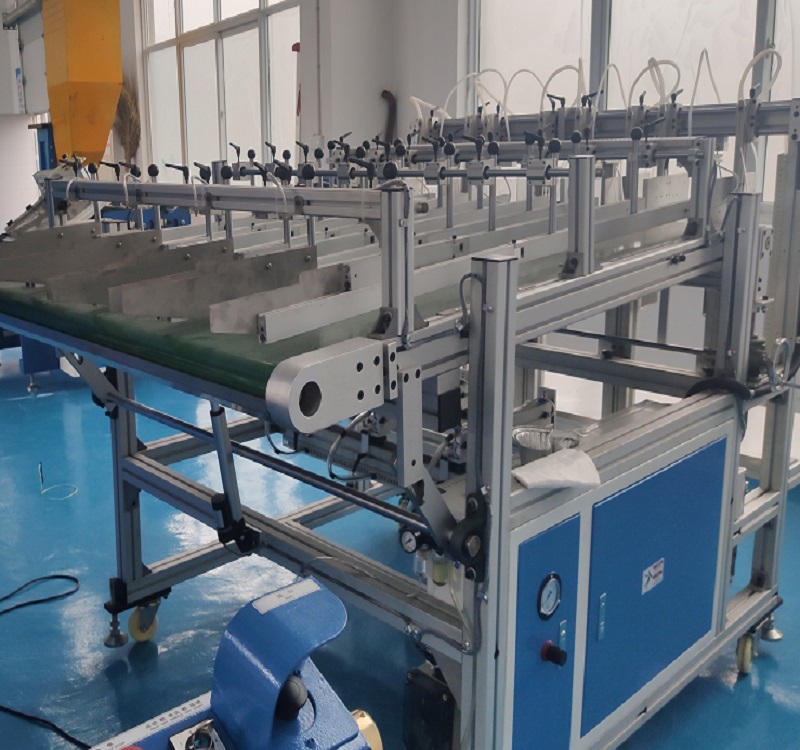

Finished product colletor

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

The characteristics of.

(1) the whole machine adopts mitsubishi PLC as the control system, which is safe and reliable, integrated with gas/electricity and centralized control
(2) automatic collection of products, automatic stacking, accurate counting according to customer requirements, set the number of stacking, only one person to pack
(3) the machine adopts aluminum structure, beautiful and elegant, greatly reducing workers and greatly improving work efficiency
(4) size of four-rail collector: 2200*1300*1400mm.Scrap packer

The characteristics of.

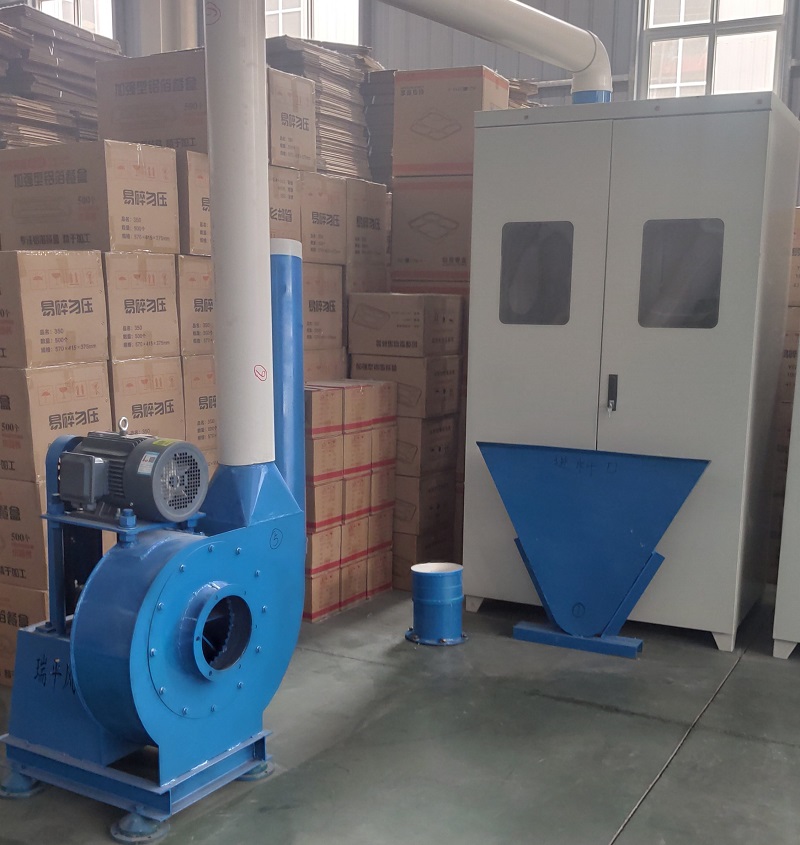

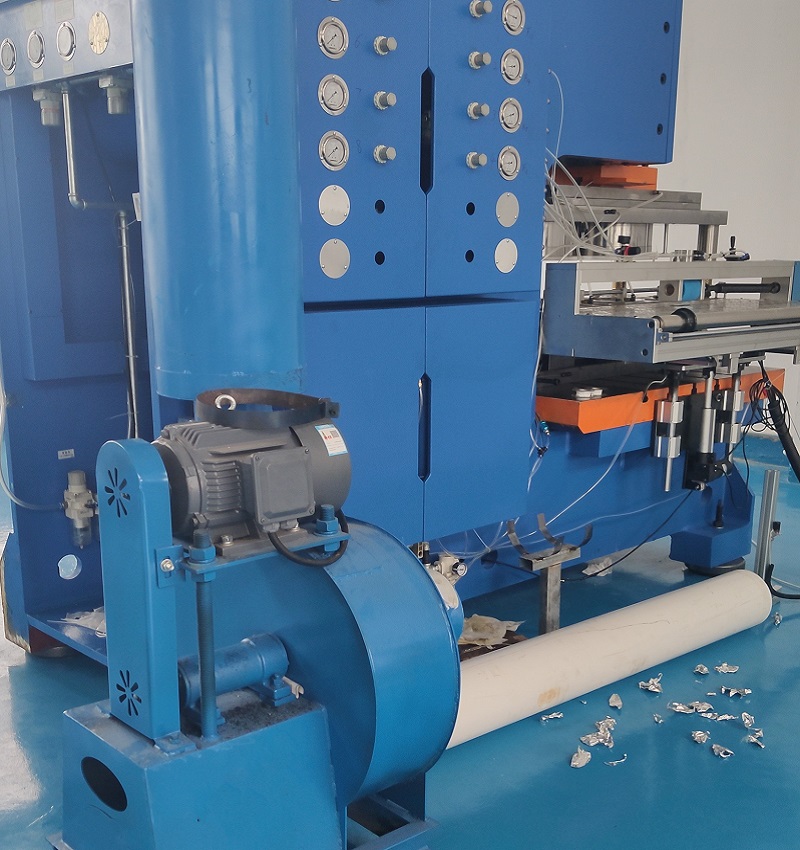

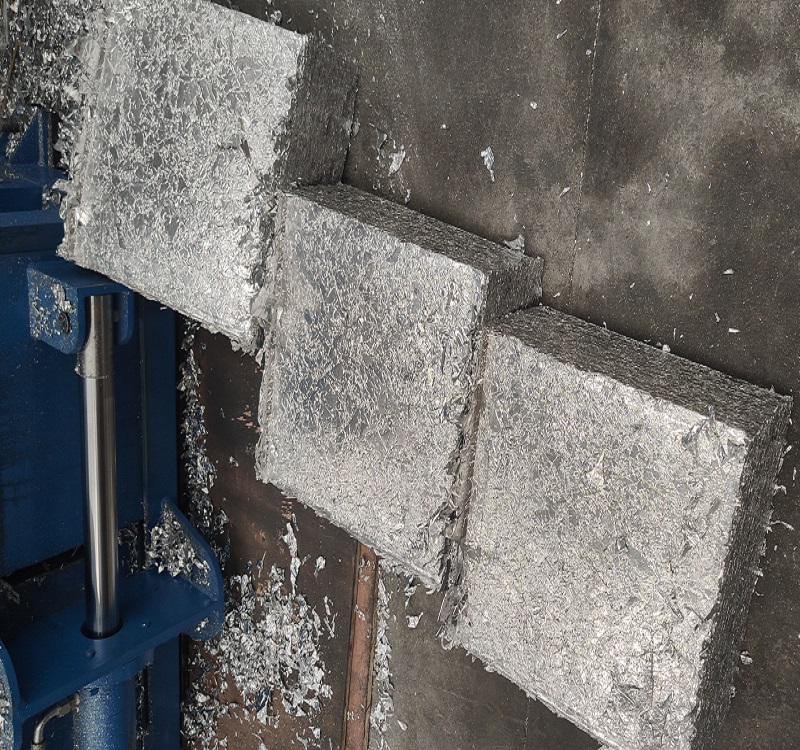

Waste packager can realize automatic waste suction, automatic packaging pressure block, do not need manual operation, saving 2-3 people.High efficiency, clean and tidy production site.

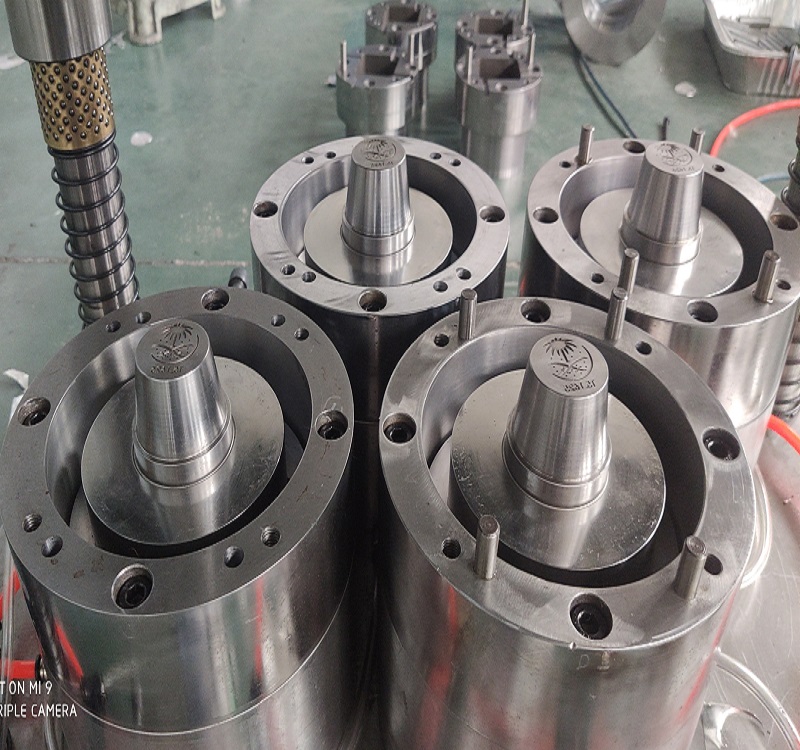

Used for compacting and packaging of aluminum foil scraps to facilitate transportation and recovery.The mould1. Mold composition
The mould is composed of a mould frame, a mould core, a pneumatic circuit and a blowing device
2. Mold material
The upper and lower die frame is made of steel no.45. The upper die is made of SKD11 and the lower die is made of P20 die steel.The concave and convex die is made of steel no.45
3. Mold processing process
Under the 3 d drawing - finishing - MAO MAO sheet sheet - the core part of the quenching - die mold assembly -- -- -- -- -- test-- -- -- -- -- mould dressing -- -- -- -- -- mould experiment -- -- -- -- -- -- -- -- -- -- the acceptance of assembly complete -
- product testing qualified package delivery.
4. Mold performance guarantee
Guarantee 10 million times of service life.Ensure the material utilization rate of more than 82%, more than 99% of finished products qualified rate.Matching removable LOGO, convenient for customers to use.Packing & DeliveryFAQQ1:What’s your warranty policy?
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller’s factory) or the Seller will guarantee the machine for 12 months since the date of starting installation and adjustment, whichever comes first.
Q2:What’s your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.
Q3:What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.
Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help.Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment.
Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.
Q7:What are your terms of payment?
A7:We accept T/T, L/C.
Q8:What’s your contact way?A8:Tel:+86-13295460325 Email:Amy.qi@bescomt.com
Q9:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A9:Please click the “send” at the bottom of this page or contact our sales on Trade Mange online!
