Electric equipment
Aluminum conductor XLPE insulated PVC sheathed power cable
Huake Zhonglan Cable Co., Ltd.1/10 fairsIndustry and Trade Company
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Aluminum conductor XLPE insulated PVC sheathed power cable
Huake Zhonglan Cable Co., Ltd.1/10 fairsIndustry and Trade Company
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 4×120mm² + 1×70mm²
- Color: black
- Certification: ISO9001
- Rangeof application: Other
- Application: Other
- Material shape: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shannxi, China
About this product
- Size: 4×120mm² + 1×70mm²
- Color: black
- Certification: ISO9001
- Rangeof application: Other
- Application: Other
- Material shape: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Shannxi, China
Product details
| Size | 4×120mm² + 1×70mm² |
|---|---|
| Color | black |
| Certification | ISO9001 |
| Rangeof application | Other |
| Application | Other |
| Material shape | Other |
| Conductor material | Other |
| Insulation material | XLPE |
| Brand | Other |
| Sheath material | PVC |
| Conductor type | Other |
Product details
| Size | 4×120mm² + 1×70mm² |
|---|---|
| Color | black |
| Certification | ISO9001 |
| Rangeof application | Other |
| Application | Other |
| Material shape | Other |
| Conductor material | Other |
| Insulation material | XLPE |
| Brand | Other |
| Sheath material | PVC |
| Conductor type | Other |
From the supplier

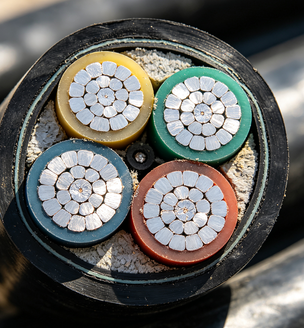

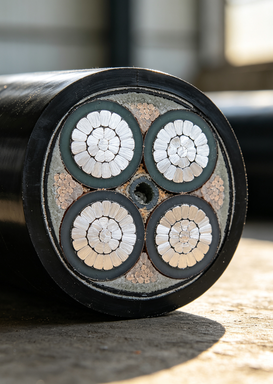

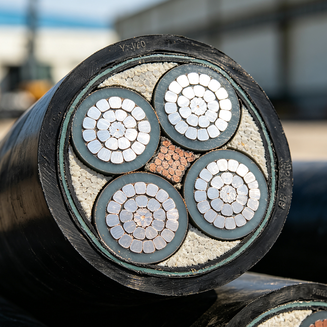

YJLV 4×120+1×70 is an aluminum conductor XLPE insulated PVC sheathed power cable with rated voltage 0.6/1kV. It has a 4+1 core construction (4 cores 120mm² + 1 core 70mm²), designed for three-phase four-wire low-voltage distribution systems, widely used in high-current main power supply lines.
- Conductor: Aluminum, 4×120mm² + 1×70mm²
- Insulation: XLPE, long-term operating temperature up to 90℃
- Sheath: Black PVC sheath, aging-resistant, moisture-proof and stable
- Installation: Indoor, cable trench, pipe, cable tray; armored YJLV22 can be directly buried
- Standards: GB/T 12706, IEC 60502
- Applications: Residential main cables, factory main distribution, large building power supply, municipal engineering, high-power equipment supply
From the supplier
YJLV 4×120+1×70 is an aluminum conductor XLPE insulated PVC sheathed power cable with rated voltage 0.6/1kV. It has a 4+1 core construction (4 cores 120mm² + 1 core 70mm²), designed for three-phase four-wire low-voltage distribution systems, widely used in high-current main power supply lines.
- Conductor: Aluminum, 4×120mm² + 1×70mm²
- Insulation: XLPE, long-term operating temperature up to 90℃
- Sheath: Black PVC sheath, aging-resistant, moisture-proof and stable
- Installation: Indoor, cable trench, pipe, cable tray; armored YJLV22 can be directly buried
- Standards: GB/T 12706, IEC 60502
- Applications: Residential main cables, factory main distribution, large building power supply, municipal engineering, high-power equipment supply
