About this product
- Size: 80*80*200
- Color: white
- Rangeof application: Other
- Conductor type: Solid
- Brand: Other
- Application: Other
- Exports to: Africa, Middle East, USA and Canada, Latin America, EU, Other European Countries
About this product
- Size: 80*80*200
- Color: white
- Rangeof application: Other
- Conductor type: Solid
- Brand: Other
- Application: Other
- Exports to: Africa, Middle East, USA and Canada, Latin America, EU, Other European Countries
Product details
| Size | 80*80*200 |
|---|---|
| Color | white |
| Rangeof application | Other |
| Conductor type | Solid |
| Brand | Other |
| Application | Other |
| Sheath material | Other |
| Conductor material | Other |
| Material shape | RoundWire |
| Certification | CCCISO9001Other |
| Insulation material | PE |
Product details
| Size | 80*80*200 |
|---|---|
| Color | white |
| Rangeof application | Other |
| Conductor type | Solid |
| Brand | Other |
| Application | Other |
| Sheath material | Other |
| Conductor material | Other |
| Material shape | RoundWire |
| Certification | CCCISO9001Other |
| Insulation material | PE |
From the supplier
Model NO.
AC90
Conductor Material
Copper
Insulation Material
XLPE
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, RoHS
Transport Package
Dumps
Specification
14 AWG to 2000 kcmil
Trademark
YT
Origin
China
HS Code
8544492100
Production Capacity
600km/Month
Product Description
AC90 CABLES
1.Scope
This Standard specifies requirements for single- and multi-conductor insulated cables having metallic interlocked armour without an overall jacket (Type AC90 or ACG90) or with an overall jacket (Type ACWU90 or ACGWU90).
Electrical Code, Part I, on systems having nominal voltages of 2000 V and less. ACG90 and ACGWU90 apply to multi-conductor cables only. ACG90 and ACGWU90 shall have voltages of 600 V and less.
This Standard specifies requirements for cables having insulated conductors in sizes 18 AWG to 2000 kcmil. The maximum cable temperature rating is 90 °C.

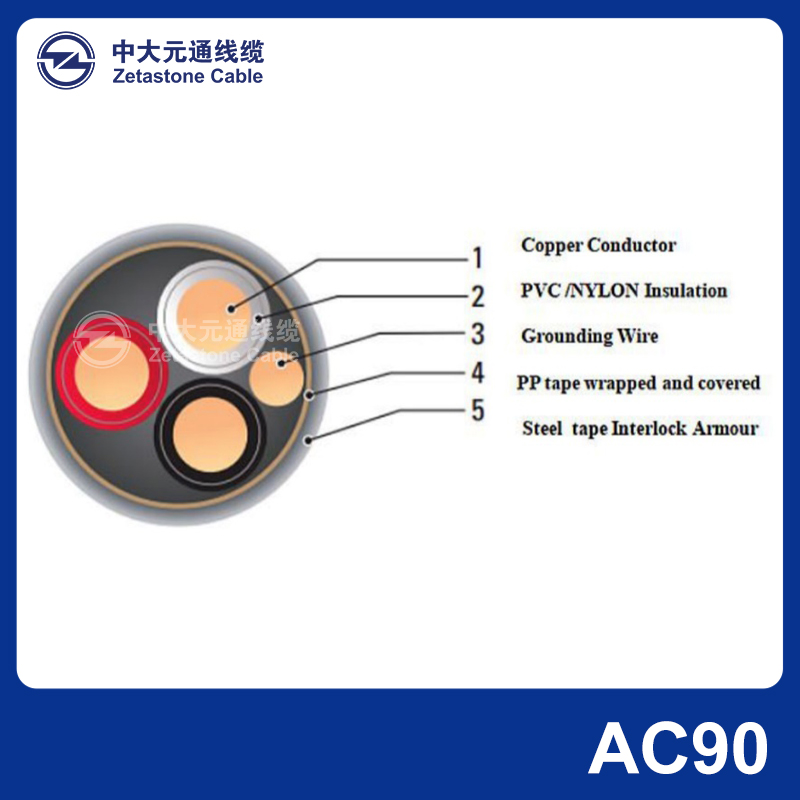

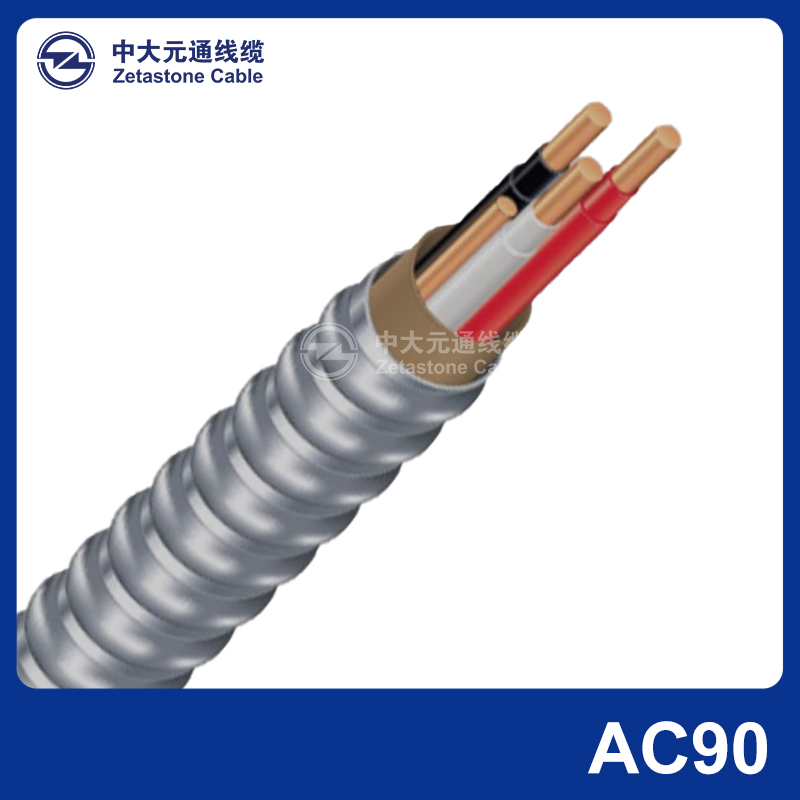

2.Construction
Conductor :Solid Soft Bare Copper Conductors, ASTM B3 8-2 AWG - Stranded Bare Soft Copper, ASTM B8
Insulation: Cross-linked Polyethylene Insulation (XLPE) CSA Type XL 90°C dry/wet 600V
Bonding: Solid Soft Bare and Insulated Copper Conductor
Armour :Aluminum or Galvanized Steel Interlock Armour
3. Applications
For exposed or concealed wiring in dry locations only.
Use in ventilated, non-ventilated and ladder-type cable trays or service entrance above ground.
4.FAQ
Q1.ABOUT US?
A1: Zhejiang Yuantong Wire & Cable Manufacturing Co., Ltd. is one of the enterprises of the high-end manufacturing sector of the Fortune Global 500 - Wuchan Zhongda Group(WZ Group) (stock code SH600704). It was Founded in 2000 with a registered capital of RMB 800 million, we are a leading technology company in China that produces the most complete varieties of Bare conductor & Power Cable & Fire-proof cable & UL & CSA List cables.
Q2:how about your quatity?
A2: We have built a provincial "factory of the future" and have the largest single and most efficient special cable intelligent production workshop in Asia. There are advanced production equipment and skilled workers, as well as mature testing equipment.
Q3:how about your price?
A3: Due to our scale and high degree of automation, we can reduce labor costs and procurement costs, so our prices are very competitive in the cable industry
Q4:how about your delivery time?
A4: We have spare core, so our production time can be compressed to 7 days.If your order is large,plz consult our sales staff for specific production time
Q5: can your offer sample service?
A5:we can provide free samples,but the shipping cost need be charged by you.
This Standard specifies requirements for single- and multi-conductor insulated cables having metallic interlocked armour without an overall jacket (Type AC90 or ACG90) or with an overall jacket (Type ACWU90 or ACGWU90).
Electrical Code, Part I, on systems having nominal voltages of 2000 V and less. ACG90 and ACGWU90 apply to multi-conductor cables only. ACG90 and ACGWU90 shall have voltages of 600 V and less.
This Standard specifies requirements for cables having insulated conductors in sizes 18 AWG to 2000 kcmil. The maximum cable temperature rating is 90 °C.
2.Construction
Conductor :Solid Soft Bare Copper Conductors, ASTM B3 8-2 AWG - Stranded Bare Soft Copper, ASTM B8
Insulation: Cross-linked Polyethylene Insulation (XLPE) CSA Type XL 90°C dry/wet 600V
Bonding: Solid Soft Bare and Insulated Copper Conductor
Armour :Aluminum or Galvanized Steel Interlock Armour
3. Applications
For exposed or concealed wiring in dry locations only.
Use in ventilated, non-ventilated and ladder-type cable trays or service entrance above ground.
4.FAQ
Q1.ABOUT US?
A1: Zhejiang Yuantong Wire & Cable Manufacturing Co., Ltd. is one of the enterprises of the high-end manufacturing sector of the Fortune Global 500 - Wuchan Zhongda Group(WZ Group) (stock code SH600704). It was Founded in 2000 with a registered capital of RMB 800 million, we are a leading technology company in China that produces the most complete varieties of Bare conductor & Power Cable & Fire-proof cable & UL & CSA List cables.
Q2:how about your quatity?
A2: We have built a provincial "factory of the future" and have the largest single and most efficient special cable intelligent production workshop in Asia. There are advanced production equipment and skilled workers, as well as mature testing equipment.
Q3:how about your price?
A3: Due to our scale and high degree of automation, we can reduce labor costs and procurement costs, so our prices are very competitive in the cable industry
Q4:how about your delivery time?
A4: We have spare core, so our production time can be compressed to 7 days.If your order is large,plz consult our sales staff for specific production time
Q5: can your offer sample service?
A5:we can provide free samples,but the shipping cost need be charged by you.
From the supplier
Model NO.
AC90
Conductor Material
Copper
Insulation Material
XLPE
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, RoHS
Transport Package
Dumps
Specification
14 AWG to 2000 kcmil
Trademark
YT
Origin
China
HS Code
8544492100
Production Capacity
600km/Month
Product Description
AC90 CABLES
1.Scope
This Standard specifies requirements for single- and multi-conductor insulated cables having metallic interlocked armour without an overall jacket (Type AC90 or ACG90) or with an overall jacket (Type ACWU90 or ACGWU90).
Electrical Code, Part I, on systems having nominal voltages of 2000 V and less. ACG90 and ACGWU90 apply to multi-conductor cables only. ACG90 and ACGWU90 shall have voltages of 600 V and less.
This Standard specifies requirements for cables having insulated conductors in sizes 18 AWG to 2000 kcmil. The maximum cable temperature rating is 90 °C.
2.Construction
Conductor :Solid Soft Bare Copper Conductors, ASTM B3 8-2 AWG - Stranded Bare Soft Copper, ASTM B8
Insulation: Cross-linked Polyethylene Insulation (XLPE) CSA Type XL 90°C dry/wet 600V
Bonding: Solid Soft Bare and Insulated Copper Conductor
Armour :Aluminum or Galvanized Steel Interlock Armour
3. Applications
For exposed or concealed wiring in dry locations only.
Use in ventilated, non-ventilated and ladder-type cable trays or service entrance above ground.
4.FAQ
Q1.ABOUT US?
A1: Zhejiang Yuantong Wire & Cable Manufacturing Co., Ltd. is one of the enterprises of the high-end manufacturing sector of the Fortune Global 500 - Wuchan Zhongda Group(WZ Group) (stock code SH600704). It was Founded in 2000 with a registered capital of RMB 800 million, we are a leading technology company in China that produces the most complete varieties of Bare conductor & Power Cable & Fire-proof cable & UL & CSA List cables.
Q2:how about your quatity?
A2: We have built a provincial "factory of the future" and have the largest single and most efficient special cable intelligent production workshop in Asia. There are advanced production equipment and skilled workers, as well as mature testing equipment.
Q3:how about your price?
A3: Due to our scale and high degree of automation, we can reduce labor costs and procurement costs, so our prices are very competitive in the cable industry
Q4:how about your delivery time?
A4: We have spare core, so our production time can be compressed to 7 days.If your order is large,plz consult our sales staff for specific production time
Q5: can your offer sample service?
A5:we can provide free samples,but the shipping cost need be charged by you.
This Standard specifies requirements for single- and multi-conductor insulated cables having metallic interlocked armour without an overall jacket (Type AC90 or ACG90) or with an overall jacket (Type ACWU90 or ACGWU90).
Electrical Code, Part I, on systems having nominal voltages of 2000 V and less. ACG90 and ACGWU90 apply to multi-conductor cables only. ACG90 and ACGWU90 shall have voltages of 600 V and less.
This Standard specifies requirements for cables having insulated conductors in sizes 18 AWG to 2000 kcmil. The maximum cable temperature rating is 90 °C.
2.Construction
Conductor :Solid Soft Bare Copper Conductors, ASTM B3 8-2 AWG - Stranded Bare Soft Copper, ASTM B8
Insulation: Cross-linked Polyethylene Insulation (XLPE) CSA Type XL 90°C dry/wet 600V
Bonding: Solid Soft Bare and Insulated Copper Conductor
Armour :Aluminum or Galvanized Steel Interlock Armour
3. Applications
For exposed or concealed wiring in dry locations only.
Use in ventilated, non-ventilated and ladder-type cable trays or service entrance above ground.
4.FAQ
Q1.ABOUT US?
A1: Zhejiang Yuantong Wire & Cable Manufacturing Co., Ltd. is one of the enterprises of the high-end manufacturing sector of the Fortune Global 500 - Wuchan Zhongda Group(WZ Group) (stock code SH600704). It was Founded in 2000 with a registered capital of RMB 800 million, we are a leading technology company in China that produces the most complete varieties of Bare conductor & Power Cable & Fire-proof cable & UL & CSA List cables.
Q2:how about your quatity?
A2: We have built a provincial "factory of the future" and have the largest single and most efficient special cable intelligent production workshop in Asia. There are advanced production equipment and skilled workers, as well as mature testing equipment.
Q3:how about your price?
A3: Due to our scale and high degree of automation, we can reduce labor costs and procurement costs, so our prices are very competitive in the cable industry
Q4:how about your delivery time?
A4: We have spare core, so our production time can be compressed to 7 days.If your order is large,plz consult our sales staff for specific production time
Q5: can your offer sample service?
A5:we can provide free samples,but the shipping cost need be charged by you.
