About this product
- Materials: Aluminum corrugated core
- Size: 1220*2440*4
- Color: Silver Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
About this product
- Materials: Aluminum corrugated core
- Size: 1220*2440*4
- Color: Silver Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
Product details
| Materials | Aluminum corrugated core |
|---|---|
| Size | 1220*2440*4 |
| Color | Silver Grey |
Product details
| Materials | Aluminum corrugated core |
|---|---|
| Size | 1220*2440*4 |
| Color | Silver Grey |
From the supplier
New A2 Fireproof grade Aluminum Corrugated Composite Panel

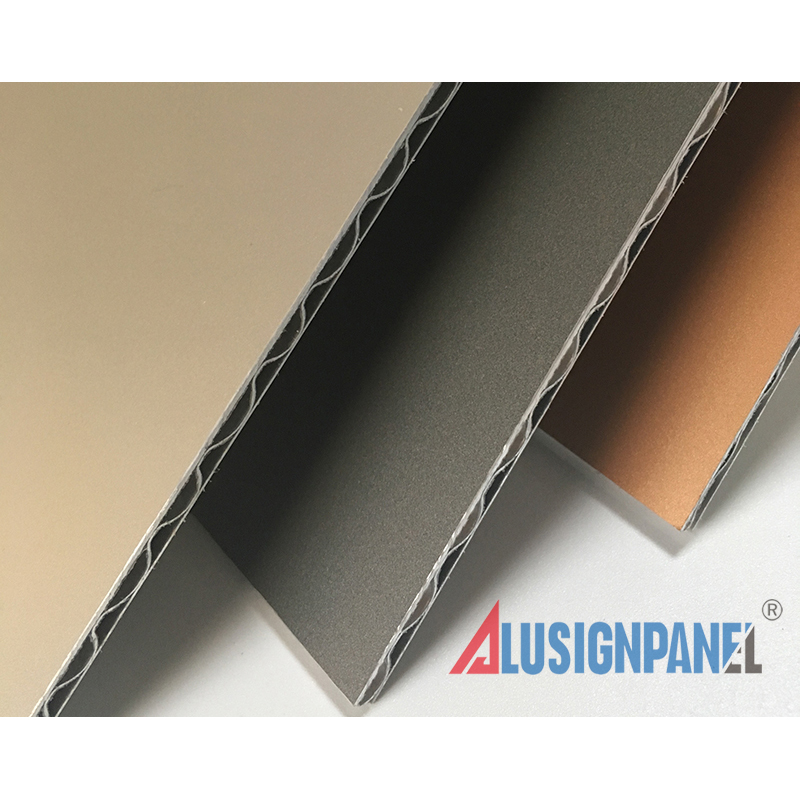

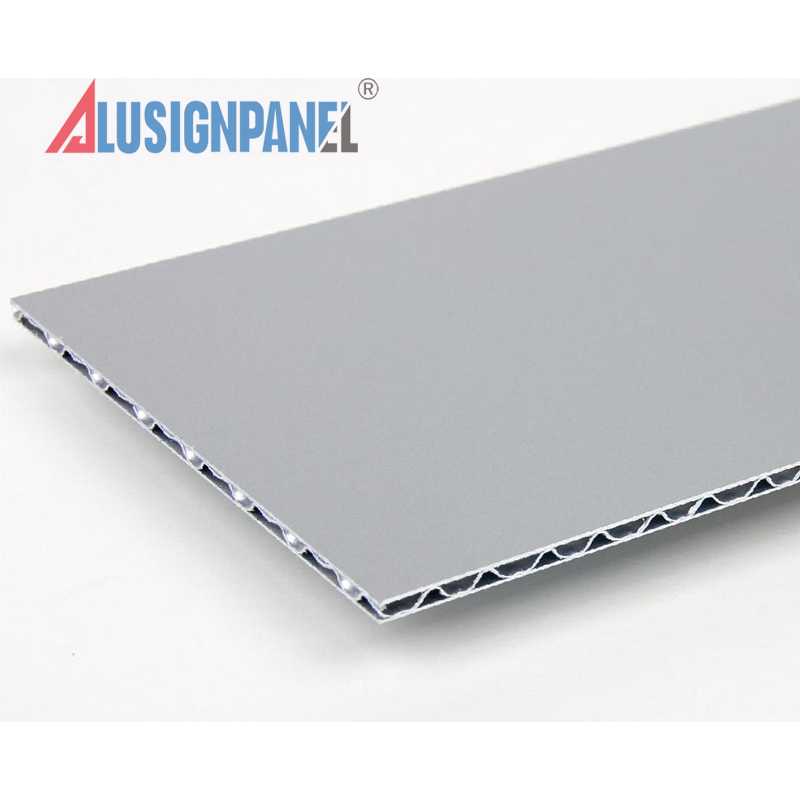

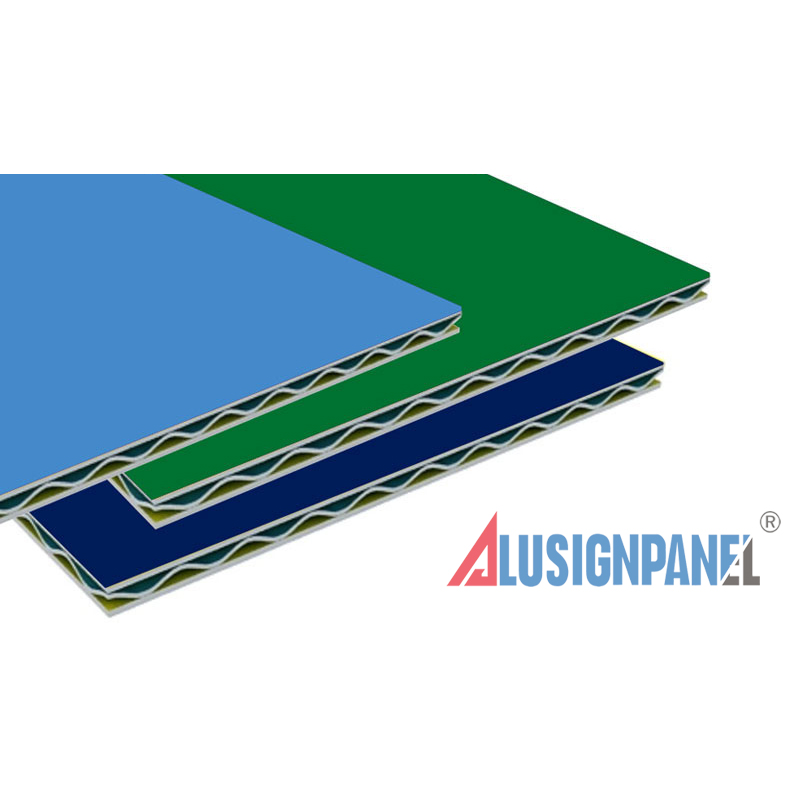

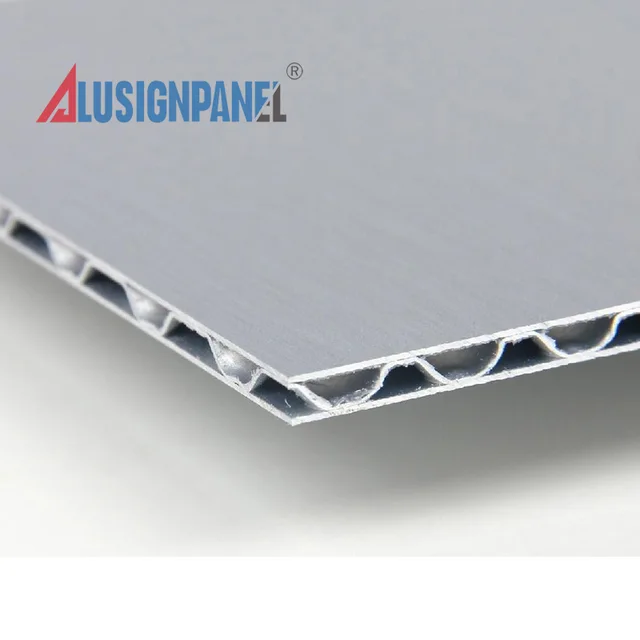

Aluminum Corrugated Composite Panel is called ACCP for short, it's made of pure Aluminum raw material, the core is corrugated Aluminum and composited by a special gluing layer.
This kind of material combines the main charcateristic of normal Aluminum composite panel and Aluminum solid panel, besides, the Fireproof function is also very well, which can reach A2 FR grade.
We believe this will be a new green decorative material in the future.
Product Dimension
Our standard product is 4mm x 1220mm x 2440mm, and available sizes are listed as follows:
Dimension
Available Size
Width
1220mm, 1250mm, 1500mm
Length
Upon request, but preferably
Panel thickness
3mm, 4mm, 6mm
Alu. thickness
Recommend 0.50mm, 0.60mm
Others
Accept custom sizes too
Comparative table of main exterior materials
Item
Alu. Composite Panel
Alu. Solid Panel
Alu. Corrugated Composite Panel
Material Skin
0.50mm
3.00mm
0.50mm / 0.60mm
Thickness
4mm
3mm
4mm, 6mm
Weight
5.5Kg/m2
8.1Kg/m2
3.7Kg/m2, 4.3Kg/m2
Light Weight
Good
Normal
Excellent
FR Function
Normal
Good
Good
Advantage
- * Durable & Economic
- * Heat-insulation
- * Non-combustible, FR A2 Grade
- * Light Weight
- * Eco Friendly
- * Sound-insulation
Fire-resistance Performance Standard
No.
China
Germany
U.S.A.
France
U.K.
GB/T8627
DIN 4102
ASTM E84
NFF16-101
BS-476
1
A1, A2
A1, A2
NC
MO
O
2
B1
B1
A
M1, M2
1
3
B2
B2
B, C
M3
2, 3
Level and Combustion Property
Degree
Item
Degree
Item
A
None-combustion
B1
Hard-combustion
B2
Combustion
B3
Combustible
Degree
Material
The Combustion Performance Indicators
None-combustion
Class A Material
According to GB/T8625 test, the average length of the remaining ≤35cm (including any residual specimen length ≥20cm) for each test and average flue gas temperature peak ≤150℃, no specimen back burner the scene;
According to GB/T8627 test, their smoke density levels (SDR) ≤15;
According to GB/T14002 and GB/T14403 test, its calorific value ≤4.2MJ/kg, and the specimen thermal emission per unit area ≤16.8MJ/m2;
Toxicity materials combustion flu gas of the entire non-lethal concentration of ≥25 mg/L.
Hard-combustion
Class B1 Material
According to GB/T8626 test, its combustion properties should be met GB/T8626, and does not allow any dropping of combustion burn the filter paper;
According to GB/T8625 test, the average of each specimen remaining length ≥15cm (including any residual specimen length ≥0cm), and average peak temperature of gas ≤200℃ in each test.
According to GB/T8627 test, their smoke density levels (SDR) ≤75.
From the supplier
New A2 Fireproof grade Aluminum Corrugated Composite Panel
Aluminum Corrugated Composite Panel is called ACCP for short, it's made of pure Aluminum raw material, the core is corrugated Aluminum and composited by a special gluing layer.
This kind of material combines the main charcateristic of normal Aluminum composite panel and Aluminum solid panel, besides, the Fireproof function is also very well, which can reach A2 FR grade.
We believe this will be a new green decorative material in the future.
Product Dimension
Our standard product is 4mm x 1220mm x 2440mm, and available sizes are listed as follows:
Dimension
Available Size
Width
1220mm, 1250mm, 1500mm
Length
Upon request, but preferably
Panel thickness
3mm, 4mm, 6mm
Alu. thickness
Recommend 0.50mm, 0.60mm
Others
Accept custom sizes too
Comparative table of main exterior materials
Item
Alu. Composite Panel
Alu. Solid Panel
Alu. Corrugated Composite Panel
Material Skin
0.50mm
3.00mm
0.50mm / 0.60mm
Thickness
4mm
3mm
4mm, 6mm
Weight
5.5Kg/m2
8.1Kg/m2
3.7Kg/m2, 4.3Kg/m2
Light Weight
Good
Normal
Excellent
FR Function
Normal
Good
Good
Advantage
- * Durable & Economic
- * Heat-insulation
- * Non-combustible, FR A2 Grade
- * Light Weight
- * Eco Friendly
- * Sound-insulation
Fire-resistance Performance Standard
No.
China
Germany
U.S.A.
France
U.K.
GB/T8627
DIN 4102
ASTM E84
NFF16-101
BS-476
1
A1, A2
A1, A2
NC
MO
O
2
B1
B1
A
M1, M2
1
3
B2
B2
B, C
M3
2, 3
Level and Combustion Property
Degree
Item
Degree
Item
A
None-combustion
B1
Hard-combustion
B2
Combustion
B3
Combustible
Degree
Material
The Combustion Performance Indicators
None-combustion
Class A Material
According to GB/T8625 test, the average length of the remaining ≤35cm (including any residual specimen length ≥20cm) for each test and average flue gas temperature peak ≤150℃, no specimen back burner the scene;
According to GB/T8627 test, their smoke density levels (SDR) ≤15;
According to GB/T14002 and GB/T14403 test, its calorific value ≤4.2MJ/kg, and the specimen thermal emission per unit area ≤16.8MJ/m2;
Toxicity materials combustion flu gas of the entire non-lethal concentration of ≥25 mg/L.
Hard-combustion
Class B1 Material
According to GB/T8626 test, its combustion properties should be met GB/T8626, and does not allow any dropping of combustion burn the filter paper;
According to GB/T8625 test, the average of each specimen remaining length ≥15cm (including any residual specimen length ≥0cm), and average peak temperature of gas ≤200℃ in each test.
According to GB/T8627 test, their smoke density levels (SDR) ≤75.
About the supplier
Main products: Synthetic aluminium plate, aluminium composite panel, aluminium-plastic panel,Fireproof aluminum composite panel
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2000
- ✓Canton Fair Premium Supplier
- ✓Brand exhibitor
- ✓National high-tech enterprise
Building & Furniture exhibitors show in Phase 2 of the Canton Fair, 23 to 27 October 2026.
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2000
- Canton Fair Premium Supplier
