Overview
Quick DetailsWarranty:3 yearsAfter-sale Service:Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and ReplacementProject Solution Capability:graphic design, 3D model design, total solution for projects, Cross Categories ConsolidationApplication:Hospital, School, Office,domitory,toilet,bathroom etc.Place of Origin:Shandong, ChinaBrand Name:LIDAModel Number:LDP2016Product name:Steel material EPS sandwich panel prefab houseMain Materials:Q235 Steel,steel square tubeWall and Roof:Sandwitch panelSize:Custom RequiredFeature:cheaper,multiduty,easy installation,recyclableCertificate:ISO9001,EN1090,BV,SGSStructure:steel structureUsage:living,work,washing,rent etc.Color:CustomizedProduct Certification  CE Certified.Valid from 2017-02-08 until 2049-12-31Supply AbilitySupply Ability:5000.0 Square Meter/Square Meters per WeekPackaging & DeliveryPackaging DetailsNormal Container transportation package.PortQindao sea port,China
prefabricated school building supplier in china Product Description

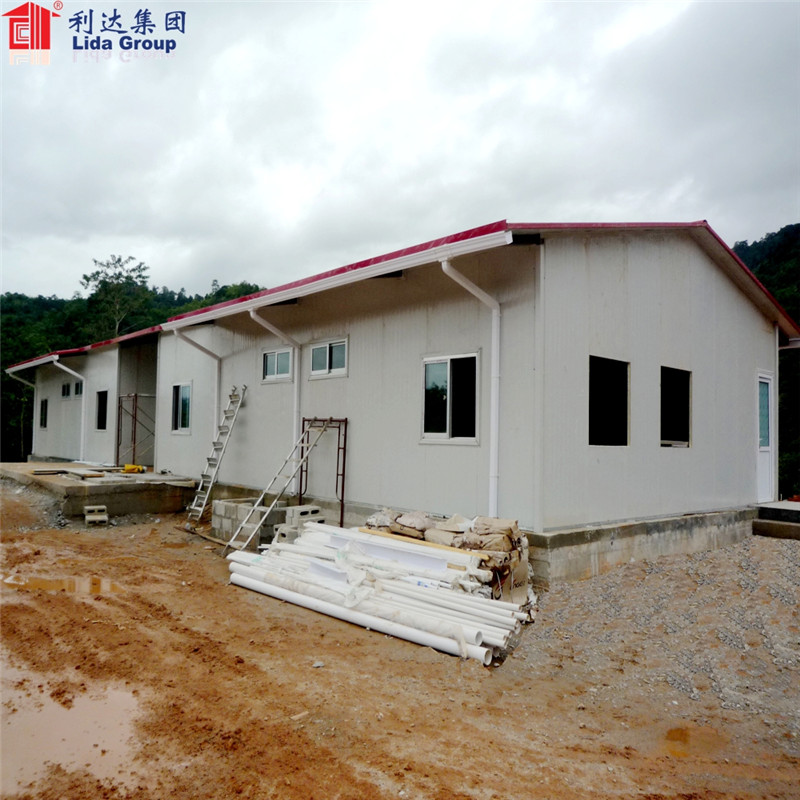

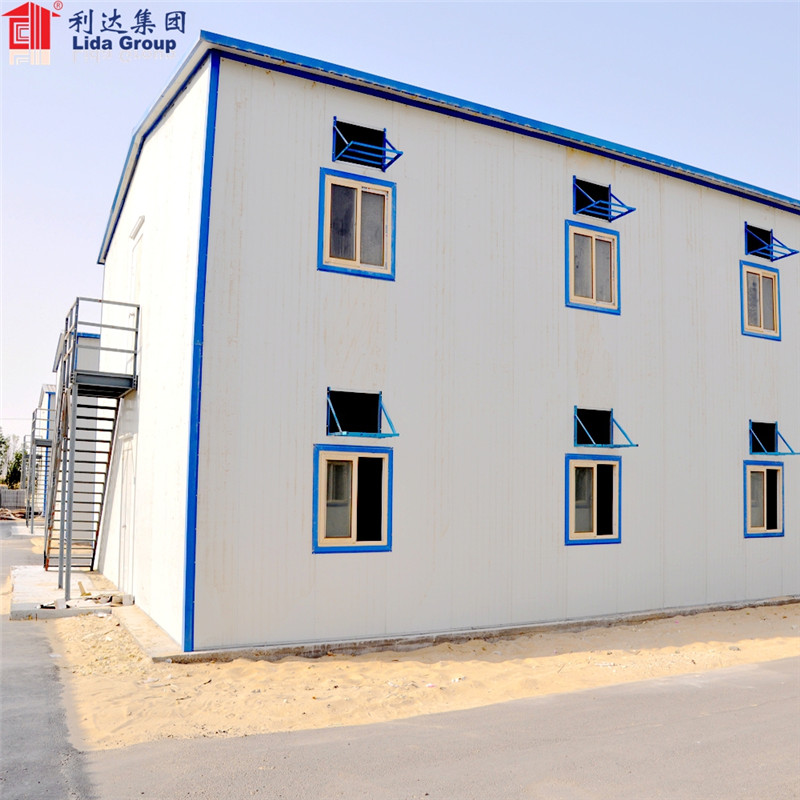

Prefabricated House

Prefabricated house is made of light steel as steel structure and sandwich panels for wall and roof. The sandwich panels can be polystyrene, polyurethane, rock wool and fiber glass sandwich panels for insulation. As a standardized construction product, it has below main features: Dry installation, no construction garbage caused; Environment protective materials adopted, repeated use and low cost; Flexible size and easy to assemble and disassemble with elegant appearance; Safe and durable. It is suitable for temporary buildings such as dormitory, canteen, recreation room, washing room, etc.



Technical Parameter of standard prefabricated house:

1. Wind resistance: Grade 11(wind speed≤111.5km/h)

2. Earthquake resistance: Grade 7

3. Live load capacity of roofing: 0.5kn/m2

3. External and internal wall heat transmission coefficient: 0.35Kcal/m2hc

4. First floor load capacity: 150 kg/m2

5. Live load of corridor is 2.0kn/ m2

6. Four skilled workers can finish installation of 100sqm in 8 hours for the light steel structure.

7. Most components of the house are recycled, so the shelf life is over 20 years without any building garbage.

8. We can design and produce the house according to customer’s request.

9. We can provide the service of installation, supervision and training by extra.



No.



ItemSpecification & Remark1



Steel Structure



Q235 steel (painting)

Square Tube columns, C section steel purlin and  roof truss etc.

2



Roof panel



75mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3

(or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.)

3



Exterior wall panel



75mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3

(or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.)

4



Interior wall panel



50mm EPS panel with 0.4mm galvanized color steel on both sides, density for EPS is 12kg/m3

(or other materials such as rock wool panel,fiber glass panel etc.Thickness could be 50mm,75mm or 100mm.)

5



Door



Sandwich panel door6



Windows



PVC sliding window 7



Ceiling



6mm Gypsum /
12mm PVC

8



flooring for first floor



18mm Plywood9



First floor covering



1.5mm PVC floor leather10



Accessories



0.4mm Galvanized color steel edge cover, self-screws, bolts and so on.Packaging & Shipping



Our Services

1. Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.



 2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.



3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.

Items&Project Show



Company Information

 We Weifang Henglida Steel Structure Co.,Ltd.( Lida Group)  is one of the leading manufacturers of the prefabricated house, Flat Packed container house, steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 20 years, and we have exported our products to more than 110 countries as well as our domestic market and the quality has been approved by CE, ISO9001:2000, BV and SGS.
