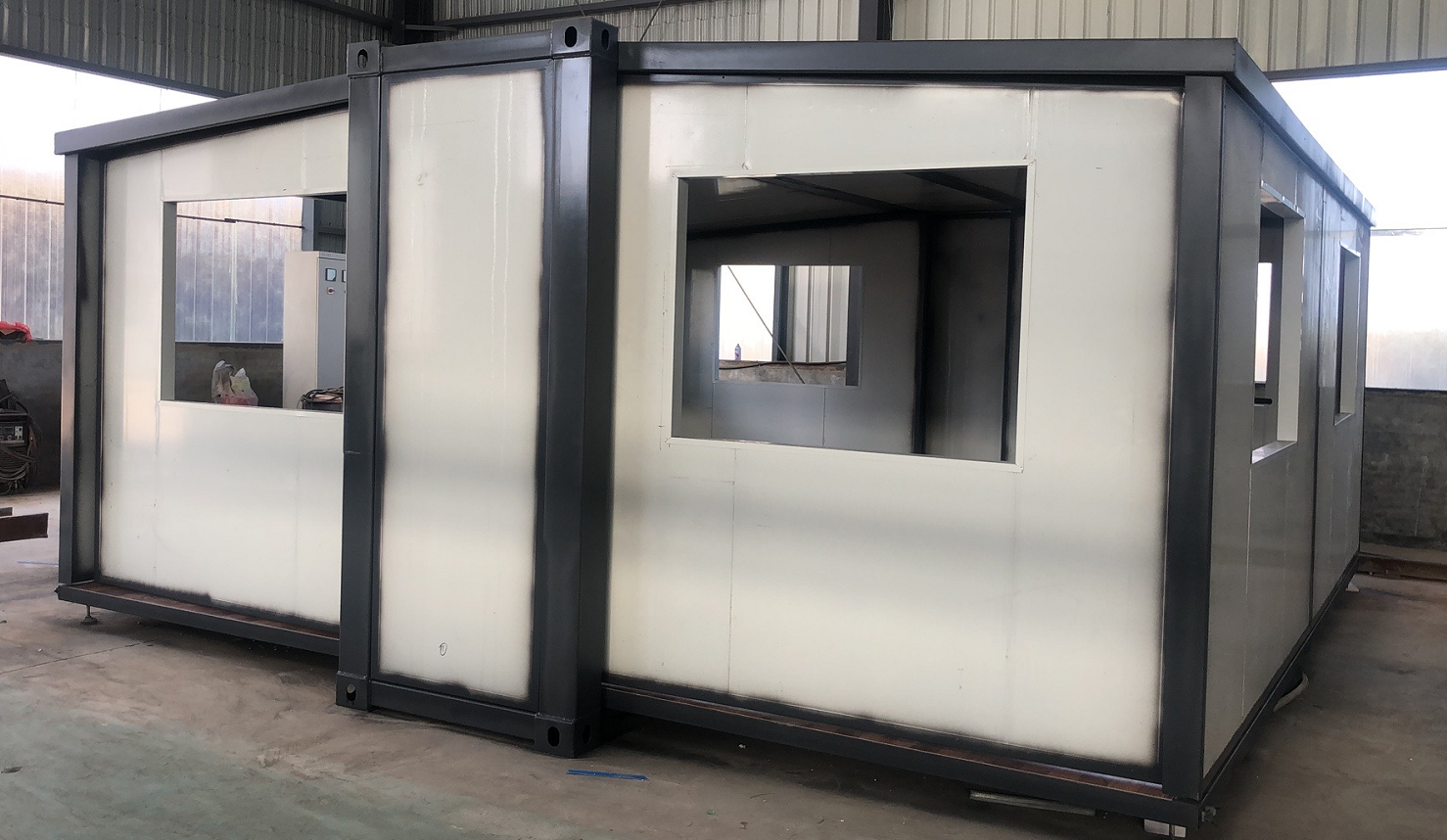

20 ft tiny expandable container house

Standards expandable container house 20ft

Size: length 5850m*Width5100m*High2530m after expanding

Package size : 5850*1100*2530 mm

High expandable container house That is special size for Australian

Size:5850mm length*W1100mm*H2530mm

CE ,UL ,CUL SAA standards.

Plastic steel entry  glass sliding door and windows

Qty : 4 set /40 HQ

20 ft small tiny expandable container house  and the detail floor plan

The standard layout as below . And the customized layout is available .

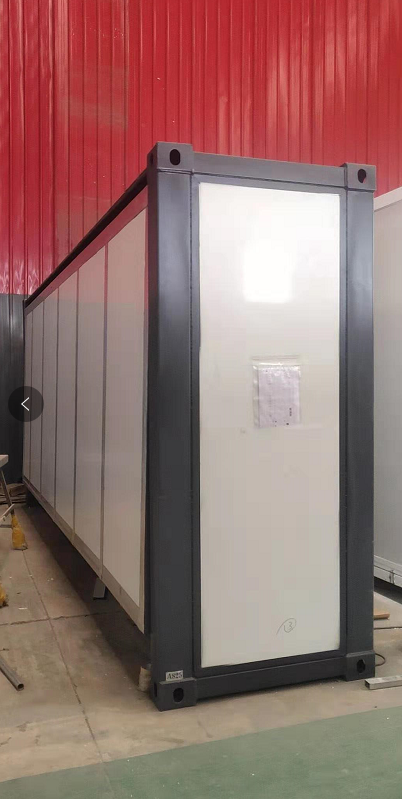

The cargo under the production



Product Description

External sizeL5850mm*W5100*H2500mmPacking size L5850*W1100/mm*H2500mm
Steel frame Galvanized /Painted high strength steel frame Option size20ft, 40ft, etc.Main materialGalvanized steel structure with sandwich panel wall and doors,windows, etc.Weight2500kgColorWhite, blue, green, brown, or customizedRoof3-4mm Hot galvanized steel structure with 4 corner casts and
(1)Galvanized steel roof covering;
(2)50mm -70mm eps sandwich panel or PU sandwich panel ;
(3)50mm-70mm eps sandwich panel or PU sandwich panel ;Columns3mm Hot galvanized steel structureWall50/75/100mm EPS/Rock woll/PU sandwich panelDoorMade of steel/aluminum frame, dimension W870*H2040mm, furnish with a handle lock with 3 keys,or sliding glass door W1500*2000mm.WindowMade of PVC/aluminum fame,dimension W930*H1100mm,glazed with double glass in a thickness of 5/8/5mm.Connection kitsPVC Connection kits for ceiling,floor and walls.Electricity3C/CE/CL/SAA Standard,with distribution box,lights,switch,sockets,etc.Optional accessoriesFurniture,sabnitary,kitchen,A/C,electrical appliance for accomodation,office,dormitory,toliet,kitchen,bathroom,shower,steel roof,cadding panels,decorative material,etc.
Expandable Container Home
1. Structure: the structure is safe and stable, with good wind protection, seismic performance, good air tightness and sound insulation.
2. Installation: low requirements for installation foundation, easy to move and move, flexible and convenient on site, extremely fast lifting speed, short construction period.
3. Cost aspect: when lifting, the whole hoisting is free, the relocation cost is low.
4. Appearance: the overall design is beautiful, generous, high-grade and neat, which can better enhance the corporate image of users.
5. Usage: the number of modular container rooms can be increased or decreased, which is more flexible and economical than mobile rooms.
6. Other: service life over 15 years.Interior displayContainer house Includes:
1. Plywood flooring under laminate timber or vinyl.2. Internal partition walls for Bathroom and Bedrooms.
3. Free Bathroom Inclusions - Shower Room, Toilet Suite, Vanity Cabinet with Basin and Tap mixer.
4. Free Kitchen Inc. laminated timber cupboards, synthetic Caesar stone benchtop, sink & Tap mixer.
5. Plumbing and Sanitary wares.
6. Double glazed aluminium windows and sliding doors.
7. Electrical appliances not included.
The standard range of our plans can be modified and additions made to suit your individual requirements.
MaterialAssembleCompany ProfileFAQ1. You are manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you
our professionalism. Also you will can get best and most competitive price after visiting us.
2. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything
we can to reduce your cost and guarantee you get the best product that you paid for.
3. Can you send engineers or whole team to install my project?
We will give detailed installation drawings and video for free. We can send engineers as installation director or a team upon
request.
4. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
5. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures
(Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5
star hotel.
6. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 30 days after
receiving deposit.
7. How can you get a quotation for your projects?
You can contact us by email, phone, Alibaba TM, WhatsApp, Skype, Viber and so on 24*7 and you will get reply within 8 hours.
