About this product
- Materials: Cast Iron
- Size: 2000*1320*2060*
- Color: Red
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
About this product
- Materials: Cast Iron
- Size: 2000*1320*2060*
- Color: Red
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
Product details
| Materials | Cast Iron |
|---|---|
| Size | 2000*1320*2060* |
| Color | Red |
Product details
| Materials | Cast Iron |
|---|---|
| Size | 2000*1320*2060* |
| Color | Red |
From the supplier

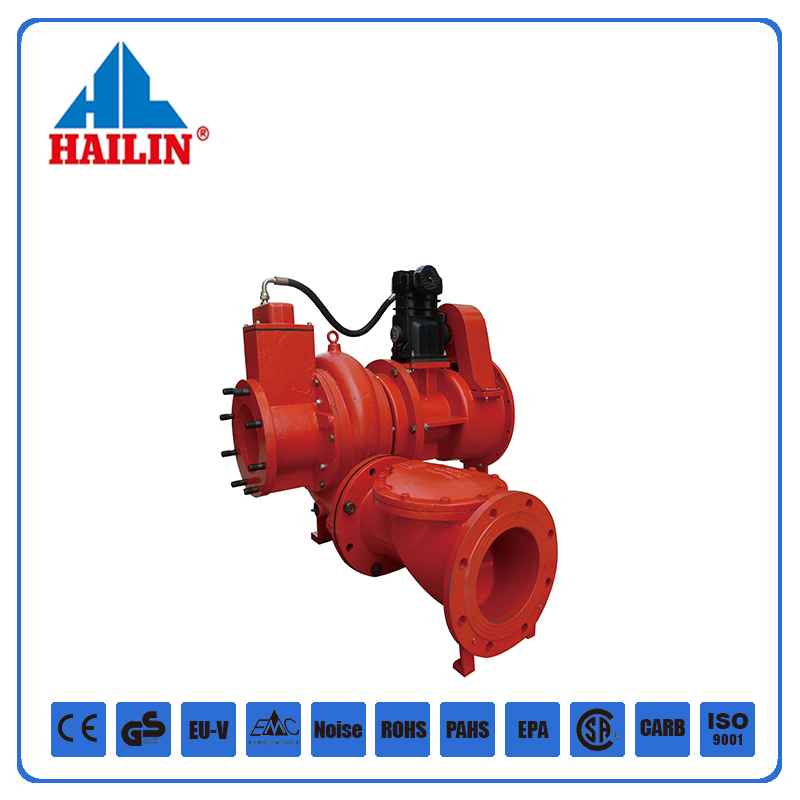

PRODUCT INTRODUCTION
-Sturdy and durable cast iron material.
-Pump integrated with air compressor, external jet device, mechanical seal lubricated separately and check valve, automatic start without water injection, self-priming time significantly reduced.
-In order to reduce power loss, air compressor assemble with cluth, can stop after the pump operated.
-Adopt high quality silicon carbide mechanical seal
-HCDW200E/HCDW200WE impeller made by case steel, special impeller design brings high efficiency and high head with large flow rate
-HCDT200E/HCDT200WE impeller made by spheroidal graphite cast iron, 10 times better wear-resisting and performance than standard cast iron.
-HCDT200E/HCDT200WE max solids handlind 70mm.

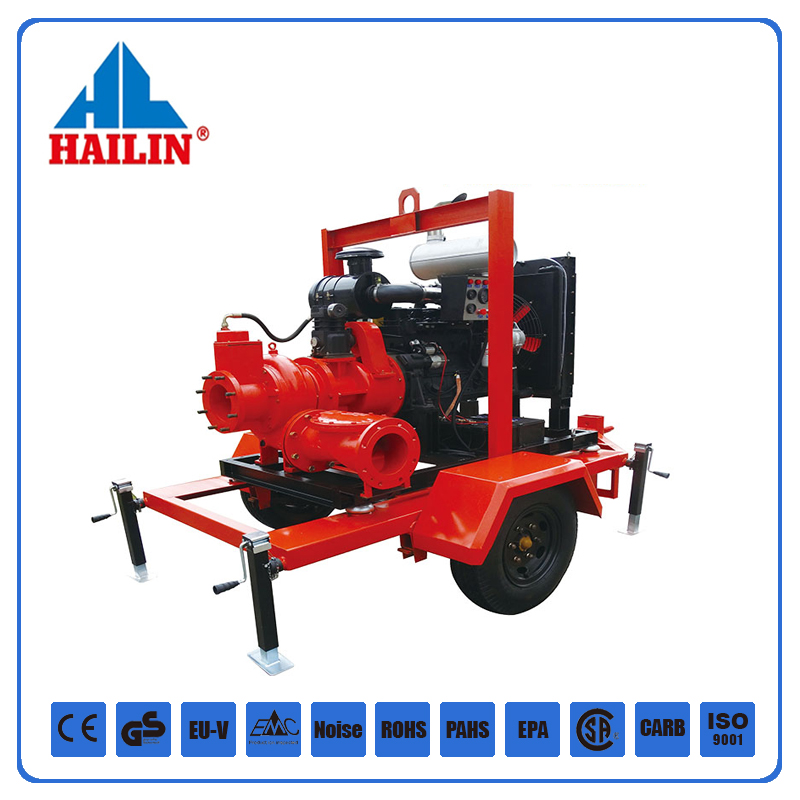

-HCDW200WE/HCDT200WE with trailer design, easy moving, coupled with 360L fuel tank.
SPECIFICATION
Model
HCDW200E/ HCDW200WE
HCDT200E/ HCDT200WE
Inlet Inch (mm)
8" (200mm)
8" (200mm)
Outlet Inch (mm)
8 "(200mm)
8 "(200mm)
Max. Head (m)
60
51
Suction Lift (m)
8
8
Max Flow (m3/hour)
590
625
Engine
Cummins 6BT5.9-C150
Cummins 4BTA3.9-C125
Displacement (CC)
5.9
3.9
Maximum output (HP)
109
93
Working Speed (rpm)
2200
2200
Fuel Tank Capacity (L)
380
380
Dimension (L*W*H) (mm)
2000*1320*2060
2900*2020*2660
2000*1320*2060
2900*2020*2660
Weight (kg)
1336/2036
1262/1962
PRODUCTION LINE
